BRC-X400

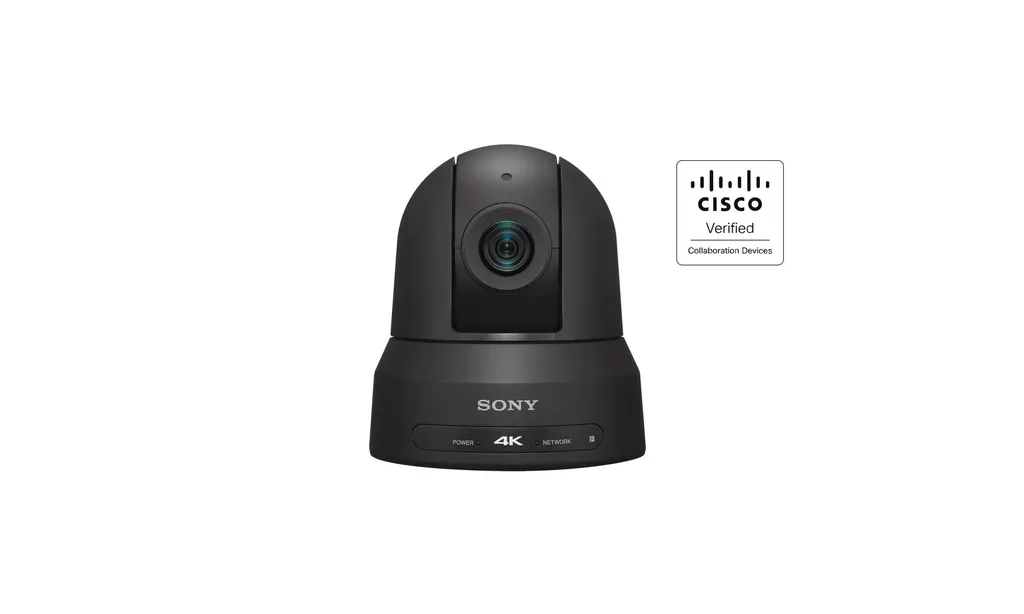

Sony BRC-X400 4K30P IP PTZ Camera with 30x Zoom

Video: 3840x2160
Zoom: 30x (4K with CIZ)
Connectivity: VISCA RS-422 RJ45 (In/Out)

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sony BRC-X400 is a 4K IP pan-tilt-zoom camera for live production, lecture capture and studio work. Its 1/2.5-type Exmor R sensor outputs 4K at 29.97p and 25p, the lens reaches 30x zoom in 4K, and NDI|HX, RTSP, RTMP and SRT let it feed networked systems. It suits lecture halls, studios and event venues across Doha and Education City. Request a quote.

What the BRC-X400 is and how it is built

The Sony BRC-X400 is a pan-tilt-zoom camera that sends 4K video over an IP network. It pairs a 1/2.5-type Exmor R CMOS sensor with roughly 8.5 million effective pixels and an integrated lens with a focal length of 4.4 mm at wide to 88.0 mm at tele, at F2.0 to F3.8. One camera can run fixed shots, follow presets, or be steered by an operator, which suits rooms where one person needs to cover several positions without a camera crew.

Power and signal can share one cable when the camera is fed by PoE+ (IEEE 802.3at), which reduces the cabling an installer must pull through ceilings and trunking. A DC 12 V input with the supplied AC adaptor is also available, and the camera draws 25.5 W at most.

Image and zoom figures that matter in practice

In 4K the lens reaches 30x zoom with Clear Image Zoom. In Full HD, Clear Image Zoom gives 40x, and combining it with Tele Convert Mode extends the HD figure to 80x. The wide end covers an approximate 70 degree horizontal angle, enough to show an entire lecture room or stage from one fixed position. Horizontal resolution is rated at 1700 TV lines in 4K. Minimum illumination is 1.6 lux under Sony's stated conditions (1/30 s, 50 IRE, F2, high sensitivity off), so a dimly lit lecture theatre or controlled studio can still produce usable pictures.

Output options depend on resolution. In 4K the camera provides one HDMI output and one IP streaming output. In HD, 3G-SDI is available alongside HDMI and IP, which helps when a broadcast switcher still runs on SDI. A BNC external sync input (75 ohm) supports multi-camera work, and a front tally lamp shows when the camera is on air.

Streaming, NDI|HX and control options

The camera encodes H.264 and H.265 and supports RTSP, RTMP and SRT. RTMP and SRT require firmware V3.00. Up to three streams can run at once with up to five clients connected, and the bitrate range runs from 512 Kbps to 50 Mbps. Audio is 2-channel AAC with two 3.5 mm microphone or line inputs, and embedded audio is carried on SDI and HDMI.

NDI|HX capability lets the camera join an NDI network, but the NDI|HX licence is sold separately and must be budgeted for. Camera control runs over VISCA RS-422, VISCA over IP and S700PTP, and the camera stores 256 presets over CGI or 100 over VISCA. For virtual sets, the camera can output pan, tilt, zoom and focus tracking data in the free-d protocol, which requires firmware V2.10.

Planning a BRC-X400 installation in Qatar

Consider a lecture hall at a campus in Education City where the camera is ceiling-mounted at the back of the room and linked to a lecture-capture system over IP. Ceiling brackets are supplied, but the mountable angle is less than 15 degrees either side of level, so the position should be surveyed before drilling. A production suite in Msheireb or West Bay may use the camera with an NDI|HX licence to feed a switcher, and a hall in Lusail hosting a town hall may stream to an online platform over RTSP or SRT.

Operating temperature is rated from 0 C to 40 C, which is well below the outdoor summer conditions common in Qatar, where temperatures can pass 45 C. Plan for air-conditioned rooms and confirm the environment with the SmartRooms Qatar team before any outdoor or window-facing installation. Dust storms make the same point for any equipment that is not protected.

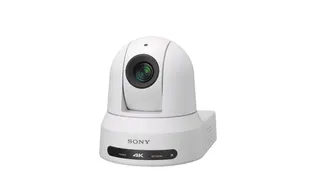

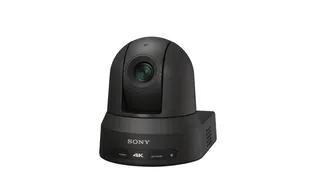

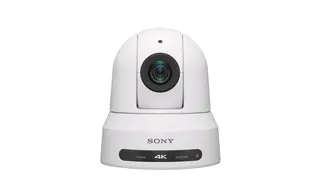

Other planning details: the camera body is available in white or black, weighs approximately 1.8 kg, and measures 158.4 x 177.5 x 200.2 mm. The package includes an IR remote commander, two ceiling brackets, a wire rope, an HDMI cable fixing plate and a warranty document, and the camera is covered by the manufacturer's warranty.

SmartRooms Qatar supplies the BRC-X400, delivers to all eight municipalities of Qatar, and can arrange professional installation after a free site survey. Request a quote and we will confirm the licences, firmware and accessories your setup needs, with the quotation usually issued within one working day.

Highlights

1/2.5-type Exmor R CMOS sensor, approx. 8.5M effective pixels
30x zoom in 4K; up to 80x in HD with Tele Convert Mode
Approx. 70 degree horizontal wide viewing angle
NDI|HX capability; licence sold separately
RTSP, RTMP and SRT streaming with H.264 and H.265 encoding
PoE+ or 12 V DC power; single IP cable option

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

87 specifications · Source: manufacturer · checked Oct 2026

Camera27

Image Sensor: 1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels): Approx. 8.5M pixels
Signal System: 2160/29.97p, 25p, 23.98p 1080/59.94p, 50p, 29.97p, 25p, 23.98p 1080/59.94i, 50i 720/59.94p, 50p
4K Capability: Yes (built-in 4K functions)
Minimum Illumination (50IRE): 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution: 1700 TV lines (Center) (4K) 1000 TV lines or higher (Center) (FHD)
Gain: Auto/Manual (0 to +48 dB) (High Sensitivity On)
Shutter Speed: 1/1 to 1/10000 sec (59.94 Hz system) 1/1 to 1/10000 sec (23.98 Hz system) 1/1 to 1/10000 sec (50 Hz system)
Exposure Control: Auto, Manual, Priority AE (Shutter, Iris)
White Balance: Auto1, Auto2, One Push WB Indoor, Outdoor, Manual
Zoom Capability: 30x (4K with CIZ), 40x (HD with CIZ), Max. 80x (HD with CIZ* and Tele Convert Mode) *CIZ = Clear Image Zoom
Focusing System: Auto/Manual
Horizontal Viewing Angle: Approx. 70° (Wide)
Focal Length: f=4.4 mm (Wide) to 88.0 mm (Tele) F2.0 to F3.8
Minimum Object Distance: 80 mm (Wide)~ 800 mm (Tele)
Pan/Tilt Angle: Pan: ±170° Tilt: +90°/-20°
Pan/Tilt Speed (Max.): Pan: 300°/s Tilt: 126°/s
Pan/Tilt Speed: Pan: 1.1° to 101°/s Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow): Pan: 0.5° to 60°/s Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode: Yes
Pan/Tilt Operation Noise: NC30 or less * * Sony measurement conditions
Preset Position: 256 (CGI) 100 (VISCA)
Picture Freeze Preset: Yes
Preset Mode1/Mode2: Yes
PTZ Trace Memory: Yes
PTZ Motion Sync: Yes
Camera Tracking Data Output: Yes (Requires firmware V2.10)

Network9

IP Video Resolution: 3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 640x360
Compression Format: H.264: High, Main, Baseline Profile H.265: Main Profile
Maximum Frame Rate: H.264: 60fps H.265: 60fps
Bitrate Compression Mode: CBR/VBR (selectable)
Range of Bitrate Setting: 512 Kbps ~50 Mbps
Multi Streaming Capability: 3
Maximum Number of Clients: 5
Protocols: IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
NDI®|HX Capability: Yes (requires a license sold separately)

Camera Features22

Auto ICR (Auto mode of IR Cut filter Removal): Yes
Day/Night: Yes
Visibility Enhancer: Yes
Image Stabilization: Yes
Image Flip: Yes
Picture Setting File: Yes
Picture Profile Preset: Yes
Color Gain: Yes (15 steps)
Color Hue: Yes (15 steps)
Color Matrix: Yes (STD, HIGH SAT, FL LIGHT, MOVIE, STILL, CINEMA, PRO, ITU709, B&W)
Gamma: STD, STRAIGHT, 512 PATTERN, MOVIE, STILL, CINE1, CINE2, CINE3, CINE4
Gamma Level: Yes (15 steps)
Black level: Yes (97 steps)
Black Gamma: Yes (15 steps)
Knee Point: Yes (13 steps)
Knee Slope: Yes (15 steps)
Flicker Cancel: On/Off
Color Bar: On/Off
Color Bar Overlay Name: On/Off
Hide OSD Menu: On/Off
Standby Mode: Yes
Remote Standby: Yes

Web UI1

Ver Up: Yes

Audio5

Channel: 2ch
Audio Codec: AAC LC 128kbps/ST (IP) AAC LC 256kbps/ST (IP)
Setting Option: Auto Level Control (ALC): On/Off Equalizer: Off, Low cut, Voice enhancement Input selection: Microphone/Line Mic volume: -10~+10 (21 steps) Audio codec
Embedded Audio in Baseband Video: Yes (3G-SDI, HDMI)
Embedded Audio in IP Streaming: Yes

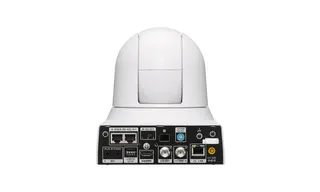

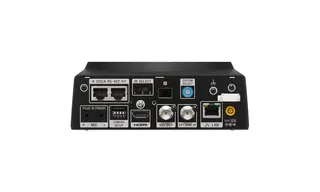

Interface11

4K Video Output: HDMI x1 and IP (streaming) x1
HD Video Output: 3G-SDI x1, HDMI x1, IP (streaming) x1
Remote Video Format Switching: Yes
HDMI Color Space: YCbCr, 4:2:2 8 bit RGB, 4:4:4 8 bit
Camera Control Interface: VISCA RS-422 RJ45 (In/Out) VISCA over IP RJ-45 S700PTP RJ-45
IR Remote Control: Yes
Microphone Input: Mini-phone (φ3.5mm) x2 (Mic/Line Selectabe)
Sync. System: EXT/INT
External Sync. Input: BNC, 75Ω, HD 3-level sync, SD Black Burst
Tally: Front x 1
Power Connector Type: IEC60130-10 (JEITA standard RC-5320A) TYPE4

General11

Power Requirements: DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption: 25.5 W Max.
Operating Temperature: 0 °C to 40 °C 32 °F to 104 °F
Storage Temperature: -20 °C to +60 °C -4 °F to +140 °F
Dimensions (W x H x D)*1: 158.4 x 177.5 x 200.2 mm 6 1/4 x 7 x 8 inch
Mass *1: Approx. 1.8 kg 3 lb 15.5 oz
Camera Body Color: White/Black
Size of Screw Hole for Tripod: 1/4-20UNC x1
Mountable Angle: < ±15°
Ceiling Mount: Yes
Supplied Accessories: AC power adaptor (1) IR Remote Commander Unit (1) Ceiling bracket (2) Wire rope (1) Screw M3 x 8 (9) Screw M2.6 x6 BLACK (1) HDMI cable fixing plate (1) Safety regulation (1) Download site information (1) Warranty (1)

Notes1

*1: The values for dimensions and mass are approximate

Downloads

18 files from the manufacturer

PDF Datasheets BRC-X400_spec_sheet_en_GB.pdf 823 KB PDF Manuals & guides BRC-X1000_X400_series_integration_manual_CameraTrackingFunction_v1.0.pdf 255 KB PDF Manuals & guides BRC-X400 - X401 - SRG-X400 - X402 - 201M2 - X120 - HD1M2 CGI Command List_E7761001M.pdf 1.5 MB PDF Manuals & guides BRC-X400 - X401 - SRG-X400 - X402 - 201M2 - X120 - HD1M2 VISCA Command List_E0421001M.pdf 311 KB PDF Manuals & guides Operating Instructions_50112501M.pdf 7.5 MB PDF Manuals & guides Remote Camera System Guide_C9601001M.pdf 15.9 MB PDF Manuals & guides User's Guide - RM-IP Setup Tool Guide_50728311M.pdf 486 KB PDF Manuals & guides User's Guide - RM-IP Setup Tool Guide_C4991001M.pdf 851 KB URL Drawings & CAD · Opens on manufacturer site 3D CAD: BRC-X400 PDF Certificates & compliance BRC-X400_SRG-X400_SRG-X120_Safety-Regulation.pdf 1.4 MB PDF Other documents BRC_SRG_List-of-Verified-IEEE-802.3-at-Power-Sourcing-Equipment_V1.0.pdf 126 KB PDF Other documents EU BATTERY FLYER_50819240M.pdf 88 KB PDF Other documents Image_Delay_Time_BRC-X400_Series_20200225.pdf 60 KB PDF Other documents NDI_HX_Introduction_V1.0.pdf 840 KB PDF Other documents SRT_Introduction_V1.0.pdf 570 KB XLSX Other documents Sony_Network_Camera_Lens_Calculator_V4.0.xlsx 203 KB PDF Other documents ToDistributebyRTMPS_Eng1.pdf 44 KB URL Other documents · Opens on manufacturer site Outline Views: BRC-X400/X401

Questions about BRC-X400

Who is the BRC-X400 designed for?

The BRC-X400 suits organisations that need a remotely controlled 4K camera with IP output, such as broadcast and remote on-air studios, sports venues and lecture halls. In Qatar, that often means a university lecture room in Education City that needs one camera to cover the whole room, or a production suite in Msheireb that feeds a switcher over NDI|HX. Request a quote and we will confirm which configuration fits your room.

How much zoom does the BRC-X400 provide?

The lens provides 30x zoom in 4K and 40x in Full HD, both with Clear Image Zoom. Full HD with Clear Image Zoom and Tele Convert Mode reaches 80x. Focal length runs from 4.4 mm at wide to 88.0 mm at tele, with a minimum object distance of 80 mm at wide and 800 mm at tele. In a lecture room, the wide end shows the full room while the telephoto end frames a presenter at the far wall.

What video outputs does it have?

In 4K the camera provides one HDMI output and one IP streaming output. In HD it also offers 3G-SDI alongside HDMI and IP. HDMI can output YCbCr 4:2:2 8-bit or RGB 4:4:4 8-bit, and remote video format switching is supported. If your control room still uses SDI, confirm the signal path with the SmartRooms Qatar team before ordering so that the switcher, cabling and any converters match the camera's outputs.

Is NDI|HX included, and what does it need?

NDI|HX capability is built in, but it needs a licence that is sold separately from the camera. Once licensed, the BRC-X400 can join other NDI-enabled devices on the same network. This suits a production team in Education City or a corporate studio in Lusail that wants to route several cameras, screens and computers without separate video cabling. Ask for the licence to be included in your quotation so the budget reflects the full setup.

How does it perform in dim rooms?

The camera has a minimum illumination of 1.6 lux under Sony's test conditions: 1/30 s shutter, 50 IRE, F2 and high sensitivity off. With high sensitivity on, gain runs up to +48 dB. This suits a dim lecture theatre or a studio with controlled lighting. Auto ICR, visibility enhancer and image stabilisation are also included, but for a room with very low light, a site test using your planned lighting is the best check.

Can it stream directly to an online platform?

Yes. It supports RTSP for viewing and RTMP and SRT for streaming, and RTMP and SRT require firmware V3.00. The camera can run up to three streams with a maximum of five clients, and bitrate ranges from 512 Kbps to 50 Mbps with CBR or VBR selectable. A hall in Lusail hosting a town hall or graduation ceremony can stream over SRT, which is designed to keep video stable on unstable networks. Check the firmware version on site before going live.

Which control protocols does it support?

The camera can be controlled through VISCA over RS-422 (RJ45 in and out), VISCA over IP, S700PTP and CGI, and it ships with an IR remote commander. It stores 256 presets over CGI and 100 over VISCA, and it supports picture freeze preset and PTZ trace memory. A ministry boardroom with an existing control system can use the protocol it already runs, but confirm compatibility with the SmartRooms Qatar team before committing.

How should it be mounted?

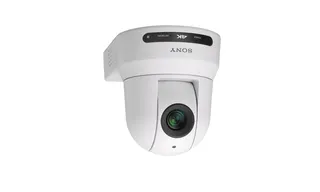

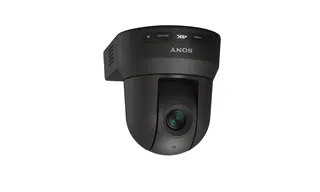

It is designed for ceiling mounting, with two ceiling brackets and a wire rope included, and it can also sit on a tripod using its 1/4-20UNC screw hole. The mountable angle is less than 15 degrees, so the mounting surface must be close to level. Pan range is plus or minus 170 degrees and tilt runs from +90 to -20 degrees, so check sightlines across the whole room before drilling. SmartRooms Qatar offers a free site survey for this kind of planning.

What power does it need?

The camera accepts PoE+ (IEEE 802.3at) or DC 12 V (10.8 to 13.2 V), and an AC power adaptor is supplied. Maximum power consumption is 25.5 W. Using PoE+ lets you run power and signal on one IP cable, which reduces cabling in a lecture hall or studio. Make sure any PoE switch you plan to use is able to supply PoE+ before installation, and confirm the power arrangement in your quotation.

Can it be used outdoors in Qatar's summer?

The camera is rated for operating temperatures from 0 C to 40 C and storage from -20 C to +60 C. Summer temperatures in Qatar can pass 45 C and dust storms are common, so the BRC-X400 is not suited to unprotected outdoor or window-facing positions. For a stadium or a venue with an open concourse, discuss the conditions at the site with the SmartRooms Qatar team before you request a quote.

Can it feed a virtual studio or AR system?

Yes. The camera outputs real-time pan, tilt, zoom and focus data over IP in the free-d protocol, and this feature requires firmware V2.10. That data lets a virtual set track the camera without a separate tracking system. A production company in Msheireb or Al Sadd building a virtual studio for a corporate event could use it this way. Confirm the firmware version and your render software before purchase.

How do I buy it through SmartRooms Qatar?

Request a quote by sending your room or venue details, the outputs you need and whether you require NDI|HX. SmartRooms Qatar delivers to all eight municipalities of Qatar, arranges professional installation and offers a free site survey. Quotations are usually issued within one working day. We accept purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. The camera is covered by the manufacturer's warranty.
