MRC1010-TN
ViewSonic MRC1010-TN 10.1-inch TeamJoin Touch Console
- Video
- 1920*1200
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

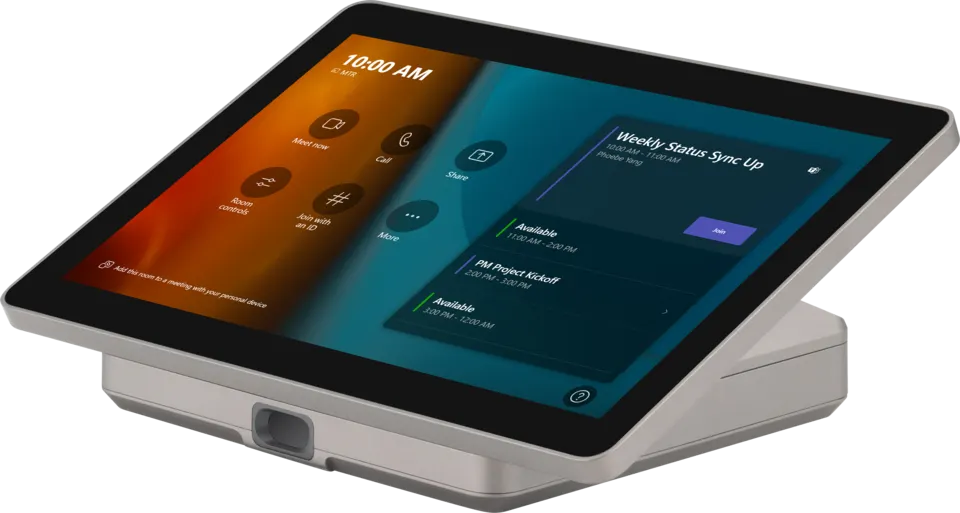

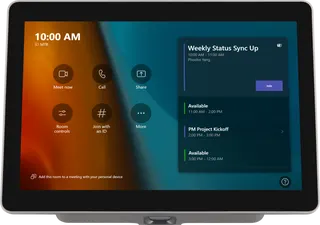

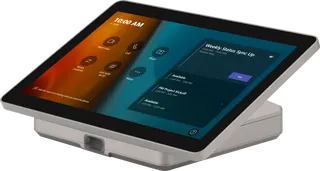

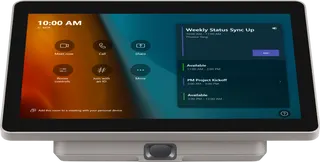

The ViewSonic MRC1010-TN is a 10.1-inch Full HD touch console for Microsoft Teams Rooms, built around the TeamJoin system. Its anti-glare touchscreen supports 10-point finger input, and a direct HDMI Ingest port lets visitors present from their own laptops. A built-in presence sensor wakes the console as people enter the room. It suits small and mid-sized meeting rooms in Doha, Lusail and Education City.
What the MRC1010-TN does in a Teams meeting room
The ViewSonic MRC1010-TN is a 10.1-inch touch console from the TeamJoin range, designed to act as the control point for Microsoft Teams Rooms. Staff use its touchscreen to start, join and manage calls from the wall or a table, rather than reaching for a keyboard and mouse. It is built for meeting spaces of different sizes, from small huddle rooms to larger conference rooms.
Display, touch and sensing details that matter
The panel is a 10.1-inch Full HD display at 1920x1200 with an anti-glare surface, which keeps the interface easier to read in rooms with windows or strong overhead lighting. It runs at 60Hz on an ELED backlight, with typical brightness of 300 cd/m² and 72% NTSC colour coverage. The rated lifetime is 20,000 hours.
Touch uses capacitive sensing with 10-point finger input. Accuracy is within ±1 mm in the middle of the panel and within 2.5 mm at the edges, and touch-down latency is below 25 ms. A built-in PIR sensor wakes the console when someone enters the room and can keep working around the clock while the screen is off.

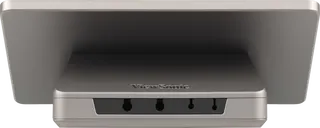

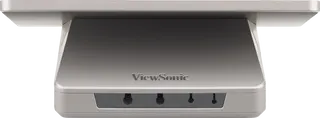

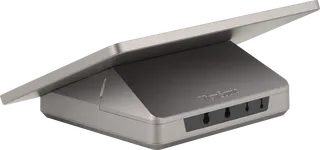

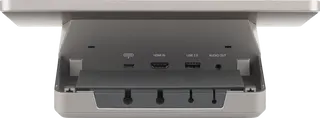

Connections for visiting presenters and the computing engine
- HDMI Ingest: one port for direct presentations from a visitor's own laptop.
- USB-C: one port that takes DP input and provides USB downstream, carrying the HDMI signal on USB 3.0 and the touch signal on USB 2.0 to the TeamJoin computing engine.
- USB 2.0: one port.
- Audio out: one 3.5 mm interface.
The console is powered through USB-C at 12V/1.5A, with a maximum draw of 18W and standby power of 0.5W or less. The computing engine is separate from this console, so confirm which engine and bundle your quotation includes.
Where it fits in Qatar
A bank in West Bay could place one console in each client meeting room, so staff can start Teams calls with overseas advisers without waiting for IT support. In Education City, a university department could use one in a seminar room where visiting speakers connect their own laptops through the HDMI Ingest port. A government ministry in Msheireb running daily meetings from Sunday to Thursday would benefit from the presence sensor, which has the console ready as attendees arrive.
What to plan before installation
- Mounting position: the console measures 245 x 160 x 98 mm and weighs 0.93 kg net, so measure the wall or table space first.
- Cable routes: the included Type-C cable is 5 m and the HDMI cable is 1.5 m.
- Environment: no operating temperature range is listed for this model, so keep it in air-conditioned rooms unless the SmartRooms Qatar team confirms otherwise.
- Power and engine: confirm the power arrangement and computing engine in the quotation.
SmartRooms Qatar offers free site surveys, professional installation and delivery to all eight municipalities of Qatar. Request a quote for the MRC1010-TN, and the team will confirm the installation plan and the warranty terms that apply to your order, usually within one working day.
Highlights
- 10.1-inch anti-glare Full HD touchscreen at 1920x1200
- 10-point capacitive finger touch with under 25 ms latency
- Direct HDMI Ingest for BYOD presentations
- PIR presence sensor wakes the console on entry
- Powered over USB-C at 12V/1.5A, 18W maximum
- Includes 1.5 m HDMI cable and 5 m Type-C cable
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
27 specifications · Source: manufacturer · checked Oct 2026
Display7
- Size
- 10.1 inch
- Resolution
- 1920*1200
- Refreshing Frequency
- 60Hz
- NTSC
- 72%
- Back Light Unit
- ELED
- Brightness with glass(typ)
- 300cd/m ²
- Life Time
- 20000Hrs
Operating System1
- System Version
- Non-OS
Touch System4
- Sensing Type
- Capacitance touch recognition
- Touch Tool
- Finger
- Accuracy
- Middle：±1 mm；Edge：≤2.5mm
- Touch Point
- 10 points touch
Power3
- Power Requirements
- 12V/1.5A(Via TYPE-C)
- Overall Power (Max.)
- 18W
- Standyby Power
- ≤0.5W
I/O Port4
- USB 2.0
- *1
- HDMI Ingest
- *1
- Audio out
- *1, 3.5mm interface
- TYPE-C
- "1 (DP in, USB downstream(3.0: HDMI signal, 2.0: Touch signal)"
Sensor1
- Motion Sensor
- PIR *1 (Support 24/7 continuous working when screen is off)
Physical Specifications4
- Dimension LxHxD
- 9.63 x 6.3 x 3.85 (in.) 245 x 160 x 98 (mm)
- Dimension (package) LxWxH
- 14.53 x 9.65 x 4.76 (in) 369 x 245 x 121 (mm)
- Net Weight
- 0.93kg (2.05lb.)
- Gross Weight
- 1.95kg (4.3lb.)
Accessories3
- Quick Start Guide
- *1
- HDMI cable
- 1 * 1.5M
- Type-C cable
- 1* 5M
Downloads
6 files from the manufacturer
PDF
ViewSonic MRC1010-TN datasheets (PDF, 633 KB)
PDF
ViewSonic MRC1010-TN manuals & guides (PDF, 28.9 MB)
PDF
ViewSonic MRC1010-TN manuals & guides (PDF, 821 KB)
URL
ViewSonic MRC1010-TN manuals & guides (URL)
URL
ViewSonic MRC1010-TN manuals & guides (URL)
PDF
ViewSonic MRC1010-TN certificates & compliance (PDF, 99 KB)
Questions about MRC1010-TN
Is this console suitable for a bank meeting room in West Bay?
Yes, for a meeting room where staff run Microsoft Teams calls with colleagues or clients abroad. The MRC1010-TN is the touch control point for Teams Rooms, letting staff start, join and manage calls from the wall or table. A bank could place one in each client room, and the presence sensor readies the console as clients arrive. Confirm the room layout and mounting plan with SmartRooms Qatar before ordering.
Does the MRC1010-TN run its own operating system?
No. The operating system is listed as Non-OS, so the console does not run Windows or another OS on its own. It connects to a TeamJoin computing engine through its USB-C port, and the Teams Rooms experience runs through that engine. The engine is not part of this product's specification, so confirm which engine and bundle your quotation includes before ordering.
How does the HDMI Ingest port help visiting presenters?
The HDMI Ingest port lets a visitor connect their own laptop with an HDMI cable and present in the room, which suits bring-your-own-device meetings. A consultancy in the Industrial Area or a training centre in Education City can use it when outside presenters join sessions. The console includes a 1.5 m HDMI cable, which is suited to a short connection between a laptop and the console's position on a desk or wall.
Will the console wake up when a team walks into a meeting room in Lusail?
Yes. The built-in PIR motion sensor detects human presence and wakes the console from sleep, so the Teams interface is ready when the first person enters. The sensor can also keep working around the clock while the screen is off. Place the console where the sensor has a clear view of the entrance or seating area, and ask SmartRooms Qatar to check the position during a free site survey.
What display specifications should a facilities manager check?
The display is 10.1 inches at 1920x1200 resolution with an anti-glare surface and an ELED backlight. Refresh rate is 60Hz, typical brightness is 300 cd/m², and colour coverage is 72% NTSC. The rated lifetime is 20,000 hours. These figures help compare it with other touch controllers, particularly if the room has large windows or strong lighting that could make a screen harder to read.
How accurate and responsive is the touch screen?
Touch uses capacitive sensing with 10-point finger input. Accuracy is within ±1 mm in the middle of the panel and within 2.5 mm at the edges, and touch-down latency is below 25 ms. Accuracy at the edges matters on a 10.1-inch screen, where staff tap small on-screen controls during a call. The data covers finger input only, so stylus use is not part of this product's specification.
Can a school in Al Wakrah order several consoles under one LPO?
Yes. A school fitting out several meeting rooms or staff rooms can issue one purchase order (LPO) covering multiple MRC1010-TN units, and SmartRooms Qatar provides a single quotation for the set. Ask for the computing engine, cabling and installation to be listed in the same quotation, so the school can compare total costs and plan the work in one visit.
How should we plan cable routing and power for the console?
The console is powered through USB-C at 12V/1.5A, with a maximum draw of 18W and standby power of 0.5W or less. The included Type-C cable is 5 m long, and the HDMI cable is 1.5 m. Plan cable routes from the console to the computing engine and to the power source before installation. Confirm the power arrangement in your quotation, because the data does not specify the adapter's mains input details.
Can the console be mounted on a wall or a table?
The data gives the dimensions as 245 x 160 x 98 mm and the net weight as 0.93 kg, but it does not list mounting options or kits. Ask for mounting options when you request a quote, and measure the intended wall or table position first. A free site survey from SmartRooms Qatar can confirm the surface, the cable route to the engine and the best height for staff to reach the touchscreen.
Will it cope with summer heat in a ministry meeting room in Msheireb?
The data does not list an operating temperature range for this model, so it should not be placed in a location that is not air-conditioned. Summer temperatures in Qatar can exceed 45°C, and dust can reach indoor spaces near open entrances. Install the console in a climate-controlled meeting room and ask the SmartRooms Qatar team to confirm the operating range before any other location is considered.
Which room size suits this console?
The manufacturer describes it for meeting spaces of diverse sizes, so it suits small and mid-sized rooms where the presenter reaches the touchscreen directly. It is a control panel rather than a display, so the room size is set by the screen it controls. In a 10-person meeting room in Doha, a 10.1-inch console paired with a suitably sized screen gives staff a clear view of the controls during a call.
What warranty applies to the MRC1010-TN?
The console is covered by the manufacturer's warranty. The data does not list the warranty duration or terms, so SmartRooms Qatar will confirm the warranty that applies to your order in the quotation. Request a quote for the console, the cables and any installation you need, and ask the team to note the warranty terms in the same document for your procurement or tender file.
