CM-MountKIT

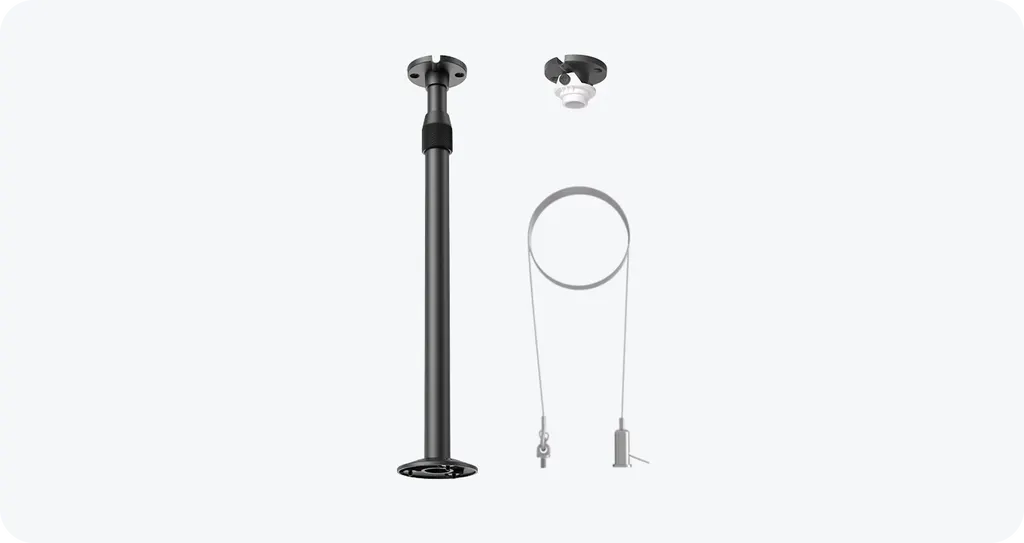

What the CM-MountKIT contains

The Yealink CM-MountKIT is an accessories kit built for the Yealink CM20 ceiling microphone. It is not a microphone on its own, so order it alongside a CM20 when you plan a deployment. The kit groups its hardware into three mounting routes, and each route has its own set of parts, so installers can choose the method that suits the room instead of improvising a bracket.

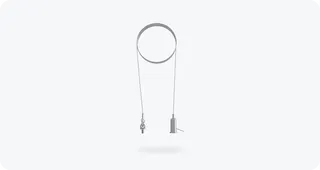

• Rope mount: three suspension ropes, each with a steel cable, hook and retainer, plus white φ6*30 mm and T4*30m fittings in matching quantities.

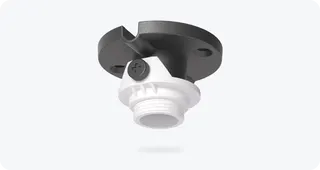

• On-ceiling mount: one on-ceiling component with two white φ6*30 mm fittings and two T4*30m items.
• Pendant mount: one length-adjustable pole with two white φ6*30 mm fittings and two T4*30m items.

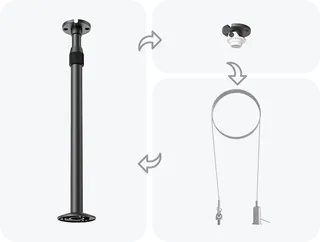

Dimensions and the length-adjustable pole

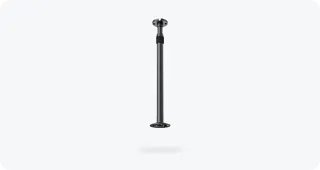

The pole starts at 350 mm and extends up to 614 mm, with a 67 mm by 67 mm profile. That range is useful in rooms with high ceilings or unusual layouts, because the microphone can be lowered closer to the table or raised out of the direct line of sight. The on-ceiling component measures 67 mm by 67 mm by 38 mm, a compact footprint for the ceiling. Each suspension rope is 3 m long.

Where the kit fits in Qatar

A boardroom in a Doha office tower or in West Bay often has a large table, no room for a floor stand and a ceiling where the microphone must sit over the centre of the seating. Here the on-ceiling mount or pendant pole lets the installer fix the CM20 at the right point without drilling into the table. In a seminar room at Education City, the suspension ropes suit a temporary setup for a short course or a research panel that is moved after one term.

Schools in Al Rayyan or Al Wakrah fitting out new classrooms can use the same kit in each room, so microphone positions are set up in a consistent way across the building. In a meeting room in Lusail or Msheireb that changes layout every week, the pendant pole allows height adjustment without rebuilding the mount.

What to plan before installation

Measure the ceiling height above the planned table, the distance from the mounting point to the microphone cable route, and the seating layout before ordering. Check the ceiling material and its ability to take the fixings. If you are unsure, SmartRooms Qatar offers a free site survey to check the structure, mounting point and cable route before any drilling starts. The product data does not state an operating temperature range, so confirm the environment with the SmartRooms Qatar team before installing in a space that is not air-conditioned, such as a covered terrace or a semi-open lobby, where summer temperatures in Qatar can exceed 45°C.

Schools and government bodies buying for several rooms can settle the order by purchase order (LPO) or through a Monaqasat tender, with payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and delivery covers all 8 municipalities of Qatar. Send us the number of CM20 positions and the ceiling type for each room, then request a quote for the CM-MountKIT.
