Yealink Video Conferencing Current

MCore Kit

Name: Yealink MCore Kit AI PC and Touch Panel Room Bundle
Brand: Yealink
SKU: yealink-mcore-kit
Availability: InStock

Yealink MCore Kit AI PC and Touch Panel Room Bundle

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

Built for Microsoft Teams Rooms, the Yealink MCore Kit is a meeting room bundle with an MCore 4 mini-PC powered by an Intel Ultra5 125H processor and NPU, an 11.6-inch MTouch Plus touch panel, and a RoomSensor for occupancy detection. It suits boardrooms and huddle spaces in Doha, Lusail and Education City where IT teams want one package with Windows Autopilot deployment and remote management. Request a quote from SmartRooms Qatar.

What the MCore Kit is and how it is built

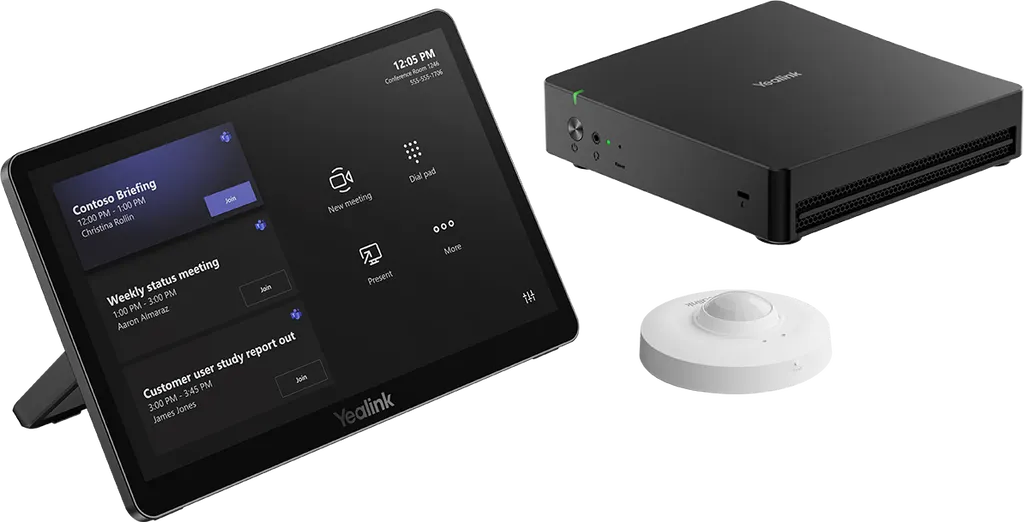

The Yealink MCore Kit is a three-part room bundle for Microsoft Teams Rooms. It combines the MCore 4 Gen-4 mini-PC, the MTouch Plus Gen-3 touch panel and a RoomSensor occupancy sensor. Yealink positions the kit as the core of its fourth-generation MVC room system, and the computer arrives with Windows 11 IoT Enterprise, the Microsoft Teams Rooms app and Yealink RoomConnect already preloaded.

For a buyer, the main gain is that the computer, controller and sensor come from one manufacturer and are specified as a single kit. Each meeting room needs one package to quote, deliver and install, instead of separate PCs, panels and sensors that the IT team must match and integrate by hand.

Processing, displays and ports on the MCore 4

The MCore 4 runs an Intel Ultra5 125H processor with an integrated NPU, supported by 16GB (2 x 8GB) of DDR5 memory and a 256GB SSD. Video output is handled by three HDMI ports: one HDMI-Out 2.1 and two HDMI-Out 2.0, with CEC and EDID support. An HDMI-In port accepts a 4K auxiliary stream from a connected source.

Four USB 3.0 Type-A ports for cameras, audio and peripherals
A dedicated AV network LAN port alongside a standard Gigabit Ethernet port
Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 and TPM 2.0

The MTouch Plus panel and RoomSensor

The MTouch Plus uses an 11.6-inch narrow-bezel IPS display at 1920 x 1080. Its support frame adjusts from 50 to 180 degrees, and the screen itself can be set between 30 and 70 degrees to the desk, which helps whether the panel sits on a desk or is mounted on a wall. It accepts HDMI or USB-C video input and can supply external PD power to a sharing device. Desktop placement, fixed desktop installation and wall mounting are all supported.

The RoomSensor detects occupancy using Bluetooth Low Energy, with a 120-degree detection angle adjustable by ±20 degrees. It is rated for 0 to 40°C and 10 to 95% humidity, and it reports room temperature and humidity on the MTouch Plus screen.

Where the kit fits in Qatar and what to plan

Three situations show where the kit suits best:

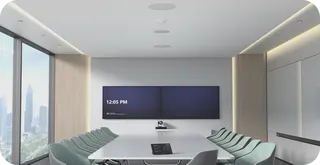

A ministry boardroom in Msheireb: a wall-mounted MTouch Plus near the door lets directors start Teams meetings with one click, while the MCore 4 sits in a cabinet out of view.
A seminar room in Education City: a camera can connect through an AVHub, and multi-camera AI tracking frames each active participant.
A meeting room in Mesaieed or Ras Laffan: the AV network port keeps audio-visual traffic on a separate path from business systems.

Before ordering, measure the MTouch Plus position and the route for its single CAT5e cable, list the displays, cameras and microphones so the HDMI and USB port count matches the room, and agree the AV network connection with the IT team. Keep the RoomSensor away from direct sunlight and hot air outlets. The source gives no operating temperature for the MCore 4, so confirm room conditions with the SmartRooms Qatar team before installation. A free site survey will check sightlines, cable routes and mounting heights. To request a quote, send your room size, screen count and camera setup to SmartRooms Qatar; quotations are usually issued within one working day.

Highlights

Intel Ultra5 125H processor with NPU in the MCore 4 mini-PC
11.6-inch MTouch Plus panel with 1920 x 1080 IPS display
One CAT5e cable carries data and power to the touch panel
Wireless content sharing via WPP30 adapter at 1080p/30fps
Windows Autopilot support and Yealink remote device management
Three HDMI video outputs with CEC and EDID support

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

13 specifications · Source: manufacturer · checked Oct 2026

Package content1

Details: MCore 4, Gen-4 Mini-PC MTouch Plus, Gen-3 touch panel RoomSensor

Preload1

Details: Windows 11 IoT enterprise X64 Windows 11 IoT enterprise license Microsoft Teams rooms app Yealink RoomConnect

MCore 4, Gen-4 Mini-PC6

Processor: Intel Ultra5 125H
Memory: 16GB(2*8GB) DDR5
Storage: 256GB SSD
WiFi: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: BT5.2

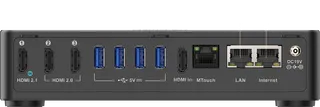

Details: BIOS feature: 3x HDMI video output - CEC - EDID TPM2.0 Kernel DMA Interfaces: 1 x HDMI-Out 2.1 port 2 x HDMI-Out 2.0 port 1 x HDMI-In port 4 x USB3.0 type-A port 1 x MTouch port (RJ-45) 1 x LAN port for AV network 1 x 10/100/1000 Gigabit Ethernet port 1 x power supply port 1 x 3.5mm headphone port 1 x reset port 1 x security slot

MTouch plus1

Details: Physical features: 11.6-inch narrow bezel IPS display Angle between screen and desktop (30° ~ 70°) Adjustable angle of support frame (50° ~ 180°) Function features： 1920 x 1080 video resolution Support wired and wireless (with WPP30) content sharing Support an external PD power supply to power the sharing device Support HDMI/USB-C video input Support desktop placement, desktop fixed, and wall-mounted deployment

RoomSensor4

Detection angle: 120°
Adjustable detection angle: ±20°
Operating temperature: 0-40℃
Operating humidity: 10-95%

Downloads

134 files from the manufacturer

Questions about MCore Kit

What is the Yealink MCore Kit and which rooms is it built for?

The MCore Kit is a Microsoft Teams Rooms bundle made up of an MCore 4 mini-PC, an MTouch Plus touch panel and a RoomSensor. It is designed for video conference rooms, so it suits boardrooms, meeting rooms and small huddle spaces in Doha offices, ministries and universities where one controller should start every meeting. The kit arrives as one package, which simplifies specification and installation for IT teams.

Which processor, memory and storage does the MCore 4 include?

The MCore 4 mini-PC uses an Intel Ultra5 125H processor with an integrated NPU for AI workloads. It has 16GB (2 x 8GB) of DDR5 memory and a 256GB SSD. According to Yealink, the platform is built for Microsoft Teams Rooms on Windows and supports Microsoft Copilot integration, which matters for organisations that want AI features in their meetings.

Which software is preloaded and how does Windows Autopilot help?

The MCore 4 ships with Windows 11 IoT Enterprise X64 and its licence, the Microsoft Teams Rooms app and Yealink RoomConnect. It supports Windows Autopilot, so IT administrators can configure new devices automatically rather than preparing each one by hand. This helps a ministry or school deploying several meeting rooms at the same time keep setups consistent.

How many displays can the MCore 4 drive?

The MCore 4 has three HDMI video outputs: one HDMI-Out 2.1 port and two HDMI-Out 2.0 ports, with CEC and EDID support. A boardroom with a main screen and a second display for content would use two of them and keep the third spare. The HDMI-In port accepts a 4K auxiliary stream from a connected source.

What are the size, resolution and mounting options of the MTouch Plus?

The MTouch Plus has an 11.6-inch narrow-bezel IPS display at 1920 x 1080 resolution. Its support frame adjusts from 50 to 180 degrees, and it supports desktop placement, fixed desktop installation and wall mounting. It accepts HDMI or USB-C video input, supports wired and wireless content sharing with the WPP30 adapter, and can supply external PD power to a sharing device.

Can the MTouch Plus be wall-mounted in a crowded boardroom in West Bay?

Yes, wall mounting is one of the supported deployment methods. Before fixing the bracket, check that the panel can be reached comfortably from every seat and that the cable route from the MCore 4 is clear. SmartRooms Qatar offers a free site survey, which is worth booking for a glass-walled West Bay boardroom where reflections and sightlines affect the right height and angle.

How does the single CAT5e connection between MCore 4 and MTouch Plus work?

One CAT5e cable links the MCore 4 to the MTouch Plus and carries both data and power, so the panel does not need its own power cable. The MCore 4 has a dedicated MTouch port (RJ-45) for this link. This reduces cabling work in existing rooms, such as older office fit-outs in Doha where new cable runs are costly and disruptive.

Will the RoomSensor work in a hot room with large windows in Mesaieed?

The RoomSensor is rated for operating temperatures from 0 to 40°C and humidity from 10 to 95%, so keep it out of direct sunlight and away from hot air outlets. It detects occupancy over a 120-degree angle adjustable by ±20 degrees and shows room temperature and humidity on the MTouch Plus. Because Qatar summer temperatures can exceed 45°C, confirm the room's air conditioning and window treatment with the SmartRooms Qatar team.

Can a university in Education City use its own cameras and microphones with the kit?

Yes. The MCore 4 connects to cameras such as the AVHub or SmartVision 80 through USB, and the AVHub can take several cameras for single or multi-camera AI tracking. Users can choose wired or wireless microphones, and third-party audio devices connect via USB. Confirm the exact camera and microphone models with SmartRooms Qatar before ordering.

How do visiting presenters share content wirelessly in a ministry meeting room?

With the WPP30 wireless sharing adapter, a presenter can share content in one click at 1080p and 30fps. Wired sharing is also available through the USB-C or HDMI input on the MTouch Plus, and the MCore 4 HDMI-In accepts 4K auxiliary stream input. A ministry hosting visiting consultants can therefore offer both wireless and cable sharing in the same room.

How can a bank's IT team in Lusail keep AV equipment off the corporate network?

The MCore 4 has a dedicated LAN port for the AV network, separate from its standard Gigabit Ethernet port, and Yealink states it natively supports AV-LAN and internet separation. The computer also includes TPM 2.0. Yealink's Device Management Platform or cloud service can then handle remote monitoring, configuration, updates and diagnostics, so the IT team does not need to visit each room.

What should a school in Al Wakrah check before ordering several MCore Kits?

Start with a free site survey to confirm wall and desk positions, cable routes and the Windows deployment plan for each meeting room. Then request a quote for the full set. If the school buys through formal procurement, submit a purchase order (LPO). Quotations are usually issued within one working day, and payment can be made by bank transfer, cheque or purchase order.
