Yealink MD-PTZBracket MeetingDisplay Mounting Bracket

Name: Yealink MD-PTZBracket MeetingDisplay Mounting Bracket
Brand: Yealink
SKU: yealink-md-ptzbracket
Availability: InStock

Overview

The Yealink MD-PTZBracket is a dedicated mounting kit that joins a UVC86 or SmartVision 80 video conferencing unit to a MeetingDisplay panel. It is specified for installation without wall drilling, its hole spacing is 100 mm × 45 mm, and it weighs 1.296 kg net. It suits Doha boardrooms and meeting rooms where a camera and display need to sit together neatly and go up quickly. Request a quote and we will confirm fit with your setup.

What the MD-PTZBracket does

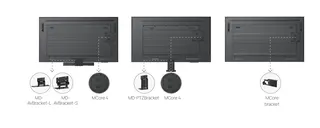

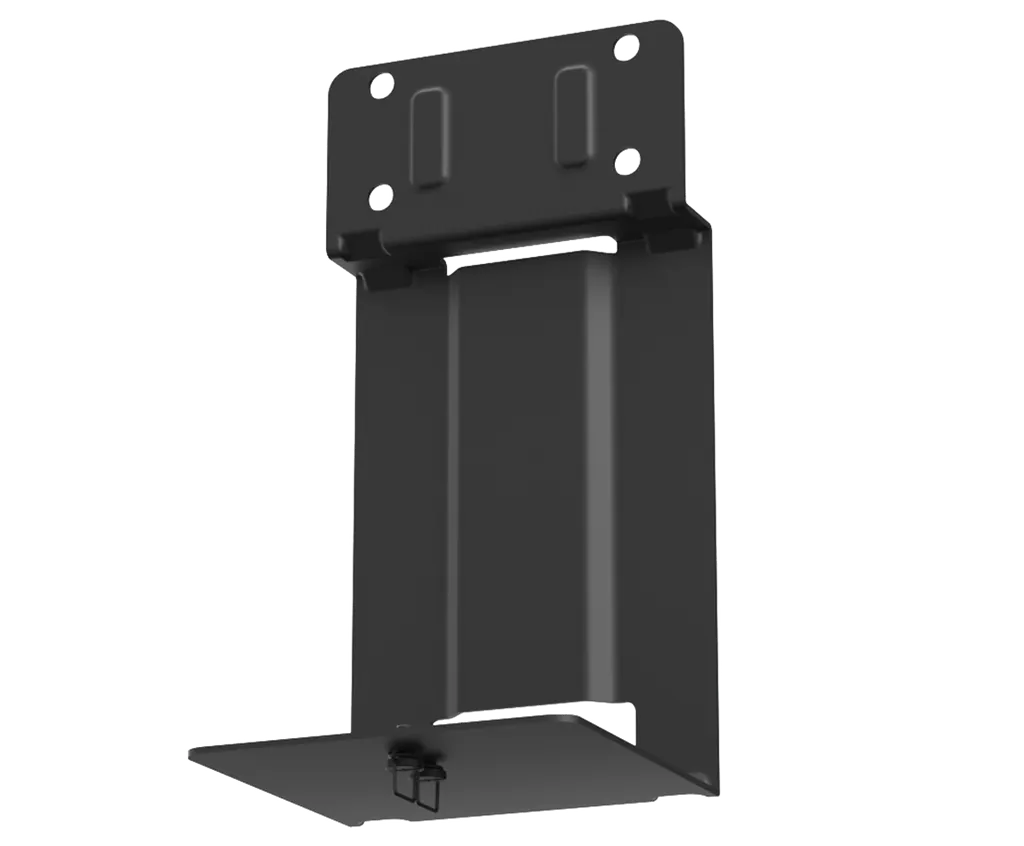

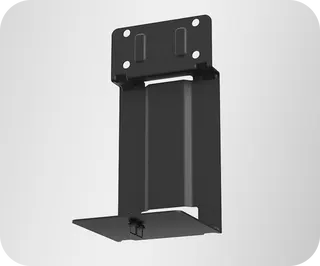

The MD-PTZBracket is a mounting kit from Yealink's MD series, built to attach a UVC86 or SmartVision 80 camera unit to a MeetingDisplay panel. Part number 3311112 identifies this standard kit. Rather than improvising a fixing arrangement in every room, the bracket gives the camera and panel a shared, pre-shaped structure so the two units install as one assembly.

Dimensions, weight and fixing points

The bracket measures 145 mm × 139.6 mm × 288.5 mm (width × depth × height). It ships in a carton of 352 mm × 186 mm × 200 mm, with a net weight of 1.296 kg and a gross carton weight of 1.723 kg. The mounting hole spacing is 100 mm × 45 mm (width × height), so compare it against the panel and camera you plan to pair before placing an order.

Compact footprint: 145 mm wide and 288.5 mm high, which keeps the assembly tidy in a small room.
Light component: 1.296 kg net, so the kit itself adds little load compared with the display.
Defined hole pattern: 100 mm × 45 mm spacing for matching the camera and panel.

Where it fits in Qatar

Executive boardroom in West Bay: a UVC86 paired with a MeetingDisplay lets a leadership team join calls with partners abroad from a single wall position, without cable clutter on the table.
Training room at a university in Education City: a lecturer hosting hybrid sessions can keep the camera aligned with the display across repeated classes, with fewer fixing steps when the room is reset.
Ministry meeting room in Msheireb: teams working in Arabic and English side by side benefit from a stable, consistent camera and screen setup that does not change between meetings.

Planning the installation

Yealink specifies this kit for installation without wall drilling, which simplifies the work on sites where drilling is restricted. Even so, the panel it carries is the heavy component, so a SmartRooms Qatar site survey is recommended before mounting. Our team can check wall or stand suitability, confirm the 100 mm × 45 mm hole spacing against your hardware, and plan cable routing. Confirm the operating environment with the SmartRooms Qatar team before installation, especially for rooms that experience high summer temperatures or dust.

Quotations are usually issued within one working day. We deliver to all 8 municipalities of Qatar, offer professional installation, and accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Request a quote for the MD-PTZBracket and tell us which UVC86 or SmartVision 80 and MeetingDisplay panel you are pairing it with.

Highlights

Dedicated kit for UVC86 and SmartVision 80 units
Attaches the camera unit to a MeetingDisplay panel
Specified for installation without wall drilling
Hole spacing of 100 mm × 45 mm
Net weight 1.296 kg; part number 3311112

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

5 specifications · Source: manufacturer · checked Oct 2026

Dimension (W.D.H)2

Dimension: 145 mm × 139.6 mm × 288.5 mm
Carton Meas: 352 mm × 186 mm × 200 mm

Hole Spacing Dimension (W.H)1

Details: 100 mm × 45 mm

Weight2

N.W/CTN: 1.296 kg (2.86 lbs)
G.W/CTN: 1.723 kg (3.80 lbs)

Downloads

6 files from the manufacturer

PDF Datasheets Yealink MD-PTZBracket Datasheet.pdf 77 KB PDF Manuals & guides Yealink MD-PTZBracket Quick Start Guide (EN, DE, FR, ES, NL) V1.0.pdf 1.7 MB DXF Drawings & CAD · Opens on manufacturer site MD-PTZBracket CAD Drawings.dxf STP Drawings & CAD · Opens on manufacturer site MD-PTZBracket CAD Drawings.stp PDF Other documents Mounts Bracket Compatibility Lists.pdf 65 KB PDF Other documents Yealink Regulatory Notice V1.2.pdf 1.0 MB

Questions about MD-PTZBracket

Which devices is the MD-PTZBracket designed for?

The MD-PTZBracket is a dedicated mounting kit for the Yealink UVC86 and SmartVision 80, which it attaches to a MeetingDisplay panel. Because it is built for these specific units, it is not presented as a general-purpose camera mount. Before ordering, confirm your camera and display models with the SmartRooms Qatar team so the kit matches your hardware exactly.

What is the part number and which variant is this listing?

This listing is for the MD-PTZBracket (Standard) variant, with Yealink part number 3311112. The source data lists only this variant, so there is no alternative edition to choose between. Quote the part number when requesting a quotation or when raising a purchase order, which helps procurement teams match the item to their bill of quantities.

Does the MD-PTZBracket require drilling into walls?

Yealink specifies the MD-PTZBracket for installation without wall drilling, which is one of its main advantages on finished interiors. The kit is intended to attach the camera unit and display to each other rather than to build a new wall fixing. A site survey by SmartRooms Qatar can still confirm the most practical fixing method for your particular room.

What are the dimensions and weight of the bracket?

The bracket measures 145 mm × 139.6 mm × 288.5 mm (width × depth × height). Its net weight is 1.296 kg (2.86 lbs), and the carton it ships in measures 352 mm × 186 mm × 200 mm with a gross weight of 1.723 kg (3.80 lbs). These figures help facilities teams plan storage, handling and the load on any supporting structure.

What hole spacing do I need to check before ordering?

The mounting hole spacing is 100 mm × 45 mm (width × height). Measure the attachment points on your UVC86 or SmartVision 80 and on your MeetingDisplay panel before ordering. If the spacing does not match your hardware, the kit will not seat correctly, so our team can check the drawings and confirm compatibility as part of the quotation process.

Can the kit be used in a boardroom in West Bay?

Yes, a boardroom in West Bay is a typical setting for this kit. A UVC86 paired with a MeetingDisplay lets executives join calls with partners abroad from a fixed wall position, keeping cables off the table. Ask SmartRooms Qatar for a site survey so the panel height, camera angle and sightlines are checked against the room layout before installation.

How would a university training room in Education City use it?

A lecturer running hybrid sessions in a training room in Education City can keep the camera and display aligned across repeated classes. Because the kit joins the two units into one assembly, the room can be reset quickly between sessions. The 1.296 kg net weight of the bracket keeps the add-on load small compared with the display itself.

Is it suitable for a ministry meeting room in Msheireb?

A ministry meeting room in Msheireb, where teams work in Arabic and English, benefits from a stable camera and screen arrangement that stays the same from one meeting to the next. The MD-PTZBracket supports that consistency by fixing the UVC86 or SmartVision 80 to the MeetingDisplay. Confirm the room's environment and fixing points with the SmartRooms Qatar team during the survey.

Can I use it in a room that gets very hot in summer?

The source data for this kit does not state an operating temperature range, so the product page cannot quote one. Because Qatar summer temperatures can exceed 45°C, confirm the room's cooling and environment with the SmartRooms Qatar team before installation. The team can advise on the paired camera and display conditions and on whether any additional protection is needed.

Can a school or government office order several units on one LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat. A school fitting out several classrooms or a ministry equipping multiple meeting rooms can list each MD-PTZBracket by part number 3311112 on a single purchase order. Request a quote for the full quantity so the pricing and delivery estimate cover every room.

How quickly can I receive a quotation and what delivery areas are covered?

Quotations are usually issued within one working day. We deliver to all 8 municipalities of Qatar. Delivery and lead times are estimates, confirmed in the quotation based on stock, so they are not fixed dates. Include your municipality, the paired UVC86 or SmartVision 80 and MeetingDisplay model when requesting the quote.

What payment methods and installation services are available for this kit?

SmartRooms Qatar accepts payment by bank transfer, cheque or purchase order, and offers professional installation and free site surveys. For this kit, a survey helps confirm the 100 mm × 45 mm hole spacing, cable routing and panel support before mounting. Products are covered by the manufacturer's warranty. Request a quote to receive the full scope in writing.
