Yealink Video Conferencing Current

MeetingBar A25-BYOM

Yealink MeetingBar A25-BYOM All-in-One Video Bar for Focus Rooms

Video: 3840 * 2160
Zoom: up to 1080p30fps
Pickup range: 28-100dBSPL
Platforms: 1080P30fps in meeting

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Yealink MeetingBar A25-BYOM is an all-in-one video bar for compact focus rooms and huddle spaces. Its triple-camera system covers a 151° field of view, while an 8-microphone array with a 5 m pickup range and a built-in 10W speaker handle audio. A single USB-C cable carries 4K sharing from a laptop, which suits small meeting rooms and university offices across Doha and Lusail.

What the MeetingBar A25-BYOM is built to do

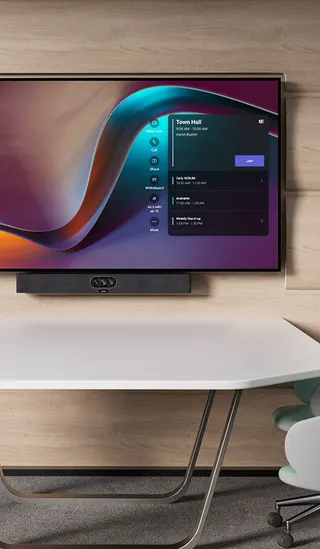

The Yealink MeetingBar A25-BYOM combines camera, microphone array, speaker and video processing in one bar that mounts beneath or above a display in a focus room. It is aimed at small rooms where people sit close to the table rather than at large boardrooms. The bar runs Android 13 and belongs to Yealink's USB camera and BYOD kit range, so it works with a laptop as well as with the room platforms the manufacturer lists, including Microsoft Teams Rooms and Zoom Rooms.

Camera coverage for tight focus rooms

Three 4K cameras with 8 MP sensors make up the system: one ultra-wide lens with a 151° horizontal field of view and two telephoto lenses for closer framing of individuals. Maximum video output is 4K at 30 fps, and 1080p at 60 fps is also supported. The privacy cover is an electric lens cap, so the camera can be covered from a control rather than by hand. Nine preset positions can be stored, and the sharp focus range runs from 0.4 m to 2.5 m, which is worth checking against the depth of your table. Intelligent features include IntelliFocus with two portraits, Auto Framing, Speaker Tracking, Picture in Picture and Video Fence. Smart Gallery is available only with Zoom Rooms.

Audio pickup, speaker and echo control

An 8-microphone MEMS array picks up voices up to 5 m away, with high-quality pickup to 3.5 m. Full-duplex operation with acoustic echo cancellation and automatic gain control allows two people to talk at the same time without one being cut off, while AI-enhanced noise suppression reduces background sound. The built-in 10W speaker has a frequency response of 100 Hz to 16 kHz. Expansion microphones are not supported, so the bar's own array provides all of the room's audio pickup.

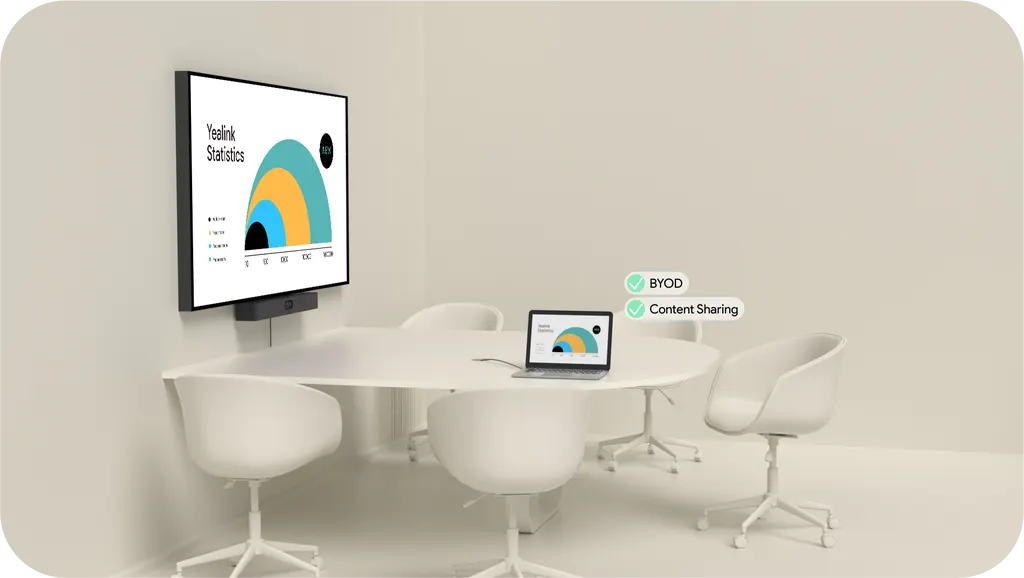

One-cable connection and network planning

USB-C: one cable from the bar to the computer carries 4K content sharing and BYOD connectivity, which reduces cable runs across the table.
Ports: HDMI out with CEC, a 3.5 mm line-out, Gigabit Ethernet, USB 2.0 Type-A, a Yealink VCH RJ-45 port and a security lock slot.
Wireless: Wi-Fi 6 dual-band and Bluetooth 5.1.
Management: the bar reports to a device management platform for remote configuration and firmware upgrades.

The manufacturer lists bandwidth of 10 Mbps or more as the requirement, so the network should be checked before the bar is placed in a room that will host external calls.

Where it fits in Qatar

A consultancy office in West Bay converting a small meeting room for video calls with clients in Europe and Asia.
A research group in Education City that needs a compact room for hybrid supervision sessions with partners abroad.
A ministry office in Msheireb where a focus room is used for short meetings with colleagues in other cities during the Sunday to Thursday working week.

Heat is an important planning point. The operating temperature range is 0 to 40°C, so the bar must sit in an air-conditioned room. Confirm that the cooling holds below 40°C during summer afternoons, when outdoor temperatures often exceed 45°C. The bar draws about 38 BTU/hr when idle and 58 BTU/hr during a meeting.

What to plan before requesting a quote

The bar measures 570 mm wide, 80 mm deep and 65 mm high, and the carton net weight is 3.812 kg. A wall mount is supplied with the product. TV mount options are VB-TVMount-01, VCS-TVMount-02 and the TV-Clip Mount, while the tabletop mount VB-TabletopMount-01 is sold separately. SmartRooms Qatar provides free site surveys to check the wall, the display mounting and the distance from the table to the camera before installation. The product carries a 2-year limited hardware warranty, and extended cover can be discussed at the time of purchase. Send us your room dimensions, display model and intended meeting platform, and we will return a quotation, usually within one working day.

Highlights

151° ultra-wide view from three 4K cameras
8-microphone array with 5 m pickup range
Single USB-C cable for 4K content sharing
Android 13 base with remote device management
Electric lens cap for camera privacy
2-year limited hardware warranty included

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

76 specifications · Source: manufacturer · checked Oct 2026

Operating System1

Details: Android 13 Based on the Microsoft Device Ecosystem Platform (MDEP)

Camera11

Number of cameras: 3
1x Ultra-Wide Camera: DFOV 182°, HFOV 151°, VFOV 81°
2x Tele Camera: DFOV 93.5°, HFOV 84.4°, VFOV 53.1°
Maximum pixels: 3 * 4k Cameras, all with 8MP image sensors
Number of preset positions: 9
Depth of field: 0.4-2.5 meters
Maximum resolution: 3840 * 2160
Maximum frame rate: 30fps
Video output resolution: 4k (2160p) 30fps, 1080p60fps
Privacy cover: Electric lens cap
Details: Lens FOV Electronic gimbal Lens calibration Intelligence Features IntelliFocus (2 portraits) Auto Framing Speaker Tracking Picture in Picture Video Fence Smart Gallery (Zoom Rooms only)

Speaker10

Rated power: 10W
Maximum power: 12W
Maximum sound pressure level: 90dBSPL 10W@1m
Frequency response: 100-16kHz
Sensitivity: 86dB SPL @ 1W @ 0.5 meter
Sampling rate: 48kHz
Sound emission angle: Forward-facing
Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5%
Rated impedance: 4 ohms
Details: Built-in 10W speaker

Microphone11

Signal-to-noise ratio: 72dB@1kHz
Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
Dynamic range: 28-100dBSPL
Sensitivity: -38dBV/pa
Frequency response: 100-20kHz
Sampling rate: 48k32bit
Bit depth: 32-bit
Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control)
Noise suppression: AI-enhanced noise suppression
Expansion Mics: not supported
Details: Built-in 8 MEMS microphone array 5-meter pickup distance, 3.5-meter high-quality pickup distance

Resolution2

Lens Resolution: up to 4k30fps
Bandwidth requirement: 10Mbps or more

Content sharing5

Teams: 1080P30fps in meeting, 4k30fps in local sharing
Zoom: up to 1080p30fps
General Mode (BYOM): up to 4k30fps
RingCentral: 1080p30fps
H.323/SIP: 1080p30fps

Video Codec1

Details: H.264 High profile, H.264 SVC, H.264

Audio Codec6

ARES: 24kHz bandwidth
G.722.1C: 16kHz bandwidth
G.722.1: 8kHz bandwidth
G.722: 8kHz bandwidth
G.711 (PCMA/PCMU): 4kHz bandwidth
G.729: 8kHz bandwidth

Security5

Full Disk Encryption: AES-128, AES-256
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP

Communication standard protocol4

Dual stream protocol: H.239 (H.323) / BFCP (SIP)
FECC: H.224/H.281
H.323 protocol suit: H.245, H.225, H.235, H.241
Details: H.323/SIP in General Mode Gatekeeper account and SIP account

Network Protocol1

Details: Wi-Fi 6 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax 2x2 MIMO Bluetooth 5.1 TCP/IP (IPv4/IPv6), DHCP/static IP HTTPS secure web access

Configuration Management1

Details: Automatic configuration via web page/display/AutoP Firmware upgrade, factory reset Configuration import and export System log export

Device Management1

Details: Yealink Https Web Portal Yealink Device Management Platform Yealink Management Cloud Service Microsoft Device Management Platform(Microsoft Teams Admin Center/Intune) Zoom Device Management

Installation3

Use TV Mount (additional: purchase VB-TVMount-01, VCS-TVMount-02 or TV-Clip Mount)
Place on the desktop (additional: purchase VB-TabletopMount-01)
Details: Wall mount (provided with the product)

Ports2

1x Ethernet port: 10/100/1000Mbps
Details: 1x USB2.0 Type-A port 1x USB2.0 Type-C port（side） 1x USB3.0 Type-C port video input supports formats up to maximum 4K30 fps, including 1080P60fps（content sharing） video output supports formats up to 1080P30fps (BYOM） 1x Yealink VCH port (RJ-45) 1x HDMI-out port video output supports formats up to maximum 4k30fps, including 1080p60fps supports HDMI CEC 1x 3.5mm Line-out port 1x Power port 1x Security lock slot 1x Reset slot

Package3

A25-010: A25+VCR11+USB C to C cable (1.8m/5.91ft)
A25-031: A25+CTP25 Package (CTP25, 2m/6.56ft 65W PD power adapter, 7.5m/24.6ft Network cable, 1.2m/3.94ft USB C to C cable, High stand, Cable management cover)
Details: MeetingBar A25 Power adapter, 3.5m/11.48ft 1x HDMI cable, 1.8m/5.91ft 1x Network cable, 3m/9.84ft 1x USB-A to C cable, 3.0m/9.84ft Wall Mount Cable cover MeetingBar A25 quick start guide Optional Package

Environmental Factor4

Operating humidity: 10 - 95%
Operating temperature: 0 - 40℃
Storage temperature: -30℃~70℃
BTU/hr: 38 in idle, 58 in meeting

Dimensions and weight(W × D × H)3

MeetingBar A25: 570 x 80 x 65 mm
N.W/CTN: 3.812 kg
G.W/CTN: 4.290 kg

Warranty2

Standard: 2-year limited hardware warranty included
Extended: Additional extended warranties are available at the time of hardware purchase. Contact your reseller.

Downloads

111 files from the manufacturer

Questions about MeetingBar A25-BYOM

Who is the MeetingBar A25-BYOM designed for?

It is designed for compact focus rooms and huddle spaces where a few people sit around a table. A research group in Education City running hybrid supervision sessions, or a small team in an office in Doha that holds calls with colleagues abroad, would fit its use case. For large boardrooms or lecture halls, a model with a larger room scope is usually more suitable. Request a quote and we will confirm the best fit for your room size.

How wide is the camera view and how many cameras does it use?

The bar uses three 4K cameras with 8 MP sensors: one ultra-wide lens with a 151° horizontal field of view and two telephoto lenses. Maximum video output is 4K at 30 fps, with 1080p at 60 fps also supported. The ultra-wide lens captures everyone at a curved table, while the telephoto lenses provide closer portraits of individual speakers.

Will it frame a curved table pushed against the walls in a West Bay office?

Yes, the bar is designed for real-world focus rooms where curved tables are placed against the walls, and its ultra-wide lens is intended to keep edge-to-edge participants visible in tight spaces. Sharp focus runs from 0.4 m to 2.5 m, so check the distance from the bar to the furthest seat during your site survey. Auto Framing and Speaker Tracking help the view follow the conversation.

Can I connect a laptop with just one cable?

Yes. A single USB-C cable from the bar to the computer carries 4K content sharing and BYOD connectivity, so the room needs one cable instead of separate camera, microphone and speaker leads. The bar also provides HDMI out, a 3.5 mm line-out and a USB 2.0 Type-A port for other peripherals. Confirm your laptop has a USB-C port before ordering.

Does it work with Microsoft Teams Rooms and Zoom Rooms?

The manufacturer lists native support for Teams Rooms and Zoom Rooms, along with BYOD use through third-party applications. Content sharing limits differ by platform: Teams allows 1080p at 30 fps during meetings and 4K at 30 fps for local sharing, while Zoom is listed up to 1080p at 30 fps. Smart Gallery is available only with Zoom Rooms, so confirm your platform when requesting a quote.

Is it suitable for a room in Qatar's summer heat?

The operating temperature range is 0 to 40°C with 10 to 95% humidity, so the bar must sit in an air-conditioned room. Summer outdoor temperatures in Doha can exceed 45°C, so the room's cooling needs to hold below 40°C. Do not place the bar in lobbies, sun-facing rooms or areas with dust exposure without first confirming the environment with the SmartRooms Qatar team.

How is it mounted, and what space does it need?

The bar measures 570 mm wide, 80 mm deep and 65 mm high. A wall mount is included, and optional TV mount kits (VB-TVMount-01, VCS-TVMount-02 or TV-Clip Mount) suit mounting to a display. For a tabletop installation, the VB-TabletopMount-01 is sold separately. A free site survey from SmartRooms Qatar checks wall structure, cable routes and sightlines before installation.

Can the room add more microphones to extend pickup?

No. Expansion microphones are not supported, so the built-in array of eight MEMS microphones is the only pickup source. The array offers a 5 m pickup range and high-quality pickup to 3.5 m, with full-duplex operation, echo cancellation and AI-enhanced noise suppression. Plan seating so that participants remain within the pickup range of the bar.

What is included in the box?

The standard package lists the bar, a power adapter, a 1.8 m HDMI cable, a 3 m network cable, a 3 m USB-A to C cable, a wall mount, a cable cover and a quick start guide. Kit configurations differ, because the A25-010 kit includes a USB-C to C cable and VCR11, while the A25-031 kit includes the CTP25 with a 65W power adapter and high stand. Confirm the exact contents in your quotation.

What warranty comes with the product?

The product includes a 2-year limited hardware warranty. The manufacturer also states that extended warranties are available at the time of hardware purchase. SmartRooms Qatar can confirm which extended options apply when you request a quote, which is useful for government or school projects that need a long-term hardware plan.

Can IT teams manage the bar remotely across several rooms?

Yes. The bar is networked and reports to the device management platform, allowing remote management, configuration and firmware upgrades. Management options listed include the Yealink web portal, the Yealink Device Management Platform, Yealink Management Cloud Service, Microsoft Teams Admin Center and Intune, and Zoom device management. An IT team at a company in Lusail managing several focus rooms can therefore update devices without visiting each room.

Is the device compatible with Microsoft MDEP?

The bar runs Android 13 and the datasheet describes compatibility with Microsoft's Device Ecosystem Platform, which it says improves security and deployment. However, the manufacturer's product page notes that MDEP support is coming soon. Before specifying the bar for a government tender or a security-sensitive project, ask SmartRooms Qatar to confirm the current MDEP status in your quotation.

What network speed does the bar need for good video calls?

The manufacturer lists a bandwidth requirement of 10 Mbps or more. The bar includes Gigabit Ethernet, Wi-Fi 6 with dual-band 2.4 GHz and 5 GHz support, and Bluetooth 5.1. For reliable video in a busy office, use the wired Ethernet connection where possible, and check that the network can carry the required bandwidth for each active call.
