MeetingBar A30

Yealink MeetingBar A30 Video Bar for Medium Meeting Rooms

Field of view: 120°; 90°
Speakers: 89db SPL@1W

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Yealink MeetingBar A30 is an all-in-one video conference bar for medium meeting rooms holding roughly 10 to 15 people. It pairs an 8 MP wide camera with a 120° field of view and a telephoto camera offering 10x hybrid zoom, plus an 8 MEMS microphone array with a 6-metre pickup range. Available for Microsoft Teams, Zoom or RingCentral, it suits boardrooms and training rooms across Doha and Lusail.

What the MeetingBar A30 does in a medium room

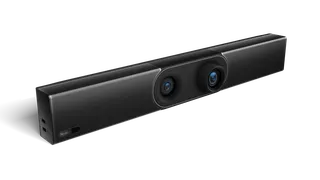

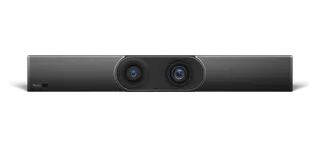

The Yealink MeetingBar A30 is an all-in-one video conference bar. Cameras, microphones and speakers sit in a single unit that mounts with the display, so a room of roughly 10 to 15 people can be set up without a separate PC or a rack of equipment. It is built for medium-sized rooms, where a single wide lens leaves faces small and quieter voices at the far end of the table are hard to hear.

Two cameras and framing that follows the room

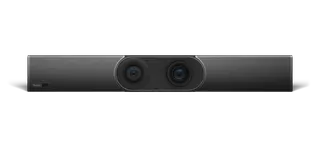

The A30 uses two 8 MP cameras. The wide camera has a 120° field of view, so everyone around the table is in shot without moving the bar. The telephoto camera offers 10x hybrid zoom (3.5x optical and 3x digital) at a 90° field of view, which suits a close view of a presenter or a whiteboard at the front of the room. Auto Framing adjusts to the number and position of attendees, Speaker Tracking switches to whoever is talking, and Picture-in-Picture shows the active speaker in a separate window beside the group view. An electric privacy shutter covers the camera when it is not needed.

Audio for a room up to 6 metres across

Eight MEMS microphones form the pickup array, with a stated voice pickup range of 6 metres. Full-duplex operation, echo cancellation and automatic gain control allow both ends of a call to talk without cutting each other out. AI-based noise reduction is designed to remove keyboard clatter, mouse clicks and footsteps from the audio. The forward-facing speakers are rated at 10 W, with a 16 W maximum.

Where it fits in Qatar

A government authority in Msheireb holding a 12-person boardroom meeting can bring in colleagues from other cities on video, with the microphone array covering the whole table. A private school in Al Wakrah fitting out a room for department heads and parent council sessions gets a system that runs without a PC on site. A developer's sales office in Lusail hosting overseas investors can frame the room automatically without a camera operator.

What to plan before you order

Room and display: the bar measures 700 mm wide, 98 mm deep and 121 mm high, so check the wall and display width first. A mounting bracket is included.
Environment: the operating range is 0 to 40 °C with 10 to 90% humidity. In Qatar's summer, keep the bar in an air-conditioned room.
Power: the adapter accepts 100 to 240 V at 50/60 Hz. Average consumption is 12.5 W and peak is 18 W.
Platform: choose the Microsoft Teams Rooms on Android, Zoom Rooms or RingCentral edition.

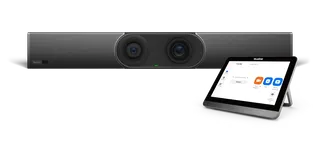

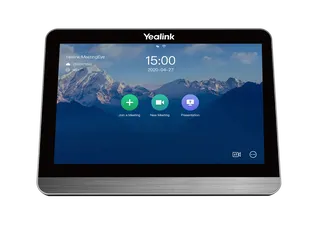

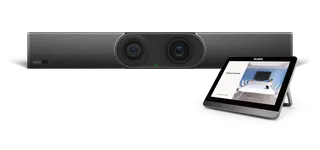

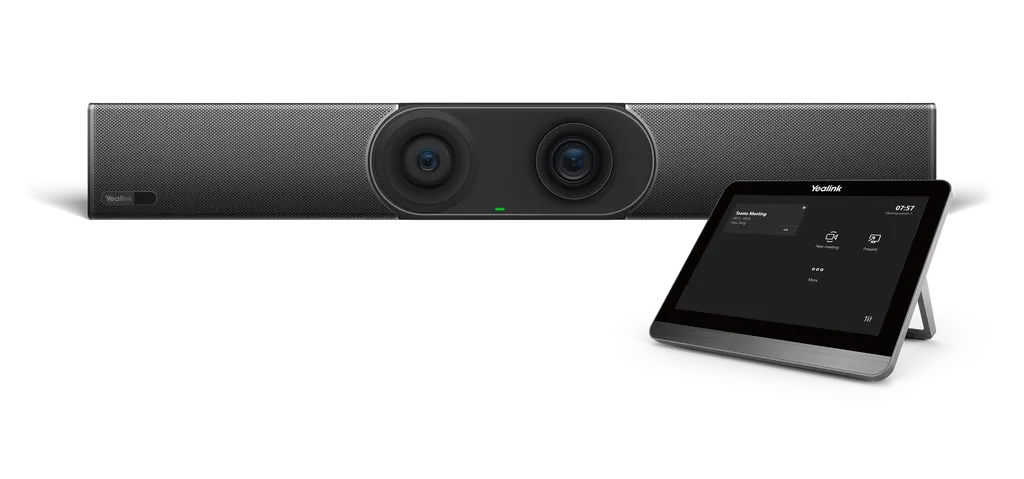

Controls: model A30-010 includes a VCR11 remote, and A30-020 includes a CTP18 touch panel.

Wireless presentation with the WPP30 pod needs a wired network, because the wireless hotspot and Wi-Fi cannot run at the same time. Up to four WPP30 pods are supported.

Send your room dimensions, display size, preferred platform and accessories to the SmartRooms Qatar team and request a quote. Quotations are usually returned within one working day, and a free site survey can confirm the mounting position before you order.

Highlights

8 MP wide camera with 120° field of view
Telephoto camera with 10x hybrid zoom (3.5x optical)
8 MEMS microphone array with 6-metre pickup range

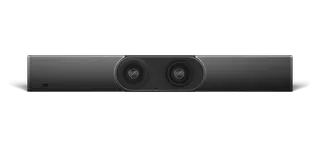

Electric privacy shutter for the camera
Dual-band Wi-Fi (2.4/5 GHz) and Bluetooth 4.2
Certified for Teams, Zoom, BlueJeans and RingCentral

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

40 specifications · Source: manufacturer · checked Oct 2026

Dual Camera System4

Field of view: 120°; 90°
Horizontal Rotation Angle: +25°/-25°
Vertically Rotation Angle: +16°/-16°
Details: Wide Camera: 8 MP Camera 4 x e-PTZ Camera 120° DFOV, 112° HFOV, 79° VFOV Telephoto Camera: 8 MP Camera 10x Hybrid Zoom (3.5x optical, 3x digital) 90° DFOV, 81° HFOV, 50° VFOV Electric Privacy Shutter Intelligence Features Auto Framing (Frame and capture everyone in detail) Speaker Tracking (Switch automatically between active speakers) Picture in Picture (View speaker and group people simultaneously) Smart Gallery (Zoom only, display multiple video feeds from a single conference room) 9x Camera presets

Audio11

Built-in microphone frequency response: 100Hz to 8kHz
Frequency response: 115-20kHz
Speaker volume: 89db SPL@1W, 98db SPL@8W both +/-2db at 0.5m
Sensitivity: 87dB SPL @ 1W @ 0.5 meter
Rated power: 10W
Maximum power: 16W
Sampling Rate: 48kHz
Sound emission angle: Forward-facing
Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5%
Rated impedance: 2 ohms
Details: Built-in 8 MEMS microphone array with a voice pickup range of 6 meters Support external mic Yealink Noise Proof Technology Beamforming directed voice pickup technology Full-duplex AGC (Automatic Gain Control) Echo cancellation Speaker:

Operating System1

Details: Android 13

Meeting Features1

Details: Calendar One-click join Meeting collaboration Content sharing Whiteboard Meeting control: Add participants Hold/Resume Camera On/Off Mute/Unmute Volume Up/Down Hang up

Video Standard and Network Suitability1

Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features3

QoS: 802.1p/q, Diff-serv
Network diagnosis: Ping, Trace route
Details: Built-in dual-band Wi-Fi (2.4 GHz/5 GHz) Built-in Bluetooth 4.2 IPv4 and IPv6, DHCP/static IP HTTP/HTTPS web server TLS 1.2/1.3, AES 256-bit encryption VLAN, LLDP IEEE802.1X EAP-MD5/EAP-TLS PEAP-MSCHAPv2 EAP-TTLS/EAP-MSCHAPv2 Time and date synchronization using SNTP Built-in certificate

Ports1

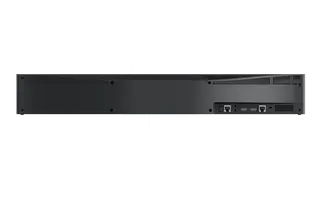

Details: 2 x HDMI output (CEC supported) HDMI input (through the VCH51 Sharing Kit) Motion sensor (Teams supported) 1 x Line-in (3.5 mm) 1 x Line-out (3.5 mm) 1 x USB 2.0 1 x USB 3.0 1 x 10 M/100 M/1000 M Ethernet port 1 x Yealink extension port (RJ-45) 1 x Power port 1 x Security lock slot 1 x Reset slot

Other Physical Features12

External Yealink Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
USB Output: 5 V 0.5 A
Standby Power Consumption: 14.9 W
Average Power Consumption: 12.5 W
Peak Power Consumption: 18 W
Input: 100-240V ~ 50/60Hz
Output: 48V 0.7A
Dimension (W.D.H): 700 mm x 98 mm x 121 mm
Operating humidity: 10 - 90%
Operating temperature: 0 - 40 ℃
Storage temperature: -30 to +70 ℃
Details: Power consumption (PSU): Power Supply:

Weight3

N.W/CTN: 4.29 kg; 7.01 kg
G.W/CTN: 5.43 kg; 8.70 kg
Details: A30-010: A30-020:

MeetingBar A30 Package2

Carton Meas: 783 mm x 265 mm x 190 mm
Details: Package contents: MeetingBar A30 endpoint 3 m Ethernet cable 2 x 1.8 m HDMI cable Mounting Bracket and Accessories Power adapter Quick Start Guide Controller (optional): CTP18 Touch Panel VCR20 Remote Control VCR11 Remote Control Content sharing(optional): VCH51 Sharing Kit (HDMI/USB-C) Wireless Presentation Pod

MeetingBar A30 + CTP18 Package1

Carton Meas: 796 mm x 434 mm x 212 mm

Downloads

134 files from the manufacturer

Questions about MeetingBar A30

What is the MeetingBar A30 designed for?

The MeetingBar A30 is an all-in-one video conference bar for medium meeting rooms, listed for 10 to 15 people. It combines two cameras, a microphone array and speakers in one unit, so a boardroom or training room can start video meetings without a separate PC. It suits organisations in Doha that hold regular internal and external meetings and want a simple, plug-in system.

Would it suit a 10-person meeting room at a site office in Mesaieed?

Yes, if the room is medium-sized. The A30 is listed for 10 to 15 people and picks up voices up to 6 metres away, so it covers a table seating about ten people. Check the wall width against the 700 mm bar width before ordering. If the room is smaller, for six to ten people, compare the A20 listing, which is aimed at that size.

How does the camera follow people in the room?

Auto Framing recognises how many attendees are present and where they sit, then frames them in the most suitable view. Speaker Tracking switches to the person speaking, and Picture-in-Picture shows that speaker in a separate window beside the wide view. The wide camera covers 120 degrees and the telephoto camera offers 10x hybrid zoom, so the same bar handles group shots and close-ups.

How far can the microphones pick up voices?

The built-in 8 MEMS microphone array has a stated voice pickup range of 6 metres. It uses beamforming to direct pickup toward speakers, along with echo cancellation and automatic gain control for full-duplex calls. People at the far end of the table can be heard without raised voices, and AI-based noise reduction removes keyboard noise, mouse clicks and footsteps from the feed.

Does the camera output 4K video?

According to the manufacturer's feature list, the A30 camera supports 4K video output. The system uses a wide camera with a 120° field of view and a telephoto camera with 10x hybrid zoom, made up of 3.5x optical and 3x digital. The quality a remote participant sees still depends on the network and their connection, so test the link on site before relying on it for formal meetings.

Which video platforms does it support?

The A30 is certified for Microsoft Teams, Zoom, BlueJeans and RingCentral, and it is offered as Microsoft Teams Rooms on Android, Zoom Rooms Appliances and RingCentral editions. Firmware version 133.310.0.25 or later allows switching between Teams and Zoom through a factory reset and platform selection during setup. Name your platform when you request a quote, because the edition determines the software experience.

What is the difference between models A30-010 and A30-020?

Both use the same MeetingBar A30 system for medium rooms. Model A30-010 is supplied with a VCR11 remote control, while A30-020 is supplied with a CTP18 touch panel for in-room control. The listed net weight is 4.29 kg for A30-010 and 7.01 kg for A30-020. Tell us which control option your room needs and the SmartRooms Qatar team will confirm the right model in the quotation.

Can we add wireless presentation or a wireless microphone?

Yes. The WPP30 wireless presentation pod lets users share content without extra configuration, and up to four WPP30 pods can be used. For wired sharing, the VCH51 Sharing Kit connects through one USB-C cable. The VCM36-W extends the system with a wireless microphone. Wireless pods and the wireless microphone require a wired network connection, since the wireless hotspot and Wi-Fi cannot run together.

Will it work in a meeting room in Doha during summer?

The bar is rated for an operating temperature of 0 to 40 °C and 10 to 90% humidity, so it should be installed in an air-conditioned meeting room, not in a sunlit space or beside a window that takes direct heat. Outdoor temperatures in Doha summers regularly exceed 45 °C, so confirm that the room's cooling holds the air within the rated range. A free site survey can review the room before installation.

Can a boardroom in West Bay join calls with teams abroad?

Yes, provided the room has a stable internet connection. The A30 has an Ethernet port supporting 10/100/1000 speeds, dual-band Wi-Fi at 2.4 and 5 GHz, and Bluetooth 4.2. The box includes a 3 m Ethernet cable and two 1.8 m HDMI cables. Two HDMI outputs with CEC support let the bar work with the display, so a single remote can control the room during a call.

How should we plan installation in a classroom-sized room in Al Wakrah?

Start by fixing the mounting position on the wall, since the bar is 700 mm wide. The package includes a mounting bracket and accessories. Measure the distance between the mounting point, the power socket, the network point and the display's HDMI input, and check that these fit the supplied cables: a 3 m Ethernet cable and two 1.8 m HDMI cables. A free site survey can confirm the layout before you place an order.

Is the power adapter suitable for Qatar's 240 V supply?

The adapter's listed input is 100 to 240 V at 50/60 Hz, so its input range covers 240 V at 50 Hz. It outputs 48 V DC at 0.7 A. Average power consumption is 12.5 W and peak consumption is 18 W. Confirm the plug and socket arrangement with the SmartRooms Qatar team when you request a quote, so the right connection is supplied for your site.

Can a school or training centre order for several rooms using an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. For several rooms, list the platform and control option for each room in one request, and the team will prepare a single quotation covering them. Delivery covers all eight municipalities of Qatar, and the manufacturer's warranty applies to each unit.
