MeetingBar A40

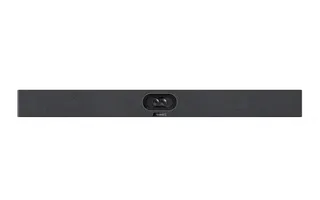

Yealink MeetingBar A40 All-in-One Video Bar for Small Rooms

Video: 3840 * 2160
Zoom: up to 1080p30fps
Pickup range: 28-100dBSPL
Platforms: 1080p30fps in meeting

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Yealink MeetingBar A40 is an all-in-one video bar for small and medium meeting rooms. It combines a dual 48MP camera with a 120° combined field of view, an eight-microphone array with 6-metre pickup and two built-in 10W speakers in one unit. It runs Android 13 and is offered in Microsoft Teams Rooms and Zoom Rooms editions. It suits boardrooms and meeting rooms in Doha, Lusail and West Bay that host hybrid calls. Request a quote from SmartRooms Qatar.

What the MeetingBar A40 combines in one bar

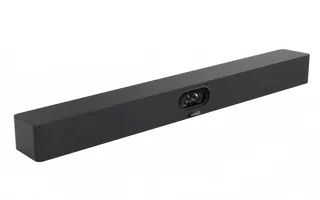

The Yealink MeetingBar A40 houses a camera, microphone array and speakers in a single unit that sits above or below a display in a small or medium meeting room. Two 48MP lenses feed one combined image with a 120° field of view, so people in the room and remote colleagues can see and hear each other without a separate camera and microphone setup. It is sold in a Microsoft Teams Rooms on Android edition and a Zoom Rooms edition, and in two bundles: A40-010 with the VCR11 remote, and A40-031 with the CTP25 touch console.

Camera and audio performance that matters in meetings

Each lens covers a 78° field, and the two images form the 120° frame. The horizontal field is 110° and the vertical field is 54°, with a depth of field of 1 to 5 metres. The camera offers 6x digital zoom, nine preset positions and an electronic gimbal. IntelliFocus shows close-ups of up to four portraits, while Auto Framing, Speaker Tracking and People Counting keep the room in shot. Maximum resolution is 4K, and 1080p output runs at 60 fps.

The audio side uses an eight-microphone MEMS array with full-duplex operation, acoustic echo cancellation, automatic gain control and AI-enhanced noise suppression. Pickup reaches 6 metres, with high-quality pickup to 4 metres. Two built-in 10W speakers cover the room, and two optional expansion microphones can extend coverage to a larger table.

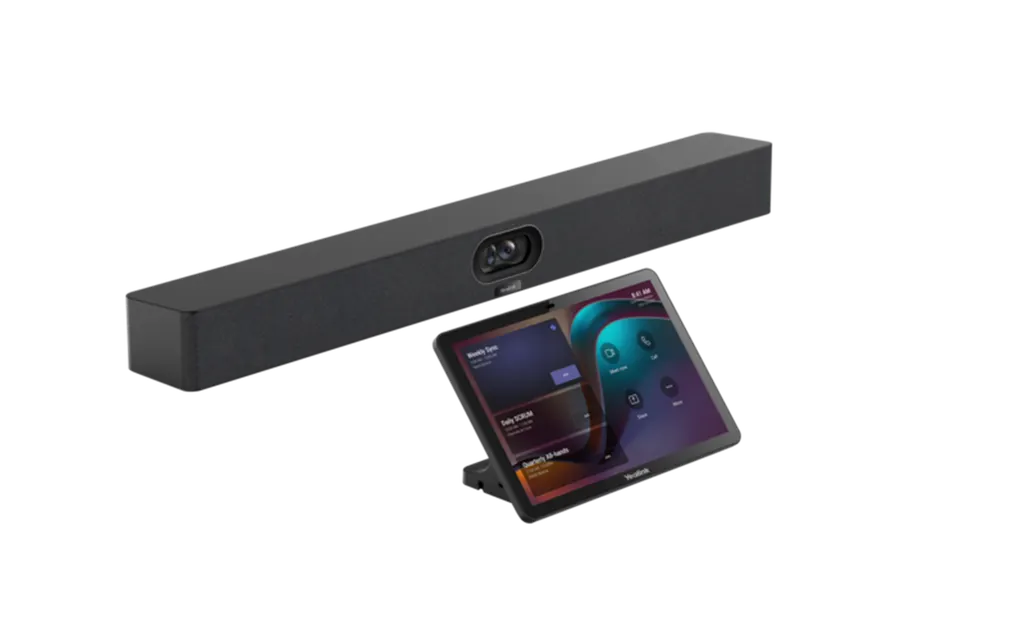

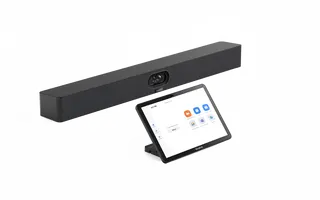

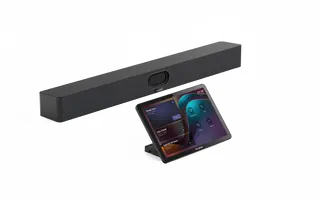

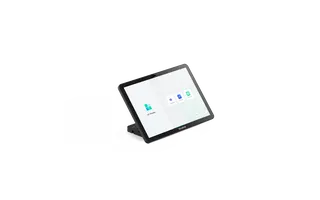

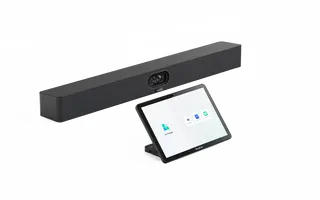

Connectivity and the CTP25 touch console

With the CTP25, the bar uses one Cat5e cable to deliver power and network connectivity to the touch console, which reduces the number of cables on the table. One USB-C cable from the console to a laptop or PC enables 4K sharing, BYOD and charging. The ports on the bar are:

One 10/100/1000 Mbps Ethernet port and a Yealink VCH port (RJ-45)
Two HDMI outputs, with HDMI input available through the VCH51 Sharing Kit
One USB 3.0 USB-C port, two USB 2.0 USB-C ports and one USB 2.0 USB-A port
A 3.5mm line-in and line-out port, plus a security lock slot

Where it fits in Qatar

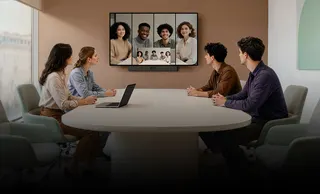

In a meeting room for about ten people in a West Bay office, one bar on the wall can cover the table while the display shows remote participants. In a government ministry office in Msheireb, it suits a room where staff regularly join calls with teams in other cities. A private school in Al Wakrah can equip several leadership and staff meeting rooms with identical units, which keeps training and support simple. In a hotel or serviced apartment meeting room in Lusail, it gives visiting guests a straightforward setup for calls with colleagues abroad.

Planning the installation

The operating range is 0 to 40°C with 10 to 95% humidity, so the bar belongs in an air-conditioned room, away from windows that receive direct sun. Heat output is 38 BTU/hr at idle and 58 BTU/hr during a meeting, which should be included in cooling plans. Dimensions are 650 × 62 × 80 mm and net weight is 5.540 kg. A wall mount and TV-clip mount come in the box. Desk placement needs the VB-TabletopMount-01, and TV mounting with VCS_TVMount2 or VB-TVMount-01 is an additional purchase. A connection of 10 Mbps or more is required. A free site survey before wall mounting helps confirm display height, wall type and cable routes.

The bar carries a 2-year limited hardware warranty. IT teams can manage it through Microsoft Teams Admin Center, Zoom Device Management or Yealink Management Cloud Service. To choose the right edition and bundle for your room, request a quote from SmartRooms Qatar, usually answered within one working day.

Highlights

Two 48MP lenses forming a 120° combined field of view
Eight MEMS microphones with 6-metre pickup distance
Built-in 2 x 10W speakers and 2 optional expansion mics
Android 13 with Microsoft Device Ecosystem Platform (MDEP)
One Cat5e cable links bar to CTP25 touch console
2-year limited hardware warranty included

Room fit

Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

80 specifications · Source: manufacturer · checked Oct 2026

Operating System1

Details: Android 13 Based on Microsoft Device Ecosystem Platform (MDEP)

Camera15

Number of cameras: 2
2x Tele Camera: 120° DFOV, 110° HFOV, 54° VFOV
Maximum pixels: 2 * 48MP pixels
Number of preset positions: 9
Depth of field: 1-5 meters
Maximum resolution: 3840 * 2160
Video output resolution: 4k (2160p) 30fps, 1080p60fps
Effective focal length: 4.2 mm
Aperture: F/2.2-F/2.4
White balance: ATW/auto/manual
Shutter speed: 10ms-33ms
Minimum illumination: 0.5 lux (daytime), 0.1 lux (nighttime)
Signal-to-noise ratio: >63 dB
Privacy cover: Electric lens cap
Details: Lens FOV 6x digital zoom Supports wide dynamic range Supports auto exposure Electronic gimbal Lens calibration Intelligence Features IntelliFocus (up to 4 portraits) Auto Framing Speaker Tracking People counting Picture in Picture Smart Gallery (Zoom only)

Speaker10

Rated Power: 10W + 10W
Maximum Power: 12W + 12W
Maximum sound pressure level: 92 dBSPL @ 10 W @ 1 m
Frequency response: 100-16kHz
Sensitivity: 100±3dB 1 W/0.1 m
Sampling rate: 48kHz
Sound emission angle: Forward-facing
Total Harmonic Distortion (THD): at 10W, 1kHz, ＜5%
Rated impedance: 4 ohms
Details: Built-in 2 x 10W speakers

Microphone11

Signal-to-noise ratio: 72dB@1kHz
Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
Dynamic range: 28-100dBSPL
Sensitivity: -38dBV/pa
Frequency response: 100-20kHz
Sampling rate: 48k
Bit depth: 32-bit
Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control)
Noise suppression: AI-enhanced noise suppression
Expansion mics: Supports 2 expansion microphones
Details: Built-in 8 MEMS microphone array 6-meter pickup distance, 4-meter high-quality pickup distance

Resolution2

Lens resolution: up to 4k30fps
Bandwidth requirement: 10Mbps or more

Content sharing5

Teams: 1080p30fps in meeting, 4k30fps in local sharing
Zoom: up to 1080p30fps
General mode (BYOM): up to 4k30fps
RingCentral: 1080p30fps
H.323/SIP: 1080p30fps

Video Codec1

Details: H.264 High profile, H.264 SVC, H.264

Audio Codec6

ARES: 24kHZ bandwidth
G.722.1C: 16kHz bandwidth
G.722.1: 8kHz bandwidth
G.722: 8kHz bandwidth
G.711 (PCMA/PCMU): 4kHz bandwidth
G.729: 8kHz bandwidth

Security5

Full disk encryption: AES-128, AES-256
Data encryption: symmetric keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP

Communication standard protocol4

Dual stream protocol: H.239 (H.323) / BFCP (SIP)
FECC: H.224/H.281
H.323 protocol suit: H.245, H.225, H.235, H.241
Details: H.323/SIP in General Mode (BYOM) Gatekeeper account and SIP account

Network Protocol1

Details: Wi-Fi 6 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax 2x2 MIMO Bluetooth 5.0 TCP/IP (IPv4/IPv6), DHCP/static IP HTTPS secure web access

Configuration Management1

Details: Automatic configuration via web page/display/AutoP Firmware upgrade, factory reset Configuration import and export System log export

Device Management1

Details: Yealink HTTPS Web Portal Yealink Device Management Platform Yealink Management Cloud Service Microsoft Device Management Platform(Microsoft Teams Admin Center/Intune) Zoom Device Management RingCentral Admin Center

Installation3

Use TV-Clip Mount (Provided with the product) (Additional: purchase VCS_TVMount2 or VB-TVMount-01)
Place on the desktop (Additional: purchase VB-TabletopMount-01)
Details: Wall mount (Provided with the product)

Ports2

1x Ethernet port: 10/100/1000Mbps
Details: 1x USB2.0 USB-A port 2x USB2.0 USB-C port 1x USB3.0 USB-C port Video input supports formats up to maximum 4k30fps, including 1080P60fps 1x Yealink VCH port (RJ-45) 2x HDMI-out Video output supports formats up to maximum 4k30fps, including 1080p60fps Supports HDMI CEC 1x 3.5mm Line-in & Line-out port 1x Power port 1x Security lock slot 1x Reset slot HDMI input (through the VCH51 Sharing Kit)

Package3

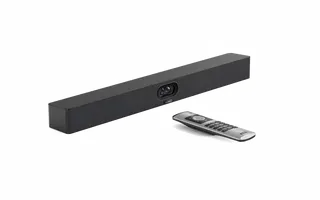

A40-010: A40+VCR11
A40-031: A40+CTP25 Package (CTP25, 2m/6.56ft 65W PD power adapter, 7.5m/24.6ft Network cable, 1.2m/3.94ft USB C to C cable, High stand, Cable management cover)
Details: MeetingBar A40 Power adapter, 3.5m/11.48ft 2x HDMI cable, 1.8m/5.91ft 1x Network cable, 3m/9.84ft TV-Clip Mount Wall Mount Cable Cover MeetingBar A40 Quick Start Guide Optional Package

Environmental Factor4

Operating humidity: 10 - 95%
Operating temperature: 0 - 40℃
Storage temperature: -30℃~70℃
BTU/hr: 38 in idle, 58 in meeting

Dimensions and weight (W × D × H)3

MeetingBar A40: 650 × 62 × 80 mm
N.W/CTN: 5.540 kg
G.W/CTN: 6.086kg

Warranty2

Standard: 2-year limited hardware warranty included
Extended: Additional extended warranties are available at the time of hardware purchase. Contact your reseller.

Downloads

127 files from the manufacturer

Questions about MeetingBar A40

Who is the Yealink MeetingBar A40 best suited for?

It suits small and medium meeting rooms that need one display and one table for hybrid meetings. In a room for about ten people in a West Bay office, a single bar covers the table with a 110° horizontal view and picks up voices up to 6 metres away, while the display shows remote participants. Yealink rates it for up to 12 people.

How wide is the camera view and how far can it zoom?

The two lenses combine into a 120° frame, with a 110° horizontal and 54° vertical field. The camera offers 6x digital zoom, nine preset positions and an electronic gimbal. Its depth of field runs from 1 to 5 metres, so plan seating so that everyone sits within that range from the bar.

What video resolution does it support in Teams, Zoom and General Mode?

Maximum resolution is 4K, and video output reaches 4K at 30fps or 1080p at 60fps. In Microsoft Teams it supports 1080p during meetings and 4K for local content sharing. Zoom sharing goes up to 1080p30, and General Mode sharing reaches 4K30. RingCentral and H.323/SIP calls run at 1080p30. A connection of 10 Mbps or more is needed.

How does it pick up voices across a room?

Eight MEMS microphones provide a 6-metre pickup distance and high-quality pickup to 4 metres. Full-duplex audio, echo cancellation and AI-enhanced noise suppression allow both sides to speak at once. Two expansion microphones are optional for a larger table. The built-in speakers are rated 10W plus 10W, so remote voices carry clearly across the room.

Which meeting platforms does it support?

Yealink lists the MeetingBar A40 and CTP25 as officially certified for Microsoft Teams and Zoom. It is sold in Microsoft Teams Rooms on Android and Zoom Rooms editions. In General Mode it works as a wired USB peripheral for third-party apps, and it supports H.323 and SIP calls. Choose the edition that matches your existing meeting platform before requesting a quote.

How many cables does the CTP25 setup need?

The touch console connects to the bar with one Cat5e cable that provides power and network. One USB-C cable from the console to the PC enables 4K sharing, BYOD and charging. The CTP25 package includes a 1.2-metre USB-C cable, and a 3-metre cable (USB-C-3M) is optional. Without the console, a USB-C cable can connect directly to the bar, though length may be limited.

Can I add ceiling microphones or other audio units?

Yes. It is compatible with the CM20 ceiling microphone, the CS10, and the VCM35 and VCM36 audio units. Connecting a CM20 disables the built-in speaker, so pairing the CS10 with the CM20 is recommended for a large boardroom with ceiling audio. For third-party audio over the 3.5mm port, line-in and line-out must be used together.

Is it a good fit for a hotel meeting room in Lusail?

It can be, for a small or medium room where guests join calls from abroad. The bar mounts on a wall or TV bracket and connects to a display through two HDMI outputs. Its single-cable link to the CTP25 keeps the table clear, and the microphones cover a table of several guests within 6 metres. Confirm the room is air-conditioned, because the operating range is 0 to 40°C.

What environment does it need in a Qatar office?

The operating temperature range is 0 to 40°C with 10 to 95% humidity, and storage is rated from -30 to 70°C. In summer, keep the bar in an air-conditioned room, not beside a window that takes direct afternoon sun. Heat output is 38 BTU/hr at idle and 58 BTU/hr in a meeting. If the room is not conditioned, ask the SmartRooms Qatar team to review it before installation.

What are the size, weight and mounting options?

The bar measures 650 × 62 × 80 mm and its net weight is 5.540 kg. A wall mount and TV-clip mount are included. Desk placement requires the VB-TabletopMount-01, and a TV mount such as VCS_TVMount2 or VB-TVMount-01 is an additional purchase. SmartRooms Qatar offers a free site survey, which we recommend before wall mounting to check display height, wall type and cable routing.

How is the MeetingBar A40 managed across several rooms?

The bar reports to management platforms and can be configured, upgraded and monitored remotely. Supported tools include Microsoft Teams Admin Center, Zoom Device Management, Yealink Management Cloud Service and a Yealink HTTPS web portal. IT teams can upgrade firmware in bulk, receive alarms for issues such as poor call quality, and schedule tasks outside office hours. A 2-year limited hardware warranty is included.

Can a government ministry or school buy several units on a purchase order?

Yes. SmartRooms Qatar supplies these bars against LPOs and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A school equipping several meeting rooms can receive one quotation that lists the right bundle for each room, such as A40-010 with VCR11 or A40-031 with CTP25. Quotations are usually issued within one working day.
