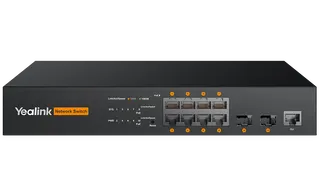

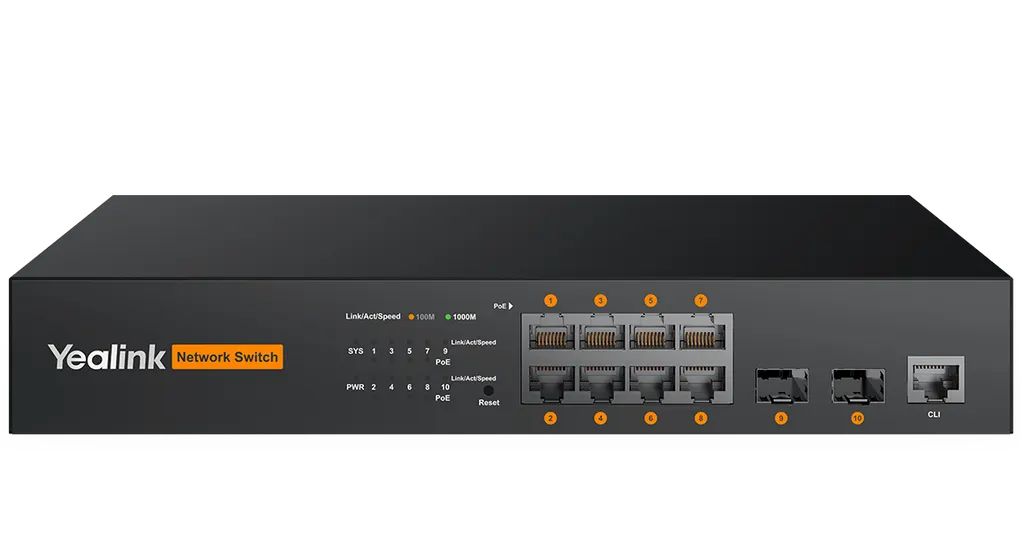

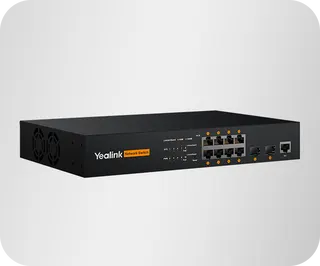

Yealink RCH80 8-Port L2+ Managed PoE+ AV Switch
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Yealink RCH80 is an 8-port L2+ web-managed PoE+ AV switch built for AV over IP rooms. It offers eight Gigabit PoE ports, two SFP fiber uplinks and a 130 W PoE budget for Yealink MTR systems, cameras, pro audio and AVoIP encoders, with Dante and AES67 support. Its fanless metal chassis suits quiet meeting rooms. Boardrooms, lecture halls and training rooms across Doha can request a quote.
What the RCH80 does in an AV over IP room
The Yealink RCH80 is an 8-port L2+ web-managed switch with PoE+ that carries power and data to AV endpoints over one Ethernet cable per device. In a conference room, that means a Yealink MTR system, a camera or a pro audio device can run on one managed network without a separate power feed for each unit. It is designed for AV over IP networks rather than general office traffic alone.
The specifications that matter on a project
- Ports: 8 Gigabit PoE ports and 2 Gigabit SFP fiber uplinks, useful when the switch sits in a separate communications room and must reach the core network over fiber.
- PoE budget: 130 W in total, supporting 802.3af and 802.3at powered devices. Add up the rated draw of every endpoint before you settle the layout.
- Capacity: 20 Gbps switching capacity and a packet forwarding rate of 28 Mpps.
- Multicast control: IGMP Snooping and Fast Leave keep multicast streams away from ports that do not need them.
- Network controls: VLANs with 4K entries, QoS with 802.1P and DSCP marking, loop protection through STP, RSTP and MSTP, and 802.1x authentication.
Where it fits in Qatar
A boardroom in West Bay running a Yealink MTR system, a camera and a pro audio device needs one switch that powers those endpoints and keeps their streams stable. A university lecture hall in Education City with several AVoIP encoders and decoders can use the switch to connect video sources on one managed network. A government office in Msheireb, where the working week runs Sunday to Thursday, can separate AV traffic from staff data using VLANs, so meeting streams do not compete with file transfers.
What to plan before you order
The RCH80 measures 280 × 180 × 44 mm and the datasheet lists it as rack-mounted. Its operating range is -10°C to 50°C with 10% to 90% relative humidity, non-condensing. Qatar summers can push ambient temperatures in poorly ventilated spaces well beyond comfortable levels, so install it in an air-conditioned comms room or a ventilated cabinet and confirm the location with the SmartRooms Qatar team. Its power supply accepts 100 V to 240 V at 50 Hz ±10%, and power consumption is under 10 W. A free site survey from SmartRooms Qatar can confirm cabinet space and cable routes before you order.
Buying through SmartRooms Qatar
The RCH80 is intended for business customers, so SmartRooms Qatar supplies it by quotation. We deliver to all eight municipalities of Qatar and can arrange professional installation. Government buyers and schools can issue an LPO, and public tenders can be handled through Monaqasat. Send us the number of endpoints each switch will serve and your room list, and we will prepare a quotation, usually within one working day. Request a quote from SmartRooms Qatar today.
Highlights
- 8 Gigabit PoE ports plus 2 Gigabit SFP fiber uplinks
- 130 W PoE power budget with 802.3af and 802.3at support
- Supports Dante and AES67 alongside Yealink AV protocols
- IGMP Snooping and Fast Leave for multicast AV traffic
- L2+ management with VLAN, QoS and 802.1x via web browser
- Fanless metal chassis measuring 280 × 180 × 44 mm
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Source: manufacturer · checked Oct 2026
The full specification and datasheet for this model are available on request; we send them with your quotation.
Downloads
9 files from the manufacturer
PDF
Yealink RCH80 datasheets (PDF, 132 KB)
PDF
Yealink RCH80 manuals & guides (PDF, 1.2 MB)
URL
Yealink RCH80 manuals & guides (URL)
URL
Yealink RCH80 manuals & guides (URL)
URL
Yealink RCH80 manuals & guides (URL)
DXF
Yealink RCH80 drawings & cad (DXF)
STP
Yealink RCH80 drawings & cad (STP)
PDF
Yealink RCH80 other documents (PDF, 1.0 MB)
URL
Yealink RCH80 other documents (URL)
Questions about RCH80
Which rooms in Qatar suit the Yealink RCH80?
The RCH80 suits rooms where several AV endpoints must share one managed network, such as a boardroom in West Bay with a Yealink MTR system, a camera and a pro audio device, or a lecture hall in Education City with AVoIP encoders and decoders. Its eight Gigabit PoE ports cover one room or a small group of rooms, and its two SFP ports link the switch back to the core network over fiber.
How much power can the RCH80 supply to connected devices?
The RCH80 has a 130 W PoE power budget across its 8 Gigabit PoE ports and supports 802.3af and 802.3at powered devices. A training centre in Al Sadd fitting out several rooms should add up the rated draw of every camera, display and encoder before choosing this model, because the budget is shared across all ports. SmartRooms Qatar can review your device list while preparing the quotation.
Does the RCH80 support Dante and AES67 audio?
Yes. The RCH80 supports Dante and AES67 alongside Yealink AV protocols, so networked audio and conferencing traffic can share the same switch. IGMP Snooping is enabled by default, which helps keep multicast audio and video streams on the ports that need them. Your audio supplier should confirm Dante or AES67 device settings during the site survey.
Is the RCH80 plug-and-play?
For Yealink AV over IP devices, the datasheet states that no configuration is required. IGMP Snooping is enabled by default and EEE is disabled by default. Connected devices still need their own network roles set. If your IT department requires VLAN, QoS or 802.1x settings on the switch, those are configured through its web-based management page, so plan that work before handover.
Which managed network features does the RCH80 include?
The RCH80 supports 4K VLAN entries, Voice VLAN, Private VLAN and QinQ, with QoS marking using 802.1P and DSCP. It also supports STP, RSTP, MSTP, EPS and ERPS for loop protection, plus 802.1x authentication. An IT manager in Doha can use these features to keep AV streams separate from office traffic on a shared network, and management is done through a web browser.
Should a Doha office choose the RCH80 or the RCH240?
Choose the RCH80 for a smaller AV network. It offers 8 Gigabit PoE ports, 2 Gigabit fiber ports, 130 W PoE and 20 Gbps switching capacity. The RCH240 offers 24 PoE ports, 4 fiber ports, 370 W PoE and 56 Gbps, but it has two fans and measures 440 × 208 × 44 mm. If your office has a few meeting rooms rather than a building-wide AV backbone, the RCH80 is usually the right size.
Can the RCH80 run reliably in Qatar's summer heat?
Its rated operating range is -10°C to 50°C at 10% to 90% relative humidity, non-condensing. Summer temperatures in Qatar regularly exceed 45°C, so do not place the switch in an unventilated cabinet near a window or in a hot store room. An air-conditioned comms room is the safer choice, and the SmartRooms Qatar team can review your location before quotation.
Is the RCH80 compatible with Qatar's 240 V, 50 Hz mains supply?
The power supply is rated for 100 V to 240 V at 50 Hz ±10%, a range that covers Qatar's 240 V, 50 Hz supply. Power consumption is under 10 W. Ask your installer to confirm that the supplied power cord and plug suit the BS 1363 sockets used in Qatar, and to choose a socket that does not share a circuit with heavy electrical loads.
What size is the RCH80 and what does mounting require?
The RCH80 measures 280 × 180 × 44 mm, and the datasheet lists it as rack-mounted. Its metal chassis has no fans, so it runs without fan noise in a comms cabinet or small equipment room. Before ordering, measure the cabinet depth and leave space at the front and rear for patch leads and fiber cables. A free site survey from SmartRooms Qatar can confirm the space and cable routes.
Will the RCH80 be quiet enough for a boardroom in Lusail?
The datasheet lists no fans for the RCH80, so there is no fan noise to interfere with microphones or quiet discussion. Power consumption is under 10 W, which keeps heat output low inside a closed cabinet. For a boardroom in Lusail, place the switch in a nearby comms cabinet rather than under the meeting table. Request a quote from SmartRooms Qatar that lists the switch alongside your camera and microphone kit.
How do I buy an RCH80 for a school or government office in Qatar?
Send SmartRooms Qatar your room list, the number of endpoints and the cable routes, and a quotation is usually returned within one working day. Schools and ministries can issue a purchase order or LPO, and public tenders can be handled through Monaqasat. Payment can be made by bank transfer, cheque or purchase order. We deliver to all eight municipalities of Qatar and can arrange professional installation.
