RoomPanel Plus E2

What the panel does at the meeting room door

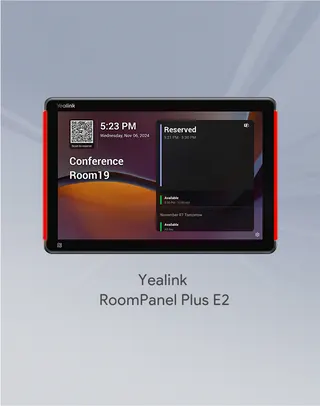

The Yealink RoomPanel Plus E2 is a 10.1-inch touch panel that sits beside a meeting room door and shows its schedule. Staff can view the day's bookings, reserve a free room from the screen and check in on arrival. The panel runs Android 13 and can connect to meeting room sensors. When paired with an occupancy sensor, it can support actions such as automatic release of an unused room or automatic check-in, depending on the third-party app in use.

Room status you can read from the corridor

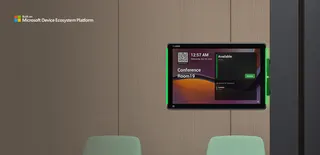

Full RGB LED bars on both sides show room status in colour, and the light stays visible from any angle. Colours can differ between booking platforms, so confirm the colour mapping before ordering. The 1280x800 LCD, with 1000:1 contrast and a ±90° viewing angle, keeps the schedule readable from the side as well as the front. An ambient light sensor adjusts brightness automatically, and a proximity sensor wakes the screen when someone approaches.

Connectivity, platforms and remote management

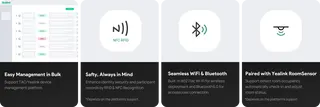

The panel includes two microphones and two speakers, plus a built-in NFC/RFID reader at 13.56 MHz for ID authorisation and attendee tracking. Wireless connectivity covers 802.11a/b/g/n/ac Wi-Fi and Bluetooth 5.0. The wired port is Fast Ethernet at 10/100 Mbps and supports 802.1x authentication through EAP-MD5, EAP-TLS, EAP-PEAP/MSCHAPv2 and EAP-TTLS/EAP-MSCHAPv2. The datasheet lists support for Teams, Zoom, Gingco, Gobright, Flowscape, Space Connect and Appspace. Yealink Management Cloud Server allows remote monitoring, management and diagnosis, which helps facilities teams running several panels.

Where it fits in Qatar

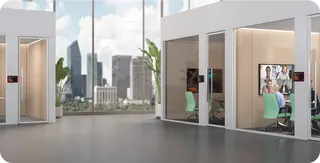

A corporate office in Doha, Lusail or The Pearl: bilingual teams that book rooms through a shared calendar can place one panel beside each boardroom, so availability is visible before anyone walks down the corridor.

A private school in Al Wakrah or Al Rayyan: staff meeting rooms and shared classrooms used for parent meetings benefit from clear status lights, and a 10.1-inch screen suits a single room door better than a large lobby display.

A university building in Education City: seminar and project rooms that change hands several times a day can show who holds them, and attendees can check in using NFC or RFID credentials.

Planning power, mounting and summer heat

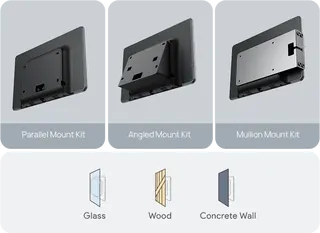

The panel takes power over Ethernet under IEEE 802.3af or from a DC 12V/1.25A supply, so confirm that the switch on each floor provides PoE before ordering. The included brackets and tape allow tilt angles of 0° or 20°, and the datasheet lists wall, glass and side mounting, a mullion bracket and a 3M glue option. The display measures 247.6 x 166.36 mm and the unit weighs 0.627 kg. The operating range is 0 to 40°C with 10 to 95% humidity, non-condensing. Qatar summers can exceed 45°C, so place the panel in an air-conditioned room, away from direct sun and strong window glare. A free site survey from SmartRooms Qatar can confirm the wall, glass or partition type and the cable route before installation.

Request a quote from SmartRooms Qatar for the RoomPanel Plus E2 and we will confirm the quantity, mounting kit and power option for your building. Quotations are usually issued within one working day, and we supply against LPOs and government tenders.
