SmartVision 80

What the SmartVision 80 is

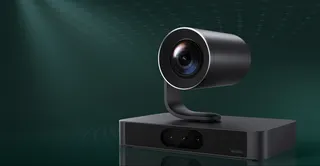

The SmartVision 80 is a PTZ conference camera for rooms where participants sit far apart or stand at different distances from the lens. Instead of one fixed view, it combines four lenses: a panoramic lens, two telephoto lenses and a PTZ lens. The camera chooses the view that suits each moment, so a wide shot of the room and a close-up of one speaker can both stay sharp. The manufacturer describes the system as a 4K quad-lens design.

Lens coverage and zoom

The PTZ lens provides 20x optical zoom with a 69-degree diagonal field of view. The panoramic lens covers 110 degrees diagonally, and each telephoto lens covers 51 degrees. Pan reaches ±96 degrees and tilt runs from -90 to +50 degrees, so the camera can frame a whole table or a single presenter at a whiteboard. The panoramic and telephoto lenses each have an automatic lens cover. The spec table lists a 15 m maximum distance while the marketing text cites 20 m, so check coverage against your room plan before buying.

Tracking that follows the conversation

• Speaker and presenter tracking moves the shot to whoever is talking or presenting.
• Auto framing and video fence keep the picture to a chosen size and area of the room.
• Picture-in-picture and participant identification are listed among the on-device AI features.
• Multi-Stream IntelliFrame gives each participant a separate stream, but the manufacturer states it is only supported within Yealink's MTRoW solutions.

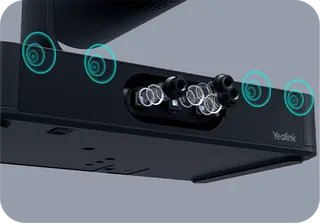

Audio is handled by a built-in four-microphone array that localises sound, so tracking works without external microphones. AI noise suppression and dereverberation are supported. For larger rooms, the camera works with Yealink audio devices such as the VCM35/36, CM20 and MSpeaker Pro.

Ports and integration

The rear panel offers one USB 3.0 Type-B port, one USB 2.0 Type-A port, one HDMI out, a network RJ45 port, two VCH RJ45 ports, line in, line out and a DC power port, plus a reset button. NDI is supported. Dante is not yet available, because the manufacturer lists Dante support for a future version, so do not design a Dante audio network around this camera today. Our team can confirm which ports your conferencing system needs before you order.

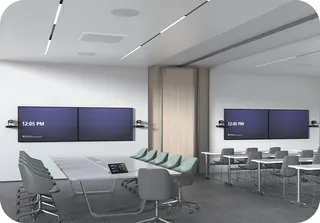

Where it fits in Qatar

Three scenarios show the range. A ministry boardroom in West Bay, with officials seated along one long table and a display at the far end, benefits from a wide view that tracking can narrow to the current speaker. A university seminar room in Education City, where a lecturer presents at the front while students and visiting researchers join from the back, suits the 20x zoom. A conference room in a Lusail hotel that links Doha teams with partner offices abroad needs clear framing and reliable audio for both sides of the call.

Planning the installation

Dimensions are 230 × 135 × 171.5 mm. Net weight is 1.716 kg and gross weight is 3.874 kg, so the bracket must be fixed into solid structure. The mount kit and adjustable bracket allow placement on a wall, on a TV or on a table. Before installing, book a free site survey to check mounting height, the sightline to the furthest seat and cable routes. The source data does not list an operating temperature range, so confirm the environment with the SmartRooms Qatar team before placing the camera near sun-facing glass or in a space that is not air-conditioned. Also confirm that the supplied power supply suits Qatar's 240 V, 50 Hz mains.

Send your room dimensions, seating layout and conferencing platform, and we will prepare a quotation, usually within one working day. Request a quote for the SmartVision 80 today.
