VB-TVMount-01

What the VB-TVMount-01 does in a meeting room

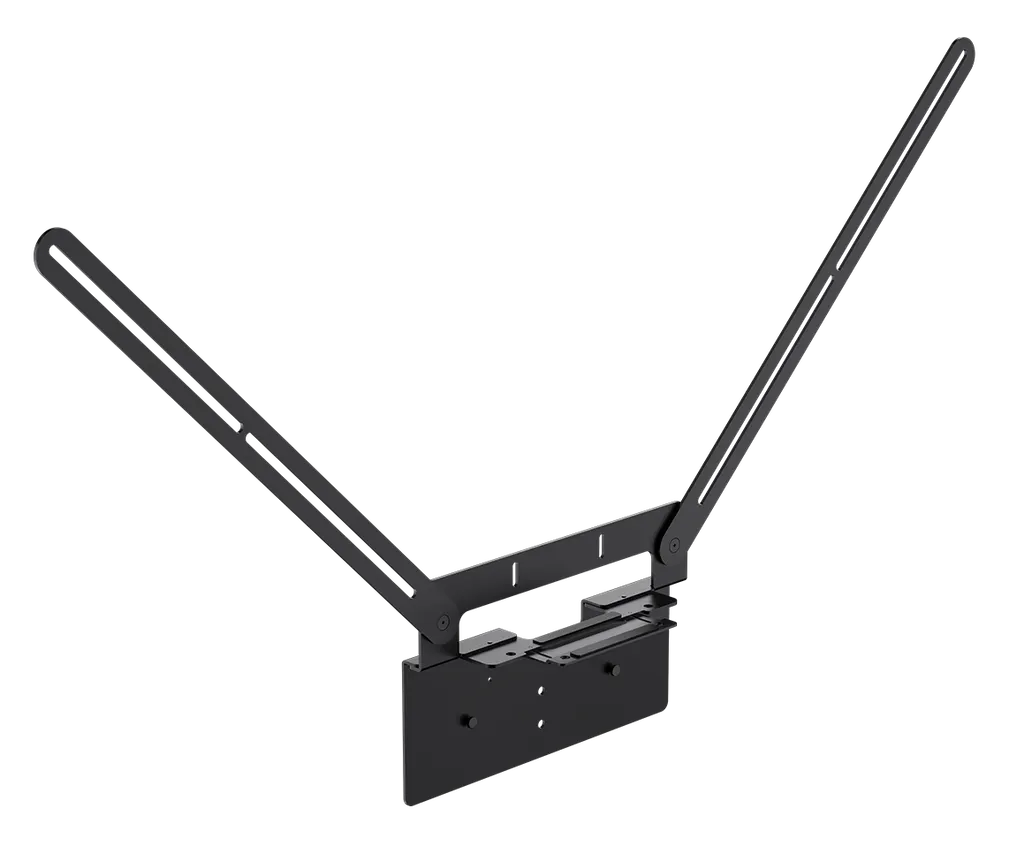

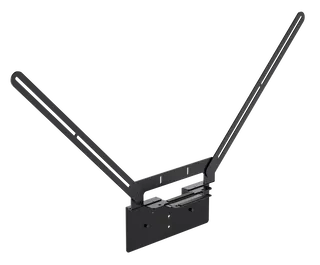

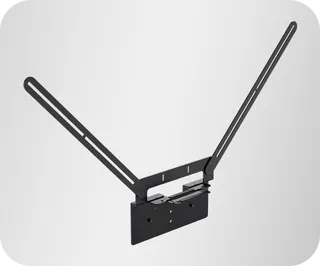

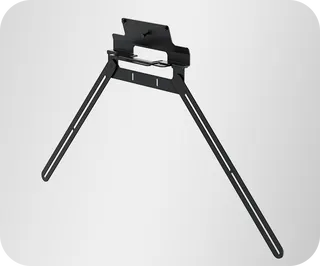

The VB-TVMount-01 is a mounting kit that holds a Yealink MeetingBar video bar in a fixed position against a wall-mounted television. Instead of standing a video bar on a credenza or a shelf, where it can shift or sit at the wrong height, the kit places it in line with the screen. The design is modular and can be adapted to mainstream TV models, which helps when a room already has a display and the client wants to add video conferencing without replacing the screen.

Bottom or top placement from one kit

The main planning decision is where the bar sits relative to the display. With the MeetingBar A50, the mount can hold the device beneath the TV. The kit also includes a top mounting bracket, so the same hardware can be reconfigured to place the bar above the screen. Top placement is useful where the lower edge of the TV is crowded by furniture, or where a higher line of sight suits the room layout. The bottom mounting mode also accommodates the A25, A40 and SmartVision 40.

Dimensions and weight to plan for

• Bottom bracket configuration: 691 mm high by 309 mm wide
• Top bracket configuration: 670 mm high by 309 mm wide
• Net weight: 2.69 kg
• Gross weight per carton: 3.548 kg
• Part number: 311118

Measure the clear space below or above the TV before ordering, particularly where the display sits close to the ceiling or above a low cabinet. The bracket height needs room for the bar and its cables, so the layout should be confirmed on site.

Where it fits in Qatar

• A boardroom in West Bay with a TV already fixed to the wall, where the team needs a single device for hybrid meetings with colleagues abroad.
• A lecture or seminar room at a university in Education City, where lecturers present to a room and remote students join from elsewhere, and the camera must stay at a steady height.
• A staff meeting room at a private school in Al Wakrah, where the bar should be kept off the table to leave space for documents and laptops.

Planning the installation

SmartRooms Qatar offers a free site survey, which is the right step before drilling into a wall. The survey should confirm the TV model, the wall construction, the cable route and the space above or below the screen. Environmental conditions also matter. The source data does not give an operating temperature range for this mount, so confirm the installation location with the SmartRooms Qatar team before fitting it in a space that is not air conditioned. For government offices, schools and companies buying several kits, an LPO can cover the full order, and quotations are usually issued within one working day.

Request a quote from SmartRooms Qatar with your TV model and the MeetingBar model you plan to mount, and we will confirm the right bracket configuration for your room.
