YPS20
Yealink YPS20 Partition Sensor for Divisible Meeting Rooms
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

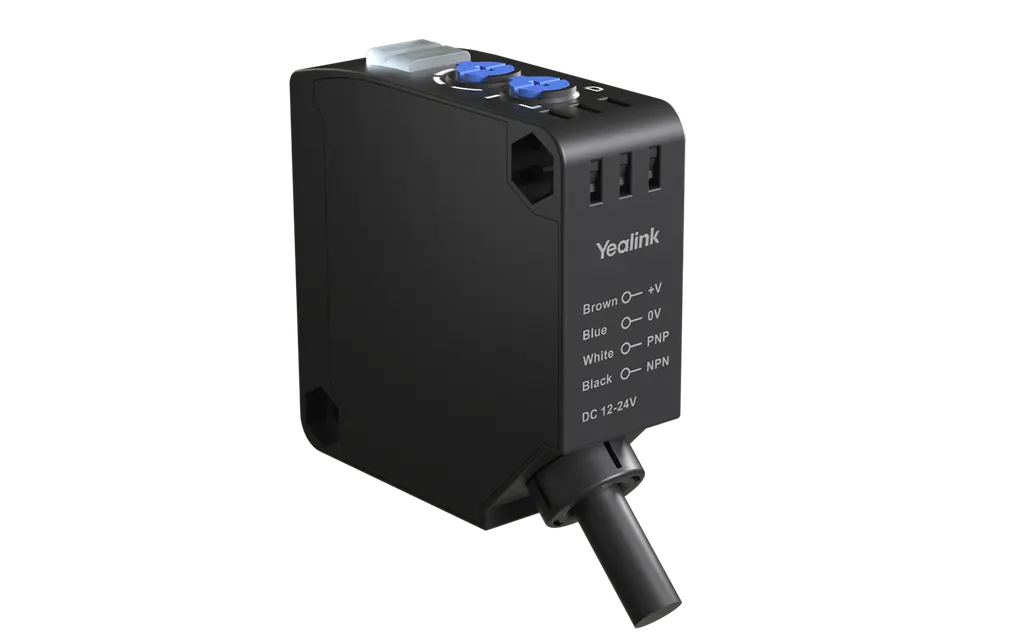

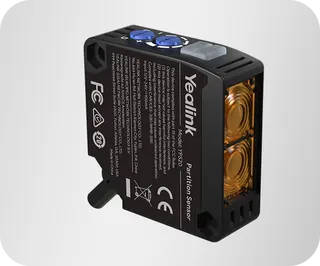

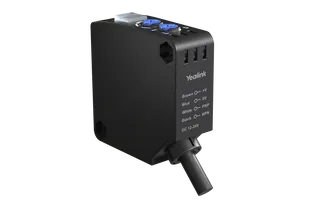

The Yealink YPS20 is a surface-mount infrared sensor that detects where a movable partition sits in a divisible meeting room. Paired with the Yealink AP08 and a Room Controller, it lets the room adjust its settings automatically when walls are moved. It offers a 1.5m effective detection distance, a 10m cable for routing to the partition, and an IP65 rating. It suits hotels, schools and offices in Doha that split large halls into smaller rooms.
What the YPS20 detects in a divisible room
The YPS20 is a surface-mount sensor built for rooms that change shape. It directs an infrared beam at a movable partition and reads its position, so the room system knows whether the space is one hall or two smaller rooms. Instead of a wall switch or a touch panel, the change is picked up automatically, so the meeting set-up matches the physical layout without manual steps.
Detection relies on diffuse reflection, meaning the beam bounces back from the partition surface and no reflector is needed. The standard reference target is white drawing paper measuring 300×300mm. A single knob adjusts sensitivity to suit the surface, and the same knob selects dark-on or light-on action mode. Two LEDs show the status of power, communication and partition detection.
Specifications that matter for planning
- Detection distance: 1.5m maximum effective sensing range
- Light source: infrared LED at 850nm
- Response time: less than 0.5 ms
- Supply: DC 12-24 V, ±10%
- Control output: NPN or PNP, selected by wiring; 100 mA output current
- Cable: 10m included
- Protection: IP65 rating, with power reverse, output short-circuit and output reverse protection
- Working temperature: -35 to 55 °C; storage -40 to 70 °C, no icing or dew
- Humidity: 35 to 85 %RH during operation
- Housing: ABS body with PMMA lens
Where it fits in Qatar
A typical case is a hotel ballroom in West Bay that is divided by a folding partition into two parallel sessions and opened fully for gala dinners. Mounting a YPS20 at the partition track lets the AV set-up follow the layout the team has chosen, so fewer staff need to reset displays and audio before each booking.
In a school in Al Wakrah, an assembly hall split into two classrooms during the Sunday to Thursday timetable can use the same approach. The sensor sits at the partition, the AP08 handles the GPIO connection, and the controller applies the setting for the current layout. A corporate boardroom in Lusail that opens onto a larger hall for committee meetings follows the same logic.
Near a window facing the sun, the stated working range of -35 to 55 °C gives a wide margin, but the sensor should still be kept out of direct sunlight. The datasheet gives a sunlight illumination limit of below 10000 lx. Confirm the exact position during a site survey.
What to plan before installation
- Measure the distance from the sensor position to the partition surface and keep it within the 1.5m effective range.
- Route the included 10m cable from the sensor to the AP08 GPIO interface, keeping it clear of doors and moving parts.
- Confirm the DC 12-24 V supply and whether your controller needs NPN or PNP output.
- Test sensitivity after mounting with the knob, using white paper as the reference surface.
SmartRooms Qatar offers free site surveys, the easiest way to check cable runs and partition positions before anything is fitted. Professional installation is available, and we deliver to all eight municipalities of Qatar. Purchase orders and government tenders, including Monaqasat, are accepted.
Request a quote
Send SmartRooms Qatar your room layout, partition type and any Yealink equipment already in place, then request a quote. Quotations are usually issued within one working day, and the team will confirm the sensor count, cable lengths and any controller your rooms need.
Highlights
- Effective infrared detection distance of 1.5m
- 10m cable included for flexible sensor placement
- Sensitivity adjusted with a single knob
- Pairs with Yealink AP08 GPIO interface and Room Controller
- IP65 rating and working range of -35 to 55 °C
- DC 12-24 V supply with NPN or PNP output
Room fit
Tell us the room size and platform (Teams, Zoom or BYOD) and we confirm the right combination with your quotation.
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Source: manufacturer · checked Oct 2026
The full specification and datasheet for this model are available on request; we send them with your quotation.
Downloads
5 files from the manufacturerQuestions about YPS20
What is the Yealink YPS20 used for?
The YPS20 is a partition sensor for divisible meeting rooms. It uses an infrared beam to detect the position of a movable partition, so the room system can apply the correct configuration when the space is opened or closed. It is designed as a surface-mount unit and suits hotels, schools and organisations in Qatar that convert one large hall into several smaller rooms.
What is the maximum detection distance of the YPS20?
The effective sensing distance is 1.5m. The datasheet uses white drawing paper measuring 300×300mm as the standard detection target, and sensitivity can be adjusted with one knob to suit the surface and environment. Position the sensor so the partition surface falls within that 1.5m range, and measure before requesting a quote so the proposal reflects your actual room layout.
Does the YPS20 work on its own or with other equipment?
The YPS20 is designed to pair with the Yealink AP08 through its GPIO interface, and with a Yealink Room Controller for adaptive settings. The datasheet also refers to Room Designer software for setting up a divisible room and managing its equipment status. Include the AP08 and controller in your planning so the sensor is part of a complete working chain.
What power does the YPS20 require?
The datasheet lists a DC supply of 12 to 24 V with ±10% tolerance. This is a low-voltage DC supply, not the 240 V mains used across Qatar, so the power source must be planned as part of the installation. Output is NPN or PNP, selected by wiring, with an output current of 100 mA. Ask SmartRooms Qatar to confirm the power arrangement before issuing a purchase order.
Would the YPS20 suit a hotel ballroom in West Bay?
Yes, a ballroom that splits into two or three function rooms is a typical application. The sensor mounts on the partition track, the 10m cable runs to the AP08, and the room controller applies the matching layout. Event teams then avoid resetting displays and audio before each booking. A site survey confirms whether the partition track sits within the 1.5m detection range.
Will the YPS20 cope with heat near windows in Doha?
The datasheet gives a working ambient temperature of -35 to 55 °C, storage of -40 to 70 °C, and working humidity of 35 to 85 %RH with no dew. It carries an IP65 rating and a sunlight illumination limit of below 10000 lx. Even so, keep the sensor out of direct sunlight near sun-facing windows, and confirm the position during a site survey.
How long is the cable, and can it be extended?
The YPS20 comes with a 10-meter cable, which the datasheet highlights for flexible placement. Measure the route from the partition track to the AP08 GPIO interface before ordering. The datasheet does not list extension options, so if a run needs more than 10m, check with the SmartRooms Qatar team before the quotation is prepared.
How do I adjust sensitivity and action mode?
A single knob adjusts sensitivity, and the same knob selects dark-on or light-on action mode. The datasheet notes that sensitivity can be tuned for more demanding surroundings. After mounting, test each partition position with the knob, using white paper as the reference target, and readjust if the partition is near the edge of the 1.5m range.
What do the LED indicators show?
The unit has two LEDs. The datasheet describes an orange action indicator and a green stable indicator, which together show sensor power, communication status and partition detection. After wiring, check both LEDs to confirm the unit is powered and communicating with the AP08 before you test partition detection.
Would the YPS20 suit classrooms in an Al Wakrah school?
Yes, when a hall is divided into two or more classrooms. The sensor is mounted at the movable partition and wired to the AP08, so the room setting changes when the layout changes. Plan the work around the Sunday to Thursday timetable, and check cable routes and power supply during the site survey before the partition is fitted.
Is the YPS20 suitable for a Lusail boardroom that opens onto a larger hall?
It can be, when the boardroom is used alone or joined to the adjacent hall. The sensor reads the partition position and passes the split status through the AP08, so the system applies the setting for each meeting. Before requesting a quote, confirm how many partitions need a sensor, that each position is within 1.5m, and that the environment matches the datasheet limits.
How do government offices in Doha order the YPS20 through a tender?
Government bodies can issue a purchase order or take part in tenders, including through Monaqasat. SmartRooms Qatar accepts purchase orders and government tenders, with payment by bank transfer, cheque or purchase order. Send the ministry office room drawings, partition types and existing equipment, and the quotation can cover sensors, cable, the AP08 and any controller. Quotations are usually issued within one working day.
