Name: Barco UniSee II 55-inch Bezel-less LCD Video Wall Display
Brand: Barco
SKU: barco-barco-unisee-2
Availability: InStock

Overview

The Barco UniSee II is a 55-inch bezel-less LCD tile that joins with other panels to form one continuous video wall. Each unit offers Full HD IPS with a direct Mini LED backlight, 800 cd/m2 typical brightness and HDR10 support. It suits operations rooms, airport areas and lobbies in Doha, West Bay and Lusail. Request a quote from SmartRooms Qatar for your wall layout.

What the Barco UniSee II is built for

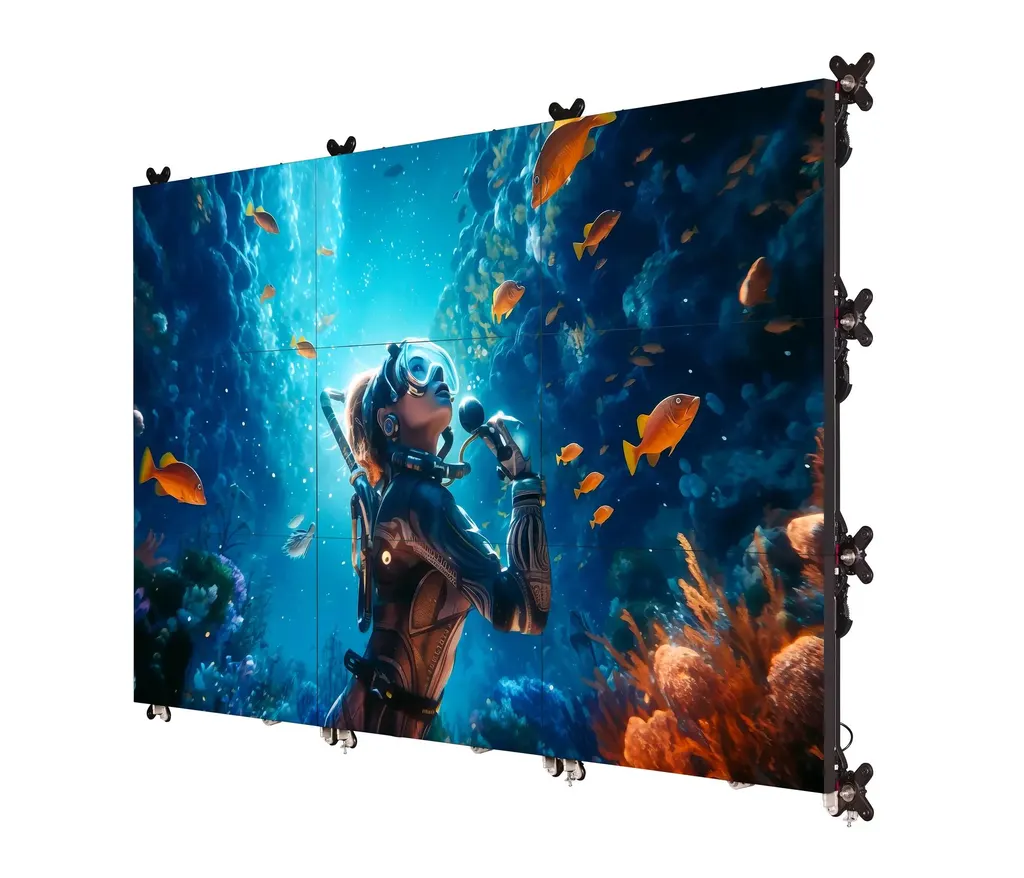

The Barco UniSee II is a 55-inch LCD tile designed to be joined with other panels into one continuous video wall. Its bezel-less cabinet keeps the visible gap between units to a minimum, so the image reads as a single surface in operations rooms, command centres, visitor lobbies and briefing areas. Each panel is an IPS unit with a Full HD resolution of 1920 x 1080 pixels, so the total resolution of the wall depends on how many tiles you order.

Brightness, contrast and colour on the panel

A direct Mini LED backlight with more than 5,000 LEDs sits behind the panel, with local dimming to control dark and bright areas within each frame. Typical luminance is 800 cd/m2, and Peak mode raises it to 1,300 cd/m2 for rooms with strong ambient light. Typical contrast is 1,200:1, while smart dynamic contrast is listed above 200,000:1. The native colour gamut is 100% NTSC and HDR10 processing is supported. Sense X calibration adjusts colour and brightness automatically, which helps tiles match across a wall viewed from one position.

Uniformity and viewing comfort

Uniformity is rated at 98% on a 9-point measurement, 94% on 13 points and 90% on 21 points, so the number of measurement points matters when you compare panels. Viewing angle is 178 degrees both horizontally and vertically, response time is under 8 ms, and screen haze is 25%. The panel holds a TÜV Rheinland certification for eye comfort, and its design includes measures intended to ease eye strain during long shifts.

Where it fits in Qatar

Operations control room: a government authority or utility in the Industrial Area or Ras Laffan monitoring systems across shifts. The fan-less cooling means no fan noise in a quiet control room.
Airport and transport hall: a visitor information or operations wall in a climate-controlled terminal area near Hamad International Airport, where the environment must be confirmed first.
Lobby or atrium: a hotel, mall or head office in West Bay, Lusail or Msheireb using the wall for wayfinding and brand content. Portrait mounting suits narrow columns.

Planning power, mounting and connections

The AC input is rated at 100 to 240 VAC, 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 225 W with the internal power supply and 220 W with the external one, producing 768 and 751 BTU/h of heat. Each LCD unit weighs 18.7 kg, so the mounting structure must be planned around the wall size. The standard UniSee Smart mount supports up to 10 rows in landscape or 6 in portrait, while InvisiMount is listed as a possible option that needs confirming. Connectivity includes two HDMI 2.0 and two DisplayPort 1.2 inputs at 4K 60Hz, one DisplayPort output, two Ethernet ports and HDCP 2.2 support.

The operating temperature entry on the source sheet reads 0°C -40°C, which is unclear, so confirm the exact range before placing a panel in any space that is not air-conditioned. Storage runs from -20°C to 60°C.

Next step: request a quote

Send SmartRooms Qatar your wall size, panel count and preferred orientation, and we will prepare a quotation, usually within one working day. Government buyers can order through an LPO or a tender, including Monaqasat, and pay by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty, and a free site survey can be arranged before installation. Request a quote today.

Highlights

55-inch bezel-less IPS panel with Full HD 1920 x 1080 resolution
Direct Mini LED backlight with more than 5,000 LEDs
800 cd/m2 typical brightness, 1,300 cd/m2 peak in Peak mode
HDR10 support and native 100% NTSC colour gamut
Fan-less cooling with 100-240 VAC, 50-60 Hz input
TÜV Rheinland eye comfort certification; TAA variant available

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

45 specifications · Source: manufacturer · checked Oct 2026

Panel26

LCD technology: IPS
Resolution: Full HD (1920 x 1080 pixels)
Backlight: Direct Mini LED with more than 5000 LEDs
Aspect ratio: 16:9
Luminance (typ.): 800 cd/m2 (typical)
Peak luminance: Peak luminance: 1300 cd/m2 with Peak mode
Contrast ratio (typ.): 1200:1 Smart dynamic contrast: >200.000:1
Local dimming: Yes
Smart local dimming: Yes
White point: Native: 8000K (typical)
HDR processing: HDR10 compliant
Color gamut/depth: Native 100% NTSC
Calibration: Sense X automatic color and brightness calibration
Backlight lifetime (typ.): 60,000h
Cooling: Fan-less
Screen haze: 25%
Viewing angle (H|V): 178° | 178°
Response time: < 8 ms
Uniformity: 9 points: 98% 13 points: 94% 21 points: 90%
Operating temperature: 0°C -40°C
Operational humidity: 20% – 80% (non-condensing)
Storage temperature: -20°C – 60°C
Storage humidity: 10% – 90% non-condensing
Mounting: Standard UniSee Smart mount or InvisiMount possible (*)
Landscape/portrait: Yes / Yes
Temperature sensors: Embedded in each panel

Power4

AC input voltage: 100-240 VAC, 50-60 Hz
Power consumption (typical): Int. power supply: 225 W Ext. power supply: 220 W
Heat dissipation: Int. power supply: 768 BTU/h Ext. power supply: 751 BTU/h
EMC Class: FCC Class A / FCC Class B (from H2 2026)

Dimensions6

Dimensions LCM (WxHxD): 1211.36 x 682.02 x 65 mm
Dimensions LCD (with Int SMPS) (WxHxD): 1211.36 x 682.02 x 91.10 mm
Active screen diagonal: 55”
Weight net: LCD (LCM+SMPS+Input Board): 18.7 kg LCM : 16.4 kg
Weight gross: 24.6 kg
Bezel Width: Bezel-less

Connectivity5

DisplayPort: 2x DP1.2 inputs & 1x output (4K@60Hz)
HDMI(TM): 2x HDMI™ 2.0 inputs (4K@60Hz)
Ethernet port: 2x Ethernet ports
USB: 2x USB ports (only for power)
HDCP: Yes, v2.2

Model1

Model name: Barco UniSee II Barco UniSee II TAA

Other3

Notes: UniSee Standard Smart Mount: up to 10 rows (landscape) / 6 (portrait) UniSee InvisiMount: up to 4 col x 3 rows (landscape) / 4 col x 2 rows (portrait)
Certifications: CE, SGS, UKCA, CCC, PSE, BIS, CEBEC, ICES, EAC , FCC, RCM, RoHS, WEEE, REACH TÜV Rheinland certification for eye comfort
TAA Compliancy: Yes, TAA compliant model available

Downloads

2 files from the manufacturer

PDF Datasheets Barco-UniSee-II-en-Spec-sheet.pdf 637 KB URL Manuals & guides · Opens on manufacturer site Manuals, drivers and support

Questions about Barco UniSee II

What is the Barco UniSee II designed for?

The Barco UniSee II is a 55-inch LCD panel built to be tiled into a video wall with almost no visible frame between units. It suits organisations that need one continuous picture from several screens, such as operations rooms, command centres, visitor lobbies and briefing areas. Each panel shows Full HD content at 1920 x 1080, so the total wall resolution depends on how many panels you order. Its IPS panel and Mini LED backlight provide the brightness and contrast needed for rooms that run long hours.

How many panels do I need for a 3 by 3 video wall in an operations room?

A 3 by 3 layout uses nine UniSee II panels. Because each panel is 1920 x 1080, the combined canvas is 5760 x 3240 pixels, enough for several live feeds and dashboards at once. The standard UniSee Smart mount supports up to 10 rows in landscape, so a three-row wall fits comfortably within its limit. Each LCD unit weighs 18.7 kg, so plan the structure carefully. Send your layout to the SmartRooms Qatar team to confirm the mount and quantity before ordering.

What inputs and resolution does each panel accept?

Each panel has two HDMI 2.0 inputs and two DisplayPort 1.2 inputs, all rated at 4K at 60Hz, plus one DisplayPort 1.2 output at the same rating. The panel itself displays Full HD at 1920 x 1080. It includes two Ethernet ports for network connection and two USB ports, which are for power only. HDCP 2.2 is supported. Confirm that your source devices and video processor work with this mix of connections before ordering.

Will the panel run from Qatar's 240 V, 50 Hz mains supply?

Yes. The rated AC input is 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical power consumption is 225 W with the internal power supply and 220 W with the external one, producing 768 and 751 BTU/h of heat respectively. Plan the circuit for each panel and the heat load of the whole wall. The source data does not specify a plug type, so confirm the socket arrangement with your electrician.

Can the panel be installed in a room without air conditioning?

Confirm this before installation. The operating temperature entry on the source spec sheet reads 0°C -40°C, which is unclear, so the exact range must be confirmed with the SmartRooms Qatar team before a panel goes into any space that is not air-conditioned. The published storage range is -20°C to 60°C, and operating humidity is 20% to 80% non-condensing. Because Qatar summers can exceed 45°C, request a written environment check for any non-air-conditioned area.

How bright is it for a lobby with daylight coming through windows?

Typical luminance is 800 cd/m2, and Peak mode raises it to 1,300 cd/m2. In a hotel lobby or mall atrium in West Bay or Msheireb, where strong daylight enters through windows, Peak mode is the setting to test on site. Screen haze is rated at 25%, which affects how sharp reflections look. Position the wall away from direct glare and check the sightlines during a site survey before fixing the mount.

Which mounting options and row limits apply?

The standard UniSee Smart mount allows up to 10 rows in landscape or 6 rows in portrait. The InvisiMount option allows up to 4 columns by 3 rows in landscape, or 4 columns by 2 rows in portrait. The source lists InvisiMount as possible with an asterisk, so confirm the exact configuration with SmartRooms Qatar before ordering. Each LCD unit weighs 18.7 kg, and the gross shipping weight is 24.6 kg, which should be considered when planning delivery and lifting.

Can the panel be used in portrait orientation?

Yes, the panel supports both landscape and portrait orientation. Portrait suits digital wayfinding columns, vertical dashboards and narrow corridors in hospitals or government buildings. The mount limit changes in portrait, however: the standard UniSee Smart mount supports up to 6 rows, compared with 10 in landscape. Plan the wall grid around the orientation you need before the mounting frame is fixed, because changing it later means rework.

Is the eye comfort certification relevant for staff on long shifts?

The panel carries a TÜV Rheinland certification for eye comfort, and its design includes measures intended to ease eye strain. For operations staff in a Doha control room who watch the wall through an entire shift, this matters alongside brightness control and the Sense X calibration, which adjusts colour and brightness automatically. Ask the SmartRooms Qatar team to help set a brightness plan for the room before final commissioning.

How does the TAA version differ from this model?

The manufacturer lists a Barco UniSee II TAA model alongside the standard unit and states that a TAA compliant model is available. The source data here covers the standard Barco UniSee II, so the technical figures on this page apply to that version. If your procurement requires Trade Agreements Act compliance, ask the SmartRooms Qatar team to confirm the TAA version's specification and availability before you request a quote.

Can a government authority order this through an LPO or tender?

Yes. SmartRooms Qatar supplies government ministries and authorities and accepts purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. For a multi-panel wall, include the exact model, panel count, mount type and orientation in your LPO so that the quotation matches the tender specification. Quotations are usually issued within one working day.

What should a university command centre check before mounting a tiled wall?

Start with the structure. Each LCD unit weighs 18.7 kg, and the load grows quickly with panel count, so check load capacity and alignment before installation. Confirm ventilation in the room and around any equipment rack, because the panels are fan-less but still produce about 768 BTU/h each in the internal power supply configuration. SmartRooms Qatar offers free site surveys across all eight municipalities of Qatar before installation.
