Barco OverView KVD-5521D · Price in Qatar

Name: Barco OverView KVD-5521D 55-inch Ultra Narrow Bezel LCD Video Wall Display
Brand: Barco
SKU: barco-overview-kvd-5521d
Availability: InStock

Overview

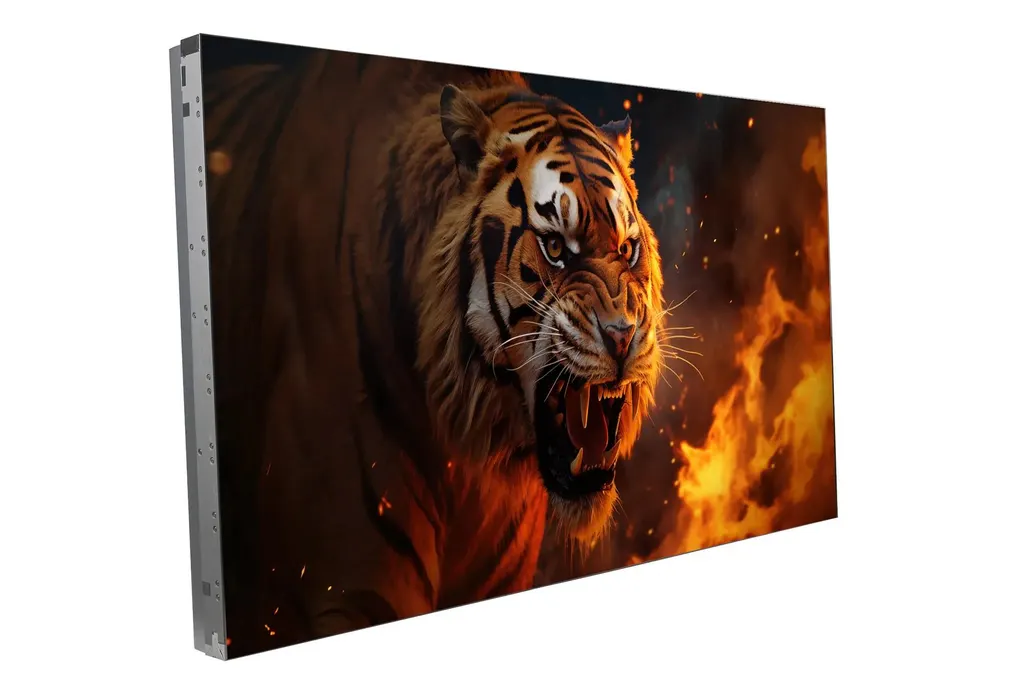

The Barco OverView KVD-5521D is a 55-inch LCD panel designed for tiled video walls, with a 3.4 mm actual bezel from Barco's ultra narrow bezel generation. It offers Full HD resolution, 500 cd/m² typical brightness and Sense X automatic colour and brightness calibration to keep tiles matching. Its fan-less design runs quietly in occupied rooms. It suits control rooms, lobbies and corporate display walls across Doha and wider Qatar.

Built for tiled walls with a 3.4 mm bezel

The OverView KVD-5521D is a 55-inch LCD panel designed to be tiled into a video wall rather than used alone. Its ultra narrow bezel generation gives an actual bezel width of 3.4 mm (0.13 inches), so panels placed side by side show content that reads as one picture. The active screen area measures 1211.3 mm x 682.1 mm, and the panel module measures 1213 x 683.8 x 122.5 mm, so plan spacing against those figures.

Brightness, calibration and colour across the wall

Typical luminance is 500 cd/m², with a typical contrast ratio of 1200:1 and a native white point of 10000 K. Colour is processed at 3x8 bit. The integrated Sense X sensors perform automatic colour and brightness calibration, which helps tiles stay matched over time, an important point for a wall that runs many hours a day. Full HD resolution (1920 x 1080) at 16:9 suits control rooms, lobbies and briefing spaces where viewers watch content from ordinary standing or seated distances.

Power, cooling and the Qatar climate

Typical power draw is 160 W at 500 nit, and heat dissipation is rated at 546 BTU/h, which should be included in the air-conditioning load calculation for each panel. The design is fan-less, so there is no fan noise in quiet rooms. The AC input range is 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. Operating temperature is 0 to 40°C with 20 to 80% non-condensing humidity. With summer outdoor temperatures above 45°C, install the wall in an air-conditioned room away from direct sun through glazing, and confirm the room conditions with the SmartRooms Qatar team before installation.

Where this 55-inch tile fits in Qatar

Operations control room: a utility or logistics operator in Mesaieed or the Industrial Area monitoring dashboards on a multi-panel wall.
Ministry or corporate lobby: a visitor-facing wall in West Bay or Msheireb showing news, wayfinding and welcome content, where bright and consistent panels matter.
University or training centre: a briefing room in Education City with a tiled display for lectures and student project reviews.

Planning a 55-inch video wall installation

Each panel weighs 27.55 kg net, so the wall or frame must carry the total load of the grid. The VESA mounting pattern is 600 x 400. Connectivity includes two DisplayPort 1.2 inputs, one DisplayPort 1.2 output, two HDMI 2.0 inputs, one Ethernet port and HDCP 2.2 support. DisplayPort 1.2 cables must be used when a cable run exceeds 3 m (10 ft). The manufacturer lists optional 5-year service packages for this model, which can be included in your quotation. SmartRooms Qatar offers free site surveys before wall-mounting larger grids, and quotations are usually issued within one working day. Schools and public bodies can order against a purchase order (LPO) or government tender, with delivery to all eight municipalities of Qatar. Request a quote for your OverView KVD-5521D wall, including panel count, mounting plan and room details.

Highlights

55-inch LCD panel with 3.4 mm actual bezel width
Full HD 1920 x 1080 resolution, 500 cd/m² typical brightness
Sense X automatic colour and brightness calibration
Fan-less design with 160 W typical power draw
Operating range 0 to 40°C, 20 to 80% humidity non-condensing
Two DisplayPort 1.2 inputs and two HDMI 2.0 inputs

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

33 specifications · Source: manufacturer · checked Oct 2026

Panel18

Resolution: Full HD (1920 x 1080 pixels)
Backlight: Direct LED
Aspect ratio: 16:9
Luminance (typ.): 500 cd/m2 (typ.)
Contrast ratio (typ.): 1200:1 (typ.)
White point: Native 10000 K (typ.)
Color gamut/depth: 3x8 bit
Calibration: Sense X automatic color and brightness calibration
Backlight lifetime (typ.): 50000 h (typ.)
Cooling: Fan-less
Screen haze: 25%
Viewing angle (H|V): 178°(H) / 178°(V)
Response time: 8ms
Operating temperature: 0 – 40°C
Operational humidity: 20 – 80% non-condensing
Storage temperature: -20 – 60°C
Storage humidity: 10 – 80% non condensing

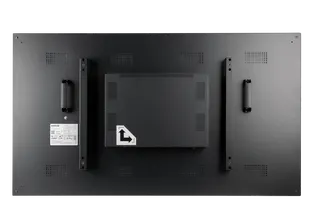

Mounting: VESA 600 x 400

Power3

AC input voltage: 100 – 240 VAC. 50 – 60 Hz
Power consumption (typical): 160W (500 Nit Native)
Heat dissipation: 546 BTU/h

Dimensions5

Dimensions LCM (WxHxD): 1213 x 683.8 x 122.5 mm | 47.77” x 26.94” x 4.83”
Active screen diagonal: 55” (1397 mm)
Active screen area: 1211.3 mm x 682.1 mm | 47.62” x 26.79”
Weight net: 27.55 kg | 60.74 lbs
Bezel width generation: UNB (3.5 mm | 0.14”) generation; actual width: 3.4 mm | 0.13"

Connectivity5

DisplayPort: 2 DP1.2 inputs (DisplayPort 1.2 cables must be used when the cable length exceeds 3m / 10 ft) 1 DP1.2 output
HDMI(TM): 2 HDMI ™ 2.0 inputs
Ethernet port: 1
USB: 1 input (only for power)
HDCP: Yes (HDCP 2.2)

Model1

Model name: OverView KVD-5521D

Other1

Article number: R9867809

Downloads

2 files from the manufacturer

PDF Datasheets OverView-KVD-5521D-en-Spec-sheet.pdf 507 KB URL Manuals & guides · Opens on manufacturer site Manuals, drivers and support

Questions about OverView KVD-5521D

What is the Barco OverView KVD-5521D used for?

The OverView KVD-5521D is a 55-inch Full HD LCD panel made for tiled video walls, where several panels join to form one large display. It suits control rooms, lobbies, briefing rooms and corporate display walls that need a bright, consistent picture. Its 500 cd/m² typical brightness positions it for entry-level and mid-range applications.

How thin is the bezel between panels?

The panel uses Barco's ultra narrow bezel generation, with a nominal bezel of 3.5 mm and an actual measured width of 3.4 mm (0.13 inches). With panels placed edge to edge, the gaps stay small, so video content looks continuous across the wall. Use the 1211.3 mm x 682.1 mm active area per panel when calculating the total wall size.

Will this panel cope with Qatar's summer heat?

The operating temperature is rated at 0 to 40°C with 20 to 80% non-condensing humidity. Outdoor summer temperatures in Qatar can exceed 45°C, so install the wall in an air-conditioned room, not in a glazed atrium exposed to direct sun. Confirm the room conditions with the SmartRooms Qatar team before the site survey.

Does it run on Qatar's 240 V mains supply?

The AC input is rated 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical power consumption is 160 W at 500 nit, and heat output is 546 BTU/h per panel. For a multi-panel wall, add that heat output to your cooling calculation and have your electrical contractor confirm circuit arrangements during installation.

How does the automatic calibration work?

Sense X uses integrated sensors to adjust colour and brightness automatically, which helps tiles match each other over time. This matters on a video wall that runs for long hours, where small differences between panels become visible. If you have a specific colour-matching requirement, raise it when you request a quote so the team can confirm the setup.

Is the panel quiet enough for boardrooms and meeting rooms?

Yes. The OverView KVD-5521D uses a fan-less cooling design, so the panel produces no fan noise. That matters in boardrooms, executive suites and bilingual briefing rooms where the display sits close to the table. Because heat output is 546 BTU/h, size the room's air conditioning to cover the panel's load.

What inputs and connections does it have?

The panel has two DisplayPort 1.2 inputs, one DisplayPort 1.2 output, two HDMI 2.0 inputs, one Ethernet port and one USB input used only for power. It supports HDCP 2.2. DisplayPort 1.2 cables must be used when a run exceeds 3 m (10 ft), so plan cable routes to the video wall controller before fixing panels to the wall.

How heavy is each panel and what mounting does it need?

Each panel weighs 27.55 kg net and uses a VESA 600 x 400 mounting pattern. Confirm that the wall or frame can carry the total weight of the grid and that the mounts match the pattern. A free site survey from SmartRooms Qatar helps check wall structure, access routes and cable paths before installation begins.

Which sites in Qatar suit a 55-inch tiled wall?

A 55-inch tile suits spaces where viewers stand or sit a few metres away, such as a ministry reception in Doha, a hospital waiting area, a logistics control room in the Industrial Area or a briefing room at a training centre in Education City. Compare the panel size with viewing distance and the number of tiles needed before choosing this model.

How many panels do we need for a given wall size?

Work out the grid from the 1211.3 mm x 682.1 mm active area per panel, plus the 3.4 mm bezels. A 3 x 2 grid, for example, creates a display about 3.6 m wide and 1.4 m high before gaps are counted. Send the room dimensions, viewing distance and wall position to SmartRooms Qatar, and we will prepare grid options with your quotation.

Can a school or government body order this through an LPO or tender?

Yes. SmartRooms Qatar supplies government ministries, public bodies and schools through purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Send the panel count and tender specification with your request, and the quotation is usually issued within one working day.
