Barco OverView LVD-5521D · Price in Qatar

Name: Barco OverView LVD-5521D 55-inch LCD Video Wall Display
Brand: Barco
SKU: barco-overview-lvd-5521d
Availability: InStock

Overview

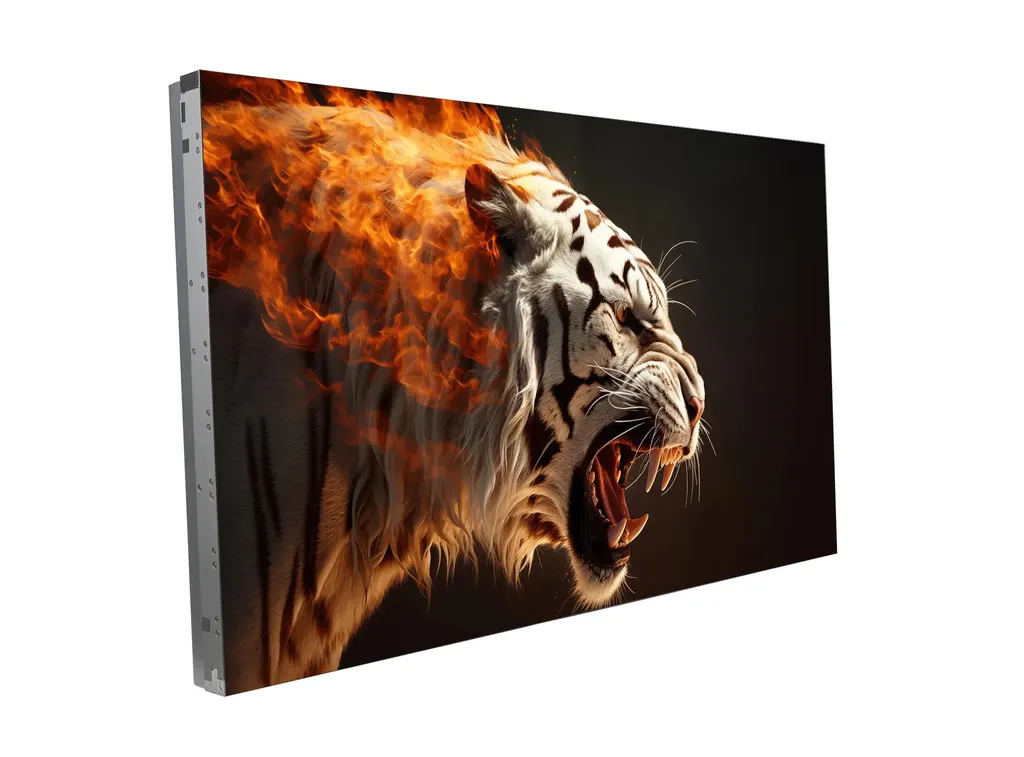

The Barco OverView LVD-5521D is a 55-inch Full HD LCD panel for tiled video walls, with a 1.8 mm ENB bezel, 500 cd/m² typical brightness and Sense X automatic colour and brightness calibration through integrated sensors. It runs fanless, draws 170 W typical at 500 nit, and includes two HDMI 2.0 and two DisplayPort 1.2 inputs. It suits control rooms and lobbies in Doha and Lusail.

What the OverView LVD-5521D is built for

The Barco OverView LVD-5521D is a 55-inch LCD panel made to be joined with identical panels into one tiled video wall. It uses in-plane switching panel technology with a direct LED backlight, delivering Full HD resolution of 1920 x 1080 pixels on a 16:9 screen. Its 1.8 mm ENB bezel keeps the visible gap between neighbouring panels small, so video, maps and dashboards that span several tiles read as one picture. The model is aimed at entry-level and mid-range wall projects where a uniform image across the wall matters most.

Brightness, calibration and image consistency

Each panel is rated at 500 cd/m² typical luminance and 1200:1 typical contrast ratio, with a native white point of 10000 K typical. Integrated Sense X sensors carry out automatic colour and brightness calibration, which helps tiles keep matching one another over time. The figures a procurement team usually compares are:

Viewing angle of 178° horizontal and 178° vertical
Response time of 8 ms
Screen haze of 25 percent
Backlight lifetime of 60,000 hours typical

Where it fits in Qatar

In a government operations room in Doha, a wall of these panels can show live feeds, dashboards and maps for shift teams working around the clock, and the narrow bezel keeps the display easy to read from across the room. In a hotel lobby in The Pearl or West Bay, a tiled wall can carry brand content, wayfinding and event schedules, while the wide viewing angle keeps the picture readable from the side of the lobby. A research centre or training hub in Education City could use a wall at the entrance of a lecture space, where two HDMI 2.0 inputs and two DisplayPort 1.2 inputs accept several sources.

Power, heat and installation planning

Each panel draws 170 W typical at 500 nit and dissipates 580 BTU/h. A nine-panel 3 x 3 wall therefore draws about 1,530 W and adds roughly 5,220 BTU/h of heat to the room, which the air-conditioning must absorb. The panel has no fan, so it adds no fan noise to quiet spaces. Its AC input range of 100 to 240 VAC at 50 to 60 Hz covers Qatar's 240 V, 50 Hz supply. Each panel weighs 27.55 kg net and mounts on a VESA 600 x 400 pattern, so the wall structure and brackets should be checked before fixing. The manufacturer's operating temperature entry is unclear as written, so confirm the exact range with the SmartRooms Qatar team before installing in any space that is not air-conditioned, especially with Qatar summer temperatures above 45°C.

For cabling, the data sheet specifies DisplayPort 1.2 cables for any run longer than 3 m (10 ft). The panel includes one Ethernet port, so confirm with your integrator how the wall will be networked. The USB port provides power only. The manufacturer also offers optional 5-year service packages that can be discussed in your quotation.

To receive a quotation for the Barco OverView LVD-5521D, request a quote from SmartRooms Qatar. We offer free site surveys, professional installation and delivery to all eight municipalities of Qatar, and we accept purchase orders and government tenders. Quotations are usually issued within one working day.

Highlights

1.8 mm ENB bezel for tightly joined tiled walls
500 cd/m² typical luminance at Full HD 1920 x 1080
Sense X automatic colour and brightness calibration
Fanless design with 170 W typical power draw at 500 nit
Two HDMI 2.0 and two DisplayPort 1.2 inputs, HDCP 2.2
VESA 600 x 400 mounting and 27.55 kg net weight

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

33 specifications · Source: manufacturer · checked Oct 2026

Panel18

LCD technology: In-plane switching
Resolution: Full HD (1920 x 1080 pixels)
Backlight: Direct LED
Aspect ratio: 16:9
Luminance (typ.): 500 cd/m² (typ.)
Contrast ratio (typ.): 1200:1 (typ.)
White point: Native 10000 K (typ.)
Calibration: Sense X automatic color and brightness calibration
Backlight lifetime (typ.): 60000 h (typ.)
Cooling: Fan-less
Screen haze: 25%
Viewing angle (H|V): 178°(H) / 178°(V)
Response time: 8ms
Operating temperature: 0°C -40°C
Operational humidity: 10% -90% non-condensing
Storage temperature: -20°C -60°C
Storage humidity: 5% -90% non-condensing
Mounting: VESA 600 x 400

Power3

AC input voltage: 100 -240 VAC, 50 -60 Hz
Power consumption (typical): 170 W (500 Nit native)
Heat dissipation: 580 BTU/h

Dimensions5

Dimensions LCM (WxHxD): 1211.5 x 122.1 x 682.3 mm | 47.69" x 4.08" x 26.86"
Active screen diagonal: 55" (1397 mm)
Active screen area: 1209.6 mm x 680.4 mm | 47.62" x 26.79"
Weight net: 27.55 kg | 60.74 lbs
Bezel width generation: ENB (1.8 mm | 0.07") generation

Connectivity5

DisplayPort: 2x DP1.2 inputs (DisplayPort 1.2 cables must be used when the cable length exceeds 3m / 10 ft) 1x DP 1.2 output
HDMI(TM): 2x HDMI™ 2.0 inputs
Ethernet port: 1
USB: 1 input (only for power)
HDCP: Yes (HDCP 2.2)

Model1

Model name: OverView LVD-5521D

Other1

Article number: R9867810

Downloads

2 files from the manufacturer

PDF Datasheets OverView-LVD-5521D-en-Spec-sheet.pdf 519 KB URL Manuals & guides · Opens on manufacturer site Manuals, drivers and support

Questions about OverView LVD-5521D

What is the Barco OverView LVD-5521D used for?

It is a 55-inch LCD panel made to be joined with other identical panels into a single tiled video wall. Its Full HD 1920 x 1080 resolution, 16:9 aspect ratio and 1.8 mm ENB bezel suit control rooms, lobbies, meeting hubs and corporate reception areas where a shared display must look uniform. Organisations in Doha, Lusail or Al Sadd wanting a consistent wall often start with this model. Request a quote to size the wall for your space.

How narrow is the bezel, and why does that matter for a wall?

The panel belongs to Barco's ENB generation with a 1.8 mm (0.07 inch) bezel. When panels sit edge to edge, the thin frame keeps the visible gap between screens small, so a video, map or dashboard spanning several tiles looks like one picture. For a 3 x 3 control-room wall in Doha, this means less distraction for operators tracking live feeds across the whole display.

Is 500 cd/m² bright enough for a lobby with windows?

The panel has 500 cd/m² typical luminance, 25 percent screen haze and a 178 degree viewing angle. That suits indoor lobbies and meeting areas under normal artificial lighting. For a reception area in Msheireb or West Bay with large windows and strong daylight, ask the SmartRooms Qatar team to review panel placement and light levels before the final quotation.

Does the wall need manual colour adjustment over time?

The OverView LVD-5521D includes Sense X technology, with integrated sensors that perform automatic colour and brightness calibration. The goal is to keep tiles matching one another across the wall, so facilities teams spend less time on manual adjustment. The native white point is listed at 10000 K typical and the contrast ratio at 1200:1 typical.

Will the panels be noisy in a quiet control room or boardroom?

No fan is fitted. The panel uses a fan-less cooling design, so it produces no fan noise, which suits quiet control rooms, boardrooms and reception areas where background sound matters. Heat still has to leave the room, so the air-conditioning should be planned around the total heat load of 580 BTU/h per panel.

What is the power consumption, and does it work on Qatar's 240 V supply?

Typical power consumption is 170 W at 500 nit. The AC input range is 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. Confirm the mains connection and circuit capacity with your installer or the SmartRooms Qatar team before wiring, particularly for multi-panel walls sharing one circuit.

How much heat will a nine-panel wall add to a room in summer?

Each panel dissipates 580 BTU/h. A nine-panel 3 x 3 wall therefore adds about 5,220 BTU/h and draws roughly 1,530 W typical inside the room. In Doha, where summer temperatures can exceed 45°C, the air-conditioning should be sized with that load included. Share your room dimensions and wall layout when requesting a quote so the load can be checked.

What inputs and outputs does the panel offer?

Each panel has two DisplayPort 1.2 inputs, one DisplayPort 1.2 output, two HDMI 2.0 inputs with HDCP 2.2 support, and one Ethernet port. The USB port is for power only and does not carry video. The DisplayPort output allows a signal to pass onward to another panel, which helps when planning feed routing. Confirm your source devices and cable types before ordering.

Which cables should I use for a long run to a boardroom display in Lusail?

The data sheet states that DisplayPort 1.2 cables must be used when the cable length exceeds 3 m (10 ft). For a boardroom in Lusail fed from a server room 10 metres away, specify DisplayPort 1.2 cable for that run and include it in your quotation so a shorter cable is not substituted during installation. HDMI 2.0 inputs are also fitted if your source is HDMI-based.

How heavy is each panel, and what should I check before wall-mounting?

Each panel weighs 27.55 kg net and mounts on a VESA 600 x 400 pattern. Before fixing a wall of these panels, check that the wall or frame can carry the combined weight and that the mounting pattern matches your brackets. SmartRooms Qatar offers free site surveys, which help confirm structure, cable routes and ventilation before installation.

Can the panel be placed near windows or in dusty areas?

The manufacturer's operating temperature entry is unclear as written, so do not assume a range. The data lists operational humidity of 10 to 90 percent non-condensing. Before installing near windows, in spaces without air-conditioning or in areas affected by dust storms, confirm the exact operating environment with the SmartRooms Qatar team and request a quote based on that confirmed site.

Is an extended service package available, and how can a government body order it?

The manufacturer offers optional 5-year service packages for this model, which can be discussed in your quotation. Government bodies and schools can order through purchase orders (LPOs) or respond to tenders, including Monaqasat, and pay by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and the product is covered by the manufacturer's warranty.
