Dahua DSCON2100-0410H · Price in Qatar

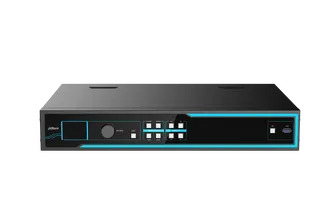

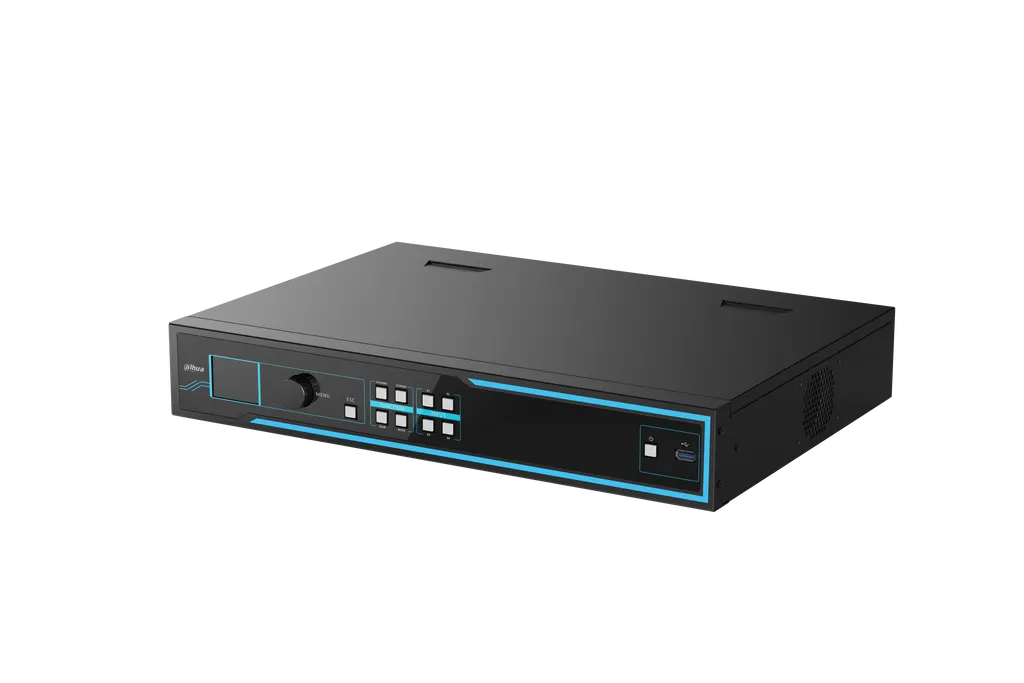

Name: Dahua DSCON2100-0410H 1.5U Embedded Multi-Screen Video Wall Controller
Brand: Dahua
SKU: dahua-dscon2100-0410h
Availability: InStock

Overview

The Dahua DSCON2100-0410H is a 1.5U embedded controller that drives video walls from ten HDMI outputs and can splice up to ten screens into one display. It accepts four HDMI inputs, decodes multiple video streams, and lets operators switch layouts from a front panel LCD. Built for control rooms, command centres and large lobby displays, it suits Qatari organisations that need one controller to manage a multi-screen wall. Request a quote from SmartRooms Qatar.

What the DSCON2100-0410H does on a video wall

The DSCON2100-0410H is a 1.5U embedded controller that sits between your sources and the display wall. It takes HDMI signals from up to four inputs, scales and places them across a wall of up to ten screens, and outputs through ten HDMI ports. Its embedded Linux platform runs the unit as a dedicated device, which keeps the rack footprint small in a control room.

Layouts are the everyday tool. The unit supports 1, 4, 6, 8 and 9 window splits, plus custom M × N splits where M × N is nine or fewer. Windows can roam between screens, so an operator can move a camera feed from one panel to another. Schemes, tours and scheduled schemes let the wall cycle through preset layouts with a configurable tour interval, which suits a monitoring room where the same views repeat across shifts.

Input, output and decoding limits to check

Before you order, match the controller to your sources and wall geometry. The datasheet lists two HDMI 2.0 inputs and two HDMI 1.3 inputs, with three input modes: one channel at 4K and 60 Hz, two channels at 4K and 30 Hz, or four channels at 1080p and 60 Hz. Custom EDID can be set per input port, which helps when a source needs a specific handshake.

Default output of 1920 × 1080 at 60 Hz, with custom resolutions for wide or tall walls
Decoding of up to 32 MP on one channel at 30 fps, alongside multiple lower-resolution channels
Splicing of up to ten screens, with customised OSD text such as location labels
One 3.5 mm audio output, with PCM and G.711 audio compression

Where it fits in Qatar

In a government operations room in Doha, the controller can drive a wall that shows traffic cameras, facilities alarms and situation feeds together, while the unit itself sits in a rack in the equipment room. A logistics control room near the Industrial Area can use it to rotate camera views on a timetable that matches shift changes. At a private school in Al Wakrah, the same unit can run a lobby wall with announcements, live campus feeds and event schedules shown in several windows at once.

What to plan before installation

The unit weighs 4.64 kg net and 7.36 kg gross, measures 66 mm high, 440 mm wide and 321 mm deep, and runs on 100–240 VAC at 50/60 Hz with power consumption of up to 60 W. That input range covers Qatar's 240 V, 50 Hz mains. The operating range is –10 °C to +55 °C with 10%–95% non-condensing humidity, so place it in a ventilated, air-conditioned rack rather than a hot cabinet, especially in summer when outdoor temperatures pass 45 °C.

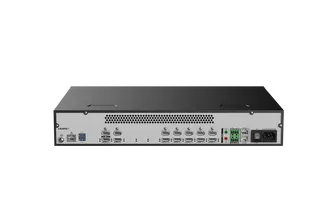

Plan network and control cabling early. The unit has one 10/100/1,000 Mbps Ethernet port, two RS-232 RJ-45 ports, one RS-485 port, three USB ports, and one alarm input and one alarm output channel. A free site survey from SmartRooms Qatar can confirm rack space, cable routes and screen layout before equipment arrives.

Send your source list, screen count and wall layout with your request for a quote, and we will return a quotation usually within one working day. Orders can be raised by LPO or through government tenders, including Monaqasat, and the unit is covered by the manufacturer's warranty.

Highlights

10 HDMI outputs with splicing of up to 10 screens
Four HDMI inputs, with 4K at 60 Hz in single-channel mode
Decodes up to 32 MP on one channel at 30 fps
Splits of 1, 4, 6, 8 and 9 windows, plus custom M × N layouts
ONVIF, Hikvision private and Dahua private protocol support
100–240 VAC power and –10 °C to +55 °C operating range

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

35 specifications · Source: manufacturer · checked Oct 2026

System2

Main Processor: High-performance embedded processor
Operating System: Embedded Linux

Function17

Number of Video Output Channels: 10-ch HDMI
Interoperability: ONVIF;Hikvision Private;Dahua Private
Audio Compression: PCM;G.711
Decoding Capability: H.264 shares the same decoding with H.265 Decodes up to 1-ch 32 MP@30 fps, 2-ch 12 MP@30 fps, 4-ch 8 MP@30 fps, 5-ch 6 MP@30 fps, 8-ch 4 MP@30 fps, 16-ch 2 MP@30 fps, and is backward compatible
Decoding Pixel: QCIF;CIF;2CIF;HD1;D1;960H;720p;1080p;3 MP;4 MP;5 MP;6 MP;8 MP;12 MP;32 MP
Output Resolution: The default resolution is 1920 × 1080@60 Hz. Supports 1024 × 768@60 Hz, 1280 × 720@60 Hz, 1280 ×1024@60 Hz, 1366 × 768@60 Hz, 1400 × 1050@60 Hz, 1600 ×900@60 Hz, and 1920 × 1080@60 Hz It also supports custom resolution output. The width can range from 128 to 3,840, and the height from 128 to 3,840. For custom resolution, it supports up to 3840 × 524@60 Hz or 524 × 3840@60 Hz
Bit Rate Type: Composite stream;video stream
Video Input: Supports 2-ch HDMI 2.0, 2-ch HDMI 1.3, and has 3 input modes. It also supports 1-ch 3840 × 2160@60 Hz or 2-ch 3840 × 2160@30 Hz or 4-ch 1920 × 1080@60 Hz. Supports the custom EDID
Multi-screen Display: Supports 1, 4, 6, 8, and 9 split, and M × N custom split, M × N ≤9.
Splicing: Up to 10 screens can be spliced together.
Screen Splicing: Up to 10 screens can be spliced together.
Window & Roam: Opens up to 90 windows and supports roaming.
Scheme Tour: Supports configuring schemes, tour, scheduled schemes and setting the tour interval.
Fine Pixel Pitch LED: The video output resolution can be customized and its fine pixel pitch LEDs can be accessed.
Background Image Color: Displays high-definition background images, and supports setting the default background color for the video wall.
Virtual LED: Displays customized OSD text, such as the location, font size, and scrolling direction.
Input Resolution: The HDMI 2.0 port supports the following resolutions: 3840 × 2160@60 Hz, 3840 × 2160@30 Hz, 2560 × 1440@60 Hz, 1920 × 1080@60 Hz, 1600×900@60 Hz, 1366 × 768@60 Hz, 1024 × 768@60 Hz, and 800 × 600@60 Hz; The HDMI 2.0 port supports custom resolutions. The width can be 600–4,092, and the height from 400–4,092. The HDMI 1.3 port supports the following resolutions: 1920 × 1080@60 Hz, 1600 × 900@60 Hz, 1366 × 768@60 Hz, 1024 × 768@60 Hz, and 800 × 600@60 Hz; The HDMI 1.3 port supports custom resolutions. The width can be 600–2,560, and the height from 400–2,560.

Port8

Video Output: 10-ch HDMI 1.3
Audio Output: 1-ch 3.5 mm plug
Alarm Input: 1 channel
Alarm Output: 1 channel
Network Port: 1 × RJ-45 10/100/1,000 Mbps self-adaptive Ethernet port
RS-232: 2 × RJ-45 port
USB: 3 × USB port
RS-485: 1

General8

Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: ≤60 W
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity: 10%–95% (RH), non-condensing, 86 kPa–106 kPa
Product Dimensions: 66 mm × 440 mm × 321 mm (2.60" × 17.32" × 12.64") (H × W × D)
Packaging Dimensions: 572 mm × 482 mm × 192 mm (22.52" × 18.98" × 7.56") (L × W × H)
Gross Weight: 7.36 kg (16.23 lb)
Net Weight: 4.64 kg (10.23 lb)

Downloads

6 files from the manufacturer

PDF Datasheets DSCON2100-0410H_datasheet_20250815.pdf 2.4 MB PDF Manuals & guides DSCON2100-0410H_INSTALLATION_METHOD_EN.pdf 374 KB PDF Manuals & guides Embedded Multi-Screen Controller_User'Manaul_V1.0.0.pdf 1.8 MB PDF Drawings & CAD DSCON2100-0410H_DIMENSIONS.pdf 130 KB 2409 Software & firmware · Opens on manufacturer site General_DSCON2100_Eng_SDA_V3.210.0000000.0.R.240918 DOCX Other documents DSCON2100-0410H_A&E_20260901201028.docx 32 KB

Questions about DSCON2100-0410H

What is the Dahua DSCON2100-0410H and what does it do?

It is a 1.5U embedded video wall controller that takes HDMI signals from up to four sources and distributes them across a wall of up to ten screens through ten HDMI outputs. It handles window layout, splicing and switching from a front panel LCD, so operators can manage a multi-screen display without a separate computer for each screen. It suits control rooms and monitoring centres in Qatar that run a wall of displays.

How many screens can one DSCON2100-0410H drive?

The controller has ten HDMI video outputs and can splice up to ten screens together into one large display. The default output is 1920 × 1080 at 60 Hz, and custom resolutions are supported for wide or tall walls. Before ordering, confirm that your panels accept the resolution you plan to use and that each screen connects to one of the ten outputs. SmartRooms Qatar can check this during a site survey.

What inputs does it accept and which input modes are available?

It has four HDMI inputs: two HDMI 2.0 ports and two HDMI 1.3 ports. It offers three input modes: one channel at 4K and 60 Hz, two channels at 4K and 30 Hz, or four channels at 1080p and 60 Hz. Custom EDID can be set per input port, which helps when a camera or PC source needs a specific handshake. For a control room that mixes 4K and 1080p feeds, choose the mode that matches your most demanding source.

How do window layouts and roaming work?

Each screen can be split into 1, 4, 6, 8 or 9 windows, and a custom M × N split is available where M multiplied by N is nine or fewer. Windows can roam, so an operator can move a feed across screens. Schemes, tours and scheduled schemes switch layouts automatically, with a configurable tour interval. This suits a shift-based monitoring room that needs the same views to rotate on a timetable.

Which control and video protocols does it support?

The controller lists ONVIF, Hikvision private protocol and Dahua private protocol in its interoperability specification. That allows it to work with a mix of ONVIF-based equipment and devices from those two manufacturers. For an organisation in Qatar with an existing CCTV estate, confirm the exact camera and recorder models with SmartRooms Qatar before ordering, so the streams you want on the wall are supported.

Can it be used in a government operations room in Doha?

Yes, it is built to drive a video wall in a fixed control room. A ministry operations room in Doha might show traffic cameras, facilities alarms and situation feeds on one wall, with the controller in a rack in the equipment room. Its alarm input and output, RS-232 and RS-485 ports and Ethernet connection give the control team several ways to link it with the room's wider systems. A site survey should confirm cable routes first.

Will it run on Qatar's mains power?

Yes. The power specification is 100–240 VAC at 50/60 Hz, which covers the 240 V, 50 Hz supply used in Qatar. Maximum power consumption is 60 W. Plan the rack power feed with your electrician, and consider a UPS for a control room where a short outage would interrupt live displays.

Can it sit in a hot equipment cabinet during summer?

Keep it in a ventilated rack inside an air-conditioned room. The operating range is –10 °C to +55 °C with 10%–95% non-condensing humidity. In Qatar, summer outdoor temperatures can exceed 45 °C, so a poorly ventilated cabinet could push internal temperatures close to the upper limit. Confirm cabinet airflow and room cooling with the SmartRooms Qatar team during your site survey.

We are upgrading a logistics control room near the Industrial Area. Can we reuse our existing displays?

Possibly, if your displays accept the output resolution the controller provides and connect over HDMI. By default the outputs run at 1920 × 1080 at 60 Hz, and the video outputs are listed as HDMI 1.3. Check each screen's HDMI version and supported resolutions before reusing it. A site survey from SmartRooms Qatar will show how well your current screens match.

How would a private school in Al Wakrah use it?

A school with a large lobby or assembly hall display could split its wall into four or nine windows, showing announcements, live campus feeds and event timetables at the same time. Scheduled schemes can change the layout for morning arrivals and afternoon pick-up. The default background colour for the wall can also be set to suit the school's branding. Because the wall would run for long hours, confirm room ventilation with the installer.

Does it support scheduled layouts for a 24-hour monitoring shift?

It supports scheduled schemes and tours with a configurable interval, so the wall can change layouts at set times across shifts. It also displays high-definition background images and a default background colour for the wall. For a monitoring team at a hospital or facility in Qatar that works around the clock, plan the layouts with the shift supervisor and test the schedule during commissioning. SmartRooms Qatar can help set up the initial layouts as part of installation.

How do we order it through an LPO or a government tender?

SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and supports payment by bank transfer, cheque or purchase order. Send your source list, screen count and wall layout with your request, and we will return a quotation usually within one working day. The unit is delivered to all eight municipalities of Qatar and is covered by the manufacturer's warranty.
