DSCON8000-S13
Dahua DSCON8000-S13 5U Splicing Controller for Video Walls
- Resolution
- Supports video decoding at 32 MP
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

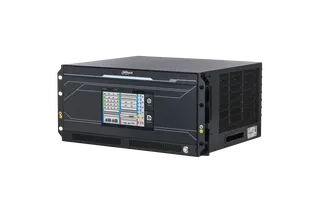

The Dahua DSCON8000-S13 is a 5U rack-mount splicing controller for video walls. It offers 13 input and output slots, an 8-inch touch screen for local control and 4K signal handling with embedded audio. Splicing, scaling, windowing, roaming and layering are included, with up to 128 stored scene presets. It suits control rooms, conference halls and exhibition halls in Qatar that need a scalable wall. Request a quote.
What the DSCON8000-S13 does on a video wall
The Dahua DSCON8000-S13 is a 5U rack-mount splicing controller that takes several video sources, scales and crops them, and maps them across a bank of displays. Everything runs from one chassis, so a control room does not need a separate box for each job. It suits walls that change layout during the day, such as a welcome screen in the morning and a live feed or a set of dashboards in the afternoon.
Slot layout and card options

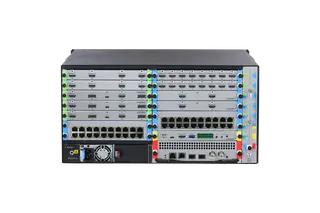

The chassis offers 13 slots for input and output cards. Two are dedicated to input, six to output, and the remaining five can take either role, so the build can follow your source count and screen count. Cards to know about include:
- VI0401EHP-DC8000: four HDMI 2.0 and four DisplayPort 1.2 inputs, selectable per channel, with HDCP 2.2
- VI0801HH-DC8000: eight HDMI 1.4 inputs with HDCP 1.4
- VO0201EH-DC8000: two HDMI 2.0 outputs, with resolutions up to 4096 × 2160@60 Hz
- VO0801HH-DC8000: eight HDMI 1.3 outputs
- VS20N-DC8000: 20 RJ-45 network outputs that occupy two output slots and can transmit up to 13 million pixels per card
Some input cards run at half performance in slot 13, including the four-input HDMI 2.0 card and the eight-input HDMI 1.4 card, so agree slot positions with the team before ordering.
Control, scenes and layouts

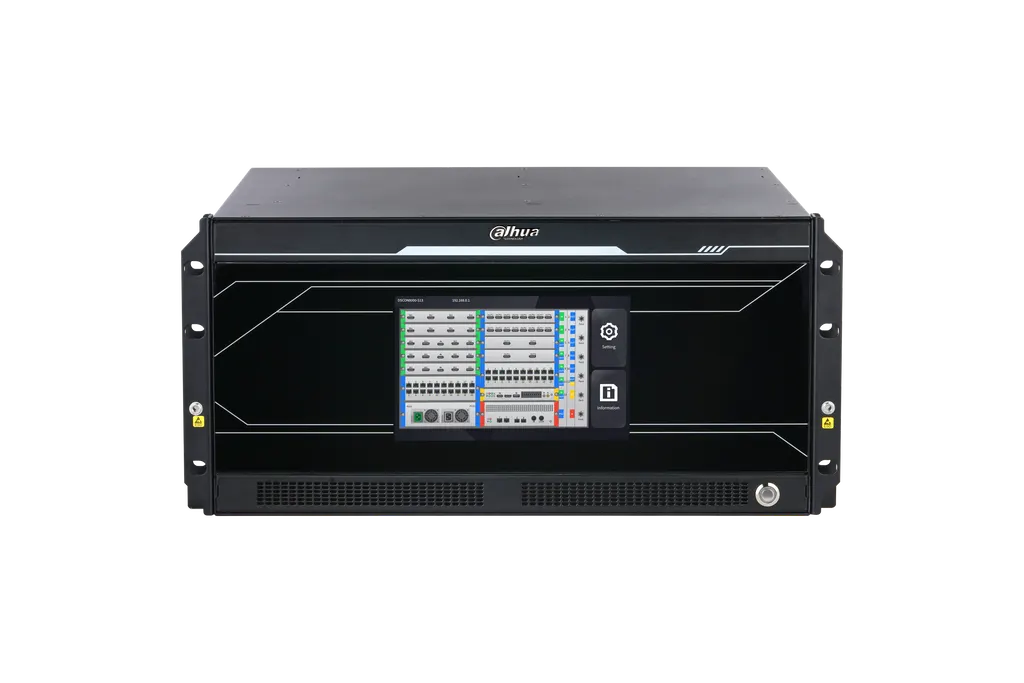

Operators can work from the 8-inch touch screen (1280 × 800) on the unit, an external monitor and mouse, a web page, a desktop client, a mobile client or a network keyboard. Up to 128 scene presets can be stored, and the layout of each scene on the wall can be customized. Windows can be opened, roamed across screens, layered or cropped to show only a selected area. Layering supports up to 56 layers in 2K or 14 layers in 4K. Multi-screen splits include 1, 4, 6, 8, 9, 16, 25 and 36, plus custom M × N grids. Subtitles can run on single or spliced screens with adjustable font, colour, spacing, background and speed. An SDK is available for integration into a wider control platform.
Power, cooling and redundancy for Qatar sites

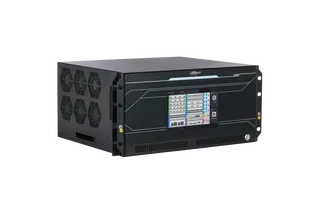

A single power supply, a single main control card and an intelligent temperature-controlled fan come in the box. A second power supply and a hot standby main control card are optional and purchased separately. The power input is 100–240 VAC at 50–60 Hz, which covers Qatar's 240 V supply, and maximum power consumption is 550 W. The supplies support hot swapping. The rated operating range is –10 °C to +50 °C with 10–90% humidity, non-condensing. Doha summers can pass 45 °C, so place the unit in an air-conditioned comms room or cabinet with clear airflow rather than in a hot cupboard.
Where it fits in Qatar
A hotel ballroom in West Bay might run a 4 × 4 wall for conferences, with the technical team switching between speakers, slides and a remote feed. A lecture theatre in Education City can use a 4K wall with saved presets for each lecture format. An exhibition hall in Lusail that rebuilds its wall between shows can store a custom M × N layout for each event. A ministry control room in Doha can host a monitoring wall with the controller in a cooled rack.
Planning your quotation
- Rack space: 5U, 221.8 mm high, 484.0 mm wide, 416.0 mm deep
- Weight: 14.93 kg net and 20.6 kg gross
- Input and output card mix matched to your screen count
- Power and control redundancy decided before ordering
SmartRooms Qatar offers a free site survey to check rack depth, airflow and cable routing before the order is placed. Quotations are usually issued within one working day, and we deliver to all 8 municipalities of Qatar. Request a quote for the DSCON8000-S13 and tell us your screen count, source types and room layout.
Highlights
- 5U rack chassis with 13 input and output card slots
- 8-inch touch screen with 1280 × 800 resolution for local control
- 4K input and output with audio carried alongside video
- Splicing, scaling, roaming, windowing and layering included
- Up to 128 scene presets with customizable layouts per scene
- 100–240 VAC input; optional second power supply and hot standby control
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
74 specifications · Source: manufacturer · checked Oct 2026
System5
- Main Processor
- 64 High-performance multi-core Processor
- Operating System
- Embedded Linux operating system
- Slot
- Includes a total of 15 slots. Each of the following items has its own slot: the switching card and main control card. The remaining 13 slots are for input and output cards: 2 for input, and 6 for output. The remaining 5 slots can be used for both input and output
- Cabinet
- Included: Single power supply, single main control card and intelligent temperature control fan; Optional: Dual power supplies and dual main control cards
- Touch Screen
- Equipped with an 8-inch touch screen with the resolution of 1280 × 800 that facilitates operations
Port10
- USB
- 1 × USB 3.0 port
- Network Port
- 2 × Gigabit ethernet ports and 2 × gigabit fiber ports
- RS-232
- 2
- RS-485
- 2
- HDMI
- 1
- Alarm Input Port
- 1 × alarm input port (reserved)
- Alarm Output Port
- 1 × alarm output port (reserved)
- Audio Input Port
- 1 × 3.5 mm jack port (reserved)
- Audio Output Port
- 1 × 3.5 mm jack port and 1 set of spring-loaded terminal blocks
- Type-C Port
- 1 × Type-C port
VI0401HH-DC80005
- Video Input
- 4-channel HDMI 1.4 port
- Audio Input
- 4-channel HDMI embedded audio port
- Video Input Resolution
- Acquires and inputs signals at the following resolutions: 1024 × 768@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1200@60 Hz, 3840 × 2160@30 Hz, and 4096 × 2160@30 Hz; You can customize resolutions; Width range: 800–4,094 pixels; Height range: 600–4,094 pixels; The maximum resolution at the width of 4,094 pixels is 4094 × 1140@60 Hz, while at the maximum height of 4,094 pixels, the resolution is 1024 × 4094 @60 Hz
- HDCP
- HDCP 1.4 is supported
- Occupied Slot
- Occupies 1 input slot
VI0801HH-DC80005
- Video Input
- 8-channel HDMI 1.4 port
- Audio Input
- 8-channel HDMI embedded audio port
- Video Input Resolution
- Acquires and inputs signals at the following resolutions: 1024 × 768@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1440 × 900@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1200@60 Hz, 3840 × 2160@30 Hz, and 4096 × 2160@30 Hz; You can customize resolutions; Width range: 800–4,094 pixels; Height range: 600–4,094 pixels; The maximum resolution at the width of 4,094 pixels is 4094 × 1140@60 Hz, while at the maximum height of 4,094 pixels, the resolution is 1024 × 4094 @60 Hz
- HDCP
- HDCP 1.4 is supported
- Occupied Slot
- Occupies 1 input slot. Performance is halved when installed in slot 13
VI0201EHP-DC80005
- Video Input
- 2-channel HDMI 2.0 port and 2-channel DP 1.2 port. You can select either one for the input channel
- Audio Input
- Supports 2-channel embedded audio input through the HDMI port or DP port
- Video Input Resolution
- Acquires and inputs signals at the following resolutions: 1024 × 768@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz , 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1200@60 Hz, 1920 × 2160@60 Hz, 3840 × 1080@60 Hz, and 3840 ×2160@60 Hz; You can customize resolutions; Width range: 800–8,192 pixels; Height range: 600–8,192 pixels; The maximum resolution at the width of 8,192 pixels is 8192 × 1140@60 Hz, while at the maximum height of 8,192 pixels, the resolution is 1024 × 8192@60 Hz
- HDCP
- HDCP 2.2 is supported
- Occupied Slot
- Occupies 1 input slot
VI0401EHP-DC80005
- Video Input
- 4-channel HDMI 2.0 port and 4-channel DP 1.2 port. You can select either one for the input channel
- Audio Input
- Supports 4-channel embedded audio input through the HDMI port or DP port
- Video Input Resolution
- Acquires and inputs signals at the following resolutions: 1024 × 768@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1440 × 900@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1200@60 Hz, 1920 × 2160@60 Hz, 3840 × 1080@60 Hz, and 3840 ×2160@60 Hz; You can customize resolutions; Width range: 800–8,192 pixels; Height range: 600–8,192 pixels; The maximum resolution at the width of 8,192 pixels is 8192 × 1140@60 Hz, while at the maximum height of 8,192 pixels, the resolution is 1024 × 8192@60 Hz
- HDCP
- HDCP 2.2 is supported
- Occupied Slot
- Occupies 1 input slot. Performance is halved when installed in slot 13
DEC-DC80004
- Occupied Slot
- Occupies 1 input slot. Available slots: 1, 3, 5, 7, 9, and 11. A unit supports a maximum of 2 decoding extension cards. If more than 2 cards are installed, they will work in ascending order of slot numbers
- Video Decoding Resolution
- Supports video decoding at 32 MP, 16 MP, 12 MP, 8 MP, 5 MP, 3 MP, UXGA, 1080p,720p, D1, HD1, 2CIF, CIF, and QCIF. (32 MP, 16 MP, and 12 MP supported only with H.265)
- Video Format
- Supports decoding of video compression formats: H.265, H.264, MJPEG, MPEG4, SVAC, and MPEG2
- Decoding Capability
- Single-card decoding capability: 2 channels@32 MP (25 fps), 10 channels@8 MP (25 fps), 14 channels@6 MP (25 fps), 18 channels@5 MP (25 fps), 28 channels@3 MP (25 fps), and 36 channels@1080p (30 fps) (maximum 36 decoding channels; 32 MP supported only with H.265)
VS20N-DC80003
- Occupied Slot
- Occupies 2 output slots
- Video Output
- 20-channel RJ-45 port
- Load Capacity
- A single card can transmit images with up to 13 million pixels while a single network port can transmit images with up to 650,000 pixels
VS20N-DC8000NW3
- Occupied Slot
- Occupies 2 output slots
- Video Output
- 20-channel RJ-45 port
- Load Capacity
- A single card can transmit images with up to 13 million pixels while a single network port can transmit images with up to 650,000 pixels
VO0801HH-DC80003
- Occupied Slot
- Occupies 1 output slot
- Video Output
- 8-channel HDMI 1.3 port
- Video Output Resolution
- Supports the following output resolutions: 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1600 × 1200@60 Hz, 1400 × 1050@60 Hz, 1600 × 900@60 Hz, 1366 × 768@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz and 1024 × 768@60 Hz; You can customize resolutions; Width range: 200–4,096 pixels; Height range: 200–4,096 pixels; The maximum resolution at the width of 8,192 pixels is 4096 × 480@60 Hz, while at the maximum height of 8,192 pixels, the resolution is 480 × 4096@60 Hz
VO0201EH-DC80003
- Occupied Slot
- Occupies 1 output slot
- Video Output
- 2-channel HDMI 2.0 port
- Video Output Resolution
- Supports the following output resolutions: 4096 × 2160@60 Hz, 3840 × 2160@60 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1024 × 768@60 Hz; You can customize resolutions; Width range: 200–8,192 pixels; Height range: 200–8,192 pixels; The maximum resolution at the width of 8,192 pixels is 8192 × 1000@60 Hz, while at the maximum height of 8,192 pixels, the resolution is 1000 × 8192@60 Hz
PRE-DC80003
- Occupied Slot
- Occupies 1 output slot
- Live Video Display Performance
- Supports previewing acquired signals up to 32 channels or 4-channel video wall display
- Resolution
- Acquired signal preview resolution: 704 × 576@25 Hz; Video wall display resolution: 1920 × 1080@25 Hz
Function7
- Max System Configuration
- You can insert a total of up to 13 cards: 2 for input, 6 for output, and the remaining 5 can be used for either input or output cards; You can insert up to 7 input cards that support the following resolutions: 56-channel 1080p@60 Hz, or 26-channels 4K@60 Hz; You can insert up to 11 output cards that support the following resolutions: 88-channel 1080p@60 Hz, or 22-channel 4K@60 Hz; For sending cards, you can insert up to 5 cards with a total of 100 network ports to transmit images with up to 65 million pixels
- Layer Capability
- Supports up to 56 layers in 2K resolution or 14 layers in 4K resolution
- Spliced Screen Function
- Splicing and zoom, video fusion, roaming, windowing, and OSD
- Equipment Management
- Supports custom business trees with different structures. Supports adjusting the order of nodes such as channels
- SDK
- Supports secondary development, and provides platform SDK
- Control Mode
- The device supports external monitors and mice, features its own operation page, and also supports PC clients or network keyboards
- Multi-screen Display
- Supports 1/4/6/8/9/16/25/36 screen splits and supports M × N custom splits
General13
- Power Supply
- 100–240 VAC, 50–60 Hz，8 A，hot swapping
- Power Redundancy
- Dual (optional)
- Power Consumption
- ≤ 550 W
- Operating Temperature
- –10 °C to +50 °C (+14 °F to +122 °F)
- Operating Humidity
- 10%–90% (RH), non-condensing
- Storage Temperature
- –10 °C to +50 °C (+14 °F to +122 °F)
- Storage Humidity
- 10%–90% (RH), non-condensing
- Product Dimensions
- 221.8 mm × 484.0 mm × 416.0 mm (8.73" × 19.06" × 16.38") (H × W × D)
- Packaging Dimensions
- 443 mm × 645 mm × 585 mm (17.44" × 25.39" × 23.03") (H × W × D)
- Gross Weight
- 20.6 kg (45.42 lb)
- Net Weight
- 14.93 kg (32.92 lb)
- Series
- DSCON8000
- Type
- Server
Downloads
8 files from the manufacturer
PDF
Dahua DSCON8000-S13 datasheets (PDF, 3.4 MB)
PDF
Dahua DSCON8000-S13 datasheets (PDF, 3.5 MB)
PDF
Dahua DSCON8000-S13 manuals & guides (PDF, 309 KB)
PDF
Dahua DSCON8000-S13 manuals & guides (PDF, 46.3 MB)
PDF
Dahua DSCON8000-S13 manuals & guides (PDF, 55.2 MB)
PDF
Dahua DSCON8000-S13 drawings & cad (PDF, 126 KB)
2606
Dahua DSCON8000-S13 software & firmware (260625)
DOCX
Dahua DSCON8000-S13 other documents (DOCX, 33 KB)
Questions about DSCON8000-S13
What is the DSCON8000-S13 used for?
It is a 5U splicing controller that combines several video sources and displays them across one video wall. The manufacturer lists conference halls, exhibition halls, meeting rooms and outdoor advertising venues as suitable settings. Scaling, windowing and stored presets let one operator change what the wall shows without touching each display.
How many input and output slots does it have?
The chassis has 13 slots for input and output cards: two for input, six for output, and five that can be used for either. The switching card and main control card take additional slots, bringing the total to 15. Some input cards run at half performance in slot 13, so plan the card mix before ordering.
Which video inputs and outputs are supported?
Input cards accept HDMI 1.4, HDMI 2.0 and DisplayPort 1.2, with HDCP 1.4 or HDCP 2.2 depending on the card. Output cards provide HDMI 1.3 and HDMI 2.0 ports, and sending cards drive LED displays over RJ-45 network ports. The chassis also includes two gigabit Ethernet ports and two gigabit fiber ports.
Can it drive a 4K lecture wall at Education City?
Yes. The HDMI 2.0 and DisplayPort 1.2 input cards accept 3840 × 2160@60 Hz, and the VO0201EH-DC8000 output card supports 4096 × 2160@60 Hz. Audio can be carried with the video. Note that 4K layering supports up to 14 layers, compared with 56 in 2K, so plan window layouts accordingly.
Can it run a 3 × 3 or 4 × 4 wall in an exhibition hall in Lusail?
Yes for common grids. Split modes include 9 and 16 screens, and custom M × N layouts are supported. Where a hall changes its wall layout between shows, up to 128 stored presets let the crew recall each arrangement quickly. Confirm the card count with your integrator before the displays are cabled.
Is a second power supply worth it for a West Bay hotel ballroom?
A second power supply is optional and bought separately, so it is a decision to make at quotation stage. For a ballroom where the wall must stay up through a conference, a dual supply and hot standby main control card add resilience. The unit supports hot swapping of its power supplies, which helps during maintenance.
Will it run on Qatar's 240 V supply?
Yes. The power input is 100–240 VAC at 50–60 Hz with 8 A rating, which covers Qatar's 240 V, 50 Hz mains. Maximum power consumption is 550 W. Confirm the supplied power cord with the SmartRooms Qatar team so it suits the BS 1363 (Type G) sockets in your room.
Can it cope with summer heat in a Doha server room?
The rated operating range is –10 °C to +50 °C with 10–90% humidity, non-condensing. Doha summers can exceed 45 °C, so keep the rack in an air-conditioned comms room with clear airflow around the vents. Ask the SmartRooms Qatar team to confirm room conditions during the site survey.
How do operators control the wall day to day?
Operators can use the 8-inch 1280 × 800 touch screen on the unit, an external monitor and mouse, a web page, a desktop client, a mobile client or a network keyboard. An SDK is available for integrating the controller into a broader control platform, which suits facilities teams that already run their own software.
Can I add a backup controller later?
Yes. A hot standby main control card is an optional dual main control option, purchased separately from the chassis. Ask for it and the second power supply in the same quotation so the chassis is configured correctly from the start, rather than being upgraded later on site.
What rack space and weight should we plan for?
The chassis measures 221.8 mm high, 484.0 mm wide and 416.0 mm deep, occupying 5U. Net weight is 14.93 kg and gross weight is 20.6 kg. Confirm rack depth and load rating before delivery, and use the free site survey from SmartRooms Qatar to check cable routing and airflow.
