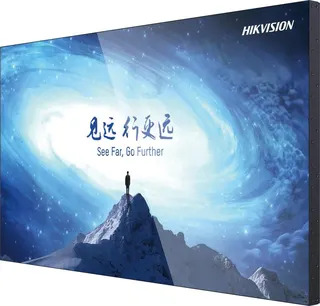

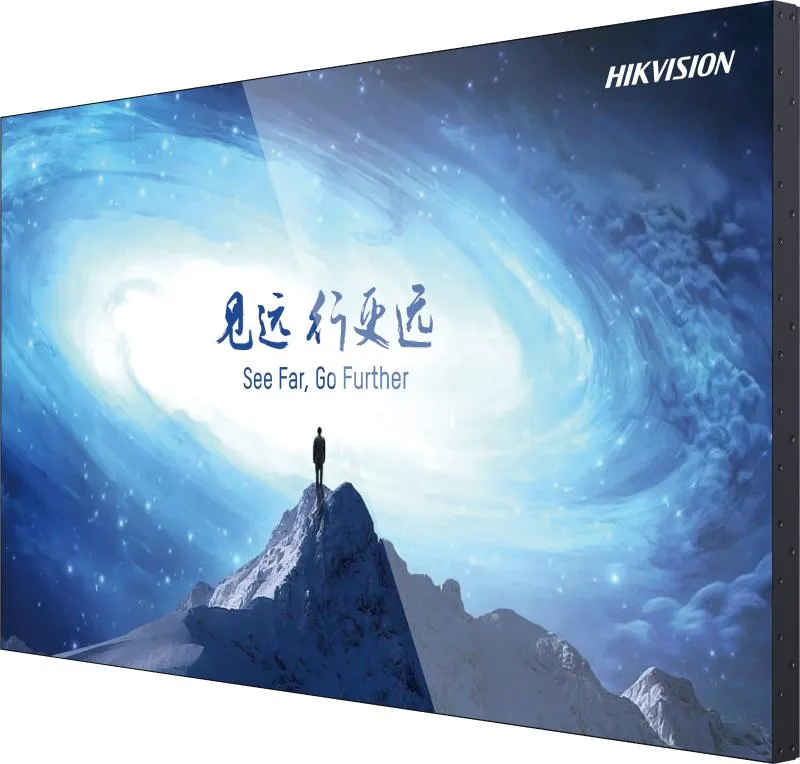

Name: Hikvision DS-D2049UL-0A 49-inch 3.5mm LCD Video Wall Display Unit
Brand: Hikvision
SKU: hikvision-ds-d2049ul-0a
Availability: InStock

Overview

The Hikvision DS-D2049UL-0A is a 49-inch LCD display unit from the Mirror Series, built to sit as one tile in a video wall. Its 3.5 mm physical seam, 1920 × 1080 IPS panel and 500 cd/m² brightness suit control rooms, lobbies and operations centres where a continuous image matters. It takes VGA, HDMI, DVI, DisplayPort and USB input and can run 24 hours a day. Request a quote from SmartRooms Qatar to plan your wall layout.

What the 3.5 mm seam means across a 49-inch wall

The Hikvision DS-D2049UL-0A is a single 49-inch display unit built to sit as one tile in a larger video wall. Its physical seam measures 3.5 mm with a tolerance of ±0.8 mm, and the active area is 1074.24 mm by 604.26 mm. When several units sit side by side, that narrow gap keeps attention on the content rather than the frames, which matters for dashboards, maps and live camera feeds that run across panel boundaries.

The panel uses IPS LCD technology with a direct-lit LED backlight, a 0.56 mm pixel pitch and a 1920 × 1080 resolution. It is rated at 500 cd/m² with a 1200:1 contrast ratio, a 178° viewing angle horizontally and vertically, and an 8 ms response time. The surface carries a 25% haze finish with 3H hardness, which helps cut reflections from ceiling lights and glazing.

Inputs, picture modes and control

Each unit offers VGA, HDMI, DVI, DisplayPort and USB inputs, an HDMI output and RS232 control in and out. The 4K signal input can loop up to 30 screens over HDMI, so a single source can feed a chain of displays. Three picture modes, Monitoring, Meeting and Movie, let an operator switch profiles to suit the content on screen.

The 72% NTSC colour gamut and 8-bit colour depth suit operational dashboards and monitoring feeds. For colour-critical grading, a professional reference monitor is the better choice.

Power, heat and mounting planning for Qatar

Qatar mains supply is 240 V at 50 Hz. This unit's power supply is rated for 100 to 240 VAC at 50/60 Hz, draws up to 245 W, and uses no more than 0.5 W on standby. The operating range is 0°C to 40°C with 20% to 80% relative humidity, non-condensing. Summer temperatures in Doha and across the country can pass 45°C, so the room must be air-conditioned, with cooling sized for the total heat load of the wall. Sun-exposed or poorly cooled spaces should be reviewed with the SmartRooms Qatar team before installation.

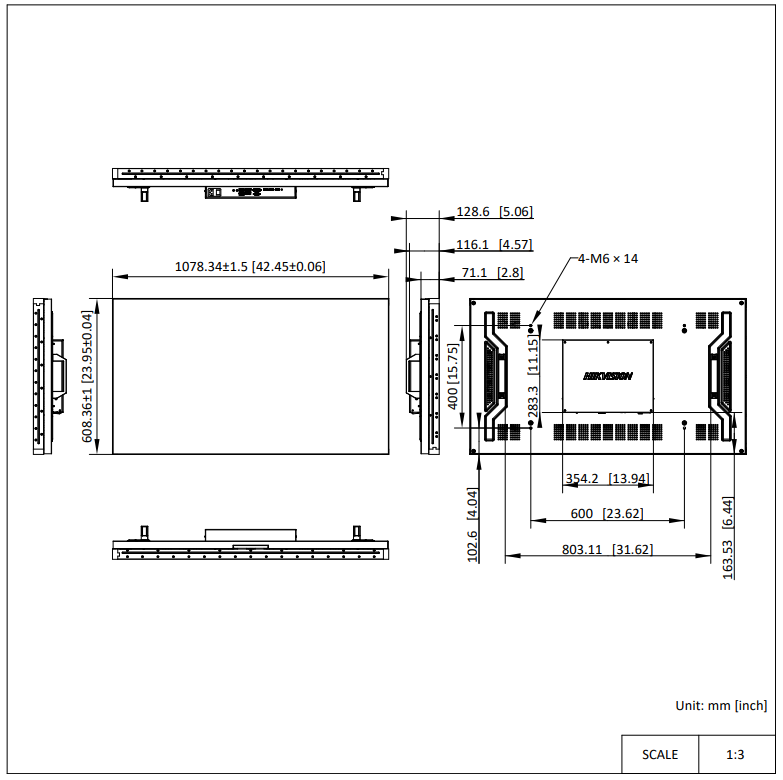

Each unit weighs 19.3 kg net and measures 1078.34 mm by 608.36 mm by 71.1 mm. It uses a 600 mm by 400 mm VESA pattern, and wall-mount and modular brackets are available for different layouts. A 2×2 array of four units occupies about 2.16 m by 1.22 m before any framing. A free site survey lets us check wall construction, bracket fixings and cable routes before the units are mounted.

Where this unit fits in Qatar

Three typical scenarios show where the DS-D2049UL-0A is a practical choice:

Operations and command rooms: a security or traffic monitoring room in Doha, where a 2×2 or 3×3 wall shows camera feeds and status boards around the clock.
Hospital and clinic control areas: a bed management or facilities room in an area such as Msheireb, displaying live occupancy and service dashboards.
Corporate and government briefing rooms: a boardroom in West Bay or Lusail that switches between Meeting mode for video calls and Monitoring mode for data.

Ordering a video wall with SmartRooms Qatar

Decide on the wall grid, the mounting method and the cabling before you order. Count the units, confirm the source devices, and check that the room sits within the operating temperature range. A quotation from SmartRooms Qatar usually comes within one working day, and we deliver across all 8 municipalities of Qatar with professional installation. We also support LPOs and government tenders, including Monaqasat. Request a quote for the DS-D2049UL-0A and share your wall size, and we will return a complete quotation.

Highlights

3.5 mm physical seam with ±0.8 mm tolerance
1920 × 1080 IPS panel with 500 cd/m² brightness
HDMI signal loop for up to 30 screens
VGA, HDMI, DVI, DisplayPort and USB inputs
RS232 control in and out for system integration
Operating range 0°C to 40°C, rated for 24-hour working

Plan your video wall

Rows3

Columns3

Wall size about 3.25 × 1.83 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

34 specifications · Source: manufacturer · checked Oct 2026

Display15

Screen Size: 49 inch, 124.46 cm
Active Display Area: 1074.24 (H) mm × 604.26 (V) mm, 64.91dm²
Backlight: Direct-lit LED backlight
Pixel Pitch: 0.56 mm
Physical Seam: 3.5 mm
Physical Seam Tolerance: ±0.8 mm
Physical Resolution: 1920 × 1080
Brightness: 500 cd/m²
Color Temperature: 10,000 ± 1,000K
Viewing Angle: 178°(H)/178°(V)
Color Depth: 8 bit, 16.7 M
Contrast Ratio: 1200:1
Response Time: 8 ms
Color Gamut: 72% NTSC
Surface Treatment: Haze25% ,3H

Interface3

Video & Audio Input: VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
Video & Audio Output: HDMI × 1
Control Interface: RS232 IN × 1, RS232 OUT × 1

Key Material1

LCD Technology: IPS

Power3

Power Supply: 100 to 240 VAC, 50/60 Hz
Power Consumption: ≤ 245 W
Standby Consumption: ≤ 0.5 W

Working Environment4

Working Temperature: 0°C~40°C
Working Humidity: 20% RH to80% RH (without condensation)
Storage Temperature: -20°C~60°C
Storage Humidity: 10% RH to90% RH (without condensation)

General8

Standby Time: 600 s
Casing Material: Metal
VESA: 600 mm × 400 mm
Product Dimension (W × H × D): 1078.34 mm × 608.36 mm × 71.1mm (42.45'' × 23.95'' × 2.8'')
Package Dimensions (W × H × D): 1174 mm × 748 mm × 221 mm (46.22 '' × 29.45 '' × 8.7 '')
Net Weight: 19.3 ± 0.5 kg (42.5 ± 1.1 lb) for single display
Gross Weight: 24.5 ± 0.5 kg (54.0 ± 1.1 lb) for carton with a single display
Packing List: Carton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1, LCD Maintenance Notice × 1

Downloads

7 files from the manufacturer

PDF Datasheets DS-D2049UL-0A_Datasheet_20260729.pdf 713 KB PDF Manuals & guides Quick Start Guide_c01f9780.pdf 981 KB PDF Manuals & guides User Manual_c07b992c.pdf 1.3 MB PDF Brochures Brochure-Preview_Hikvision-LCD-Video-Wall-Display-Mirror-Series-Brochure_20241028.pdf 9.2 MB PNG Drawings & CAD DS-D2049UL-0A_02.png 74 KB 2_25 Software & firmware · Opens on manufacturer site Firmware_V1.0.2_250929 6_26 Software & firmware · Opens on manufacturer site Firmware_V1.0.6_260528

Questions about DS-D2049UL-0A

What is the Hikvision DS-D2049UL-0A used for?

It is a 49-inch LCD display unit designed to be one panel in a video wall. Control rooms, monitoring centres and information areas use it to show camera feeds, dashboards and status boards. Its 1920 × 1080 IPS panel and 3.5 mm physical seam keep a combined image readable across several units, and the 24-hour working rating suits round-the-clock operations.

How big is the bezel gap and why does it matter?

The physical seam is 3.5 mm, with a tolerance of ±0.8 mm. Across a 2×2 array, that gap is the only break between the four active areas, so text and maps that cross a join stay readable. A narrower seam reduces the visual interruption across the wall, which matters when operators read small figures over long shifts.

What resolution and pixel pitch does it have?

The panel has a 1920 × 1080 physical resolution with a 0.56 mm pixel pitch, across an active area of 1074.24 mm by 604.26 mm. The unit accepts a 4K signal input, but the panel itself displays 1920 × 1080. Plan content at that resolution so text and fine graphics stay clear at the normal viewing distances of a control room.

Can one video source drive several units in a chain?

Yes, within the limits in the specification. The 4K signal input can loop up to 30 screens over HDMI, and the unit also has an HDMI output. Before ordering, confirm your source's output capacity and cable runs with the SmartRooms Qatar team. If the wall needs different content on each panel, plan a separate controller rather than relying on one chain.

Which inputs and control ports does it have?

Inputs are VGA, HDMI, DVI, DisplayPort and USB, with one HDMI output. For control, the unit has RS232 IN and RS232 OUT ports, so it can be linked into a serial chain with other displays. The box includes a remote control and an IR receiver. Confirm which input your source uses before ordering cables and adapters.

Will it run on Qatar's 240 V mains supply?

Yes. The power supply is rated for 100 to 240 VAC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Maximum power consumption is 245 W, and standby consumption is 0.5 W or less. The package includes a power cable, but ask the SmartRooms Qatar team to confirm it fits BS 1363 (Type G) sockets in your building before installation.

Can it be installed in a room that gets hot in summer?

The operating range is 0°C to 40°C, with 20% to 80% relative humidity and no condensation. Summer temperatures in Doha can exceed 45°C, so install the wall in an air-conditioned room with cooling sized for the total heat load of all units. Sun-exposed, heavily glazed or poorly cooled spaces should be reviewed with the SmartRooms Qatar team before mounting.

What weight and mount should we plan for?

Each unit weighs 19.3 kg net and uses a 600 mm by 400 mm VESA pattern. Wall-mount and modular brackets are available, so the choice depends on your layout. A 2×2 array occupies about 2.16 m by 1.22 m before framing. Check the wall structure and its load capacity with a qualified installer before ordering.

Is it suitable for continuous 24-hour operation?

The unit is rated for 24-hour continuous working, and its metal casing helps guard against radiation and magnetic and electric field interference. A likely use is a security monitoring room near Hamad International Airport, where a wall may run through long shifts. Plan ventilation and room cooling for continuous operation, not only for office hours.

Do you offer a site survey before installation?

Yes, SmartRooms Qatar offers free site surveys. For units weighing 19.3 kg each, a survey checks wall construction, bracket type and cable routes for a 2×2 or larger array before any drilling. It is especially useful in multi-floor buildings in Lusail or The Pearl, where wall construction can vary between floors. Quotations usually arrive within one working day.

Can we buy this model with an LPO or through a government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), supports government tenders including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A ministry or authority fitting out a control room can list the DS-D2049UL-0A with its quantity, bracket type and installation scope. Products are covered by the manufacturer's warranty.

When should we use Monitoring mode and when Meeting mode?

The unit has three picture modes: Monitoring, Meeting and Movie. Monitoring suits dashboards, camera feeds and status boards in an operations room. Meeting suits boardroom video calls and presentations. Movie suits video playback and training content. Switching modes per use lets one wall in a school or government building serve more than one purpose.
