55SVH7F-A

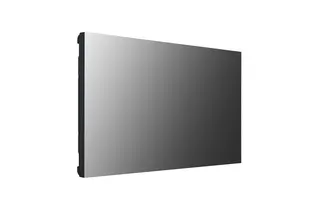

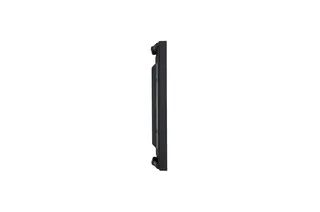

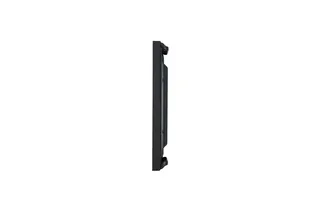

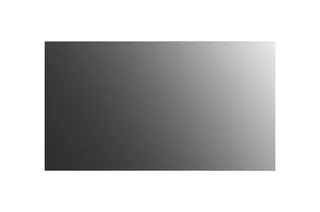

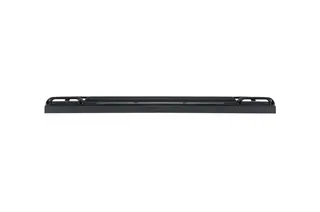

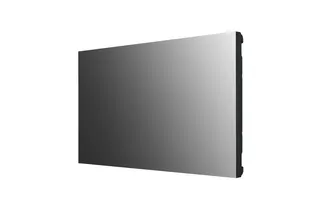

LG 55SVH7F-A 55-inch 0.44mm Bezel LCD Video Wall Display
- Screen size
- 55"
- Bezel
- Black
- Resolution
- 1,920 x 1,080 (FHD)
- Brightness
- 700 nit
The LG 55SVH7F-A is a 55-inch LCD video wall panel with a 0.44 mm even bezel and 0.88 mm bezel-to-bezel gap, built for tiled displays in lobbies, control rooms and retail fronts. It offers 700 nits typical brightness at 1,920 x 1,080 and a built-in webOS signage platform. Qatar facilities and IT teams can request a quote.
A 0.44 mm bezel for tiled displays that stay readable
The LG 55SVH7F-A is a 55-inch LCD panel designed to be joined with others into one video wall. Its 0.44 mm even bezel, with 0.88 mm between two adjacent panels, keeps the joins between screens narrow, so text, maps and moving images cross the wall with fewer visible breaks. Each panel runs at 1,920 x 1,080 (FHD) on an IPS panel rated at 700 nits typical brightness and a 1,200:1 contrast ratio.
Specifications that matter on a video wall
The viewing angle is rated at 178 x 178 degrees, which matters when a wall sits above eye level or when visitors approach from different sides of a lobby. The panel offers a typical 8 ms response time, 60,000 hours typical life and a 24-hour operation rating. Landscape and portrait orientation are both supported, and the on-screen menu switches to a 9:16 layout with larger text for vertical installations.

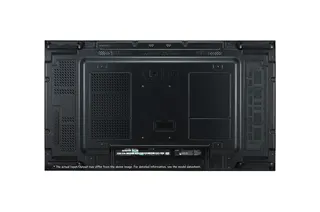

- Inputs: two HDMI, one DisplayPort, one DVI-D, USB and audio
- Outputs: DisplayPort and audio for passing a signal to the next panel
- Control: RS232C in and out, RJ45 (LAN) in and out, and IR in
- Power: 100-240V, 50/60Hz with built-in power; 210 W typical and 250 W maximum consumption
Where it fits in Qatar
In a hotel lobby in West Bay, a group of these panels can show arrival information and destination content as one image, with the joins barely visible from the reception desk. In a control room for a government authority, a grid of 55-inch panels can display monitoring dashboards that staff read from a distance. In an education building in Education City, portrait units beside a corridor can handle wayfinding, while a mall in The Pearl can run promotions on tall, narrow screens.
What to plan before ordering
Each head weighs 16.8 kg and 23.6 kg packed, with a 600 x 400 mm VESA mounting interface, so the wall structure and fixings should be checked against those figures. The operating range is 0 to 40°C with 10 to 80% humidity. Summer temperatures in Qatar can exceed 45°C, so these panels belong in air-conditioned rooms, and the cooling should be confirmed during planning. Optional wall mounts are listed for landscape (WM-L640V) and portrait (WM-P640V) use, and an OPS Kit (KT-OPSF) is available for piggyback media players. Free site surveys from SmartRooms Qatar help confirm wall loading, cabling and ventilation before installation.
Software and content management
The built-in SoC and webOS signage platform can play content without a separate media player in many setups, and four videos can play at once through web apps. Content is managed with SuperSign CMS, while SuperSign Control and Control+ handle monitoring and control. Real-time streaming is also available.
To check whether this panel suits your room or wall, request a quote from SmartRooms Qatar. Share the wall size, number of panels and orientation, and the team will return a quotation, usually within one working day.
Highlights
- 0.44 mm even bezel with 0.88 mm bezel-to-bezel spacing
- 700 nits typical brightness and 1,200:1 contrast ratio
- 1,920 x 1,080 IPS panel with 178 x 178 degree viewing angle
- Built-in SoC and webOS signage platform
- Landscape and portrait orientation with 9:16 portrait menu
- Operating range 0 to 40°C, rated for 24-hour operation
Plan your video wall
Wall size about 3.65 × 2.05 m · 9 panels
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
PANEL12
- Screen Size
- 55"
- Panel Technology
- IPS RGB
- Aspect Ratio
- 16:9
- Native Resolution
- 1,920 x 1,080 (FHD)
- Brightness(Typ.,cd/m²)
- 700
- Contrast Ratio
- 1,200:1
- Viewing Angle (H x V)
- 178 x 178
- Response Time
- 8 ms (G to G)
- Surface Treatment
- Haze 3%
- Life Time (Typ.)
- 60,000 Hrs
- Operation Hours
- 24 Hrs
- Orientation
- Landscape & Portrait
CONNECTIVITY3
- Input
- HDMI (2), DP, DVI-D, Audio, USB
- Output
- DP, Audio
- External Control
- RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION8
- Bezel Color
- Black
- Bezel Width
- 0.44 mm (Even)
- Monitor Dimension (W × H × D)
- 1,210.51 x 681.22 x 86.5 mm
- Weight (Head)
- 16.8 kg
- Carton Dimensions (W × H × D)
- 1,353 x 855 x 263 mm
- Packed Weight
- 23.6 kg
- Handle
- Yes
- VESA™ Standard Mount Interface
- 600 x 400 mm
ENVIRONMENT CONDITIONS2
- Operation Temperature
- 0°C to 40°C
- Operation Humidity
- 10 % to 80 %
POWER2
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
POWER CONSUMPTION2
- Typ.
- 210 W
- Max.
- 250 W
STANDARD(CERTIFICATION)3
- Safety
- CB / NRTL
- EMC
- FCC Class "A" / CE / KC
- ErP / Energy Star
- Yes(EU Only) / Yes(Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY1
- OPS Type Compatible
- Yes (Piggyback)
SOFTWARE COMPATIBILITY2
- Content Management Software
- SuperSign CMS
- Control and Monitoring Software
- SuperSign Control / Control+
ACCESSORY2
- Basic
- Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
- Optional
- Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V) , OPS Kit(KT-OPSF)
