LG 55SVM5F-H 55-inch Slim Bezel FHD Video Wall

Overview

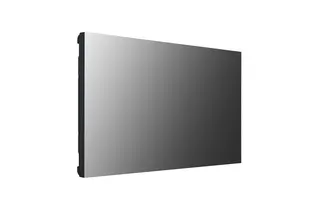

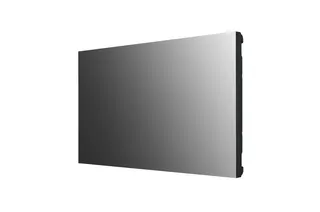

The LG 55SVM5F-H is a 55-inch FHD IPS video wall panel with a 0.44 mm even bezel, designed for tiling into a larger display. It offers a 28% haze non-glare surface for readable content in bright rooms, a 24-hour operation rating, portrait and landscape orientation, and LAN daisy chaining to manage several units together. It suits control rooms, lobbies and retail fronts across Qatar where a seamless wall matters.

What the 55SVM5F-H is built for

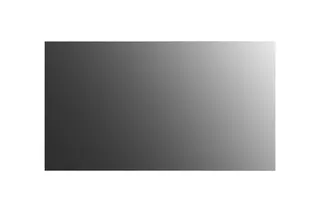

The LG 55SVM5F-H is a 55-inch IPS panel with a native 1,920 x 1,080 resolution, sold for assembling into video walls rather than standing alone. Its 0.44 mm even bezel, which the manufacturer quotes as 0.88 mm between adjacent panels, keeps the gap small enough that images and text cross the joins with little visible interruption. The panel is rated for 24-hour operation, and the manufacturer lists a typical life of 60,000 hours.

Picture quality on a tiled wall

A non-glare surface with 28% haze reduces reflections from windows and ceiling lights, which matters in rooms where the wall cannot be placed away from daylight. The IPS panel is specified with a 178 x 178 degree viewing angle, so people seated at the sides of a control room still see consistent colour. A typical brightness of 500 cd/m2 and an 8 ms response time (G to G) support fast-moving content. The image improvement algorithm reduces visible gaps at bezel edges during video playback, and Smart Calibration aligns colour across connected displays without additional manual adjustment.

Where it fits in Qatar

Government and ministry monitoring rooms in Doha: a multi-panel wall managed centrally over the network and running around the clock.
Hotel and mall lobbies in West Bay or Lusail: portrait-mounted columns for wayfinding and promotions, with a clear on-screen menu for staff.
Universities and training centres in Education City: a visitor wall showing campus news and event schedules, updated from a single source.

Planning the installation

Each head weighs 16.8 kg and ships in a 23.6 kg package, so plan for two people when lifting and check the wall or frame before mounting. The VESA interface is 600 x 400 mm, and the box includes a guide bracket and screws. Optional WM-L640V (landscape) and WM-P640V (portrait) wall mounts are available. The operating range is 0 to 40 degrees C with 10% to 80% humidity. Summer temperatures in Qatar can exceed 45 degrees C, so the wall must sit in an air-conditioned room, and the environment should be confirmed with the SmartRooms Qatar team before the quotation is finalised. The power supply accepts 100-240V at 50/60 Hz, with typical draw of 200 W and maximum of 250 W.

Connectivity and control

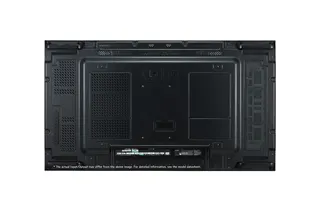

Inputs include two HDMI ports, one DisplayPort, DVI-D, audio and USB 2.0. The DisplayPort output passes a signal to the next panel, while RS232C, RJ45 LAN and IR inputs handle control. LAN daisy chaining lets you monitor the wall and update firmware on all units at once, and UHD daisy chaining works over HDMI and DisplayPort without DisplayPort MST or a Matrox graphics card. Content can run from an OPS media player mounted piggyback, using the optional KT-OPSF kit, with SuperSign CMS available for content management.

Send the number of panels, your wall layout and the room size, and the SmartRooms Qatar team will return a quotation, usually within one working day, with installation scoped after a free site survey. Request a quote for the LG 55SVM5F-H today.

Highlights

0.44 mm even bezel with 0.88 mm bezel-to-bezel gap
1,920 x 1,080 FHD IPS panel in 16:9 format
28% haze non-glare surface for bright rooms
24-hour operation with 60,000-hour typical life
Portrait and landscape orientation with dedicated menu
LAN daisy chaining and UHD over HDMI and DisplayPort

Plan your video wall

Rows3

Columns3

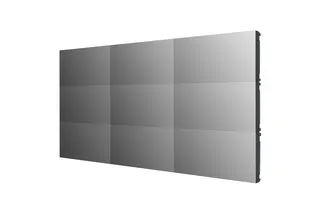

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

38 specifications · Source: manufacturer · checked Oct 2026

PANEL13

Screen Size: 55"
Panel Technology: IPS
Aspect Ratio: 16:9
Native Resolution: 1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²): 500
Contrast Ratio: 1,100:1
Dynamic CR: 500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
Viewing Angle (H x V): 178 x 178
Response Time: 8 ms (G to G)
Surface Treatment: Haze 28%
Life Time (Typ.): 60,000 Hrs
Operation Hours: 24 Hrs
Orientation: Portrait & Landscape

CONNECTIVITY3

Input: HDMI (2), DP, DVI-D, Audio, USB 2.0
Output: DP, Audio
External Control: RS232C In/out, RJ45 (LAN) In/out, IR In

MECHANICAL SPECIFICATION8

Bezel Color: Black
Bezel Width: 0.44 mm (Even)
Monitor Dimension (W × H × D): 1,210.51 x 681.22 x 86.5 mm
Weight (Head): 16.8 kg
Carton Dimensions (W × H × D): 1,353 x 855 x 263 mm
Packed Weight: 23.6 kg
Handle: Yes
VESA™ Standard Mount Interface: 600 x 400 mm

ENVIRONMENT CONDITIONS2

Operation Temperature: 0°C to 40°C
Operation Humidity: 10 % to 80 %

POWER2

Power Supply: 100-240V~, 50/60Hz
Power Type: Built-In Power

POWER CONSUMPTION2

Typ. / Max.: 200W / 250W
Smart Energy Saving: 105W

CERTIFICATION3

Safety: CB / NRTL
EMC: FCC Class "A" / CE / KC
ErP / Energy Star: Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY1

OPS Type Compatible: Yes (Piggyback)

SOFTWARE COMPATIBILITY2

Content Management Software: SuperSign CMS
Control and Monitoring Software: SuperSign Control / Control+

ACCESSORY2

Basic: Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional: Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)

Downloads

7 files from the manufacturer

PDF Manuals & guides MFL71481302_02_IG_240513.pdf 5.4 MB PDF Manuals & guides OM_ENG.pdf 6.6 MB URL Manuals & guides · Opens on manufacturer site Owner's Manual URL Manuals & guides · Opens on manufacturer site User Guide PDF Manuals & guides · Opens on manufacturer site webOS4.0_UG_ENG.pdf 4.4 MB URL Software & firmware · Opens on manufacturer site Software & Drivers (support page) URL Software & firmware · Opens on manufacturer site Software & Drivers (support page)

Questions about 55SVM5F-H

What is the LG 55SVM5F-H and who is it for?

The LG 55SVM5F-H is a 55-inch IPS LCD panel made to be tiled with other units into a video wall. It suits control rooms, command centres, lobbies and retail fronts where a near-seamless image across several screens matters more than one large display. Buyers who need identical panels managed from one place will get the most from it.

How narrow is the bezel and will the seams show?

The panel has a 0.44 mm even bezel, and the manufacturer quotes 0.88 mm between two adjacent panels. Because the gap is so small, content crosses the joins with little visible interruption. The image improvement algorithm also adjusts objects sitting on bezel boundaries during video playback. Final seam appearance depends on mounting and room lighting, so a site survey helps.

Can it run continuously in a control room?

Yes. The manufacturer rates the panel for 24-hour operation and lists a typical life of 60,000 hours. For a monitoring room in Doha that runs around the clock, that rating matters more than the brightness figure alone. Plan power too: typical consumption is 200 W and maximum is 250 W per panel, so multiply by the number of units when sizing circuits and cooling.

Does it work in portrait orientation?

It supports both portrait and landscape orientation. The on-screen menu was redesigned for portrait use, with a long list of larger fonts in a 9:16 layout, so settings stay readable when panels stand upright in a corridor or lobby column. Portrait mounting requires the WM-P640V wall mount, while the WM-L640V suits horizontal walls.

What inputs and outputs are on the back?

Inputs are two HDMI ports, one DisplayPort, one DVI-D, audio and a USB 2.0 port. The DisplayPort output passes the signal to the next panel. Control is through RS232C in and out, RJ45 LAN in and out, and an IR input for the remote. Check your source devices before ordering so they match these ports, and ask the team about adapters if needed.

How many panels can be daisy-chained and how are they controlled?

The source data does not state a maximum number of panels in a chain, so ask the SmartRooms Qatar team to confirm the limit for your layout. What it does state: LAN daisy chaining lets you control and monitor the wall and update firmware on all units at once, and UHD daisy chaining works over HDMI and DisplayPort without DisplayPort MST or a Matrox graphics card.

Can it be used outdoors or in an unshaded location in Qatar?

No. The operating range is 0 to 40 degrees C with 10% to 80% humidity, so the panel should be used in air-conditioned indoor spaces. Summer temperatures in Qatar can pass 45 degrees C, so a wall near a window, a loading area or an unconditioned hall needs a cooled room. If you are unsure about the environment, confirm it with the SmartRooms Qatar team before the quotation is finalised.

Is it suitable for a lobby with large windows in West Bay?

Its non-glare surface with 28% haze reduces reflections from daylight and ceiling lights, and the 178 x 178 degree viewing angle keeps colour consistent for visitors approaching from different sides. Direct sunlight on the screen still reduces contrast, so position the wall away from direct glare. A site survey can check the angle and daylight before installation.

What do I need to mount it?

Each panel has a 600 x 400 mm VESA mounting interface, and the box includes a guide bracket and screws. Optional WM-L640V and WM-P640V wall mounts are available for landscape and portrait installs. Each head weighs 16.8 kg and the packed unit is 23.6 kg, so the wall or frame must carry that load, and two people should handle lifting.

Does it run on Qatar's 240 V mains?

The built-in power supply is rated 100-240V at 50/60 Hz, so it operates on Qatar's 240 V, 50 Hz mains. A power cord is included. Agree the socket position and cord routing with your installer before mounting. Typical consumption is 200 W, rising to 250 W at maximum, and the smart energy saving mode draws 105 W.

Which media players and software can drive it?

The panel is compatible with OPS media players in piggyback arrangement, and the optional KT-OPSF OPS kit is listed for it. The data names SuperSign CMS for content management and SuperSign Control and Control+ for control and monitoring. If your school or ministry uses a different player, confirm compatibility before ordering.

Can a school in Al Wakrah order several panels under an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. Send the number of panels, the wall plan and the room size, and we will return a quotation usually within one working day, with delivery to all eight municipalities and installation scoped after a free site survey.
