MPJ49LHX18
Marvel MPJ49LHX18 49-inch 1.8mm Bezel LCD Video Wall Display
- Screen size
- 49 inch 1.8mm LG
- Bezel
- 1.8mm
- Resolution
- 1920×1080(H×V)
- Brightness
- 450 nit
The Marvel MPJ49LHX18 is a 49-inch LCD panel built for indoor video walls, with a 1.8mm splice bezel and 1920×1080 resolution per screen. It supports wall, floor and cabinet mounting, offers HDMI, DVI, VGA and composite inputs, and is listed with an MV-P817W processor controller. Its 450 nit rating suits control rooms, meeting rooms and lobbies in Doha and across Qatar. Request a quote.
What the MPJ49LHX18 is and where it fits

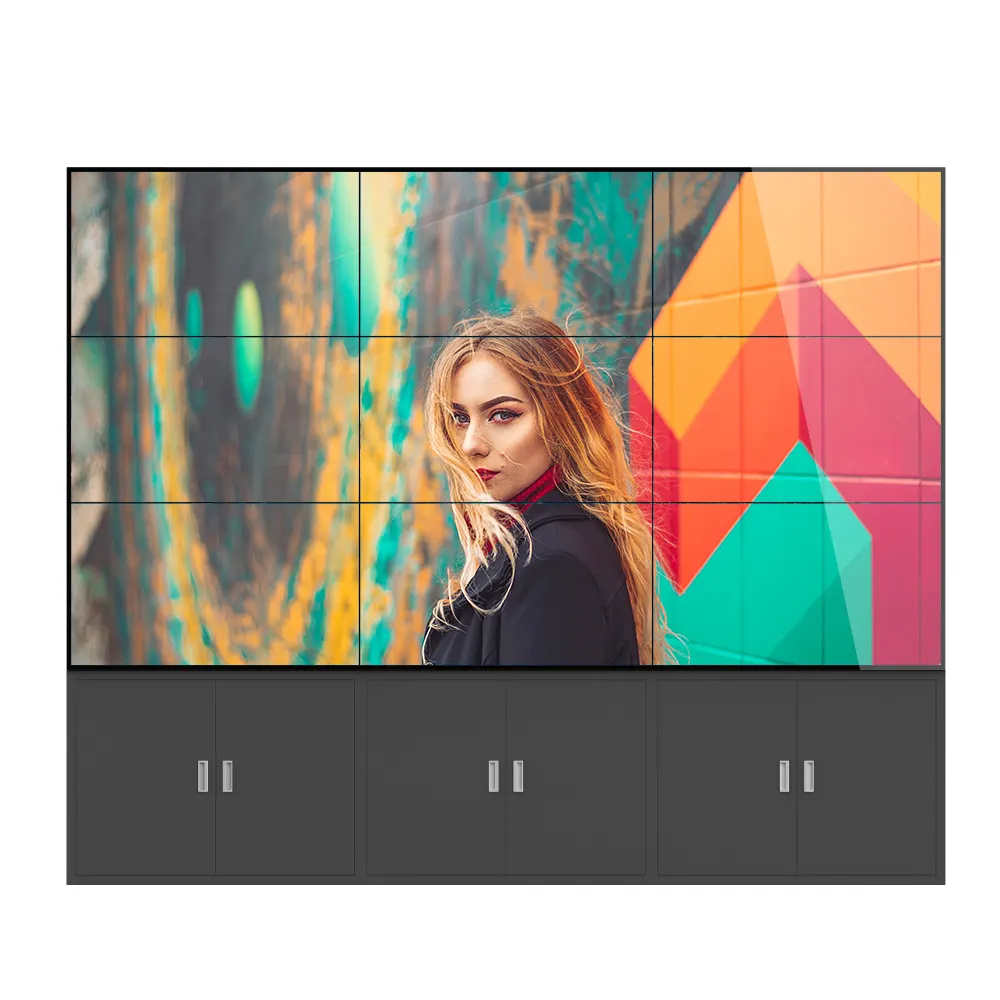

The Marvel MPJ49LHX18 is a 49-inch LCD display built to be tiled into an indoor video wall. It belongs to a range that also includes 46-inch and 55-inch sizes, so the 49-inch screen is the choice when a wall needs a middle-sized panel. Each panel runs at 1920×1080 with a 16:9 aspect ratio and a 1.8mm splice bezel, which keeps the gap between neighbouring screens narrow when units sit side by side.
Specifications that shape a video wall
The manufacturer lists a contrast ratio of 1,100:1, a response time of 6ms and a rated life above 60,000 hours. The viewing angle is listed as 89 degrees in each direction at a minimum contrast ratio of 10:1. Brightness needs a clear answer before you buy: the product title refers to 700 nit, while the specification table gives 450 nit. The quotation from SmartRooms Qatar will state the figure for the unit you order.
Connectivity covers one DVI, one HDMI, one D-15 VGA input, one YUV/YPbPR input on three BNC connectors, one S-video input on two BNC connectors, three composite video inputs, two composite video outputs and one audio input. The display supports picture-in-picture, picture-outside-picture and picture-and-picture split-screen modes.
Qatar scenarios where this panel makes sense
- Control and operations rooms. An energy or industrial operator in Mesaieed or the Industrial Area could tile several panels to show live dashboards, with the narrow bezel keeping data readable across the wall.
- University and school foyers. A campus in Education City or Al Rayyan could use a wall to display timetables, events and announcements in a lobby that is air-conditioned all day.
- Hotel and retail lobbies. A hotel in West Bay or a retail atrium in The Pearl could use a wall for wayfinding and promotions, provided the screens sit in a cooled, indoor space.
What to plan before ordering

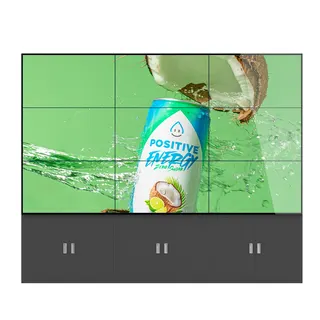

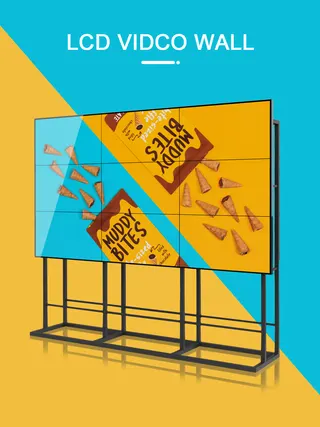

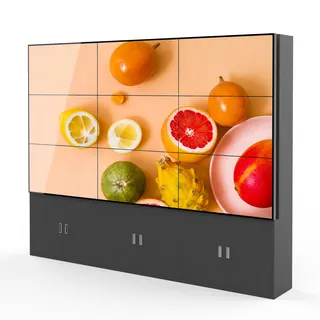

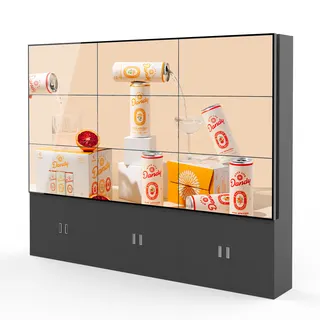

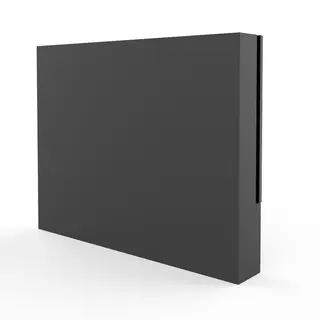

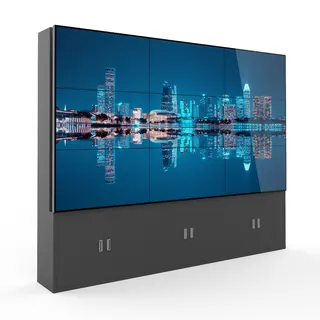

The listed dimensions for each display are 1215.3 × 686.1 mm with a depth of 131 mm. Mounting options include wall mounting, floor standing, cabinet floor standing and a press-and-eject wall bracket. Because a video wall must be level and securely fixed, SmartRooms Qatar offers a free site survey before installation so the mounting method, cable routes and wall position can be checked on site.
Power input is AC 100 to 240 V at 50/60 Hz. Maximum consumption is 230 W per display, with standby draw of 3 W or less. The video wall processor, model MV-P817W, is listed at up to 300 W and weighs 3.5 to 4.0 kg. Operating temperature is -30°C to 60°C with air conditioning, -10°C to 55°C with air exchange, and -30°C to 55°C with air exchange plus heater. Operating humidity is 20% to 80%. The listed application is indoor, so for any sun-facing or semi-outdoor position, confirm the environment with the SmartRooms Qatar team before ordering, as summer temperatures above 45°C are common in Qatar.
Certification, warranty and buying
The unit carries CE, FCC and RoHS certifications. The manufacturer's warranty is listed as one to three years, so confirm the exact term for your order on the quotation. SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar, arranges professional installation and usually issues quotations within one working day. Organisations can buy against an LPO, and government buyers can work through Monaqasat tenders. Payment is by bank transfer, cheque or purchase order.
To request a quote for the Marvel MPJ49LHX18, send the wall size, number of panels, room location and intended content, and the SmartRooms Qatar team will prepare a quotation.
Highlights
- 49-inch 16:9 LCD panel with 1920×1080 resolution
- 1.8mm splice bezel for tiled video walls
- 1,100:1 contrast ratio and 6ms response time
- Wall, floor, cabinet and press-and-eject bracket mounting
- HDMI, DVI, VGA and composite video inputs
- Indoor application; operating range -30°C to 60°C with air conditioning
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Key Attributes8
- Model Number
- MPJ49LHX18
- Brand Name
- MWE
- Certification
- CE FCC ROHS
- Place of Origin
- Shenzhen, China
- Application
- Indoor
- Input Voltage
- AC100~240V 50 /60 HZ
- Packaging
- Bubble bag+packing foam+carton+wooden case
- Delivery Detail
- Batch order 15-30 days
Panel10
- Panel Size
- 49 inch 1.8mm LG
- Splice bezel
- 1.8mm
- Aspect Ratio
- 16: 9
- Max Resolution Support
- 1920×1080(H×V)
- Color
- 8Bit,16.7M
- Brightness (nits)
- 450 nit
- Contrast ratio
- 1100:1
- Visual Angle (H/V)
- 89/89/89/89 (Min.)(CR≥10)
- Response Time
- 6ms
- Life(hrs)
- >60,000(hrs)
Input and output9
- DVI
- 1
- HDMI
- 1
- D-15 RGB Input(VGA)
- 1
- YUV/YPbPR
- 1(3xBNC)
- S-(YC)
- 1(2xBNC)
- Composite Video Input/(AV)
- 3(3xBNC)
- Composite Video Output
- 2(2xBNC)
- AUDIO INPUT
- 1
- Split Screen
- Support Picture in Picture(PIP/POP/PAP)
Power5
- Power Supply
- AC100V~240V
- Maximum Power Consumption
- 230W
- Working Temperature
- -30°C ~ 60°C(with air condition）-10°C ~55°C(with air follow exchange）-30°C ~ 55°C(with air follow exchange+heater)
- Working Humidity
- 20%-80%
- Dimension
- 1215.3×686.1mmx131mm
Video Wall Processor Controller10
- Model No.
- MV-P817W
- DVI in
- 1
- HDMI in
- 1
- VGA in
- 1
- Composite Video Input/(AV)
- 1(BNC)
- Composite Video Output
- 1(BNC)
- Control signal input and loop out
- RS232(RJ45-8)
- Split Screen
- Sport Picture in Picture (PIP/POP)
- power consumption
- Max 300W,according to different Screen models
- Weight
- 3.5-4.0kg
