Name: Marvel MPJ55LHX18 55-inch LCD Video Wall Display with 1.8mm Splice Bezel
Brand: Marvel
SKU: marvel-mpj55lhx18
Availability: InStock

Overview

The Marvel MPJ55LHX18 is a 55-inch LCD video wall panel built around an LG panel, with a 1.8mm splice bezel, 500 nit brightness and 1920×1080 resolution. It is rated for indoor use and can be wall mounted, floor standing or fitted in a cabinet. It suits control rooms, lobbies and event spaces in Qatar where several panels must join into one image. Request a quote for your video wall layout.

What the MPJ55LHX18 is built for

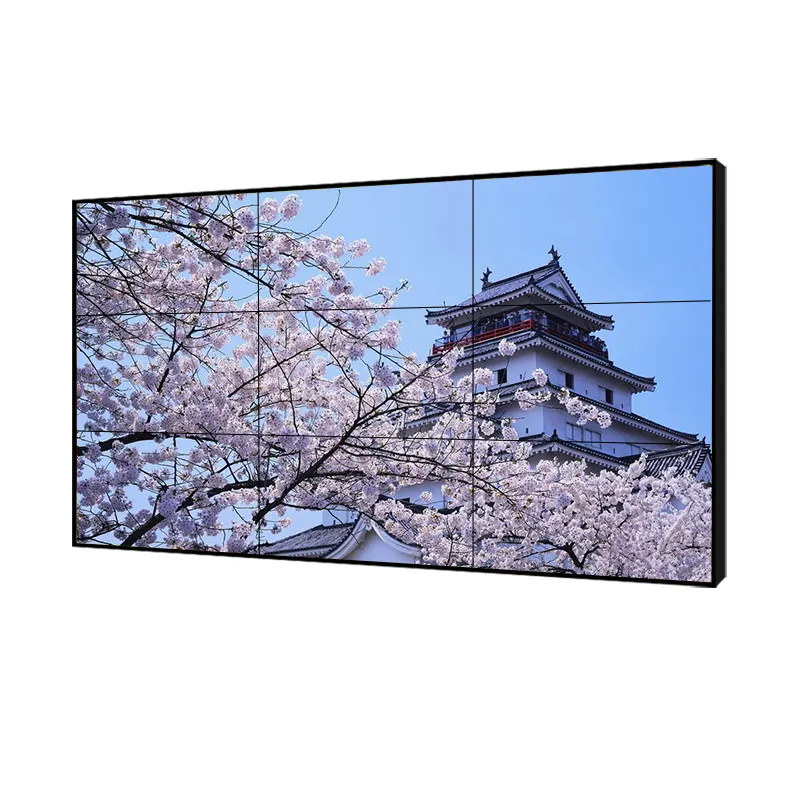

The Marvel MPJ55LHX18 is a 55-inch LCD panel designed to be one tile in a larger video wall for indoor use. Its panel is sourced from LG and runs at 1920×1080 in a 16:9 format. Several units joined together show a single picture, which makes the model suited to control rooms, lobby walls, exhibition stands and event backdrops where content must fill a large area.

Specifications that shape your wall design

Brightness: 500 nit with a 1100:1 contrast ratio.
Splice bezel: 1.8mm between adjacent panels.
Viewing angles: 178° horizontal and 178° vertical.
Response time and life: 6ms response and a rated life above 60,000 hours.
Colour depth: 8-bit, 16.7 million colours.

The bezel figure that matters for joins is the 1.8mm splice bezel. The outer frame is 5.8mm on the left, right and top and 10.7mm at the bottom, so allow for the wider bottom edge when you plan a stacked grid.

Connectivity and control

The display offers DVI, HDMI, VGA, component (YUV/YPbPr), S-video, three composite video inputs, two composite outputs and an audio input. It supports picture-in-picture, picture-outside-picture and picture-and-picture split screen modes. The listed MV-P817W controller adds its own DVI, HDMI and VGA inputs, composite input and output, and RS232 control through an RJ45 connector with loop-out, so the wall can be controlled from a central point.

Planning for Qatar's climate and power

Summer temperatures in Qatar can pass 45°C, so a panel in a plant control room or a glazed lobby needs proper cooling. The rated working range is -30°C to 60°C with air conditioning, -10°C to 55°C with air exchange, and -30°C to 55°C with air exchange plus heater, at 20% to 80% humidity. Power input is AC 100 to 240V at 50/60Hz, which covers Qatar's 240V, 50Hz mains. Maximum consumption is 230W and standby is 3W or less. Confirm the enclosure and ventilation with the SmartRooms Qatar team before installation.

Where it fits in Qatar

Operations centre: an energy or logistics control room in the Industrial Area or Mesaieed, where operators monitor several feeds on one wall.
Hotel or mall lobby: a 3×3 wall in West Bay or The Pearl for welcome graphics and wayfinding.
Exhibitions and events: a freestanding wall at a Doha conference, using floor-standing or cabinet installation.

What to plan before you order

A 3×3 array of these panels measures roughly 3.6 metres wide and 2.1 metres high before any mounting frame, so confirm the wall space, access routes and the structure's capacity for the combined weight. Wall-mounted installations need a suitable structure, and the controller, cabling and source devices need their own location. SmartRooms Qatar offers free site surveys, delivery to all eight municipalities of Qatar, professional installation and quotations usually within one working day. Lead times are estimates confirmed on your quotation, based on stock.

To request a quote for the Marvel MPJ55LHX18, send your wall layout, the number of panels and your preferred installation type, and the SmartRooms Qatar team will prepare your quotation.

Highlights

55-inch LG-sourced LCD panel with 16:9 aspect ratio
1.8mm splice bezel for narrow-join video walls
1920×1080 resolution, 500 nit, 1100:1 contrast ratio
178° horizontal and vertical viewing angles
Wall, floor-standing and cabinet installation options
AC 100-240V, 50/60Hz, maximum consumption 230W
Working temperature up to 60°C with air conditioning

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

42 specifications · Source: manufacturer · checked Oct 2026

Key Attributes8

Model Number: MPJ55LHX18
Brand Name: MARVEL
Certification: CE FCC ROHS
Place of Origin: Shenzhen, China
Application: Indoor
Input Voltage: AC100~240V 50 /60 HZ
Packaging: Bubble bag+packing foam+carton+wooden case
Delivery Detail: Batch order 15-30 days

Panel10

Panel Size: 55 inch 5.8mm(left-right-up),10.7mm(down) LG
Splice bezel: 1.8mm
Aspect Ratio: 16:9
Max Resolution Support: 1920×1080(H×V)
Color: 8Bit,16.7M
Brightness (nits): 500 nit
Contrast ratio: 1100:1
Visual Angle (H/V): 178°(H) / 178°(V)
Response Time: 6ms
Life(hrs): >60,000(hrs)

Input and output9

DVI: 1
HDMI: 1
D-15 RGB Input(VGA): 1
YUV/YPbPR: 1(3xBNC)
S-(YC): 1(2xBNC)
Composite Video Input/(AV): 3(3xBNC)
Composite Video Output: 2(2xBNC)
AUDIO INPUT: 1
Split Screen: Support Picture in Picture(PIP/POP/PAP)

Power5

Power Supply: AC100V~240V
Maximum Power Consumption: 230W
Working Temperature: -30°C ~ 60°C(with air condition）-10°C ~55°C(with air follow exchange）-30°C ~ 55°C(with air follow exchange+heater)
Working Humidity: 20%-80%
Dimension: 1215.3×686.1mmx131mm

Video Wall Processor Controller10

Model No.: MV-P817W
DVI in: 1
HDMI in: 1
VGA in: 1
Composite Video Input/(AV): 1(BNC)
Composite Video Output: 1(BNC)
Control signal input and loop out: RS232(RJ45-8)
Split Screen: Sport Picture in Picture (PIP/POP)
power consumption: Max 300W,according to different Screen models
Weight: 3.5-4.0kg

Downloads

2 files from the manufacturer

PDF Brochures Product Catalog.pdf 37.0 MB URL Other documents · Opens on manufacturer site Product video

Questions about MPJ55LHX18

What is the Marvel MPJ55LHX18 used for?

The MPJ55LHX18 is a 55-inch LCD video wall panel for indoor use, built to be joined with other units into one large picture. In Qatar it suits operations centres, hotel and mall lobbies, exhibition stands and event backdrops. Its 1920×1080 resolution and 16:9 format work well for dashboards, wayfinding and branded content that needs to fill a wide area.

Why does the 1.8mm splice bezel matter?

The 1.8mm splice bezel is the join between adjacent panels, so a narrower join keeps the wall reading as one image. An operations centre in Lusail monitoring several feeds across a grid will notice the difference more than a single screen in a meeting room. Compare this figure with the outer frame of other models, because this panel's outer frame is 5.8mm on three sides and 10.7mm at the bottom.

Can the MPJ55LHX18 be wall mounted or floor standing?

Yes. The data lists four installation types: front-repair video wall bracket, wall mounted, floor standing and cabinet floor standing. A hotel lobby in The Pearl with a low ceiling might prefer a floor-standing or cabinet arrangement, while a corporate reception wall would use wall mounting. Front-repair brackets allow a panel to be serviced from the front. Confirm the choice with SmartRooms Qatar after a free site survey.

Is 500 nit bright enough for a lit lobby in Doha?

The panel is rated at 500 nit with a 1100:1 contrast ratio and 178° viewing angles in both directions. That suits reception areas with controlled lighting, where visitors approach the wall from several directions. For a glazed lobby with strong daylight, or a wall facing a window in summer, ask SmartRooms Qatar to review the position before you commit, since the data gives no rating for direct sunlight.

Which inputs and outputs does the display have?

The display has one DVI, one HDMI, one VGA (D-15 RGB) input, one YUV/YPbPr input on three BNC connectors, one S-video input on two BNC connectors, three composite video inputs, two composite video outputs and one audio input. It also supports picture-in-picture, picture-outside-picture and picture-and-picture split screen modes, so one panel can show two sources at once.

What is the MV-P817W controller and do I need it?

The product data lists the MV-P817W as the video wall processor controller for this model. It provides one DVI, one HDMI and one VGA input, a composite input and output on BNC, and RS232 control through an RJ45 connector with loop-out. Its maximum power draw is 300W depending on screen model, and it weighs 3.5 to 4.0kg. Confirm with SmartRooms Qatar which controller setup your sources and panel count require.

Can it cope with summer heat at a plant in Al Khor or Mesaieed?

Summer temperatures in Qatar can pass 45°C, so the installation environment matters. The rated working range is -30°C to 60°C with air conditioning, -10°C to 55°C with air exchange, and -30°C to 55°C with air exchange plus heater, at 20% to 80% humidity. A control room in Al Khor or Mesaieed needs a cooled, ventilated enclosure sized for up to 230W per panel. Confirm the enclosure design with SmartRooms Qatar before ordering.

Does it run on Qatar's 240V mains supply?

Yes. The power supply is rated AC 100 to 240V at 50/60Hz, so Qatar's 240V, 50Hz mains falls within that range. Maximum power consumption is 230W and standby consumption is 3W or less. Plan circuits for the number of panels plus the controller, and confirm the cable and socket arrangement at your site, since the data does not specify a plug type.

How large is a 3×3 wall made from these panels?

A 3×3 array has three panels across and three high. Each panel measures 1215.3 × 686.1mm and is 131mm deep, so the wall is roughly 3.6 metres wide and 2.1 metres high before any mounting frame. That suits a hotel lobby in West Bay or a corporate reception with a wall about 3.6 metres wide. Measure the wall, access routes and ceiling height, then book a free site survey.
