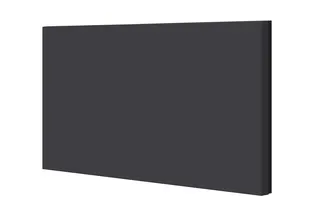

Panasonic TH-55VF2H 55-inch Video Wall Display

Name: Panasonic TH-55VF2H 55-inch Video Wall Display
Brand: Panasonic
SKU: panasonic-th-55vf2h
Availability: InStock

Overview

The Panasonic TH-55VF2H is a 55-inch LCD panel built for tiling into video walls, with 0.44 mm hidden bezels, 700 cd/m² typical brightness and DIGITAL LINK daisy-chaining of up to 10 units on one cable. It suits operations rooms, malls and public information points in Qatar that need a wall to run around the clock. Request a quote.

What the TH-55VF2H is built for

The Panasonic TH-55VF2H is a 55-inch LCD panel designed to be combined with other panels into one larger video wall. It is the brighter of the two 55-inch models in the VF2H/VF2 series, with a typical brightness of 700 cd/m², compared with 500 cd/m² for the TH-55VF2. Each panel delivers 1920 x 1080 resolution in a 16:9 aspect ratio.

Narrow bezels, anti-glare surface and contrast

The hidden bezel measures 0.44 mm on the top and bottom and on the left and right. When one picture is split across several panels, the joins are hard to notice, which matters in control rooms where operators read a wall for long shifts. The installer must still leave a gap of at least 0.5 mm between adjacent displays. The Advanced Anti-glare surface, rated at 28% haze, softens reflections from windows and overhead lights. Direct-lit LED backlighting with Local Dimming gives a dynamic contrast of 500,000:1 and a contrast ratio of 1100:1. Local Dimming is always enabled on this series. Response time is 8.0 ms (G to G), and the viewing angle is 178 degrees both horizontally and vertically.

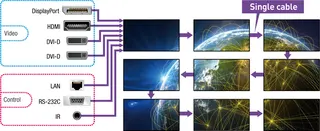

Inputs, control and daisy-chaining

Video inputs: one HDMI, two DVI-D (24-pin), one DisplayPort 1.1 in dual mode, and one Mini D-Sub 15-pin PC input.
DIGITAL LINK: an HDBaseT-based RJ45 connection that carries audio, video and control over long distances, allowing up to 10 units to be daisy-chained on one CAT5e or higher STP cable.
Control and media: RS-232C serial, IR, 100BASE-TX LAN with PJLink compatibility, and a USB 2.0 Type A port (USB 3.0 is not supported).
Audio: stereo inputs and outputs, plus a speaker output rated 20 W (10 W + 10 W) into 8 Ω.

Where it fits in Qatar

Three situations suit this panel well:

Monitoring and operations rooms at a government authority in West Bay or an energy company in Ras Laffan, where a 2 x 2 or 3 x 3 wall must stay readable through long shifts.

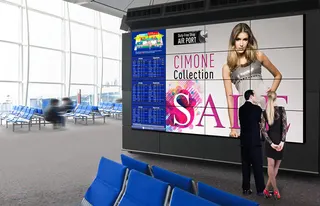

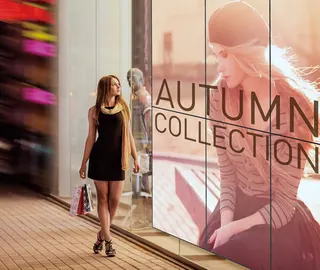

Retail, hotels and malls in Lusail, The Pearl or Msheireb, where signage runs around the clock. Failover and failback switch between two inputs so the picture is not interrupted, though the possible main and backup signal combinations are limited.
Public information points in a hospital or training centre in Education City, where a large wall must stay clear in a bright atrium.

What to plan before ordering

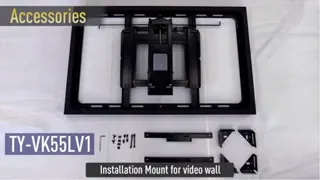

Each panel weighs approx. 23.0 kg and measures 1210.6 x 681.3 x 97.3 mm. Wall mounting needs a VESA-compliant bracket, so check the bracket, the wall structure and the planned columns and rows during a site survey, which SmartRooms Qatar provides free of charge. The optional TY-VK55LV2 metal fittings support up to 4 columns by 5 rows, and they are for landscape installation only. Tilt is vertical only.

Power is rated at 100-240 V AC, 50/60 Hz, with a maximum consumption of 300 W, an average of 165 W in on mode and about 0.5 W in standby. The operating range is 0 to 40 °C with 10 to 90% humidity, non-condensing. The manufacturer lists 0 to 35 °C for some configurations and advises adequate ventilation, so plan airflow for the whole wall in warm rooms.

Request a quote for your video wall

Tell the SmartRooms Qatar team how many panels you need, the wall layout and the room conditions. We deliver to all eight municipalities of Qatar, arrange professional installation, and usually issue quotations within one working day. Multi-panel projects can be ordered by LPO, and government tenders are supported. Products are covered by the manufacturer's warranty. Request a quote for the Panasonic TH-55VF2H today.

Highlights

55-inch panel with 1920 x 1080 resolution and 16:9 aspect ratio
0.44 mm hidden bezel on all sides for video wall use
700 cd/m² typical brightness and 1100:1 contrast ratio
DIGITAL LINK daisy-chains up to 10 units on CAT5e or higher STP
Landscape or portrait orientation with vertical tilt only
Operating range 0 to 40 °C, 10 to 90% humidity non-condensing

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

36 specifications · Source: manufacturer · checked Oct 2026

Display Panel9

Screen Size (Diagonal): 55-inch (54.6" / 1387 mm)
Aspect Ratio: 16:9
Resolution: 1920 x 1080
Brightness (Typ): 700 cd/m 2
Contrast Ratio: 1100 : 1
Dynamic Contrast Ratio: 500000 : 1
Response Time: 8.0 ms (G to G)
Viewing Angle (Horizontal/Vertical): 178°/178°(CR≥10)
Panel Surface Treatment: Advanced Anti-glare treatment (Haze 28%)

Connection Terminal* 114

VIDEO In: —
HDMI In: HDMI Type A Connector x 1
Component/RGB In: —
DVI-D In: DVI-D 24-pin x 2 (Female)
DisplayPort In: DisplayPort x 1 (DP1.1 Dual Mode only)
PC In: Mini D-Sub 15-pin x 1 (Female)
USB: USB 2.0 Type A Connector x 1 DC5 V/500 mA; (USB3.0 is not supported.)
Sereial In/Out: D-Sub 9-pin x 1 (Male)/ x 1 (Male), RS-232C Compatible
DIGITAL LINK/LAN In/out: RJ45 x 1/x 1, 100BASE-TX, Compatible with long reach mode and PJLink™
LAN: 10BASE-T/ 100BASE-TX, Compatible with PJLink™ (Shared with DIGITAL LINK)
IR In/Out: Stereo Mini Jack x 1/ x 1
Audio In (1): Stereo Mini Jack (M3) x 1, 0.5 V [rms]
Audio In (2): L/R: Pin Jack x 1, 0.5V [rms]
Audio Out: Stereo Mini Jack (M3) x 2, 0.5 V [rms], Variable (- ∞ - 0 dB) (1 kHz 0 dB Input, 10 kΩ Load)

Speaker1

External Speaker: 8 Ω, 20 W [10 W + 10 W] (10% THD)

Electrical4

Power Requirements: 100-240 V AC, 50/60 Hz
Power Consumption: 300 W
On Mode Average Power Consumption *2: 165 W
Stand-by Conditions: Approx. 0.5 W

Mechanical3

Dimensios (W x H x D): 1210.6 x 681.3 x 97.3 mm (47.66" x 26.82" x 3.83")
Bezel to Bezel: 0.44 mm (0.018") (Multi Screen)
Weight: approx. 23.0 kg (approx. 50.7 lbs.)

Installation Requirement5

Orientation: Landscape/Portrait
Tilting Angle: Vertical only*
Operating Environment: 0 °C to 40 °C (32 °F to 104 °F)* 3 /0 °C to 35 °C (32 °F to 95 °F)* 4 / Humidity: 10% to 90% (Non Condensation)
Operating Time* 5: 24 h/day
Regional Spec Sheets: Americas, Europe, CIS, Asia, Middle East, Oceania, Africa: TH-55VF2HW

Downloads

7 files from the manufacturer

PDF Datasheets TH-55VF2H_Spec_Sheet_Global.pdf 1.1 MB PDF Manuals & guides VideoWallManager_ver.1.15_OI_DPQP1424ZC_E.pdf 3.9 MB PDF Manuals & guides vf2_manual_en.pdf 5.5 MB PDF Manuals & guides vf2_qsg_ar.pdf 2.0 MB PDF Manuals & guides vf2_qsg_eng.pdf 2.4 MB PDF Brochures VF2_series.pdf 852 KB URL Drawings & CAD · Opens on manufacturer site #vf2h_vf2

Questions about TH-55VF2H

What is the Panasonic TH-55VF2H designed for?

It is a 55-inch LCD panel built to be combined into a multi-panel video wall for digital signage, events and surveillance. Its 0.44 mm hidden bezel keeps the joins between screens hard to see when one picture is split across several panels. Typical brightness of 700 cd/m² suits rooms with daylight or strong lighting, such as a Doha lobby or a control room with windows. SmartRooms Qatar can confirm the layout for your space.

How does it differ from the TH-55VF2 in the same series?

The main difference is brightness: the TH-55VF2H is rated at 700 cd/m² typical, while the TH-55VF2 is rated at 500 cd/m². Both are 55-inch panels with 1920 x 1080 resolution and a 1100:1 contrast ratio. If your room has windows or strong overhead lighting, that brightness gap may decide the choice. Request a quote that compares the two models for your room.

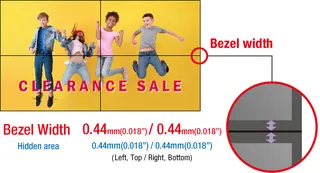

How much space is there between panels, and how is the bezel measured?

The hidden bezel is 0.44 mm on the top, bottom, left and right. It is measured as the combined bezel width of two adjacent displays, and the gap between panels is not included. The manufacturer requires a gap of at least 0.5 mm when installing multiple displays. Plan the mounting frame around that tolerance and confirm the final layout during the site survey.

What cable is needed for DIGITAL LINK daisy-chaining?

DIGITAL LINK is based on HDBaseT and uses an RJ45 connection that requires CAT5e or higher STP cable. Up to 10 units can be daisy-chained, although the practical number depends on the cables and units used. If one panel in a multi-screen system is operated by remote control, it needs a remote control ID setting. Ask the SmartRooms Qatar team to review your cable runs before you order.

Can it be mounted in portrait orientation?

Yes. The panel is designed for landscape or portrait orientation without affecting colour, brightness or operating life. Tilt is vertical only. The optional TY-VK55LV2 metal fittings support up to 4 columns and 5 rows, but they are for landscape installation only, so confirm the mounting method for a portrait wall before committing. A VESA-compliant bracket is required for wall mounting.

Will it cope with Qatar's summer heat in an area without air conditioning?

The stated operating range is 0 to 40 °C, with 0 to 35 °C listed for some configurations, and 10 to 90% humidity, non-condensing. Qatar summer temperatures can exceed 45 °C, so do not install it in an unconditioned space, against a sun-facing window or in a poorly ventilated enclosure without confirming first. Plan ventilation for the whole wall, and ask for a site survey if the room is hot.

Does it run on Qatar's 240 V mains supply?

The rated input is 100-240 V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. The data does not state the supplied plug type, so confirm the power lead and socket arrangement on your quotation. Maximum power consumption is 300 W, average on-mode consumption is 165 W, and standby draw is about 0.5 W.

What inputs does it offer for a PC-based control room?

It provides one HDMI input, two DVI-D (24-pin) inputs, one DisplayPort 1.1 input in dual mode, and one Mini D-Sub 15-pin PC input. Control options include RS-232C serial, IR and LAN with PJLink compatibility. A USB 2.0 Type A port is included, but USB 3.0 is not supported. Confirm your source devices and control system with the team before requesting a quotation.

Can a 2 x 2 wall play synchronised content without an external player?

Yes. Plugging USB memory devices into the inputs on each display in a 2 x 2 layout produces automatically synchronised 4K images (4 x 1080p) with no external devices or processors. This also works as a backup if the primary video source fails. Up to 2 x 2 zoom is available with USB media. Ask the team to confirm the content workflow for your site.

Is failover useful for signage that must never go blank?

Failover and failback prevent image interruptions by switching between two system inputs. The manufacturer points to transport signage and shops operating 24/7 as typical uses. Possible combinations of main and backup signals are limited, so define your primary and backup sources during planning. For a mall in Lusail or a public transport concourse, this directly affects uptime.

How reliable is it for continuous 24/7 operation?

The panel is rated for 24-hour operation, seven days a week. The manufacturer says brightness can stay stable for up to 8 years of continuous use, using Long Life Mode and automatic brightness adjustment, although that figure is approximate. Displaying moving images periodically helps reduce image retention. For signage running non-stop in a Doha hotel or hospital, plan a content rotation schedule from the start.

How does SmartRooms Qatar support a multi-panel order?

We offer a free site survey before you commit, professional installation, and delivery to all eight municipalities of Qatar. Quotations are usually issued within one working day. Multi-panel orders for schools, ministries or companies can be raised by LPO, and payment can be made by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty. Request a quote to start.
