Peerless DS-ACC770 · Price in Qatar

Name: Peerless-AV DS-ACC770 Media Player Mounting Bracket for Video Wall Mounts
Brand: Peerless
SKU: peerless-ds-acc770
Availability: InStock

Overview

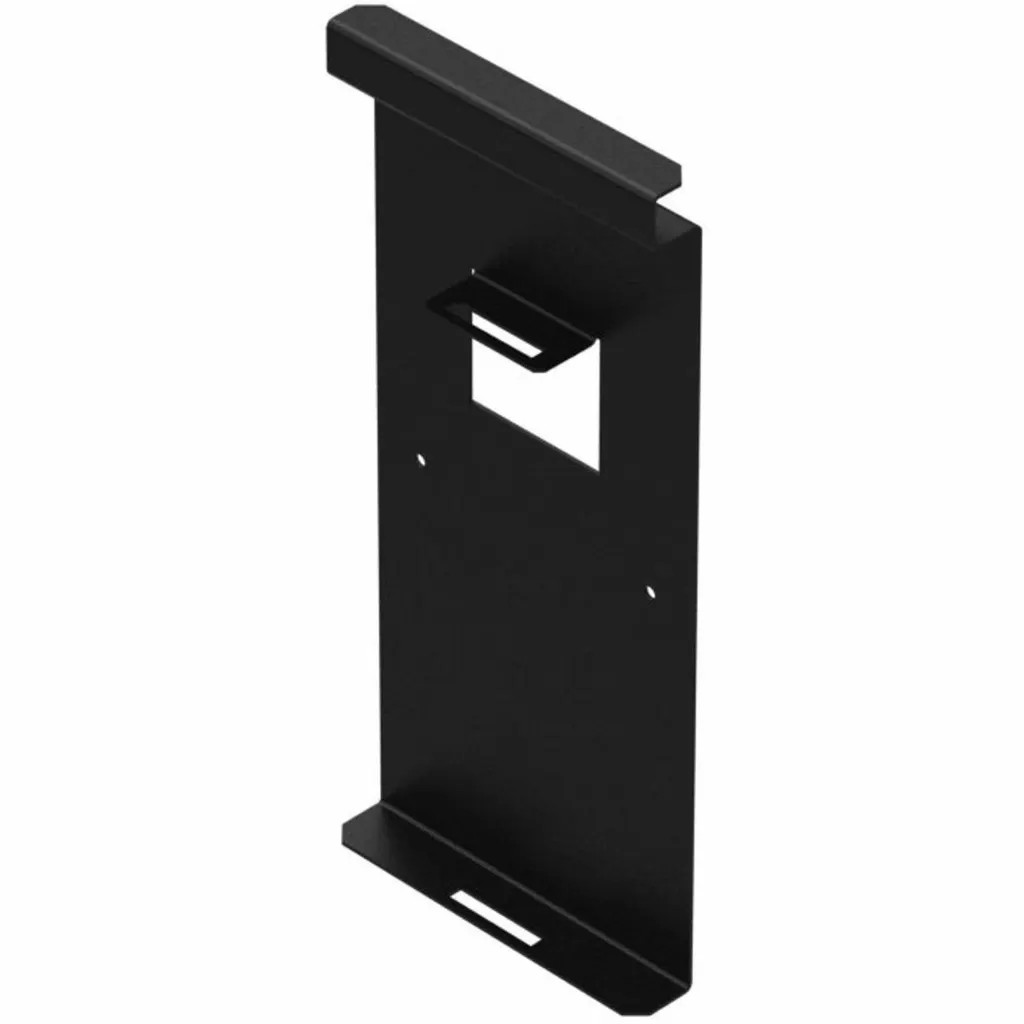

The Peerless-AV DS-ACC770 is a black steel bracket that holds a media player inside a compatible full service video wall mount, keeping the player out of sight and harder to reach. Two hook-and-loop straps secure the player, and the bracket carries up to 10.89 kg. It suits IT and facilities teams at Qatari offices, schools and government buildings that want to protect video wall media players against tampering and theft. Request a quote.

What the DS-ACC770 does inside a full service video wall mount

The DS-ACC770 is a steel bracket that holds a media player in the space behind a compatible Peerless-AV full service video wall mount. Once the player is in place it sits out of sight, so the room looks tidy and control hardware is not exposed to passers-by or visitors.

The bracket is listed for two Peerless-AV full service video wall mounts, the DS-VW765-LAND and the DS-VW765-POR. Confirm your mount model before ordering, because the bracket is designed for those two mounts.

Dimensions, load and finish that matter at installation

Media player space: accommodates players up to 2.5 inches deep and 8.5 inches tall.
Bracket size: 12.30 inches high, 5.50 inches wide and 1 inch deep, weighing about 453.6 g.
Load rating: maximum load capacity of 10.89 kg.
Finish: black, powder coated steel with a fused epoxy finish.

Measure your player before ordering, including its connectors and the cables that leave its rear panel, since cables add depth beyond the player body. Assembly is required, and the package includes two hook and loop straps plus mounting hardware.

Security and access in busy public spaces

The bracket is rated scratch resistant, tamper resistant and theft resistant. When the display is back in its normal operating position, access to the player is blocked, which discourages unwanted handling in lobbies, reception areas and shared meeting rooms. For servicing, the straps allow access to the player while the display is fully extended from the wall.

Where it fits in Qatar

A ministry or government authority in Doha installing a video wall in a public reception area with frequent visitors.
A hotel or serviced apartment in The Pearl or West Bay fitting a lobby display that must look clean and stay secured.
A university or training centre in Education City setting up a multi-panel video wall in a lecture room or control room.

What to plan for before you order

Plan the display and bracket position together, check that the wall mount has enough internal space, and confirm the wall can carry the combined weight. Positions near windows or outdoor-facing areas in Qatar, where summer temperatures can exceed 45 degrees Celsius, should be checked with the SmartRooms Qatar team first, because no operating temperature range is listed for this bracket. A site survey is free and helps confirm dimensions before installation.

Request a quote from SmartRooms Qatar for the DS-ACC770, and tell us your video wall mount model and media player size so we can confirm compatibility and supply, delivery and installation options across Qatar.

Highlights

Holds media players up to 2.5 inches deep and 8.5 inches tall
Compatible with DS-VW765-LAND and DS-VW765-POR video wall mounts
Black powder coated steel with fused epoxy finish
Maximum load capacity of 10.89 kg
Scratch, tamper and theft resistant design
5-year limited warranty from the manufacturer

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

28 specifications · Source: manufacturer · checked Oct 2026

General Information9

Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: DS-ACC770
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: Peerless-AV®
Product Series: DS-ACC770
Product Model: DS-ACC770
Product Name: Media Player Mounting Bracket For full service video wall mounts
Packaged Quantity: 1 Unit
Product Type: Mounting Bracket

Product Information5

Device Supported: Media Player; Video Wall
Maximum Load Capacity: 10.89 kg
Mount Function: Accessory; Video Wall
Mount Surface: Wall
Durability: Scratch Resistant; Tamper Resistant; Theft Resistant

Physical Characteristics9

Color Family: Black
Product Color: Black
Finishing: Fused Epoxy; Powder Coated
Product Material: Steel
Form Factor: Wall Mountable
Height: 31.24 cm (12.30")
Width: 13.97 cm (5.50")
Depth: 2.54 cm (1")
Weight (Approximate): 453.6 g

Miscellaneous4

Package Contents: Media Player Mounting Bracket For full service video wall mounts; 2 x Hook and Loop Strap; Mounting Hardware
Certifications & Standards: TAA
Assembly Required: Yes
Country of Origin: United States

Warranty1

Limited Warranty: 5 Year

Downloads

2 files from the manufacturer

PDF Datasheets DS-ACC770_Product-Datasheet.pdf 228 KB PDF Manuals & guides DS-ACC770_Assembly-Instructions.pdf 261 KB

Questions about DS-ACC770

What is the DS-ACC770 used for?

The DS-ACC770 is a steel bracket that houses a media player behind a compatible Peerless-AV full service video wall mount, keeping the player hidden from view. It suits a university lecture room in Education City or a corporate meeting room where the display is the focus and control hardware should stay out of sight. Request a quote to confirm it matches your mount.

Which video wall mounts is it compatible with?

The manufacturer lists compatibility with two full service video wall mounts: the DS-VW765-LAND and the DS-VW765-POR. Check the model number on your mount before ordering, because the bracket is designed for those two. If your mount is a different model, send us the details and the SmartRooms Qatar team will confirm whether the DS-ACC770 can be used with it before you buy.

What size media player will fit inside?

The bracket accommodates media players up to 2.5 inches deep and 8.5 inches tall. Measure your player including its connectors and the cables leaving its rear panel, since cables add depth beyond the player body. A player close to the depth limit should be checked on site during the free survey before the mount is fixed to the wall.

How much weight can the bracket hold, and does the player's weight matter?

The maximum load capacity is 10.89 kg, and the bracket itself weighs about 453.6 g. In a hotel lobby at The Pearl or West Bay, for example, a compact player may be used, but you should add the player's weight to the bracket weight and confirm the total stays within the 10.89 kg rating before ordering.

How is the media player held in place?

Two hook and loop straps are included to hold the player against the bracket, and mounting hardware is also supplied. Assembly is required. The straps keep the player secure while the display sits in its normal position and still allow easy access when the display is fully extended from the wall.

Does hiding the player help prevent theft in a shared meeting room?

Yes, the bracket is rated tamper resistant and theft resistant. Once the display returns to its normal operating position, access to the player is blocked, which deters anyone trying to unplug or take it. This matters in a boardroom in West Bay or a shared meeting room in a Doha bank branch where many staff pass through every day.

Is it suitable for a government reception area in Doha?

Ministries and authorities in Doha receive many visitors, so a visible or easily reached media player is a risk. The bracket is scratch resistant and tamper resistant and keeps the player out of visitors' reach. Ask the SmartRooms Qatar team to confirm the wall position and mount model, then request a quote through your procurement or tender process.

Can I service the media player without taking the whole video wall apart?

The straps are designed for access when the display is fully extended from the wall. The player can therefore be reached for servicing while the display is pulled out, and the display can then be pushed back into its normal operating position. Plan time for assembly at installation and confirm the access clearance on the wall during the site survey.

Can it be installed in a hot, sunlit location in Qatar?

The product data does not include an operating temperature range for this bracket, so we cannot confirm one. Summer temperatures in Qatar can exceed 45 degrees Celsius, so positions near sunlit windows or outdoor-facing lobbies need checking first. Before installation, ask the SmartRooms Qatar team to confirm the environment and the operating temperature rating of the media player itself.

What material and finish does it have?

The bracket is made from steel with a black powder coated finish over a fused epoxy layer. It measures 12.30 inches high, 5.50 inches wide and 1 inch deep. If your video wall mount is also black, the finish keeps the installation visually consistent once the bracket sits behind the display.

Is the bracket TAA compliant for tender documents?

The manufacturer lists TAA as a certification for this bracket, and its country of origin is the United States. Include this in your tender specification, and send the requirement with your enquiry so the SmartRooms Qatar team can confirm which documentation is available for your submission.

What warranty applies, and can SmartRooms Qatar supply and install it?

The bracket carries a 5-year limited warranty from the manufacturer. SmartRooms Qatar can supply it, deliver it to all eight municipalities of Qatar, and arrange professional installation. Because assembly is required, ask for an installation quotation alongside your video wall order. Request a quote and state your mount model and media player size.

Similar models

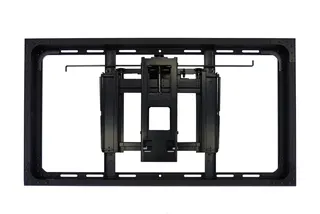

Panasonic TY-VK49LV2 Panasonic TY-VK49LV2 Magnetic Installation Mount for 49-inch Video Walls

Mounts, stands & carts

Peerless ACC-QRL Peerless-AV ACC-QRL Quick Release Bracket for SmartMount Supreme DS-VW775

Mounts, stands & carts

Peerless ACC-QRP Peerless-AV ACC-QRP Quick Release Bracket for SmartMount Supreme DS-VW775

Mounts, stands & carts

Peerless ACC-V600800 Peerless ACC-V600800 VESA Adapter Bracket for 600x400 and 800x400mm Patterns

Mounts, stands & carts

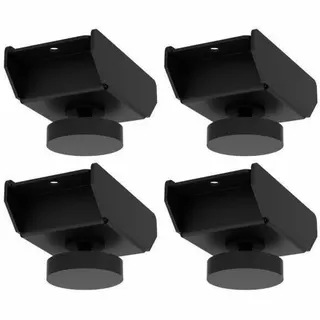

Peerless ACC310VWC4 Peerless-AV ACC310VWC4 Video Wall Cart Leveling Feet, 4-Pack
