Peerless DS-S555-3X3 · Price in Qatar

Name: Peerless-AV DS-S555-3X3 3x3 Pedestal Video Wall Mount for 46-55-inch Screens
Brand: Peerless
SKU: peerless-ds-s555-3x3
Availability: InStock

Overview

The DS-S555-3X3 is a floor-standing, bolt-down pedestal from Peerless-AV that holds up to nine displays in a 3x3 layout, each between 46 and 55 inches. The powder-coated black aluminium frame carries up to 408.23 kg, with 45.36 kg per display. Built-in cable management, a rear media shelf and eight-point tool-less micro-adjustment suit corporate lobbies, control rooms and high-traffic public spaces across Qatar. Request a quote for supply and installation.

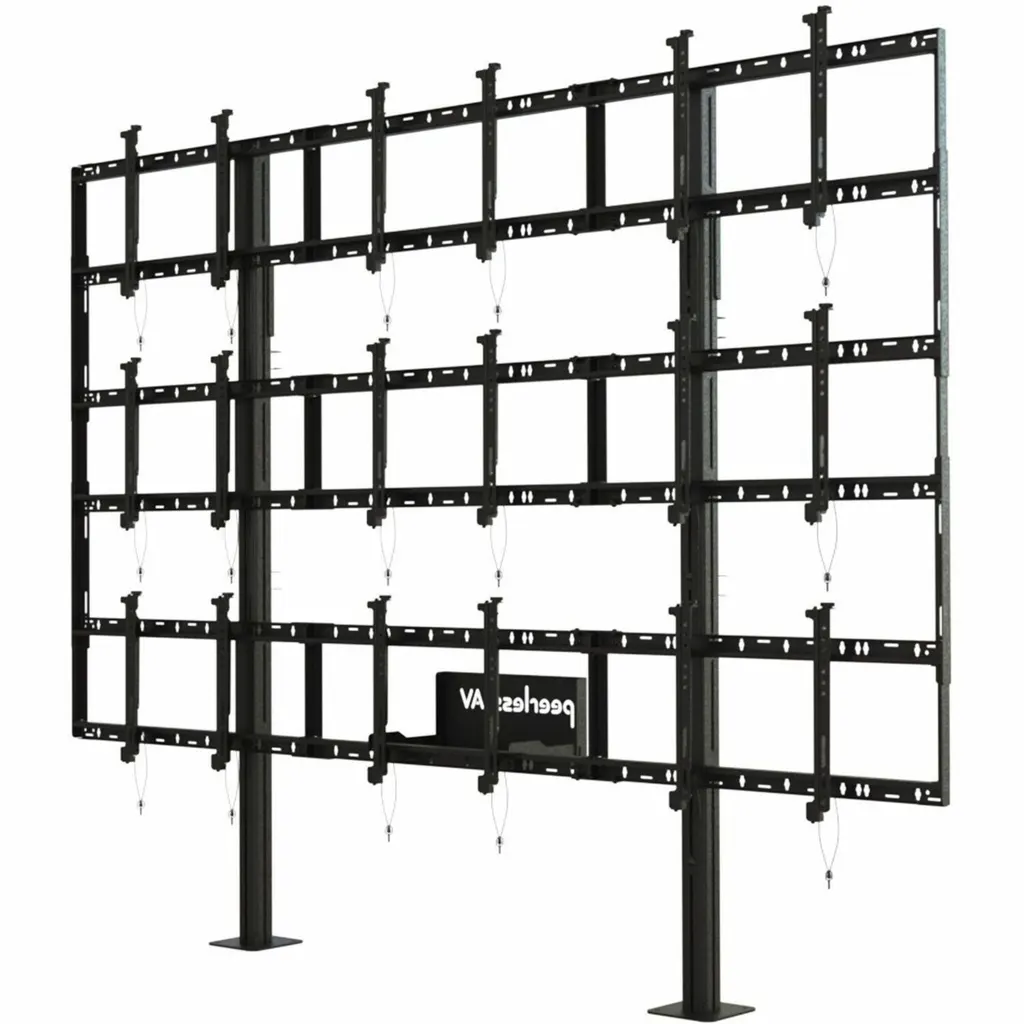

What the DS-S555-3X3 pedestal does

The DS-S555-3X3 is a floor-standing pedestal designed to hold a nine-panel video wall arranged three across and three high. It accepts displays from 46 to 55 inches, and the frame is rated for a combined load of 408.23 kg, which works out to 45.36 kg per display position. Because it stands on the floor and bolts down, the wall does not depend on wall or ceiling reinforcement. That is useful in buildings where the wall construction is unknown or cannot take brackets.

The unit ships with display adaptors and the hardware needed for mounting, and assembly is required on site. The manufacturer provides a 5-year limited warranty.

Frame, alignment and VESA fit

The powder-coated black aluminium frame keeps the weight manageable. The complete pedestal weighs about 108.86 kg, and its overall footprint is 307.52 cm wide, 239.85 cm high and 33.93 cm deep. Each display mounts through VESA patterns from 200 x 200 up to 600 x 400 mm.

Alignment is where installers spend most of their time. The mount offers tool-less micro-adjustment at eight points, so a technician can square the panels without extra tools. The adaptors use a quick-connect latch that engages the mounting rails automatically, which shortens setup when several panels go onto the same frame.

Cable management and media storage

Rear adjustable brackets that gather and route cabling behind the array.
Rear media shelf with cover for players, controllers and other components.
Mounting rail that keeps the panels aligned along the frame.

Where it fits in Qatar

In a corporate lobby in West Bay, a nine-screen wall at reception can carry welcome content and wayfinding without cutting into a finished feature wall. A university in Education City could use the pedestal for a student commons or research display, where the rear cover keeps cables and media players out of sight. Near Hamad International Airport, a bolt-down floor mount suits a high-traffic wall, and the manufacturer positions this type of mount for retail and public transport locations.

What to plan before ordering

Confirm that the floor is a concrete slab suitable for bolt-down fixings. Measure the footprint of 307.52 cm by 33.93 cm, check the 239.85 cm height against ceiling clearance, and plan access routes for a frame weighing about 108.86 kg. Before the site visit, confirm the display models, because each panel must fall within the 46 to 55-inch range and the supported VESA patterns. SmartRooms Qatar offers a free site survey, and quotations usually come within one working day. Payment is accepted by bank transfer, cheque or purchase order, and government ministries and schools can issue an LPO.

Request a quote from SmartRooms Qatar for the DS-S555-3X3, and the team will confirm availability, delivery and installation against your site details.

Highlights

Holds nine displays in a 3x3 layout
Supports 46 to 55-inch screens
408.23 kg maximum load, 45.36 kg per display
Bolts to concrete floors, no wall or ceiling support needed
Tool-less micro-adjustment at eight points
Rear cable management and media storage shelf

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

36 specifications · Source: manufacturer · checked Oct 2026

General Information9

Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: DS-S555-3X3
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: SmartMount®
Product Series: DS-S555-3X3
Product Model: DS-S555-3X3
Product Name: Modular Video Wall Pedestal Mount 3x3 Configuration For 46" to 55" displays
Packaged Quantity: 1 Unit
Product Type: Display Stand

Technical Information9

Number of Displays Supported: 9
Minimum Screen Size Supported: 46" (116.84 cm)
Maximum Screen Size Supported: 55" (139.70 cm)
Maximum Load Capacity: 408.23 kg
Load Capacity Per Display: 45.36 kg
Finishing: Powder Coated
Application/Usage: Display Screen; Video Wall
Mount Function: Pedestal (Bolt Down)
Features: Cable Management; Media Storage; Mounting Rail; Shelf

Physical Characteristics11

VESA Mount Compatible: Yes
Mounting Pattern: 200 x 200; 600 x 400
Color Family: Black
Product Color: Black
Product Material: Aluminium
Frame Material: Aluminium
Form Factor: Floor
Height: 239.85 cm (94.43")
Width: 307.52 cm (121.07")
Depth: 33.93 cm (13.36")
Weight (Approximate): 108.86 kg

Miscellaneous6

Package Contents: Modular Video Wall Pedestal Mount 3x3 Configuration For 46" to 55" displays; Display Adaptors; Hardware
Certifications & Standards: RoHS, TAA, VESA
Manufacturer Product Class: Pedestal
Assembly Required: Yes
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty1

Limited Warranty: 5 Year

Downloads

4 files from the manufacturer

PDF Datasheets DS-S555-3X3_Product-Datasheet.pdf 617 KB PDF Manuals & guides DS-S555-3X3_Assembly-Instructions.pdf 11.0 MB DWG Drawings & CAD · Opens on manufacturer site DS-S555-3X3_CAD DRAWING.dwg URL Other documents · Opens on manufacturer site BIMobject

Questions about DS-S555-3X3

What is the Peerless-AV DS-S555-3X3 used for?

It is a floor-standing pedestal that carries a nine-display video wall in a 3x3 arrangement, with each display between 46 and 55 inches. It suits organisations that want a free-standing wall for welcome content, wayfinding or live data without fixing brackets to a finished wall. In a West Bay corporate lobby, for example, the wall can greet visitors at reception. The frame is rated for a total load of 408.23 kg.

How many displays and what screen sizes does it support?

The DS-S555-3X3 is built for nine displays in a three-by-three layout. The supported range is 46 inches (116.84 cm) to 55 inches (139.70 cm). Each display position is rated for 45.36 kg, and the frame's maximum load is 408.23 kg. The source data does not cover mixing different panel sizes, so confirm your display models with SmartRooms Qatar before ordering.

What weight can the pedestal carry, and how heavy is the frame?

The frame has a maximum load capacity of 408.23 kg and is rated at 45.36 kg per display. The pedestal itself weighs about 108.86 kg, so access routes and floor loading should be planned before delivery. Assembly is required on site, and the package includes display adaptors and hardware. A free site survey lets the team check the installation area before the frame arrives.

Does it need to be fixed to the floor, and what surface does it need?

Yes. The mount is a bolt-down pedestal, and the manufacturer states it can bolt directly to concrete without extra connections to the wall or ceiling. That makes it practical for a hall or foyer where the wall is glass, decorative or unsuitable for brackets. Before ordering, confirm that the floor is a concrete slab suitable for bolt-down fixings.

Can it be installed at a high-traffic site near Hamad International Airport without wall or ceiling supports?

Yes, according to the manufacturer's data, the mount can be fixed to concrete without additional wall or ceiling supports, and it is positioned for high-traffic locations. This suits an arrivals or transit area where the wall should not be drilled. Before installation, mark the position of the displays, the pedestrian routes and the cable paths so the frame does not obstruct passengers.

Which VESA patterns does the mount support?

The adaptors support VESA patterns from 200 x 200 up to 600 x 400 mm, and the listing gives 200 x 200 and 600 x 400 as its mounting patterns. Check the rear VESA pattern of each display against this range before ordering. The adaptors use a quick-connect latch that engages the mounting rails automatically, which speeds up setup when several panels are fitted in one session.

How is the wall aligned once the displays are installed?

The frame has tool-less micro-adjustment at eight points, so installers can align the panels without extra tools. In a control room or a corporate lobby, gaps and height differences between screens are visible at a glance, so accurate alignment matters. The eight adjustment points help keep rows and columns level, and the quick-connect adaptors reduce the time spent on each panel.

What cable management and storage are included?

Rear adjustable cable brackets gather cabling behind the array, and a rear media shelf with a cover keeps players, controllers and other components out of sight. These features suit a university student commons or a government reception where the front of the wall needs to stay clean. Confirm which components you need to store before ordering, so the shelf meets your equipment list.

Can it be used in a hot outdoor area or an unconditioned space in Qatar?

The source data does not give an operating temperature range or an outdoor rating for this mount, so outdoor use cannot be confirmed. Summer temperatures in Qatar can exceed 45 degrees Celsius, so for a covered outdoor area, a loading bay or an unconditioned hall, ask the SmartRooms Qatar team to confirm the environment before ordering. Installation in an air-conditioned space is the safer default unless the team confirms otherwise.

Is a shopping mall or hotel in Qatar a suitable place for this pedestal?

Yes. The manufacturer positions this type of mount for retail, public transport and other high-traffic locations. In a shopping mall in Msheireb or a hotel lobby, a bolt-down floor pedestal can hold a nine-screen wall for promotions or wayfinding without fixings into the wall. Plan the footprint so it does not block walkways, and leave a clear route for cables to the media players.

Is there a warranty, and can government bodies or schools buy it on an LPO?

The manufacturer provides a 5-year limited warranty on the DS-S555-3X3. SmartRooms Qatar delivers to all eight municipalities of Qatar, and ministries, schools and other organisations can issue a purchase order (LPO). Payment by bank transfer, cheque or purchase order is accepted. Send the number of displays, the panel models and the site location with your request, and quotations usually come within one working day.

Is it suitable for a school in Al Wakrah fitting out a new foyer?

It can be, if the foyer or main hall has space for a nine-panel wall. The frame accepts 46 to 55-inch displays, so it suits a reception area or a wide corridor rather than a small classroom. Because it bolts to the floor, it stands without fixings into the wall, which helps where finishes must be protected. Plan the position away from pupil routes at break times.
