DS-S555-4X3

What the DS-S555-4X3 pedestal does

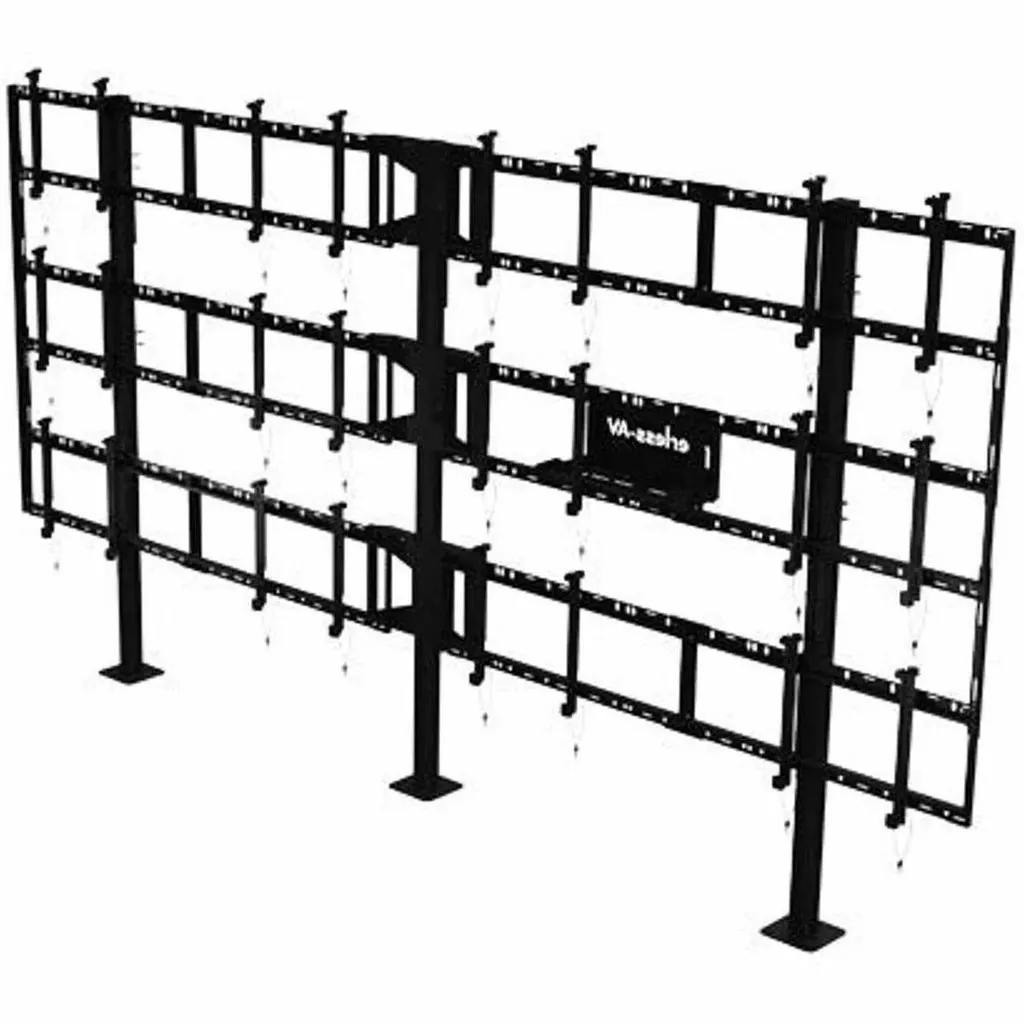

The DS-S555-4X3 is a floor-standing pedestal from Peerless-AV's SmartMount range, configured to build a 4x3 video wall of twelve displays. Each position takes a screen from 46 to 55 inches. The aluminium frame is powder coated in black and bolts to a concrete structure, so the wall needs no extra connections to the wall or ceiling. That matters in rooms where the walls are glass, cannot take fixings, or should stay clear of drilling.

Load, mounting and dimensions to check

The key figures from the manufacturer data are:

• Total rated load: 544.31 kg
• Load per display: 45.36 kg
• Overall size: 237.26 cm high, 435.94 cm wide, 33.78 cm deep
• Approximate weight: 200.49 kg
• VESA patterns: 200 x 200 to 600 x 400 mm

Compare the full weight of each display with the 45.36 kg per-position limit before ordering. Set aside floor space of 435.94 cm by 33.78 cm, plus room for viewing distance and access to cables and service points.

Built-in features that cut fitting time

Adjustable rear cable brackets gather and route display cables inside the structure, while a media storage area and a shelf keep players and components in one central place. The tool-less microadjustment lets installers align each panel precisely without extra hardware. Quick-connect latches on the display adaptors engage the mounting rails automatically, which speeds up set-up. The mount arrives unassembled, so the frame, rails and adaptors are put together on site.

Where it fits in Qatar

• A control room at an industrial site in Mesaieed or Ras Laffan, where operators follow process and security data on one freestanding wall.
• A bank branch or corporate lobby in West Bay or The Pearl, using a wall of twelve screens for wayfinding or promotional content.
• A clinic or hospital waiting area in Al Sadd, where a floor pedestal avoids fixing a display wall to the building.

The manufacturer data does not give an operating temperature range for this pedestal. For locations exposed to heat or dust, such as spaces near open entrances, confirm the installation environment with the SmartRooms Qatar team before ordering.

Planning the installation and supply

Because the pedestal bolts to concrete, a free site survey is the right first step. It confirms the floor, access routes and cable paths before assembly begins. SmartRooms Qatar delivers to all eight municipalities of Qatar and offers professional installation. Ministries, schools and government bodies can order against a purchase order (LPO) or a tender reference, and payment is accepted by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and the product carries the manufacturer's five-year limited warranty.

Request a quote from SmartRooms Qatar with your display models, room dimensions and any tender reference. The team will confirm compatibility and availability in your quotation.
