DS-S560-1X3
Peerless-AV DS-S560-1X3 Triple Video Wall Pedestal Mount, 46-60 inch
- Screen size
- 46" (116.84 cm)
The Peerless DS-S560-1X3 is a floor pedestal that holds a 1x3 video wall of three displays between 46 and 60 inches. Its aluminium frame carries a maximum load of 170.10 kg and offers tool-less micro-adjustment, while rear brackets and media storage keep cables and components out of sight. It suits indoor retail floors, lobbies and reception areas across Qatar where a screen wall needs a secure, bolted base. Request a quote.
A 1x3 pedestal built for three displays between 46 and 60 inches
The Peerless DS-S560-1X3 is a modular floor pedestal that holds three screens side by side in a 1x3 arrangement. Each position accepts a display from 46 inches (116.84 cm) to 60 inches (152.40 cm), so one model can serve several panel sizes within that band. The aluminium frame, finished in black powder coat, stands 237.26 cm (93.41 inches) tall, measures 105.41 cm (41.50 inches) wide and 33.78 cm (13.30 inches) deep, and weighs approximately 102.06 kg before displays are fitted.
Load rating, VESA range and fixing to concrete
The mount carries a maximum load of 170.10 kg and supports VESA patterns from 200 x 200 mm up to 600 x 400 mm. Walls often combine panels with different mounting patterns or weights, so check each display against that range before ordering. The unit bolts directly to a concrete structure and does not rely on wall or ceiling connections. A site survey before delivery confirms the floor, bolt positions and access route, and SmartRooms Qatar offers free site surveys.
Tool-less alignment and tidy cabling
- Quick-connect display adaptors latch onto the mounting rails automatically.
- Tool-less micro-adjustment helps keep three panels level and evenly spaced.
- Rear adjustable brackets gather cables so they stay out of sight.
- Media component storage gives players and small devices a safe, central home.
Assembly is required. The package includes the stand, display adaptors and hardware, so the installer should plan time for assembly alongside bolting to the concrete base.
Where it fits across Qatar

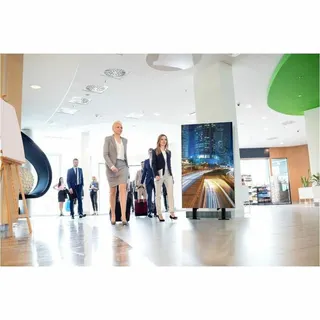

A retail brand fitting out a store in West Bay might run three promotional displays on a feature wall inside the shop floor, where the frame height and load rating suit a busy indoor space. A hospital outpatient area in Doha could use the same arrangement for queue information and wayfinding, with cable brackets keeping the reception desk tidy. Hotels in Lusail and training centres in Education City can use it at high-traffic entrances where the wall must look finished from day one.
What to plan before ordering
Measure ceiling height against the 237.26 cm frame, check doorways and lifts along the delivery route, and confirm the concrete base. Send your display models, their weights and VESA patterns with your request so the load can be checked against the 170.10 kg rating. SmartRooms Qatar delivers to all eight municipalities of Qatar, offers professional installation, and accepts purchase orders and government tenders. The manufacturer provides a 5-year limited warranty. Request a quote for the DS-S560-1X3 today, and our team will reply with a proposal usually within one working day.
Highlights
- Holds three displays from 46 to 60 inches
- Maximum load capacity of 170.10 kg
- VESA patterns from 200 x 200 to 600 x 400 mm
- Tool-less micro-adjustment and quick-connect display adaptors
- Rear adjustable brackets and media component storage
- Bolts directly to concrete; 5-year limited warranty
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
General Information9
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Part Number
- DS-S560-1X3
- Manufacturer Website Address
- http://www.peerless-av.eu.com
- Brand Name
- SmartMount®
- Product Series
- DS-S560-1X3
- Product Model
- DS-S560-1X3
- Product Name
- Modular Video Wall Pedestal Mount 1x3 Configuration for 46" to 60" Displays
- Packaged Quantity
- 1 Unit
- Product Type
- Mounting Pedestal
Product Information8
- Device Supported
- Display; Video Wall
- Number of Displays Supported
- 3
- Maximum Load Capacity
- 170.10 kg
- Minimum Screen Size Supported
- 46" (116.84 cm)
- Maximum Screen Size Supported
- 60" (152.40 cm)
- Features
- Media Component Storage; Quick Connect; Tool-less Micro-Adjustment
- Mount Pattern Compatibility Type
- Universal
- Mount Function
- Bolt Down; Cable Management
Physical Characteristics11
- Color Family
- Black
- Product Color
- Black
- Finishing
- Powder Coated
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 600 x 400
- Minimum Mounting Pattern
- 200 x 200
- Product Material
- Aluminium
- Height
- 237.26 cm (93.41")
- Width
- 105.41 cm (41.50")
- Depth
- 33.78 cm (13.30")
- Weight (Approximate)
- 102.06 kg
Miscellaneous8
- Package Contents
- Modular Video Wall Pedestal Mount 1x3 Configuration for 46" to 60" Displays; Stand; Display Adaptors; Hardware
- Application/Usage
- Retail
- Indoor/Outdoor
- Indoor
- Certifications & Standards
- RoHS, TAA, VESA
- Manufacturer Product Class
- Pedestal
- Assembly Required
- Yes
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
Warranty1
- Limited Warranty
- 5 Year
