DS-VW655-2X2

What the DS-VW655-2X2 kit covers

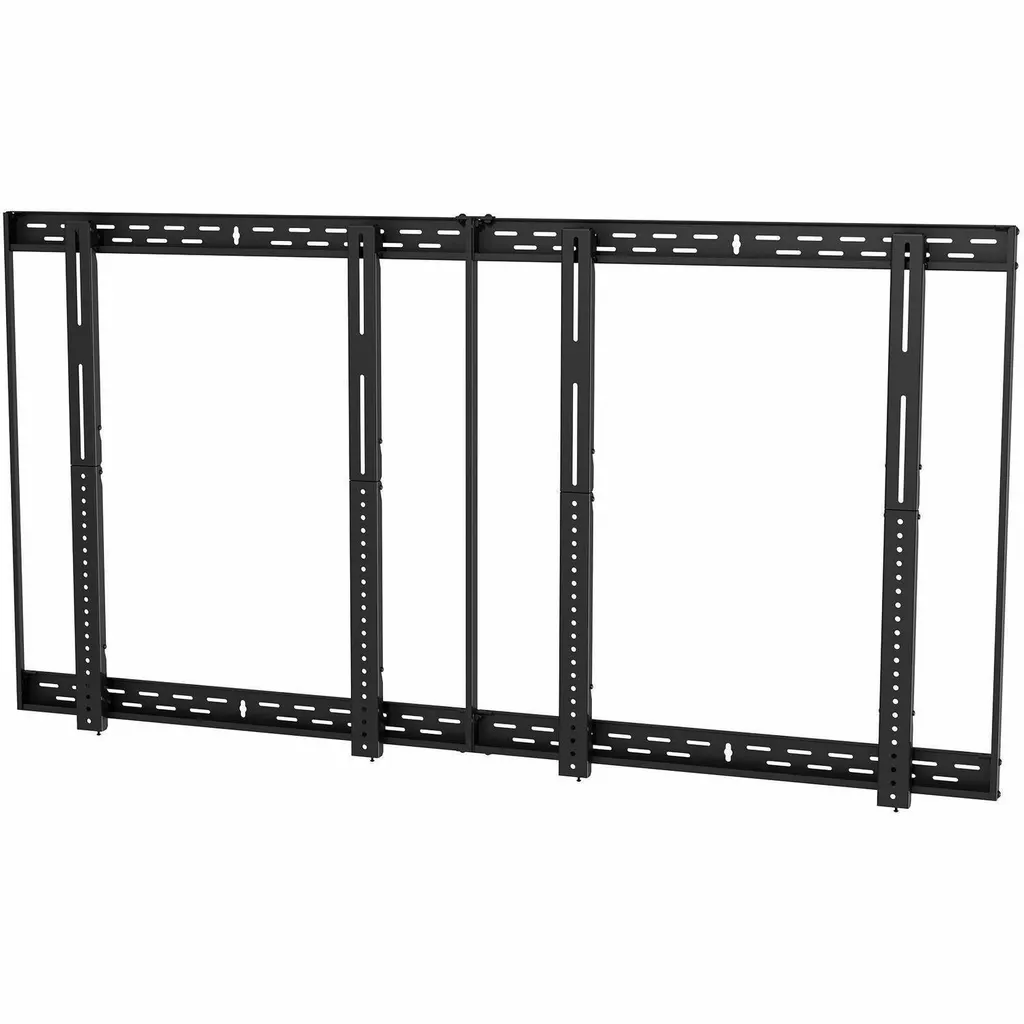

The DS-VW655-2X2 is a wall mount kit for building a 2x2 video wall from four flat displays measuring 46 to 55 inches (116.84 cm to 139.70 cm). A single steel wall frame holds all four panels, so the installer fixes one structure to the wall rather than four separate brackets. The kit has a black powder coated finish and comes with adaptor rails, a measuring plate and mounting hardware. Its listed mounting pattern is 600 x 400, with a minimum pattern of 100 x 100, and it is VESA mount compatible.

Load, depth and the numbers that matter for planning

Every video wall project starts with the numbers. The kit has a rated maximum load of 272.16 kg and weighs about 27.71 kg before any displays are fitted. Its overall size is 104.42 cm high (41.11 inches), 199.09 cm wide (78.38 inches) and 5.92 cm deep (2.33 inches). That shallow profile keeps panels close to the wall, which helps in corridors and reception areas where walkways must stay clear.

• Screen range: 46 to 55 inches, four displays per kit
• Rated load: 272.16 kg maximum
• Finish: powder coated steel in black
• Warranty: 5-year limited warranty from the manufacturer

Installation and alignment on site

A single wall frame is quicker to set up than building a grid of individual mounts, and the built-in horizontal adjustment lets the installer line up the panels across the wall. Before drilling, confirm the wall can carry the combined weight of the frame and four displays. SmartRooms Qatar offers a free site survey, which is especially worthwhile for lightweight partitions or glass-fronted walls in older buildings in Doha or Al Sadd. Check that each display's VESA pattern is compatible with the kit's 600 x 400 listing and compare each panel's weight with the kit's rating.

Where this kit fits in Qatar

A four-panel wall suits spaces that need one shared display area. Three realistic scenarios:

• A private school in Al Wakrah preparing a shared learning hub or assembly area with four panels for presentations and student projects.
• A government ministry office in Doha fitting out a briefing room where teams present live dashboards to visiting delegations.

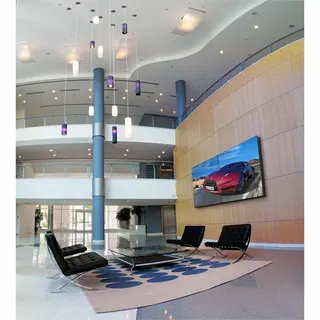

• A hotel or serviced apartment lobby in The Pearl using one wall to show wayfinding and event information.

Walls facing windows or sun-exposed lobbies need extra thought. Summer temperatures in Qatar can exceed 45°C, and dust storms are common. The kit's listing does not state an operating temperature range, so confirm the environment with the SmartRooms Qatar team before choosing the wall.

Buying through SmartRooms Qatar

Every kit is sold by quotation. SmartRooms Qatar delivers to all eight municipalities of Qatar, arranges professional installation, and usually issues quotations within one working day. Public bodies and schools can order against a purchase order (LPO) or a government tender, and payment is accepted by bank transfer, cheque or purchase order.

Planning a four-screen wall in Qatar? Request a quote for the DS-VW655-2X2 and send your display model, wall type and room size so the team can confirm fit and quantity.
