DS-VW765-LQR
Peerless-AV DS-VW765-LQR Landscape Video Wall Mount for 46-65 inch Displays
- Screen size
- 46" (116.84 cm)
The Peerless-AV DS-VW765-LQR is a landscape recessed video wall mount for displays from 46 to 65 inches, with a maximum load of 56.70 kg. Its quick release lets a technician pull a panel forward for service, and tool-less micro-adjustment helps align each display in the array. Integrated cable tie-backs simplify display-to-display wiring. Rated for indoor use, it suits control rooms, lobbies and boardrooms across Qatar. Request a quote.
A recessed landscape mount for quick service access

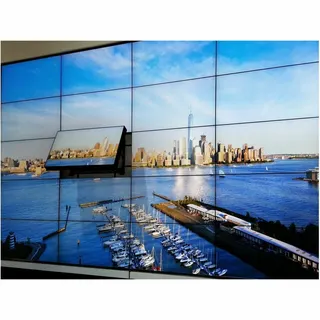

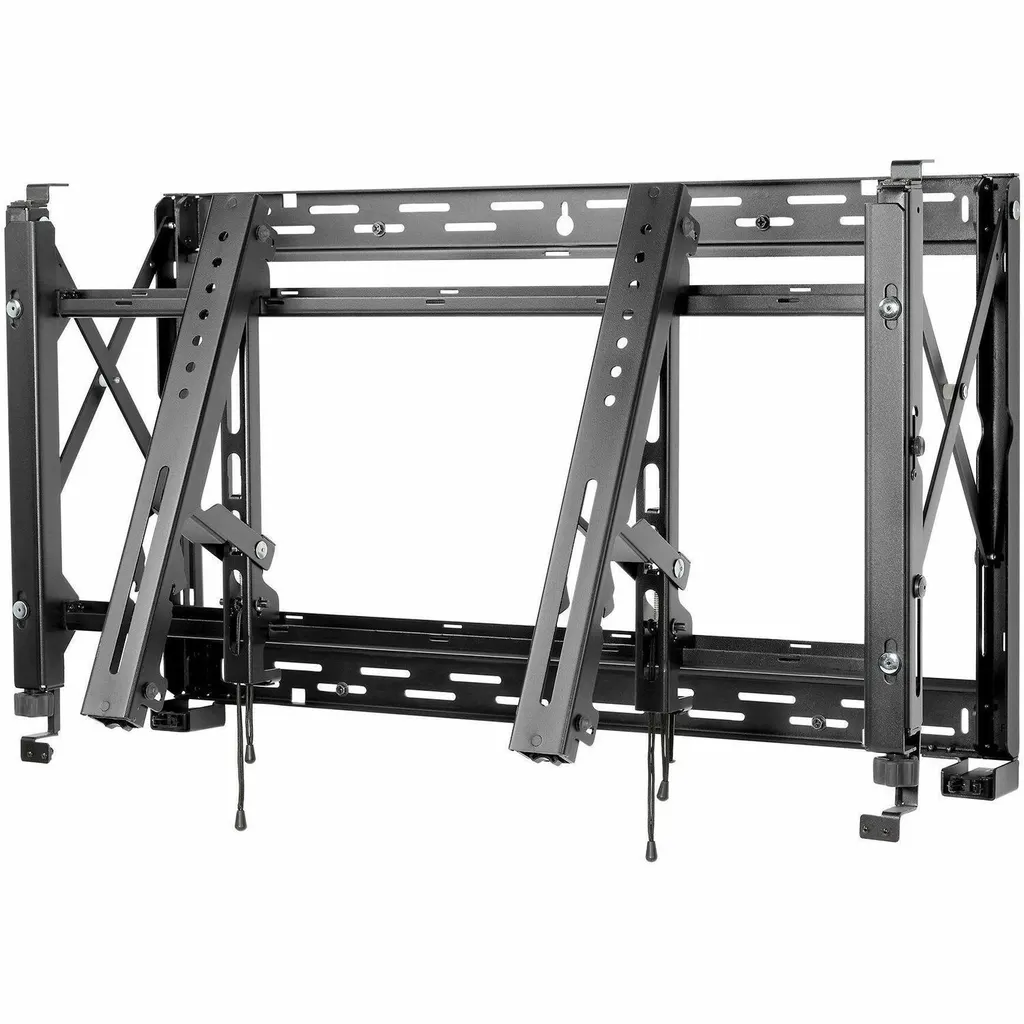

The Peerless-AV DS-VW765-LQR is a landscape wall mount for video walls built from displays between 46 inch and 65 inch. Its recessed profile keeps the panels close to the wall, and its quick release mechanism lets a technician press the front of a display, pull it away from the wall and prop it open. Access to cables and the back of the panel becomes possible without dismantling the array.
Specifications to check before ordering
- Load: maximum load capacity of 56.70 kg.
- Screen range: 46 inch to 65 inch displays in landscape orientation.
- Mounting pattern: 700 x 400, with a minimum pattern of 100 x 100.
- Depth: adjustable from 7.62 cm (3 inch) to 9.65 cm (3.80 inch).
- Dimensions: 90.40 cm wide, 54.28 cm high and 9.73 cm deep, approximately 14.79 kg.
- Finish and rating: textured black, rated for indoor use, with RoHS, TAA, VESA and UL listings.

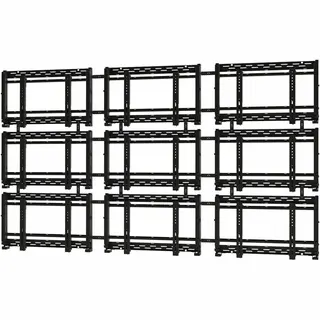

Adjustment runs across three axes and includes tool-less micro-adjustment, which helps line up a grid of panels once they are on the wall. A locking screw disables the quick release when a display should stay put, and the mount is rated tamper resistant and theft resistant.
Where this mount fits in Qatar
In a government operations room in Doha, a video wall must stay running for long hours. If one panel develops a fault, a technician can release it and open it up without disturbing its neighbours, which matters during the working week from Sunday to Thursday.

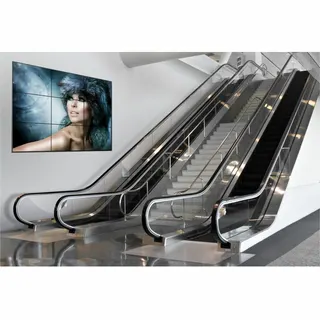

A hotel lobby in West Bay or a corporate reception in Lusail often uses a multi-panel wall to show wayfinding or brand content. The integrated cable tie-backs help route cables between displays and keep a larger landscape array tidy from behind.
A school in Education City or Al Sadd fitting out a learning commons can use a row of displays for collaborative work. The indoor rating suits interior learning spaces, and the team can confirm the room conditions before quoting.
What to plan before the wall goes up
The mount is delivered with wall plate alignment spacers, a media player mounting bracket and dedicated adaptor plates, but assembly is required. Confirm that each display's VESA pattern works with the 700 x 400 pattern and the included adaptor plates, and check that the wall can carry the total weight. SmartRooms Qatar offers free site surveys, which are useful before fixing a 46 to 65 inch array to a wall in Doha or Lusail. Multi-unit projects can be ordered on a purchase order (LPO) and delivered to all eight municipalities of Qatar.
Request a quote from SmartRooms Qatar for the DS-VW765-LQR. Send us the display models, quantity and wall layout, and we will confirm the lead time in your quotation. We usually respond to quote requests within one working day.
Highlights
- Landscape orientation for 46 to 65-inch displays
- Maximum load capacity of 56.70 kg
- Quick release that can be locked against unintended pop-outs
- Tool-less micro-adjustment on three axes
- 700 x 400 VESA mounting pattern, 100 x 100 minimum
- Integrated cable tie-backs and included media player bracket
- 5-year limited manufacturer warranty
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
General Information9
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Part Number
- DS-VW765-LQR
- Manufacturer Website Address
- http://www.peerless-av.eu.com
- Brand Name
- SmartMount®
- Product Series
- DS-VW765-LQR
- Product Model
- DS-VW765-LQR
- Product Name
- DS-VW765-LQR Wall Mount
- Packaged Quantity
- 1 Unit
- Product Type
- Wall Mount
Product Information13
- Device Supported
- Display; Video Wall
- Maximum Load Capacity
- 56.70 kg
- Minimum Screen Size Supported
- 46" (116.84 cm)
- Maximum Screen Size Supported
- 65" (165.10 cm)
- Minimum Adjustable Depth
- 7.62 cm (3")
- Maximum Adjustable Depth
- 9.65 cm (3.80")
- Features
- 3-axis; Adjustable Depth; Articulating; Cable Management; Easy to Install; Lockable; Quick Release Mechanism; Tool-less Micro-Adjustment
- Orientation
- Landscape
- Mount Pattern Compatibility Type
- Universal
- Mount Profile
- Recessed
- Mount Function
- Video Wall
- Mount Surface
- Wall
- Durability
- Tamper Resistant; Theft Resistant
Physical Characteristics11
- Color Family
- Black
- Product Color
- Black
- Finishing
- Textured
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 700 x 400
- Minimum Mounting Pattern
- 100 x 100
- Form Factor
- Wall Mountable
- Height
- 54.28 cm (21.37")
- Width
- 90.40 cm (35.59")
- Depth
- 9.73 cm (3.83")
- Weight (Approximate)
- 14.79 kg
Miscellaneous8
- Package Contents
- Full-Service Video Wall Mount with Quick Release - Landscape for 46" to 65" Displays; Wall Plate Alignment Spacers; Media Player Mounting Bracket; Dedicated Adaptor Plates
- Indoor/Outdoor
- Indoor
- Certifications & Standards
- RoHS, TAA, VESA, UL
- Manufacturer Product Class
- Wall, Quick Release Pop-out
- Assembly Required
- Yes
- TAA Compliant
- Yes
- UL Listed
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
Warranty1
- Limited Warranty
- 5 Year
