DS-VW775-QR
Peerless DS-VW775-QR Video Wall Mount for 46 to 60 inch Displays
- Screen size
- 46" (116.84 cm)

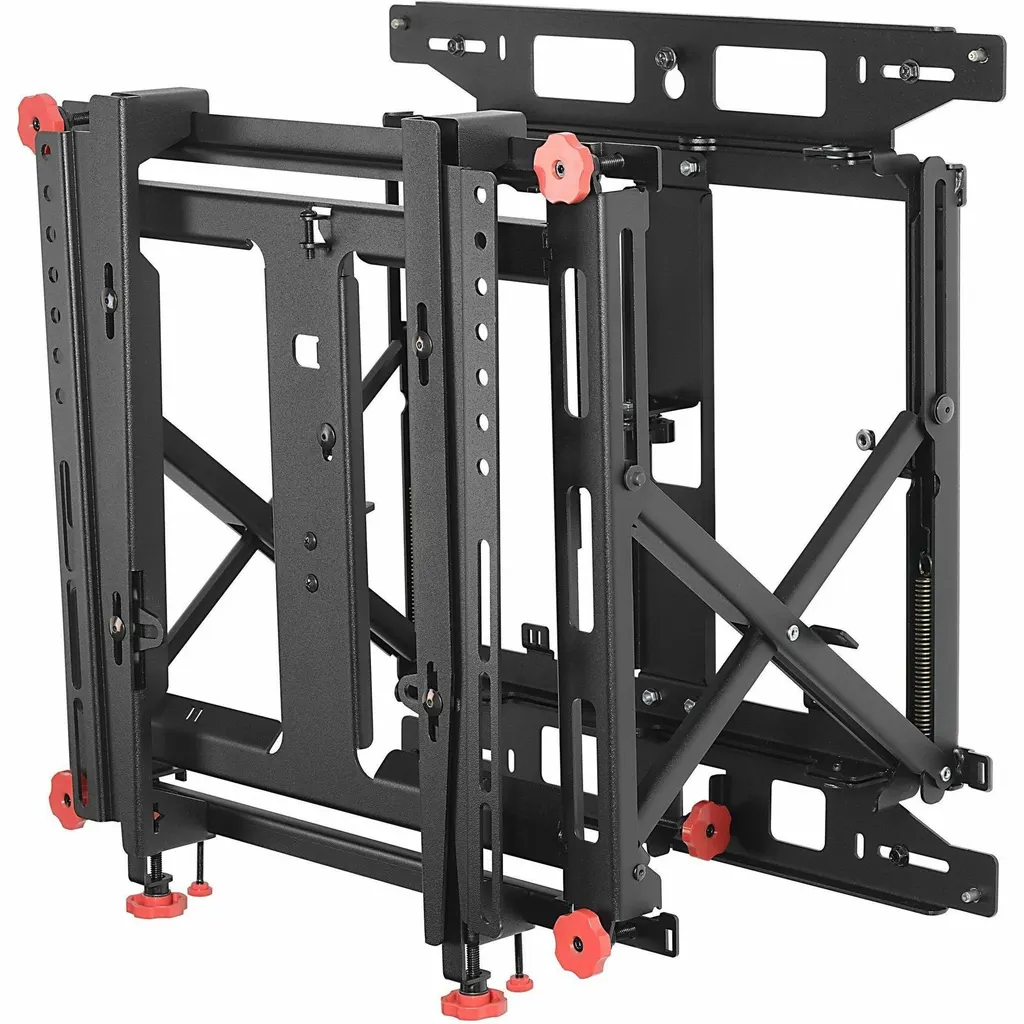

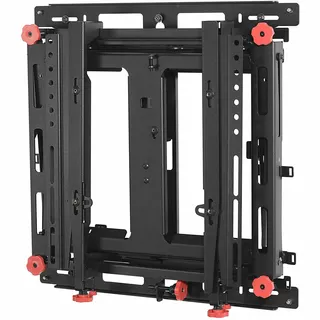

The Peerless DS-VW775-QR is a wall mount for 46 to 60 inch displays rated to 56.70 kg. It gives 1.5 inches of fine adjustment on each axis, works in landscape or portrait, and releases with a press so any panel can be pulled forward for servicing. Cables move with the display. Suited to indoor boardrooms, control rooms and lobby video walls in Doha, it carries a 5-year warranty.
What the DS-VW775-QR does for a video wall
The Peerless DS-VW775-QR is a wall mount for displays from 46 to 60 inches, rated to carry up to 56.70 kg. The mount itself weighs about 15.51 kg, so the wall must be checked against the combined weight of the mount and your panel. It is listed for indoor use and arrives as a single unit with adaptor rails and mounting hardware.
Alignment and depth you can set precisely
Levelling a row of panels is where most installation time goes, and this model gives 1.5 inches of fine adjustment on each of the X, Y and Z axes. Lateral micro-adjustment works without tools. Depth ranges from 3.10 inches (7.87 cm) to 14.50 inches (36.83 cm) away from the wall, which helps bring each panel face flush with its neighbours and leaves room for rear connections.
Servicing one panel without disturbing the rest
A press on the release mechanism pulls the chosen display forward from the wall, so a technician can reach its rear connections or internal components without dismantling neighbouring screens. Cable management is built in: cables travel out and back in with the panel, so they are not pinched or pulled loose when it is extended. In a control room that must stay active, that shortens the time a wall is partly out of service.
Where this mount fits in Qatar
- Boardrooms in West Bay or Msheireb: a single display in the 46 to 60 inch range on a fixed wall, levelled to the meeting table and connected to teams abroad.
- Schools and training centres in Education City or Al Sadd: multi-panel walls where landscape and portrait screens sit side by side, using spacers that suit both layouts.

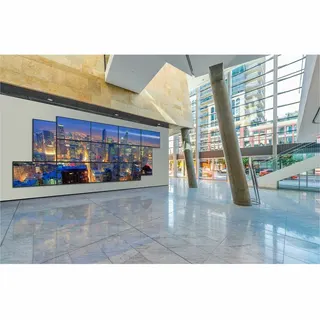

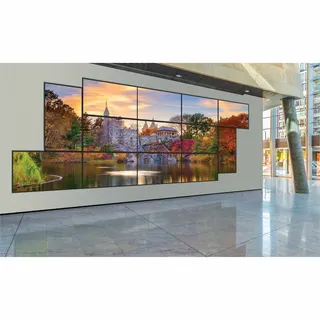

- Hotel lobbies and malls in The Pearl or Lusail: video walls that need occasional servicing without closing the space for long.
Planning the install
The mount is assembled on site. The easy hang wall plate is compatible with the Peerless-AV install app, and reusable custom spacers remove much of the on-site measuring for both portrait and landscape layouts. Before anything is fixed, confirm the wall construction and panel weight, and keep the total below the 56.70 kg limit. SmartRooms Qatar offers free site surveys, which we recommend for older buildings and heavier displays. Professional installation is available with the supply, and quotations are usually issued within one working day.
Ordering for a project
Several units for one school, university or government office can be ordered against a purchase order (LPO) or through government tenders, including Monaqasat. Send the display models, the number of positions and the wall layout, and the SmartRooms Qatar team will return a quotation. Payment is by bank transfer, cheque or purchase order. Request a quote for the DS-VW775-QR today.
Highlights
- Fits 46 to 60 inch displays with a 56.70 kg maximum load
- 1.5 inches of fine adjustment on X, Y and Z axes
- Press-to-release access to any panel in the array
- Landscape and portrait support with reusable spacers
- VESA 200 x 200 and 600 x 400 mounting patterns
- 5-year limited warranty, UL listed and TAA compliant
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
General Information9
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Part Number
- DS-VW775-QR
- Manufacturer Website Address
- http://www.peerless-av.eu.com
- Brand Name
- SmartMount®
- Product Series
- DS-VW775-QR
- Product Model
- DS-VW775-QR
- Product Name
- Supreme Full Service Video Wall Mount with Quick Release for 46" to 60" Displays
- Packaged Quantity
- 1 Unit
- Product Type
- Wall Mount
Product Information12
- Device Supported
- Display; Video Wall
- Maximum Load Capacity
- 56.70 kg
- Minimum Screen Size Supported
- 46" (116.84 cm)
- Maximum Screen Size Supported
- 60" (152.40 cm)
- Minimum Adjustable Depth
- 7.87 cm (3.10")
- Maximum Adjustable Depth
- 36.83 cm (14.50")
- Features
- 3-axis; Adjustable Depth; Cable Management; Lateral Adjustment; Quick Release Mechanism; Tool-less Micro-Adjustment
- Orientation
- Landscape/Portrait
- Mount Pattern Compatibility Type
- Dedicated
- Mount Function
- Video Wall
- Mount Surface
- Wall
- Durability
- Tamper Resistant; Theft Resistant
Physical Characteristics10
- Color Family
- Black
- Product Color
- Black
- Finishing
- Powder Coated; Textured
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 200 x 200; 600 x 400
- Form Factor
- Wall Mountable
- Height
- 54.51 cm (21.46")
- Width
- 53.98 cm (21.25")
- Depth
- 36.98 cm (14.56")
- Weight (Approximate)
- 15.51 kg
Miscellaneous8
- Package Contents
- Supreme Full Service Video Wall Mount with Quick Release for 46" to 60" Displays; Adaptor Rails; Mounting Hardware
- Indoor/Outdoor
- Indoor
- Certifications & Standards
- RoHS, TAA, VESA, UL
- Manufacturer Product Class
- Wall, Quick Release Pop-out
- Assembly Required
- Yes
- TAA Compliant
- Yes
- UL Listed
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
Warranty1
- Limited Warranty
- 5 Year
