DS-VW795-QR

What the DS-VW795-QR does in a recessed video wall

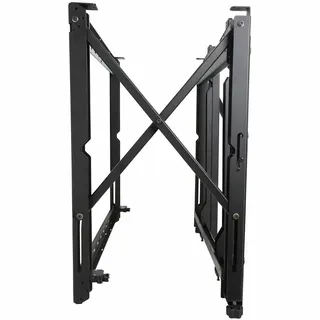

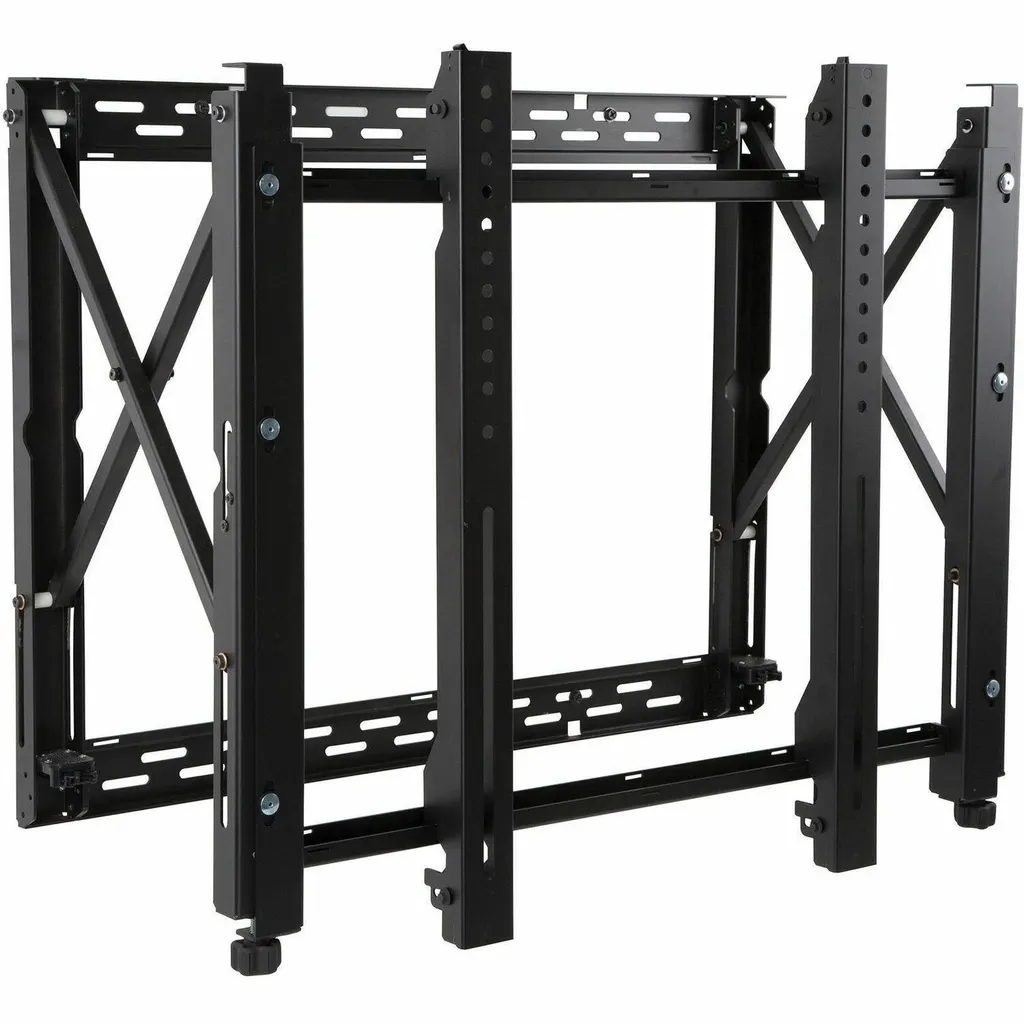

The Peerless-AV DS-VW795-QR is a full service wall mount designed for video walls in which each panel sits recessed into the wall. It holds displays from 65-inch to 98-inch and carries up to 102.06 kg, which covers the large-format commercial panels most integrators specify for boardrooms, control rooms and public lobbies. Its main purpose is service access: a technician can bring one panel forward without disturbing the rest of the array, which is why it suits walls that must keep running.

Quick release, micro-adjustment and cable routing

The quick-release pop-out allows the installer or technician to press gently on the front of the display and draw it away from the wall. The carriage extension force can be adjusted to suit the weight of the panel, so release happens with light pressure. When a panel must stay fixed, a locking screw disables the pop-out, which helps prevent accidental movement in busy lobbies.

Tool-less micro-adjustment at eight points lets the installer level each panel and correct a wall that is not perfectly flat, so neighbouring screens line up. Integrated cable management tie-backs keep display-to-display cabling organised, and reusable custom wall plate spacers reduce the measuring and calculation that usually slows a video wall build.

Key specifications at a glance

• Screen support: 65-inch (165.10 cm) to 98-inch (248.92 cm)
• Maximum load capacity: 102.06 kg
• Adjustable depth: 9.14 cm (3.60-inch) to 11.18 cm (4.40-inch)
• Mounting pattern: 600 x 600, minimum 100 x 100
• Mount dimensions: 70.05 cm high, 83.49 cm wide, 11.25 cm deep
• Approximate weight: 18.14 kg
• Finish: black, powder coated, indoor use

Where it fits in Qatar

Three situations show where this mount earns its place:

• An operations room in Lusail where a 65-inch to 98-inch panel may need servicing during a shift. Front access through the quick-release pop-out keeps the rest of the wall running.
• A university learning commons in Education City with a multi-panel display wall. Cable tie-backs help keep several feeds and power runs tidy behind the array.

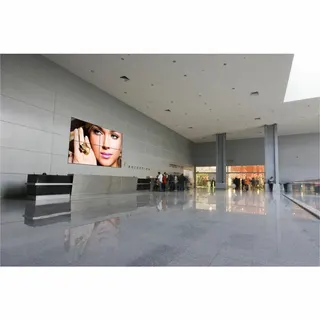

• A mall corridor in Al Rayyan that mixes portrait and landscape screens for wayfinding. The mount supports both orientations within one design.

These scenarios also share a need for quick, neat installs in buildings that are already occupied, which is why a recessed, serviceable mount is often the right choice over a fixed bracket.

Planning the wall before installation

• Confirm the wall structure can carry the panel plus the mount: up to 102.06 kg load, with the mount itself at about 18.14 kg.
• Check the recess depth against the adjustable range of 9.14 cm to 11.18 cm.
• Match each panel's VESA pattern to the 600 x 600 or 100 x 100 options.
• Confirm the location is indoor. The manufacturer lists the mount as indoor only, so ask our team about any window-facing or open-entrance position.
• Allow time for assembly, which is required, and for levelling at the eight adjustment points.

A free site survey from SmartRooms Qatar lets our team measure the wall, check the fixings and confirm panel counts before any mounts are ordered. Delivery to all eight municipalities of Qatar is available, and professional installation can be arranged.

Request a quote

Share your panel sizes, quantity and wall layout, and the SmartRooms Qatar team will return a quotation, usually within one working day. Request a quote for the DS-VW795-QR and we will confirm compatibility and the installation plan with you.
