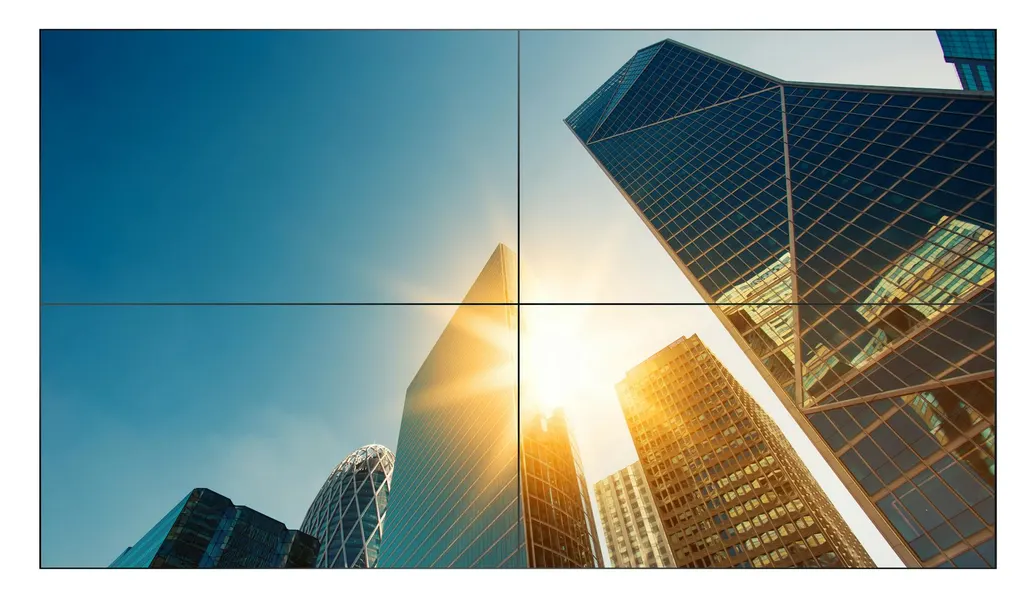

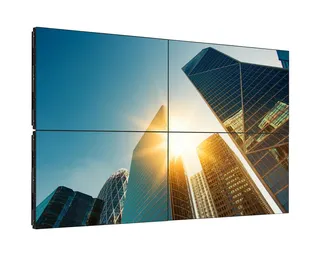

Philips 55BDL3207X 55-inch Video Wall Display

Name: Philips 55BDL3207X 55-inch Video Wall Display
Brand: Philips
SKU: philips-55bdl3207x-00
Availability: InStock

Overview

The Philips 55BDL3207X is a 55-inch LCD panel from the Videowall 3000 Series, made to form one module in a tiled display wall. It offers Full HD (1920 x 1080) resolution, 700 cd/m² brightness, a 3.5 mm bezel and an OPS slot for a media player, with two HDMI 2.0 inputs and network control. It suits control rooms, lobbies and public information walls across Doha and the rest of Qatar.

What the Philips 55BDL3207X is built for

The Philips 55BDL3207X is a 55-inch LCD panel from the Videowall 3000 Series, designed to act as one tile in a larger display wall rather than as a standalone screen. Its 54.6-inch diagonal Full HD panel uses a direct LED backlight and is rated at 700 cd/m² brightness. Each unit shows a 1920 x 1080 image in a 16:9 aspect ratio at a 0.63 x 0.63 mm pixel pitch.

Connectivity and control for a managed wall

The rear panel provides two HDMI 2.0 inputs, a DisplayPort 1.3 input, a DisplayPort 1.3 output that passes the signal to the next panel, a DVI-D input and a VGA input. An OPS slot accepts a compatible media player, so content can run from inside the wall without a separate box. Two LAN RJ45 ports and two signal loop-through RJ45 ports support network control, while a 3.5 mm IR input takes a sensor cable for the remote. A USB 2.0 port, a 3.5 mm audio input and output, and a thermal sensor complete the connections.

Specifications that shape the buying decision

Bezel and tiling: a 3.5 mm bezel with a pixel pitch of 0.63 x 0.63 mm, and a tiled matrix of up to 15 x 15 panels.
Orientation: landscape and portrait placement, both listed for 24/7 operation.
Power draw: 115 W in on mode, 170 W typical, 340 W maximum, standby below 0.50 W, energy label G.
Operating range: 0 to 40 °C and 20 to 80% relative humidity without condensation, up to 3000 m altitude.
Reliability: MTBF of 50,000 hours.
Screen-saving and energy features: Pixel Shift and Low Bright screen-saving functions, plus a Smart Power energy-saving mode.
Audio: two 10 W RMS built-in speakers and a 3.5 mm audio output.
Size and weight: 26.17 kg; 1213.4 mm wide by 684.2 mm high, 98.2 mm deep on the wall mount.
Approvals and warranty: CE, FCC Class A, RoHS, CB, ETL, BSMI and PSE, with a 3-year warranty.

Where it fits in Qatar

In a government service hall in Msheireb, a row of these panels can display queue numbers and service guidance across a wide wall, while a portrait-mounted unit near the entrance gives directions to visitors. In a private school in Al Wakrah refurbishing its main entrance, a landscape wall can show the school's events and achievements around the clock, with the narrow bezel keeping the combined image readable. In an operations room at an industrial company in Mesaieed, the network control ports let staff manage the wall from a central desk and switch content between shifts. Each of these rooms should be air-conditioned, because the operating range tops out at 40 °C.

Planning the installation

Each panel weighs 26.17 kg, so a tiled wall needs a structural check before it is fixed. The wall mount pattern is 400 x 400 mm with M6 fixings, and the Smart Insert mount uses a 100 x 100 mm pattern. Gap pads, edge alignment pins and wire clampers are included to help set the panels flush. SmartRooms Qatar offers a free site survey to confirm wall loading, cable routes and room conditions before you commit, and supplies to all eight municipalities of Qatar with professional installation.

Tell the SmartRooms Qatar team how many panels you need, the wall layout and the room conditions, and request a quote. Quotations are usually issued within one working day, and purchase orders and government tenders are welcome.

Highlights

55-inch direct LED backlight panel with Full HD 1920 x 1080 resolution
700 cd/m² brightness with a 3.5 mm bezel
Tiled matrix configurations of up to 15 x 15 panels
OPS slot, two HDMI 2.0 inputs, DisplayPort 1.3 input and output
Landscape or portrait placement, both listed for 24/7 operation
0 to 40 °C operating range and 3-year warranty

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

54 specifications · Source: manufacturer · checked Oct 2026

Connectivity6

Video input: DVI-D (x 1); HDMI 2.0 (x 2); VGA (Analogue D-Sub) (x 1); Display Port1.3 (x 1)
Other connections: OPS; USB 2.0 (x 1); Thermal sensor
Audio output: 3.5 mm Mini Jack (x 1)
External control: IR (in) 3.5 mm jack; LAN RJ45 (x2); Signal loopthrough RJ45 (x 2)
Video output: Display Port 1.3 (x 1)
Audio input: 3.5 mm mini jack (x 1)

Convenience7

Placement: Landscape (24/7); Portrait (24/7)
Screen-saving functions: Pixel Shift, Low Bright
Energy-saving functions: Smart Power
Signal loop through: DisplayPort; RJ45
Ease of installation: Carrying Handles; Smart Insert
Tiled Matrix: Up to 15 x 15
Network controllable: LAN (RJ45)

Accessories1

Included Accessories: Gap pad x 3; IR sensor cable (1.8 m) (x 1); Quick start guide (x 1); Remote control and AAA batteries; RJ45/RS232 converter; Wire Clamper (x 3); Power cord; DP cable (x1); RJ45 cable (x1); Edge alignment pin (x2); Kit-1 (x1); Kit-2 (x2)

Dimensions10

Set Width: 1213.4 mm
Wall Mount: 400 mm x 400 mm, M6
Set Height: 684.2 mm
Smart Insert mount: 100 mm x 100 mm, 6xM4xL6
Set Height (inch): 26.94 inch
Product weight: 26.17 kg
Set Depth: 98.2 mm(D@WallMount)/99.35 mm(D@Handle) mm
Set Width (inch): 47.77 inch
Bezel width: 3.5 mm
Set Depth (inch): 3.87 (D@WallMount)/3.91 (D@Handle) inch

Sound1

Built-in speakers: 2 x 10 W (RMS)

Power4

Energy Label Class: G
Consumption (On mode): 115 W
Consumption (Typical): 170 W
Consumption (Max): 340 W

Picture/Display14

Optimum resolution: 1920 x 1080 @ 60 Hz
Display colours: 1.07 B
Contrast ratio (typical): 1100:1
Viewing angle (vertical): 178 degree
Diagonal screen size (inch): 54.6 inch
Haze: 28%
Brightness: 700 cd/m²
Diagonal screen size (metric): 138.7 cm
Panel resolution: 1920 x 1080p
Pixel pitch: 0.63 x 0.63 mm
Viewing angle (horizontal): 178 degree
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Response time (typical): 8 ms

Operating conditions6

Altitude: 0 ~ 3000 m
Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5 - 95% (without condensation)
Humidity range (operation)[RH]: 20 - 80% (without condensation)
Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)

Miscellaneous3

Regulatory approvals: CE; FCC, Class A; RoHS; CB; ETL; BSMI; PSE
Warranty: 3 year warranty
On-Screen Display Languages: Arabic; English; French; German; Italian; Japanese; Polish; Russian; Spanish; Simplified Chinese; Turkish; Traditional Chinese

Supported Display Resolution2

Video formats: 720p, 50, 60 Hz; 1080i, 25, 30 Hz; 1080p, 50, 60 Hz; 2160 P 50, 60 Hz ((HDMI/OPS/DP)
Computer formats: 1024 x 768, 60, 75 Hz; 1280 x 1024, 60 Hz; 1280 x 768, 60 Hz; 1280 x 800, 60 Hz; 1280 x 960, 60 Hz; 1360 x 768, 60 Hz; 1366 x 768, 60 Hz; 1600 x 1200, 60 Hz; 1920 x 1080, 60 Hz; 640 x 480, 60, 72, 75 Hz; 720 x 400, 70 Hz; 800 x 600, 60, 75 Hz

Downloads

5 files from the manufacturer

PDF Datasheets 55BDL3207X_00_2022-05-09_12h03m25s.pdf 389 KB PDF Manuals & guides 55BDL3207X_dfu_V1_02_eng.pdf 14.5 MB PDF Manuals & guides · Opens on manufacturer site 1726685098-55bdl3207x_dfu_v1-02_ara-pdf.pdf PDF Drawings & CAD 55BDL3207X_Outline_Drawing_without_Stand_V1_0_20220505.pdf 3.0 MB PDF Certificates & compliance 55BDL3207X_Label_1226967.pdf 70 KB

Questions about 55BDL3207X/00

What is the Philips 55BDL3207X used for?

It is a 55-inch panel designed as one module in a video wall, so it suits control rooms, public lobbies, operations floors and digital signage where several screens show shared content. Its 54.6-inch screen, Full HD resolution and 700 cd/m² brightness rating make it a practical choice for information displays in busy offices and public-facing spaces in Doha.

How many panels can I tile into one wall?

The source data lists a tiled matrix of up to 15 x 15 panels. The practical layout depends on your room, your content and your source equipment, so the wall should be planned before ordering. SmartRooms Qatar can review the number of panels, their orientation and the mounting positions during a free site survey, then issue a quotation for the exact configuration you need.

Why does the 3.5 mm bezel matter on a video wall?

The bezel is the border around each screen, and on a tiled wall every bezel creates a visible seam. A 3.5 mm bezel reduces that gap, so text and images running across several panels look more continuous. The 0.63 x 0.63 mm pixel pitch sets how sharp the picture looks at a given distance, so compare it with the seating distance in your room.

Can it be mounted in portrait orientation?

Yes. The source data lists both landscape and portrait placement, each for 24/7 operation. Portrait mounting suits corridor wayfinding in a hospital, a column of signage beside a reception desk, or tall content in a shopping mall corridor. Confirm the orientation with the SmartRooms Qatar team before the wall is fixed, because the mounting pattern and cable routing must match the chosen position.

Which inputs and outputs does it have?

The panel has a DVI-D input, two HDMI 2.0 inputs, a VGA input and a DisplayPort 1.3 input. It also has a DisplayPort 1.3 output for passing video to the next panel, an OPS slot for a compatible media player, a USB 2.0 port, a 3.5 mm audio input and output, and an IR input. The OPS slot lets content run from a plug-in computer module inside the screen, removing a separate media player from the wall.

Does it support 4K input?

The source data lists 2160p at 50 and 60 Hz through HDMI, OPS or DisplayPort. The panel itself is Full HD at 1920 x 1080, so check with the SmartRooms Qatar team how your 4K source should be configured before ordering. This matters most if you plan to run a 4K media player across several adjacent panels in a lobby or control room.

Can I control the wall over the network?

Yes. The panel provides two LAN RJ45 ports and two signal loop-through RJ45 ports. The package includes an RJ45/RS232 converter, a remote control with AAA batteries and an IR sensor cable. For a facilities team at a university in Education City managing several panels, network control lets staff adjust the wall from one central room, and the included converter helps connect serial-based control equipment.

Can it be installed in a room without air conditioning?

Plan for a cooled space. The operating range is 0 to 40 °C with 20 to 80% humidity without condensation, up to 3000 m altitude. Qatar summer temperatures often exceed 45 °C, so a wall beside a glass facade, a sunlit lobby or an unventilated store room needs a careful review. SmartRooms Qatar can check the location during a free site survey before a quotation is issued.

What wall support and space do I need?

Each panel weighs 26.17 kg and measures 1213.4 mm wide by 684.2 mm high, with a depth of 98.2 mm at the wall mount. The wall mount pattern is 400 x 400 mm with M6 fixings, and the Smart Insert mount pattern is 100 x 100 mm. Before a tiled wall is fixed, have the structure checked for the combined load, and use the included gap pads and wire clampers during installation.

How much power does it use?

The source data lists 115 W in on mode, 170 W typical and 340 W maximum, with standby power below 0.50 W and energy label G. For a wall of 10 or 12 panels, multiply these figures by the panel count to size circuits, cabling and any UPS in the control room. Share the planned panel count with SmartRooms Qatar so the quotation reflects your intended wall.

What comes in the box and how long is the warranty?

The product carries a 3-year warranty from the manufacturer. The package includes three gap pads, three wire clampers, two edge alignment pins, a 1.8 m IR sensor cable, a remote control with AAA batteries, an RJ45/RS232 converter, a power cord, a DP cable, an RJ45 cable, a quick start guide, Kit-1 and Kit-2. Check the contents against your quotation when the units arrive.

Can a school or government office order several panels with an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment is by bank transfer, cheque or purchase order. A school fitting out a lobby wall, or a government office ordering several units, should send the panel count, orientation and room details. A quotation is usually issued within one working day, and the products are covered by the manufacturer's warranty.
