Philips 55BDL3305X 55-inch Full HD Videowall Display

Name: Philips 55BDL3305X 55-inch Full HD Videowall Display
Brand: Philips
SKU: philips-55bdl3305x-00
Availability: InStock

Overview

The Philips 55BDL3305X is a 55-inch Full HD video wall display from the Videowall 3000 series, built for continuous operation in landscape or portrait. It offers 500 cd/m² brightness, a bezel under 3 mm for tiled walls up to 15 x 15, an OPS slot and DisplayPort signal loop-through. Suited to Doha lobbies, control rooms and campus media walls where a three-year warranty matters. Request a quote today.

What the 55BDL3305X delivers on a wall

The Philips 55BDL3305X is a 55-inch LCD panel with a Full HD resolution of 1920 x 1080 and a 16:9 aspect ratio, lit by a direct LED backlight. It is rated at 500 cd/m² brightness, with a typical contrast ratio of 1,200:1 and a dynamic contrast ratio of 500,000:1. The 8 ms typical response time and 178-degree viewing angles keep content readable for people standing at different points in a lobby or control room.

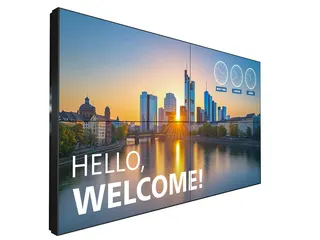

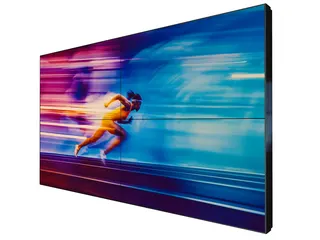

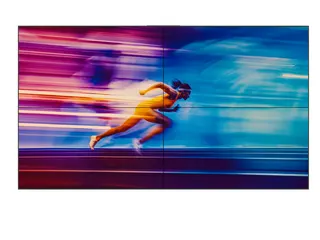

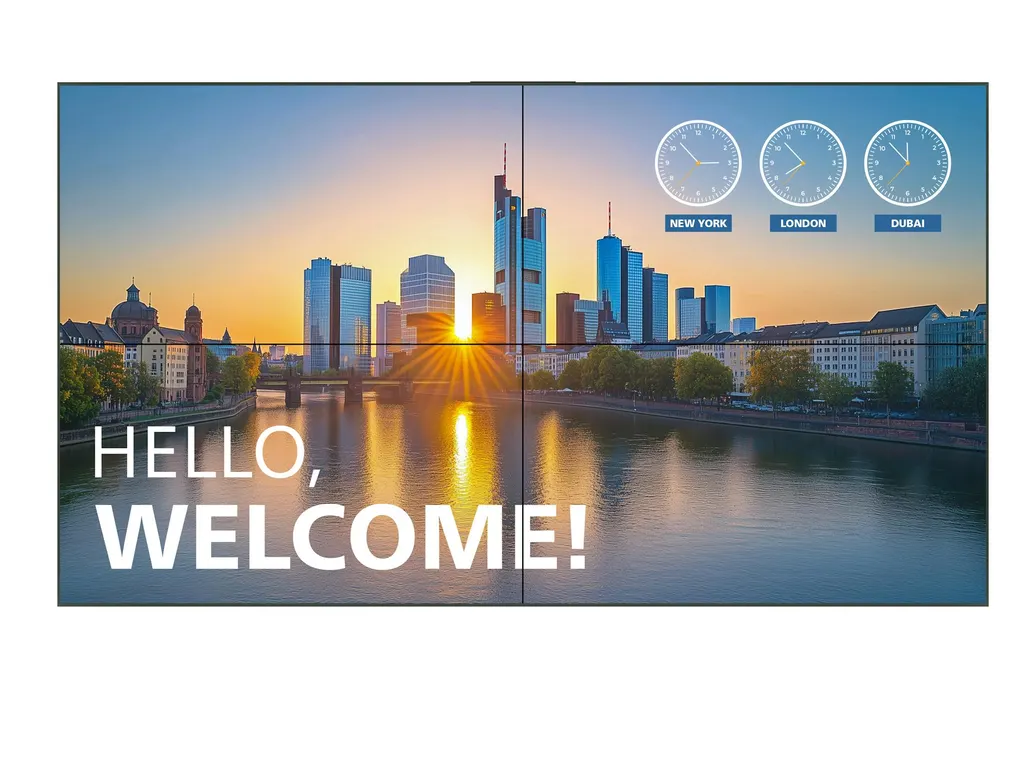

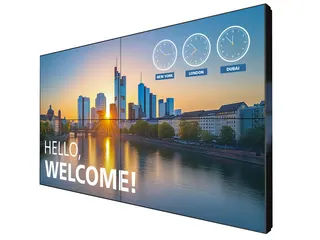

The 2.9 mm bezel matters most once several units are joined. The panel supports tiled matrices of up to 15 x 15, so a 2 x 2 wall in a reception area can show one continuous image instead of separate screens. It runs in landscape or portrait orientation for 24/7 operation, and the Pixel Shift and Low Bright screen-saving functions are included for content that changes slowly.

Connectivity for mixed sources and control

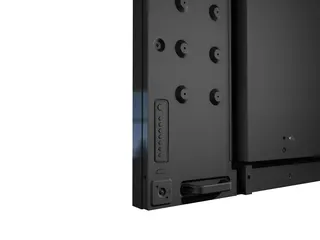

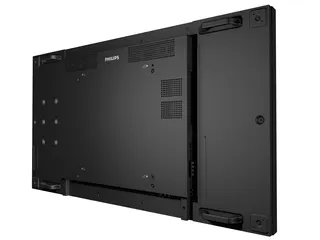

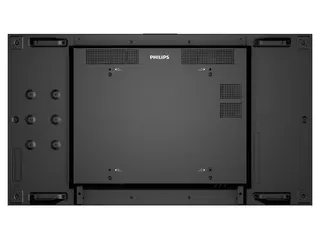

The rear panel offers an OPS slot for a plug-in computing module, two HDMI 2.0 inputs, a DisplayPort 1.2 input and a DisplayPort 1.2 output, a DVI-D input and a VGA input. Audio uses 3.5 mm input and output jacks, and the built-in speakers are rated 2 x 10 W RMS.

Signal loop-through: DisplayPort and RJ45 pass signal from one unit to the next.
Network control: two LAN RJ45 ports and an IR input for remote management.
Other ports: one USB 2.0 port and a thermal sensor.

Inputs accept 2160p sources at up to 60 Hz over HDMI, OPS or DisplayPort, while the panel itself is Full HD.

Mounting, tiling and room conditions

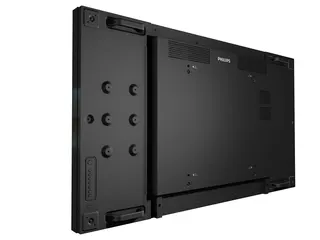

At 28.7 kg and 1211.3 x 682.1 x 97.8 mm, each panel needs a wall and bracket rated for its load. The wall mount pattern is 400 x 400 mm with M6 fixings, and the Smart Insert mount offers 100 x 100 mm and 100 x 200 mm patterns. The operating temperature range is 0 to 40 °C, storage is -20 to 60 °C, and operating humidity is 20 to 80 percent without condensation. Summer temperatures in Qatar can exceed 45 °C outdoors, so install the wall in an air-conditioned room and check that the cooling covers the typical draw of 164 W per panel, with a maximum of 228 W and a standby draw of 0.5 W.

Where it fits in Qatar

A hotel lobby in The Pearl using a 2 x 2 wall for arrival information and promotional content in landscape, inside a climate-controlled area.
A media lab in Education City running a portrait stack for student research displays, connected through the OPS slot and HDMI.
A government operations room in Msheireb with a 3 x 3 wall for live dashboards, managed over LAN with the included remote and IR sensor cable.

Send your room dimensions, the number of panels and your wall details, and the SmartRooms Qatar team will prepare a quotation, usually within one working day. We supply and deliver to all 8 municipalities of Qatar, offer professional installation and free site surveys, and accept purchase orders and government tenders. The panel carries a three-year manufacturer warranty. Request a quote for the 55BDL3305X today.

Highlights

55-inch Full HD (1920 x 1080) panel with direct LED backlight
500 cd/m² brightness and 1,200:1 typical contrast ratio
Bezel width 2.9 mm, tileable up to a 15 x 15 matrix
OPS slot, two HDMI 2.0 inputs, DisplayPort 1.2 in and out
Landscape and portrait operation, rated for 24/7 use
Three-year manufacturer warranty

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

49 specifications · Source: manufacturer · checked Oct 2026

Connectivity6

Other connections: OPS; USB 2.0 (x 1); Thermal sensor
Audio output: 3.5 mm Mini Jack (x 1)
Audio input: 3.5 mm mini jack (x 1)
Video input: Display Port1.2 (x 1); DVI-D (x 1); HDMI 2.0 (x 2); VGA (Analogue D-Sub) (x 1)
External control: IR (in) 3.5 mm jack; LAN RJ45 (x2)
Video output: DisplayPort 1.2 (x 1)

Convenience7

Signal loop through: DisplayPort; RJ45
Ease of installation: Carrying Handles; Smart Insert
Placement: Landscape (24/7); Portrait (24/7)
Screen-saving functions: Pixel Shift, Low Bright
Energy-saving functions: Smart Power
Tiled Matrix: Up to 15 x 15
Network controllable: LAN (RJ45)

Accessories1

Included Accessories: Gap pad x 3; IR sensor cable (1.8 m) (x 1); Quick start guide (x 1); Remote control and AAA batteries; RJ45/RS232 converter; Wire Clamper (x 3); Power cord; DP cable (x1); RJ45 cable (x1); Edge alignment pin (x2); Kit-1 (x1); Kit-2 (x2)

Dimensions6

Smart Insert mount: 100 mm x 100 mm and 100 mm x 200 mm, 6 x M4 x L6
Set dimensions in inches (W x H x D): 47.69 x 26.85 x 3.85 (D@WallMount)/3.85 (D@Handle) inch
Set dimensions (W x H x D): 1211.3 x 682.1 x 97.8 mm (D@WallMount)/97.8 mm (D@Handle) mm
Wall Mount: 400 x 400 mm, M6
Product weight: 28.7 kg
Bezel width: 2.9 mm

Sound1

Built-in speakers: 2 x 10 W (RMS)

Power4

Standby power consumption: 0.5 W
Consumption (Max): 228 W
Energy Label Class: G
Consumption (Typical): 164 W

Miscellaneous3

Warranty: 3 year warranty
On-Screen Display Languages: Arabic; English; French; German; Italian; Japanese; Polish; Russian; Spanish; Simplified Chinese; Turkish; Traditional Chinese
Regulatory approvals: CE; FCC, Class A; RoHS; CB; ETL; BSMI

Picture/Display13

Diagonal screen size (inch): 55 inch
Contrast ratio (typical): 1200:1
Viewing angle (vertical): 178 degree
Haze: 25%
Brightness: 500 cd/m²
Response time (typical): 8 ms
Optimum resolution: 1920 x 1080 @ 60 Hz
Pixel pitch: 0.63 x 0.63 mm
Panel resolution: 1920 x 1080p
Display colours: 16.7 M
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Viewing angle (horizontal): 178 degree

Operating conditions6

Humidity range (operation)[RH]: 20–80% (without condensation)
Humidity range (storage) [RH]: 5–95% (without condensation)
Temperature range (operation): 0 ~ 40 °C
Altitude: 0 ~ 5000 m
MTBF: 50,000 hour(s)
Temperature range (storage): -20 ~ 60 °C

Supported Display Resolution2

Computer formats: For details, see user manual
Video formats: 1080p, 25, 30, 50, 60 Hz; 720p, 50, 60 Hz; 1080i, 50, 60 Hz; 2160p, 25, 30, 50, 60 Hz (HDMI/OPS/DP)

Downloads

3 files from the manufacturer

PDF Datasheets 55BDL3305X_00_en_ZA_b2c_PSS.pdf 618 KB PDF Manuals & guides · Opens on manufacturer site 1755784746-philips_55bdl3305x_edfu_dfu_v1_00_ara.pdf PDF Drawings & CAD 55BDL3305X_Outline_Drawing_without_Stand_V1_0_20250121.pdf 1023 KB

Questions about 55BDL3305X/00

What is the Philips 55BDL3305X used for?

It is a 55-inch commercial LCD panel designed for continuous operation, built for video walls where several screens show one picture. Typical settings include a reception lobby in West Bay, a control room in Lusail or a mall atrium. Its 500 cd/m² brightness and 24/7 rating suit busy indoor spaces, while a single small meeting room may need a different product type.

How many panels can be tiled into one video wall?

The source lists a tiled matrix of up to 15 x 15, with a combined bezel under 3 mm (2.9 mm). A 2 x 2 reception wall or a 3 x 3 operations wall gives a narrow seam between images. Larger grids should be laid out during a site survey, which also checks wall loading and cable routes before panels are ordered.

Does it display 4K content?

The panel itself is Full HD at 1920 x 1080, so 4K sources will not display at full 4K resolution. The inputs do accept 2160p at 25, 30, 50 and 60 Hz over HDMI, OPS or DisplayPort. Confirm your source and content resolution with your AV team before choosing it for a wall that carries detailed maps or documents.

Can it be mounted in portrait for a corridor or digital totem?

Yes, the source lists both landscape and portrait placement for 24/7 operation. Mount it on a 400 x 400 mm wall pattern with M6 fixings, or use the Smart Insert mount with 100 x 100 mm or 100 x 200 mm patterns. The panel weighs 28.7 kg, so a portrait installation in a hallway needs a wall and bracket rated for that load.

How does Qatar's heat affect it?

The operating range is 0 to 40 °C, while outdoor summer temperatures in Qatar can reach above 45 °C. Install it indoors in an air-conditioned space and confirm the room's cooling covers the typical draw of 164 W per panel. Keep the wall away from direct sun through glass, and the SmartRooms Qatar team can review the room during the site survey.

Can it be placed next to a window in a Doha lobby?

Its 500 cd/m² brightness is the panel's rated output, and direct sun or strong glare can reduce how well content reads. Before choosing a spot near glass, assess light levels and heat gain from the window. A free site survey from SmartRooms Qatar can check the position, glare and cooling before the wall is specified.

What connections does it offer for a control room?

The rear panel offers an OPS slot, two HDMI 2.0 inputs, a DisplayPort 1.2 input and output, a DVI-D input, a VGA input, one USB 2.0 port, and 3.5 mm audio input and output. Two LAN RJ45 ports and an IR input support control. DisplayPort and RJ45 can also loop signal to the next unit in the wall.

How is it controlled over the network?

It is network controllable over LAN through RJ45, and the package includes a remote control with AAA batteries, a 1.8 m IR sensor cable and an RJ45/RS232 converter. Plan the network and serial routing with your IT team before installation. Confirm the management software needed for your deployment during the quotation stage.

What is included in the box?

The package includes three gap pads, three wire clampers, two edge alignment pins, a DisplayPort cable, an RJ45 cable, a 1.8 m IR sensor cable, a power cord, a remote control with AAA batteries, an RJ45/RS232 converter, a quick start guide, one Kit-1 and two Kit-2 accessory sets. Check the quantities against your tiled layout when requesting a quote.

How do schools or government bodies buy several units?

Purchase orders (LPOs) are accepted, along with government tenders including Monaqasat, and payment is by bank transfer, cheque or purchase order. Each panel carries a three-year manufacturer warranty. Send the number of units, the target rooms and the wall layout, and the team will issue a quotation, usually within one working day.
