Samsung UD46E-A 46-inch Video Wall Display

Name: Samsung UD46E-A 46-inch Video Wall Display
Brand: Samsung
SKU: samsung-ud46e-a
Availability: InStock

Overview

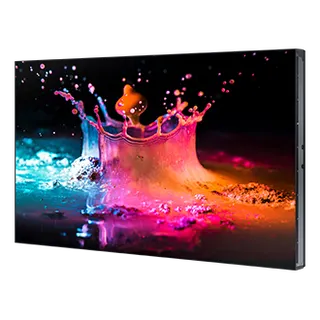

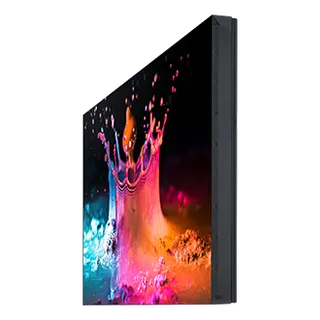

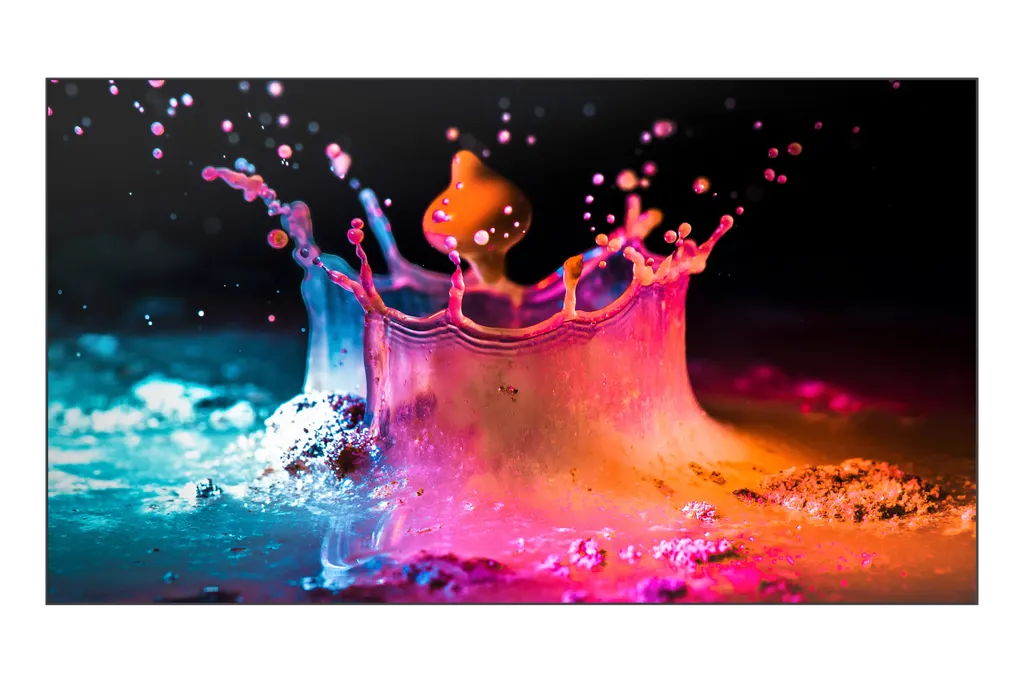

The Samsung UD46E-A is a 46-inch Full HD video wall panel built around a D-LED DID panel rated at 700 cd/m2 and a 3.5mm total bezel, so tiled walls look continuous. It supports DisplayPort 1.2 daisy chaining and UHD content across walls up to 5x5, and it pivots for portrait installs. Suited to indoor control rooms, lobbies and lounges across Qatar. Request a quote.

What the UD46E-A is built to do

The Samsung UD46E-A is a 46-inch video wall module, not a stand-alone television. Each unit uses a D-LED DID panel at 1920 x 1080, rated at 700 cd/m2 brightness with a 3500:1 contrast ratio and 10,000:1 dynamic contrast. Several units are tiled into one picture for operations rooms, lobbies and information points, where a single screen would be too small or too limited.

Each panel is tuned during factory calibration so that brightness and colour match across the set. Afterwards, the free Samsung Color Expert software lets a technician adjust brightness and colour uniformity from a PC, which helps keep a large wall consistent over time.

Bezel, panel and picture facts that matter

The total bezel between two adjacent panels is 3.5 mm, split into 2.3 mm on the top and left and 1.2 mm on the right and bottom. On a wall, narrow joins keep dashboards, maps and text from breaking across visible gaps. Other key figures for buyers:

Pixel pitch: 0.53025 mm horizontal and vertical
Colour: 8-bit, 16.7M colours, 72% colour gamut
Viewing angle: 178 degrees horizontal and vertical
Response time: 8 ms, with 44% haze for reduced glare

Connecting and daisy chaining a wall

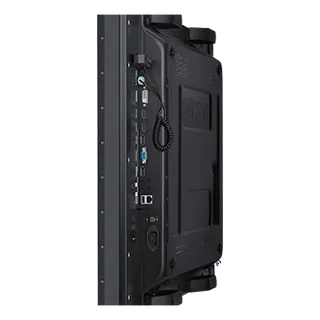

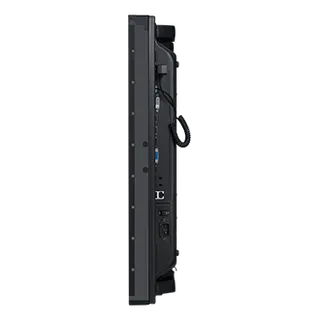

Inputs are HDMI 1, HDMI 2, analog D-SUB, DVI-D and DisplayPort 1.2, with stereo mini jack audio in and out. A DisplayPort 1.2 loop-out passes the signal from one panel to the next, and the manufacturer lists daisy chains of up to 10 x 10 panels and UHD content across walls up to 5 x 5, with HDCP support. Because each panel is Full HD, a 2 x 2 array builds a 3840 x 2160 canvas. Control options include RS232C and RJ45 MDC, and the set includes a remote controller, a DP cable and a stereo-to-DB9 cable.

Where it fits in Qatar and what to plan for

In Doha, a 2 x 2 or 3 x 3 wall of these panels suits an operations room at a government authority or the monitoring desk of an energy or logistics company, where dashboards need to stay on screen through long shifts. The manufacturer positions the series for continuous operation, and Auto Source Switching and Recovery helps a wall return to its input after a source change or interruption.

In West Bay or Msheireb, an indoor wall can carry wayfinding and promotions in a hotel lobby or shopping mall atrium. Daylight through a glazed frontage is where the 700 cd/m2 rating and the anti-glare panel matter most. In Mesaieed or the Industrial Area, a control room with a glazed observation side may need the wall set back from direct sun.

Environment, power and installation planning

Operating temperature is 0 to 40 °C, with 10 to 80% humidity, non-condensing. Keep the wall in an air-conditioned indoor space, away from direct sun.
Maximum draw is 187 W per panel and typical draw is 168 W, so a nine-panel wall at maximum load draws about 1.7 kW.
Mains input is 100 to 240 V AC at 50/60 Hz, a range that covers Qatar's 240 V supply.

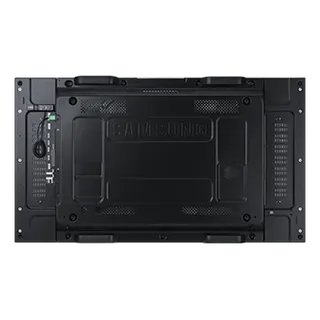

Each panel measures 1022.1 x 576.6 x 97.4 mm and weighs 16.2 kg, with a VESA pattern of 600 x 400 mm.

Before wall-mounting a multi-panel array, book a free site survey so the structure, cable routes and ventilation can be checked. The optional WMN-46VD wall mount is listed for this model. Request a quote from SmartRooms Qatar with your panel count and layout, and we will confirm the package and installation scope in writing.

Highlights

46-inch D-LED DID panel with 1920 x 1080 resolution
700 cd/m2 brightness and 3500:1 contrast ratio
3.5mm total bezel for tiled walls with fine joins
DisplayPort 1.2 loop-out for daisy-chained walls
Operating range 0 to 40 °C, 10 to 80% humidity non-condensing
VESA 600 x 400 mm mounting pattern

Plan your video wall

Rows3

Columns3

Wall size about 3.06 × 1.72 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

40 specifications · Source: manufacturer · checked Oct 2026

Display15

Diagonal Size: ‎46"‎
Panel Type: D-LED DID
Resolution: 1920 x 1080
Pixel Pitch (HxV, mm): 0.53025(H) x 0.53025(V)
Active Display Size (HxV, mm): 1018.08 x 572.67
Contrast Ratio: 3500:1
Viewing Angle (H/V): 178/178
Response Time: 8 ms
Display Color: 8 bit - 16.7M
Color Gamut: ‎72%‎
H-Scanning Frequency: 30kHz ~ 81kHz
Maximum Pixel Frequency: 148.5MHz
V-Scanning Frequency: 48Hz ~ 75Hz
Brightness: 700 cd/m2
Contrast Ratio (Dynamic): 10,000:1

Connectivity5

RGB In: Analog D-SUB, DVI-D, Display Port 1.2
RGB Out: DP1.2(Loop-out)
Audio In: Stereo Mini Jack
Audio Out: Stereo Mini Jack
Video In: HDMI1, HDMI2

Power4

Power Supply: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Off Mode, W): ‎less than 0.5‎
Power Consumption (On Mode, W): ‎Max:187, Typ:168, BTU(Max):638‎
Power Consumption (Sleep Mode, W): ‎less than 0.5‎

Dimension2

Set Dimension (WxHxD, mm): ‎1022.1 x 576.6 x 97.4‎
Package Dimension (WxHxD): ‎1160 x 715 x 280‎

Weight2

Set Weight: ‎16.2‎
Package Weight: ‎22.6‎

Operation Conditions2

Temperature: ‎0℃~ 40℃‎
Humidity: ‎10 ~ 80% (non-condensing)‎

Mechanical Specification3

VESA Mount (mm): ‎600 x 400‎
Bezel Width (mm): ‎2.3(U/L), 1.2(R/B)‎
Media Player Option Type: SBB-C/DA/DI (Slide In)

General Feature1

Special: ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 44%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(80hrs Clock Keeping)

Optional Feature2

Mount: WMN-46VD
Specialty: MID-UD46DS

Eco1

Energy Efficiency: D

Accessory1

Included: Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries

Certification and Compliance2

EMC: FCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea):KN22, KN24, BSMI (Chinese Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS/NZS3548 (CISPR22), CCC(China) : GB 9254-2008, GB 17625.1-2012
Safety: UL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1, TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : IEC60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1993, IRAM (Argentina) : IEC60950-1, SASO (Saudi Arabia) : IEC60950-1

Downloads

7 files from the manufacturer

XLSX Datasheets UD46E-A_Specifications_levant.xlsx 6 KB PDF Manuals & guides LFDUHNEN-03_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_EU_ENG_210205.0.pdf 2.1 MB PDF Manuals & guides LFDUHNMA-02_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_ASIA_MENA_AFRICA_ARA_191011.0.pdf 2.3 MB PDF Manuals & guides UDE-ABC_EU_QSG_BN68-07319N-00_160203.0.pdf 1.6 MB PDF Manuals & guides UDE-A_B_C_QSG_ASIA_MENA_BN68-07319E-06_170228.1.pdf 2.5 MB PDF Manuals & guides · Opens on manufacturer site LFDUHNEN-03_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_EU_FRA_210205.0.pdf PDF Other documents DoC_LH55UDEBLBB_UD55E_B.pdf 139 KB

Questions about UD46E-A

Is the UD46E-A a television or a video wall panel?

It is a video wall panel, designed to be tiled with other units rather than used alone as a TV. Each 46-inch module has a 3.5 mm total bezel and a 1920 x 1080 resolution, so the seam between panels stays thin. Its multiple inputs and DisplayPort loop-out are built for wall configurations. If you are planning a single screen, request a quote and the team will check whether this model fits your space.

How would a 46-inch wall work in a Doha operations room?

A 2 x 2 array forms one 3840 x 2160 canvas, enough to show several dashboards side by side at a government authority or an energy company's monitoring desk. Each panel reaches 700 cd/m2 brightness and a 178-degree viewing angle, so staff seated at different positions can read the same screen. Button Lock also helps prevent accidental setting changes during long shifts.

Will the panels be readable in a West Bay lobby with daylight coming in?

The panel is rated at 700 cd/m2, and its anti-glare finish with 44% haze reduces reflections from windows and lights. Still, check where sunlight falls on the wall before installation, because a large glass frontage can wash out any display. A 2 x 2 or larger array keeps wayfinding content readable from the lift lobby, and the layout can be reviewed during the free site survey.

Can a training centre in Lusail or Education City use a wall of these panels in a briefing room?

Yes, when the goal is one image spread across several screens, such as a live project status board or a lesson shown across four panels. The inputs include HDMI 1, HDMI 2, DisplayPort 1.2 and DVI-D, so a laptop can connect directly. Control is possible through RS232C or RJ45 MDC. Because each panel is 46 inches, a larger room will need more units to deliver a comparable image size.

Can these panels sit beside a glazed window in an Industrial Area or Mesaieed control room in summer?

The operating range is 0 to 40 °C with 10 to 80% humidity, non-condensing, so the wall should sit in an air-conditioned room away from direct sun. Summer outdoor temperatures in Qatar can exceed 45 °C, so do not place panels in unconditioned or sun-facing spaces. Ask the SmartRooms Qatar team to check the room's temperature and airflow during the site survey before you confirm the layout.

How are panels connected and chained together?

Connect the first source to HDMI 1, HDMI 2, DisplayPort 1.2 or DVI-D. Then run a DisplayPort 1.2 cable from the loop-out on one panel to the DisplayPort input on the next. The manufacturer lists DisplayPort daisy chaining with HDCP support, with chains of up to 10 x 10 panels. The included DP cable covers the first link, so check cable lengths for the rest of the wall before ordering.

Does a single panel show 4K content?

No. Each UD46E-A displays 1920 x 1080 on its own, which is Full HD. UHD content is shown across a wall instead, where a 2 x 2 array forms a 3840 x 2160 image, and the manufacturer describes UHD across walls up to 5 x 5. If your source is 4K, confirm the sending device and wall layout with the team before ordering.

How much power does a wall use, and does it suit Qatar's 240 V supply?

Each panel is rated at 187 W maximum and 168 W typical, with less than 0.5 W in off and sleep modes. Mains input is 100 to 240 V AC at 50/60 Hz, which covers Qatar's 240 V supply. A nine-panel wall at maximum load would draw about 1.7 kW, so plan circuits and socket positions early. The energy efficiency class listed for this model is D.

What size, weight and mounting pattern should I plan for?

Each panel measures 1022.1 x 576.6 x 97.4 mm and weighs 16.2 kg, with a shipping package of 22.6 kg. The VESA pattern is 600 x 400 mm, and the optional WMN-46VD wall mount is listed for this model. Before mounting several units, the free site survey confirms wall loading, cable routes and clearances, so the installation is planned rather than improvised.

What comes in the box?

Each unit includes a quick setup guide, warranty card, DisplayPort cable, stereo-to-DB9 cable, power cord, remote controller and batteries. The media player option, a slide-in type listed as SBB-C/DA/DI, is an optional item and is not part of the standard package. Products are covered by the manufacturer's warranty. Request a quote to add the media player or wall mount, and the team will confirm the full parts list in writing.

Can a school or ministry order several units on an LPO or government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. Send the panel count, the wall grid and the installation address, and the quotation will cover panels, cables and installation together. Quotations are usually issued within one working day.

What should a Doha office check before ordering a 3 x 3 wall?

A 3 x 3 array of these panels is roughly 3.07 metres wide and 1.74 metres high including the bezel joins. Check the wall's load capacity, the clearance around the array, the cable route to the source and the ventilation behind the panels. The free site survey covers these checks, and the quotation then matches the approved layout. Confirm that power points are available close to the mounting position.
