UD46E-B

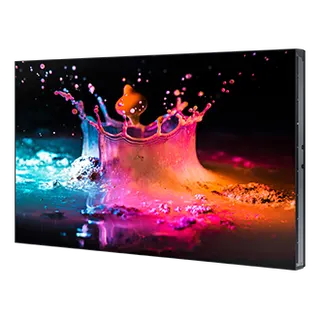

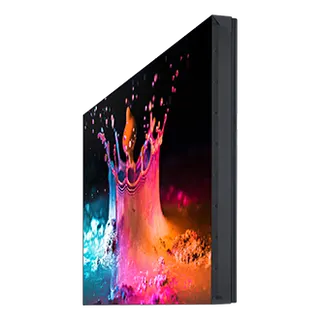

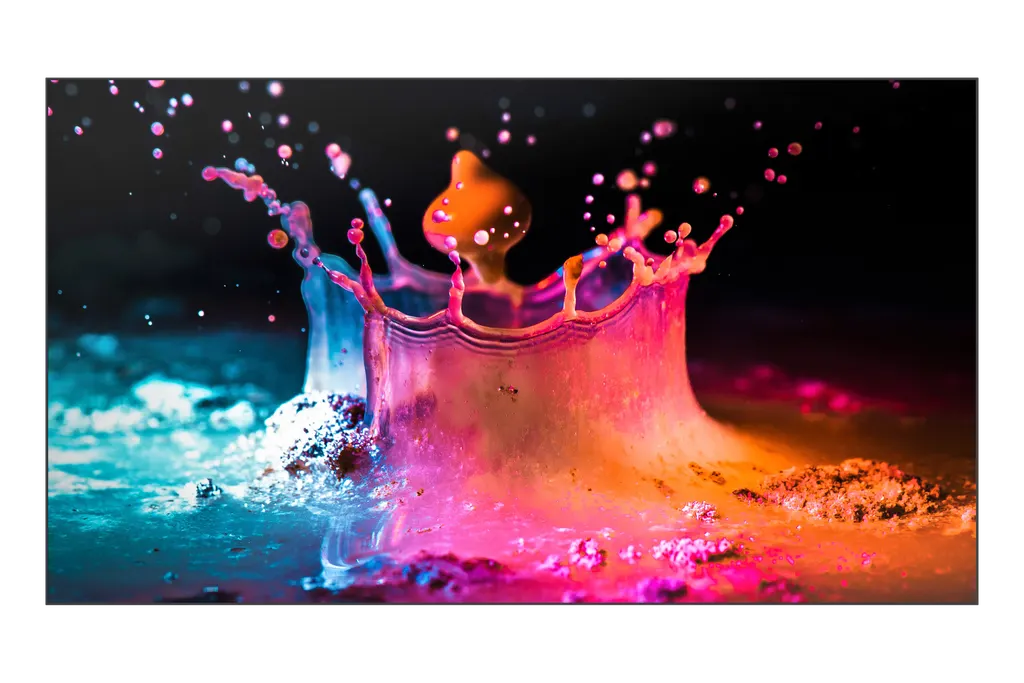

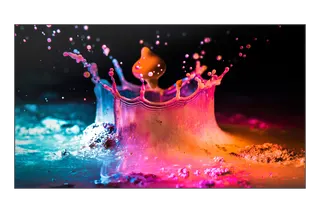

Samsung UD46E-B 46-inch Video Wall Display

Screen size: 46"
Bezel: 2.3 mm (U / L)
Resolution: 1920 x 1080
Brightness: 500 cd/m²

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

XLSXDownload datasheet

Overview

The Samsung UD46E-B is a 46-inch video wall display built from a D-LED DID panel at 1920 x 1080 with a 3.5 mm bezel-to-bezel frame and 500 cd/m² brightness. It has HDMI and DisplayPort 1.2 inputs with DP loop-out, so panels can be daisy-chained. It suits control rooms, lobbies and retail walls in air-conditioned Qatari spaces. Request a quote.

What the UD46E-B contributes to a video wall

The UD46E-B is a 46-inch display from Samsung's UDE-B video wall range, designed to be tiled with identical panels into one large image. Its D-LED DID panel runs at 1920 x 1080 with a pixel pitch of 0.53025 mm, giving each screen an active picture area of 1,018.08 mm by 572.67 mm. Brightness is rated at 500 cd/m², with a contrast ratio of 3,500:1 and a dynamic contrast of 10,000:1.

Narrow bezels matter most when panels are tiled. This model has a 2.3 mm bezel on the top and left and 1.2 mm on the right and bottom, which together create a 3.5 mm gap between neighbouring screens. Because the active area is identical on every panel, the wall reads as one picture rather than a grid of separate displays.

Connectivity and video wall control

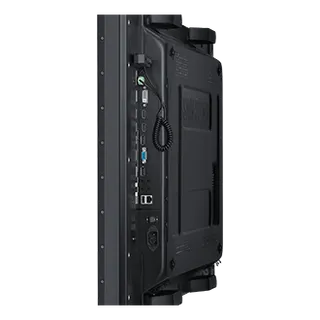

Inputs include HDMI 1 and HDMI 2, DisplayPort 1.2, DVI-D and analog D-SUB, with stereo audio in and out on mini jacks. A DisplayPort 1.2 loop-out passes the signal to the next display in a daisy chain, and the manufacturer lists UHD resolution with HDCP support over that chain. Control is through RS232C and RJ45 MDC, with video wall layouts up to 15 x 15 in the on-screen menu and daisy-chain configurations up to 10 x 10. Pivot display and image rotation are included for portrait content.

Where it fits in Qatar

Control rooms at utilities or industrial sites in Mesaieed or Ras Laffan, where operators need a shared multi-source view inside a cooled room.
Lobbies and retail walls in West Bay or Msheireb, where 500 cd/m² keeps content legible in brightly lit areas.
Corporate and government briefing rooms in Doha, where several 46-inch modules can be tiled into a wall showing dashboards from different sources.

Planning the installation

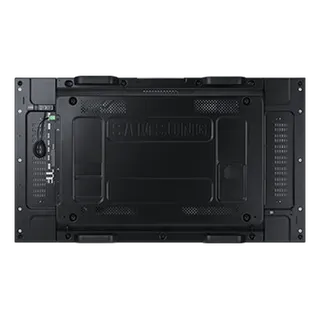

The set measures 1,022.1 x 576.6 x 97.4 mm and weighs 16.2 kg, so a multi-panel wall needs a structure rated for the total load. It uses a 600 x 400 mm VESA mounting pattern. The operating range is 0 to 40 °C with 10 to 80% humidity, so the room must stay within that range, and outdoor temperatures in Qatar can pass 45 °C in summer. Confirm cooling and sun exposure with the SmartRooms Qatar team before fixing the wall. Power draw is 87 W typical and 143 W maximum, with an input range of 100 to 240 V at 50/60 Hz. The box includes a power cord, remote controller, DP cable, stereo-to-DB9 cable and batteries. The WMN-46VD wall mount and a slide-in media player option (SBB-C, DA or DI) are available as separate items.

SmartRooms Qatar supplies the UD46E-B to all eight municipalities of Qatar, with free site surveys and professional installation. Request a quote, and our team will usually respond within one working day. We accept purchase orders (LPOs) and government tenders.

Highlights

46-inch D-LED DID panel at 1920 x 1080 resolution
3.5 mm bezel-to-bezel gap between tiled screens
500 cd/m² brightness with 3,500:1 contrast ratio
HDMI 1, HDMI 2 and DisplayPort 1.2 with loop-out
Daisy chain up to 10 x 10; layouts up to 15 x 15
Operating range 0 to 40 °C, 10 to 80% humidity

Plan your video wall

Rows3

Columns3

Wall size about 3.06 × 1.72 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Display15

Diagonal Size: 46"
Panel Type: D-LED DID
Resolution: 1920 x 1080
Pixel Pitch (HxV, mm): 0.53025 mm (H) x 0.53025 mm (V)
Active Display Size (HxV, mm): 1,018.08 mm x 572.67 mm
Contrast Ratio: 3,500:1
Viewing Angle (H/V): 178/178
Response Time: 8 ms
Display Color: 8 bit - 16.7 M
Color Gamut: 72%
H-Scanning Frequency: 30 kHz ~ 81 kHz
Maximum Pixel Frequency: 148.5 MHz
V-Scanning Frequency: 48 Hz ~ 75 Hz
Brightness: 500 cd/m²
Contrast Ratio (Dynamic): 10,000:1

Connectivity5

RGB In: Analog D-SUB, DVI-D, Display Port 1.2
RGB Out: DP1.2 (Loop-out)
Audio In: Stereo Mini Jack
Audio Out: Stereo Mini Jack
Video In: HDMI1, HDMI2

Power4

Power Supply: AC 100 - 240 V ~ (+ / - 10%), 50 / 60 Hz
Power Consumption (Off Mode, W): Less than 0.5 W
Power Consumption (On Mode, W): Max: 143 W, Typ: 87 W, BTU (Max): 488 W
Power Consumption (Sleep Mode, W): Less than 0.5 W

Dimension2

Set Dimension (WxHxD, mm): 1,022.1 x 576.6 x 97.4 mm
Package Dimension (WxHxD): 1,160 x 715 x 280 mm

Weight2

Set Weight: 16.2 Kg
Package Weight: 22.6 Kg

Operation Conditions2

Temperature: 0 ~ 40 °C
Humidity: 10 ~ 80%

Mechanical Specification3

VESA Mount (mm): 600 x 400 mm
Bezel Width (mm): 2.3 mm (U / L), 1.2 mm (R / B)
Media Player Option Type: SBB-C / DA / DI (Slide In)

General Feature1

Special: ACM Support (Advanced Colour Management), Auto Source Switching & Recovery, Haze 44%, Temperature Sensor, RS232C / RJ45 MDC,Plug and Play (DDC2B), Video Wall (15 x 15 (OSD)), Video Wall Daisy Chain (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP support), Smart F / W update, Clock Battery (80 hours Clock Keeping)

Optional Feature2

Mount: WMN-46VD
Specialty: MID-UD46DS

Accessory1

Included: Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries

Certification and Compliance2

EMC: FCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea): KN22, KN24, BSMI (Chinese Taiwan): CNS13438 (CISPR22), C-Tick (Australia): AS / NZS3548 (CISPR22), CCC (China): GB9254-2008, GB17625.1-2012
Safety: UL (USA): UL 60950-1, CSA (Canada): CSA C22.2 No. 60950-1, TUV (Germany): EN60950-1, NEMKO (Norway): EN60950-1, KC (Korea): K60950-1, CCC (China): GB4943.1-2011, PSB (Singapore): IEC60950-1, GOST (Russia): IEC60950-1, EN55022, SIQ (Slovenia): IEC60950-1, EN55022, PCBC (Poland): IEC60590-1, EN55022, NOM (Mexico): NOM-019-SCFI-1993, IRAM (Argentina): IEC60950-1, SASO (Saudi Arabia): IEC60950-1

Downloads

9 files from the manufacturer

XLSX Datasheets UD46E-B_Specifications_levant.xlsx 6 KB PDF Manuals & guides LFDUHNEN-03_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_EU_ENG_210205.0.pdf 2.1 MB PDF Manuals & guides LFDUHNMA-02_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_ASIA_MENA_AFRICA_ARA_191011.0.pdf 2.3 MB PDF Manuals & guides UDE-ABC_EU_QSG_BN68-07319N-00_160203.0.pdf 1.6 MB PDF Manuals & guides UDE-A_B_C-QSG-EU_BN68-07319C-00_150702.0.pdf 2.4 MB PDF Manuals & guides UDE-A_B_C_QSG_ASIA_MENA_BN68-07319E-06_170228.1.pdf 2.5 MB PDF Manuals & guides · Opens on manufacturer site LFDUHNEN-03_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_EU_FRA_210205.0.pdf DOCX Other documents CE_DoC_for_LH46UDE_UD46E-B_UD46E-C.docx 138 KB PDF Other documents DoC_LH55UDEBLBB_UD55E_B.pdf 139 KB

Questions about UD46E-B

What is the Samsung UD46E-B used for?

The UD46E-B is a 46-inch display made to be tiled into a video wall, where several identical panels show one continuous picture. It suits control rooms, reception areas and retail walls that need content across a wide area. Its 500 cd/m² brightness and 1920 x 1080 panel help signage and dashboards stay readable in well-lit lobbies. SmartRooms Qatar can confirm the grid size during a free site survey.

How wide is the bezel, and will the wall show visible seams?

The bezel is 2.3 mm on the top and left and 1.2 mm on the right and bottom, giving a 3.5 mm gap between neighbouring panels. Gaps are present in any tiled wall, but the narrow frame keeps them small and focuses viewers on the content. The active picture on each screen measures 1,018.08 mm by 572.67 mm, so spacing can be calculated precisely before installation.

Does the UD46E-B show UHD content across a daisy-chained wall?

Yes, the manufacturer lists DisplayPort 1.2 daisy chaining that supports UHD resolution with HDCP. Each panel's native resolution is 1920 x 1080, and the wall layout is set in the video wall menu, which supports up to 15 x 15 layouts and daisy chains up to 10 x 10. Confirm your source device and cabling plan with SmartRooms Qatar before ordering.

What inputs and outputs does it have?

Inputs are HDMI 1, HDMI 2, DisplayPort 1.2, DVI-D and analog D-SUB, with stereo audio in and out on mini jacks. The DisplayPort 1.2 loop-out passes the signal to the next display. Control is through RS232C and RJ45 MDC. Ask SmartRooms Qatar to confirm the connector layout you need for your controller and cable runs.

Is it suitable for a control room in Mesaieed or Ras Laffan?

A control room is a strong fit, provided the room is air-conditioned. The operating range is 0 to 40 °C with 10 to 80% humidity, and the set draws 87 W typical and 143 W maximum. Operators at industrial sites can share dashboards across a wall of these panels. A site survey confirms floor loading, cable routes and room ventilation before installation.

Can I install it in a lobby with glass facing the sun in Doha?

Direct sun and glass exposure need careful planning. The panel is rated for 0 to 40 °C, while Doha summer temperatures can exceed 45 °C outdoors. Place the wall away from direct sunlight, in a cooled space, and confirm the environment with the SmartRooms Qatar team before fixing the mount. The 500 cd/m² brightness helps content remain visible in brighter areas of the lobby.

Can the wall show portrait content for digital signage?

Yes. The UD46E-B includes pivot display and image rotation, so panels can be turned for portrait signage such as wayfinding or queue information. At 16.2 kg, each panel needs a mount suited to the chosen orientation. This setup suits corridors in hospitals or offices near Hamad International Airport. SmartRooms Qatar can include the correct mount in your quotation.

Which mount does it use, and what comes in the box?

The panel uses a 600 x 400 mm VESA mounting pattern. The WMN-46VD wall mount is listed as an optional item, as is a slide-in media player option (SBB-C, DA or DI). The box includes a quick setup guide, warranty card, DP cable, stereo-to-DB9 cable, power cord, remote controller and batteries. Request a quote that lists the mount and accessories you need for each location.

What power supply does it need, and does it suit Qatar mains?

The power supply accepts 100 to 240 V AC at 50 or 60 Hz, a range that covers Qatar's 240 V, 50 Hz mains. Typical consumption is 87 W and maximum is 143 W, while off and sleep modes draw less than 0.5 W. Qatar uses BS 1363 (Type G) sockets, so ask SmartRooms Qatar to confirm the plug type of the supplied cord before delivery.

Can it be monitored or controlled remotely?

The panel has RS232C and RJ45 MDC control ports, a temperature sensor, auto source switching and recovery, and a clock battery that keeps time for 80 hours. Smart firmware updates are also supported. Together these features help facilities teams manage a wall from a central control room, and they simplify routine checks across several panels.

Can a school or government office buy several units on an LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those on Monaqasat, and quotations are usually issued within one working day. A school fitting out a media room with several 46-inch modules can request one quote covering the wall, mounts and cables. Payment is possible by bank transfer, cheque or purchase order.

How does it differ from the 55-inch UDE-B model?

The UD46E-B is the smaller 46-inch member of the UDE-B series, with an active picture of 1,018.08 by 572.67 mm. The 55-inch model suits larger halls. The 46-inch fits corridors and smaller boardrooms, where viewing distances are shorter. Both sizes are part of the same series, which the manufacturer offers with the same narrow bezel design. Ask SmartRooms Qatar to compare full specifications for your room.
