Samsung UH55F-E 55-inch Video Wall Display

Name: Samsung UH55F-E 55-inch Video Wall Display
Brand: Samsung
SKU: samsung-uh55f-e
Availability: InStock

Overview

The Samsung UH55F-E is a 55-inch D-LED video wall panel with a 1.7mm bezel-to-bezel gap, 700 cd/m2 maximum brightness and a non-glare finish for bright rooms. It forms walls of up to 5x5 through DisplayPort and HDMI and accepts an optional slide-in signage player. Suited to Doha control rooms, lobbies and reception halls that run content around the clock.

What the UH55F-E does on a video wall

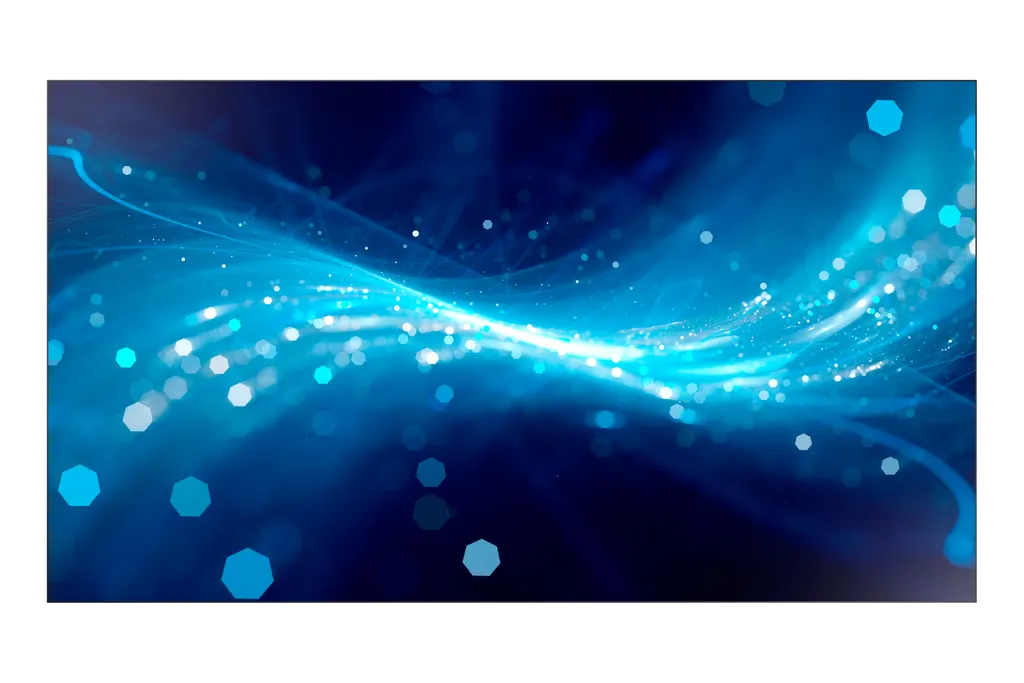

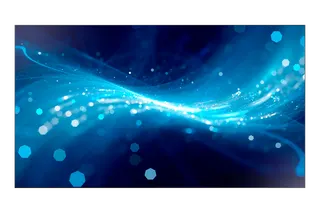

The Samsung UH55F-E is a 55-inch video wall panel built to be tiled with identical panels into one large display. Each unit is a Full HD panel at 1920 x 1080 with a 0.63 mm pixel pitch and D-LED DID technology, so the wall shows one continuous picture rather than separate screens. Its 1.7 mm bezel-to-bezel gap keeps seams from distracting viewers during presentations.

Image quality in bright conditions

With a maximum brightness of 700 cd/m2, a 4000:1 contrast ratio and 178/178 viewing angles, the panel suits rooms where people view the wall from the side or from a distance. The non-glare finish spreads light evenly across the screen, which helps content stay readable near windows and in lit atriums. Colour is 8-bit with 16.7 million colours and a 72% colour gamut. The free Color Expert Pro software helps match brightness and colour across panels.

Panel: D-LED DID with a 1209.6 x 680.4 mm active area
Response time: 8 ms
Vertical scan: 48Hz to 75Hz

Inputs and building the wall

Each panel offers two HDMI inputs, one DisplayPort input, one DVI input, one D-Sub RGB input and one composite input, with stereo audio in and out. DisplayPort 1.2 daisy-chaining lets one source feed several panels in sequence. The source data lists video wall configurations up to 5x5 and daisy-chain support up to 10x10. Control runs through RS232C in and out, RJ45 and IR. Pivot display and image rotation let a panel run in portrait, for example on a narrow signage column.

Where it fits in Qatar

A government authority in Doha could use a 3 by 3 wall of these panels in a reception hall to show services and announcements as one picture. A hotel lobby or shopping mall in West Bay could run a single panel in portrait to guide visitors. In a plant control room in Mesaieed, a wall can display operating data around the clock, with the optional slide-in signage player box handling the content.

Planning power, cooling and mounting

Each panel draws a maximum of 297 W and a typical 180 W. Its 100 to 240 V AC supply range covers Qatar's 240 V, 50 Hz mains. The operating range is 0 to 40 °C with 10 to 80% humidity, non-condensing. Outdoor summer temperatures in Qatar go well above 45 °C, so install these panels only in air-conditioned rooms with cooling sized for the wall. Each panel measures 1211.5 x 682.3 x 96.3 mm, weighs 21.0 kg and uses a 600 x 400 mm VESA pattern. The optional WMN-55VD wall mount is listed for this model. Book a free site survey before mounting a multi-panel wall to check the structure, power outlets and cable routes.

Ordering and next steps

Each unit includes a DP cable, remote controller, power cord, stereo to DB9 cable and batteries, along with a quick setup guide and warranty card. The panel is covered by the manufacturer's warranty. SmartRooms Qatar supplies, delivers to all eight municipalities, installs and accepts LPOs and government tenders, including Monaqasat. Send the number of panels, wall size and room location, and request a quote for the panels, mounts and installation.

Highlights

55-inch D-LED DID panel with Full HD 1920 x 1080 resolution
1.7mm bezel-to-bezel gap for a near-seamless wall
Maximum brightness 700 cd/m2 with a non-glare finish
Video wall configurations up to 5x5 via DisplayPort and HDMI
Two HDMI, DisplayPort, DVI, RS232C and RJ45 connections
Maximum draw 297 W, typical 180 W, 100-240 V AC supply

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

46 specifications · Source: manufacturer · checked Oct 2026

Display15

Diagonal Size: 55"
Panel Type: D-LED DID
Resolution: 1920 x 1080
Pixel Pitch (HxV, mm): 0.63 x 0.63
Active Display Size (HxV, mm): 1209.6 x 680.4 mm
Contrast Ratio: 4000:1
Viewing Angle (H/V): 178/178
Response Time: 8 ms
Display Color: 8 bit - 16.7M
Color Gamut: 72%
H-Scanning Frequency: 30kHz ~ 81kHz
Maximum Pixel Frequency: 148.5MHz
V-Scanning Frequency: 48Hz ~ 75Hz
Brightness: Max 700 cd/m2
Contrast Ratio (Dynamic): MEGA DCR

Connectivity13

HDMI In: 2
DP In: 1
DVI In: 1
USB: 1
Composite In: 1
RGB In: D-Sub
IR In: Yes
IR Out: Yes
Audio In: Stereo Mini Jack, RGB/DVI/HDMI
Audio Out: Stereo Mini Jack
RS232 In: Yes
RS232 Out: Yes
RJ45 In: Yes

Power4

Power Supply: AC 100-240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Off Mode, W): ‎less than 0.5‎
Power Consumption (On Mode, W): Max:297W, Typical:180W, BTU(Max):1013W
Power Consumption (Sleep Mode, W): ‎less than 0.5‎

Dimension2

Set Dimension (WxHxD, mm): ‎1211.5 x 682.3 x 96.3‎
Package Dimension (WxHxD): ‎1355 x 809 x 320‎

Weight2

Set Weight: ‎21.0‎
Package Weight: ‎27.4‎

Operation Conditions2

Temperature: 0~40 ℃
Humidity: 10~80% (non-condensing)

Mechanical Specification2

VESA Mount (mm): ‎600 x 400‎
Media Player Option Type: SBB (Slide In), Signage player box

General Feature1

Special: ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), Video Wall (15x15(OSD)), Video Wall Daisy Chain (10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery (80hrs Clock Keeping)

Optional Feature1

Mount: WMN-55VD

Eco1

Energy Efficiency: C

Accessory1

Included: Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries

Certification and Compliance2

EMC: FCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea) : KN22, KN24, BSMI (Chinese Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS/NZS3548, (CISPR22), CCC (China) : GB9254-2008, GB17625.1-2012
Safety: UL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1, TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : IEC60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1993, IRAM (Argentina) : IEC60950-1

Downloads

8 files from the manufacturer

XLSX Datasheets UH55F-E_Specifications_levant.xlsx 6 KB PDF Manuals & guides BN68-07435K-01_QSG_UH55F-E_UM55H_ASIA_MENA_L06_180831.0.pdf 2.3 MB PDF Manuals & guides LFDUHNEN-03_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_EU_ENG_210223.0.pdf 2.1 MB PDF Manuals & guides UH46F5_ASIA_WebManual_Ara-05_20180921.0.pdf 1.8 MB PDF Manuals & guides UH46F5_WebManual_Eng-05_20180921.0.pdf 1.6 MB PDF Manuals & guides UH46N-E_UM46N-E_UH55F-E_UM55H-E_ASIA_WebManual_Ara-00_20181121.0.pdf 1.7 MB PDF Manuals & guides UH55F-E_ASIA_MENA_QSG_BN68-07851E-01_170228.0.pdf 2.4 MB PDF Manuals & guides · Opens on manufacturer site LFDUHNEN-03_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_EU_FRA_210205.0.pdf

Questions about UH55F-E

Who is the UH55F-E designed for?

It is built for organisations that need one large display made from several panels, such as a government reception hall in Doha showing services and announcements. Each 55-inch panel joins others with a 1.7 mm bezel gap, so the wall works as a single picture. It also suits control rooms and corporate lobbies where content runs for long hours.

How many panels make a 3 by 3 video wall, and how big is it?

A 3 by 3 wall needs nine UH55F-E panels. Each active area measures 1209.6 x 680.4 mm, so the grid is about 3.6 m wide and 2.0 m high before bezel gaps, which add only a few millimetres. A Lusail operations room planning this wall should review its structure and cable routes before ordering.

Will the picture stay readable in a bright atrium with large windows?

Yes. The panel reaches a maximum of 700 cd/m2 and uses a non-glare finish that spreads light evenly, which helps content remain visible under ambient light. For a glass-fronted lobby in Msheireb, check the wall position against direct sunlight during the site survey.

Can it run in a Qatar summer without air conditioning?

No. The operating range is 0 to 40 °C with 10 to 80% humidity, non-condensing, while outdoor summer temperatures in Qatar regularly exceed 45 °C. Install it only in an air-conditioned room, and confirm the cooling capacity with the SmartRooms Qatar team before installation, especially in a plant control room in Mesaieed.

What video inputs and control ports does it have?

Each panel offers two HDMI inputs, one DisplayPort input, one DVI input, one D-Sub RGB input and one composite input, with stereo audio in and out. Control runs through RS232C in and out, RJ45 and IR in and out, and one USB port is also fitted. Confirm your source cabling before ordering.

Can one source feed several panels in a video wall?

Yes, through DisplayPort 1.2 daisy-chaining. The source data lists video wall configurations up to 5x5 using DisplayPort 1.2 and HDMI, with daisy-chain support up to 10x10. The on-screen menu also lists support for a video wall of up to 15x15. Plan the signal path before buying cables.

Does the panel include a media player?

No. The included items are a DP cable, remote controller, power cord, stereo to DB9 cable, batteries, a quick setup guide and a warranty card. A slide-in signage player box with a quad-core CPU and MagicINFO content management is available as an option. Ask for it in your quotation if you want playlists on the wall.

How much power does each panel use?

The maximum consumption is 297 W and the typical figure is 180 W. In sleep or off mode it draws less than 0.5 W. A nine-panel wall at maximum draw totals about 2,673 W before any media player. The 100 to 240 V, 50/60 Hz supply covers Qatar mains, and the energy efficiency class is C.

What mounting does it need, and how heavy is each panel?

Each panel weighs 21.0 kg and measures 1211.5 x 682.3 x 96.3 mm, with a VESA pattern of 600 x 400 mm. The optional WMN-55VD wall mount is listed for this model. A nine-panel wall weighs about 189 kg before mounts, so confirm the wall structure during the site survey.

Can the panel be used in portrait orientation?

Yes. Pivot display and image rotation are supported. A single panel in portrait suits a narrow column in a West Bay shopping mall or a hospital corridor where wayfinding needs a tall screen. Make sure the space is air-conditioned, because the operating range tops out at 40 °C.

Does the quotation include a site survey and installation?

SmartRooms Qatar offers free site surveys and professional installation, and quotations are usually returned within one working day. For a multi-panel wall, the survey checks the wall, power outlets and cable routes before delivery, so the installation plan matches the building.

Can a government entity or school order with an LPO or through Monaqasat?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. A school in Al Wakrah fitting out a hall with two or more walls can request one quotation covering the panels, mounts and installation.
