Samsung UM46N-E 46-inch Video Wall Display

Name: Samsung UM46N-E 46-inch Video Wall Display
Brand: Samsung
SKU: samsung-um46n-e
Availability: InStock

Overview

The UM46N-E is a 46-inch slim panel built for tiling into one large video wall. Each 1920 x 1080 unit has a 0.53 mm pixel pitch, a 4000:1 contrast ratio and bezels as thin as 0.55 mm on two sides. It supports wall layouts up to 5x5 through DisplayPort and HDMI, making it a fit for operations rooms, lobbies and retail atriums that need shared content across Qatar.

What the Samsung UM46N-E is built for

The Samsung UM46N-E is a 46-inch video wall display from the UMH-E series, designed to be tiled with other panels so that one image spans several screens. Each panel offers a 1920 x 1080 resolution, a 0.53 mm pixel pitch and a Slim Direct panel type, which together suit shared content walls in offices, control rooms and public spaces across Qatar. The listed model variant is LH46UMNHLBB/UE.

Image and panel facts that matter on a wall

On a multi-panel wall, the figures below decide how well content reads from across a room. The UM46N-E lists a 4000:1 contrast ratio, brightness rated at 500, viewing angles of 178 degrees horizontal and vertical, and an 8 ms response time. Colour gamut is listed at 72 percent and glass haze at 25 percent.

Contrast: 4000:1, with dynamic contrast listed as Mega
Brightness: rated at 500
Scanning: 30 kHz to 81 kHz horizontal, 48 Hz to 75 Hz vertical
Maximum pixel frequency: 148.5 MHz

Factory calibration is applied across the panels to keep brightness and colour uniform, and Samsung’s Color Expert Pro software, listed as free, supports further adjustment of uniformity.

Bezels, mounting and wall layout

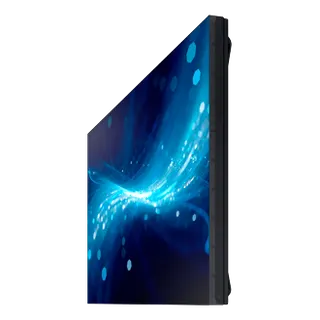

The narrow frame is the reason this model is chosen for walls. Top and left bezels measure 1.15 mm and right and bottom bezels 0.55 mm, so adjacent panels leave very small gaps. Each set measures 1020.0 x 574.6 x 96.3 mm and weighs 15.7 kg, with a VESA pattern of 600 x 400 mm. Wall layouts of up to 5x5 are supported using DisplayPort 1.2 and HDMI, and MagicInfo daisy-chain video wall support is listed. A mount and a stand are listed as optional features.

Plan the wall structure for the weight of every panel plus its mount. Before fixing a row of panels, a free site survey from SmartRooms Qatar can check wall loading, cable routes and the position of power outlets.

Connections, power and environment in Qatar

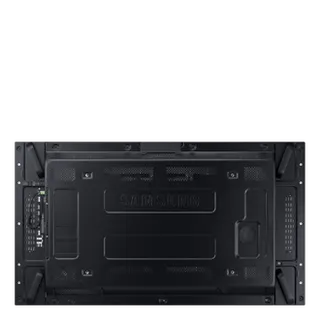

Inputs include two HDMI, one DisplayPort, one DVI, analog D-SUB RGB, one USB port and audio input. A DisplayPort loop-out passes the signal on to the next panel. Control options include RS232 in and out, RJ45 and IR input. There is no TV tuner.

Rated power input is 100 to 240 VAC at 50 or 60 Hz. The listed draw is 143 W when on, 0.5 W in sleep mode and 0.00 W when off. The operating range is 0°C to 40°C with 10 to 80 percent humidity, non-condensing. Summer temperatures in Qatar can exceed 45°C, so the panels belong in air-conditioned indoor rooms, not in unconditioned halls, porches or outdoor canopies.

Where the UM46N-E fits in Qatar

A 24-hour operations room at an energy site in Mesaieed or Ras Laffan, where rows of panels show plant status.
A retail atrium in West Bay with daylight from large glazing, where the 25 percent glass haze helps limit reflections.
A hospital command centre in Doha, where the manufacturer describes continuous 24/7 operation.
A government lobby in Msheireb showing schedules and announcements on a compact wall.

Planning your order with SmartRooms Qatar

Confirm the panel count, wall layout, mounting type and room conditions first. SmartRooms Qatar delivers to all eight municipalities of Qatar, provides professional installation and usually issues quotations within one working day. Schools, ministries and companies can order against an LPO or a government tender, including Monaqasat, and pay by bank transfer, cheque or purchase order. Products are covered by the manufacturer’s warranty.

Tell us the number of panels, the wall size and the room you have in mind, and we will prepare a quotation for your Samsung UM46N-E wall. Request a quote today.

Highlights

46-inch Slim Direct panel with 1920 x 1080 resolution
0.53 mm pixel pitch with 1.15 mm and 0.55 mm bezels
Wall layouts up to 5x5 via DisplayPort 1.2 and HDMI
4000:1 contrast ratio and 178/178 degree viewing angles
Operating range 0°C to 40°C, indoor air-conditioned use
MagicInfo daisy-chain video wall support listed

Plan your video wall

Rows3

Columns3

Wall size about 3.06 × 1.72 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

45 specifications · Source: manufacturer · checked Oct 2026

Display14

Diagonal Size: 46"
Panel Type: Slim Direct
Resolution: 1,920 x 1,080
Pixel Pitch (HxV, mm): 0.53x0.53
Brightness (Typical): Max 500
Contrast Ratio: 4000:1
Viewing Angle (H/V): 178/178
Response Time: 8ms
Color Gamut: 72%
Glass Haze: 25 %
H-Scanning Frequency: 30kHz ~ 81kHz
Maximum Pixel Frequency: 148.5MHz
V-Scanning Frequency: 48Hz ~ 75Hz
Contrast Ratio (Dynamic): Mega

Connectivity13

HDMI In: 2
DP In: 1
DVI In: Yes
Tuner In: No
USB: 1
RGB In: Analog D-SUB
IR In: Yes
Audio In: Yes
Audio Out: Stereo Mini Jack
Video Out: DP(Loop-out)
RS232 In: Yes
RS232 Out: Yes
RJ45 In: Yes

Power4

Power Supply: AC 100 to 240 VAC (60 / 50Hz)
Power Consumption (Off Mode, W): ‎0.00‎
Power Consumption (On Mode, W): ‎143‎
Power Consumption (Sleep Mode, W): ‎0.5‎

Dimension2

Set Dimension (WxHxD, mm): ‎1020.0 x 574.6 x 96.3‎
Package Dimension (WxHxD): ‎1153 x 719 x 295‎

Weight2

Set Weight: ‎15.7‎
Package Weight: ‎21.6‎

Operation Conditions2

Temperature: 0℃~ 40℃
Humidity: 10 ~ 80%, non-condensing

Mechanical Specification3

VESA Mount (mm): ‎600 x 400‎
Bezel Width (mm): 1.15mm(U/L), 0.55mm(R/B)
Frame Material: Non-Glossy

Optional Feature2

Mount: Yes
Stand: Yes

Internal Player (MagicInfo)1

MagicInfo Daisychain Videowall Support: Yes

Certification and Compliance2

EMC: FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 /2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)C-Tick (Australia) : AS/NZS CISPR22:2009CCC(China) :GB9254-2008 GB17625.1-2012GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007
Safety: CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE

Downloads

5 files from the manufacturer

XLSX Datasheets UM46N-E_Specifications_levant.xlsx 5 KB PDF Manuals & guides BN68-09339C-00_QSG_UH46N-E_UM46N-E_ASIA_MENA_L06_181109.0.pdf 2.6 MB PDF Manuals & guides LFDUHNEN-03_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_EU_ENG_210223.0.pdf 2.1 MB PDF Manuals & guides UH46N-E_UM46N-E_UH55F-E_UM55H-E_ASIA_WebManual_Ara-00_20181121.0.pdf 1.7 MB PDF Manuals & guides · Opens on manufacturer site LFDUHNEN-03_WEB_UDE-ABC_UHF-E_UHN-E_UMH-E_UMN-E_EU_FRA_210205.0.pdf

Questions about UM46N-E

What is the Samsung UM46N-E best suited for?

It is a 46-inch video wall panel, meant to be tiled with other panels to form one larger display rather than used alone. It suits operations rooms, retail atriums and corporate lobbies where content must run across several screens. Its 1920 x 1080 resolution and bezels of 0.55 mm to 1.15 mm keep the joins between panels thin. Request a quote if you are planning a multi-panel wall.

Would this panel suit a 24-hour control room at an energy site in Mesaieed or Ras Laffan?

It can, provided the room is air-conditioned, because the operating range is 0°C to 40°C. The manufacturer describes continuous 24/7 operation, and a 5x5 layout is supported over DisplayPort and HDMI. Plan the power draw as well: the listed 143 W when on adds up quickly across a large wall. A site survey can confirm room conditions before you order.

What is the largest wall layout the UM46N-E supports?

The source lists configurations of up to 5x5, which means up to 25 panels presenting one image across the wall. The connections used are DisplayPort 1.2 and HDMI. The actual layout depends on your signal source, cabling and mounting, so SmartRooms Qatar will confirm the exact wiring plan during the quotation stage.

Can I run this panel in an unair-conditioned space or an outdoor canopy?

No. The operating temperature is 0°C to 40°C and humidity must stay between 10 and 80 percent, non-condensing. Summer temperatures in Qatar can exceed 45°C, so install the panels indoors in an air-conditioned room with stable conditions. Confirm the environment with the SmartRooms Qatar team before you request a quote for any location with heat or dust.

Which video inputs and outputs does it have?

It has two HDMI inputs, one DisplayPort input, one DVI input and an analog D-SUB RGB input. A DisplayPort loop-out passes the signal to the next panel in a chain. There is also one USB port, an audio input and a stereo mini jack audio output. There is no TV tuner, so you will need a separate source for broadcast or cable content.

Is this model suitable for a hospital command centre in Doha that needs central control?

Control options include RS232 in and out, RJ45 and IR input, which allow integration with a central controller. MagicInfo daisy-chain video wall support is listed for building a wall from linked panels. Hospital command centres often need stable 24/7 display, and the manufacturer describes continuous operation. Ask SmartRooms Qatar to check the control protocol and network requirements before ordering.

What are the dimensions, weight and mounting pattern?

Each set measures 1020.0 x 574.6 x 96.3 mm and weighs 15.7 kg. The VESA mounting pattern is 600 x 400 mm. Plan the wall structure for the weight of every panel plus its mount. A free site survey from SmartRooms Qatar can check wall loading and cable routes before a row of heavy panels is fixed in place.

Are the stand and wall mount included with the panel?

The datasheet lists a mount and a stand as optional features, so they should not be assumed to be part of the package. SmartRooms Qatar will confirm which mount or stand is included or needed in your quotation, based on how the wall will be built and the wall structure available on site.

How much power does the UM46N-E draw?

The listed consumption is 143 W when on, 0.5 W in sleep mode and 0.00 W when off. The rated input is 100 to 240 VAC at 50 or 60 Hz. For a nine-panel wall, the on-mode figure totals about 1,287 W. Use this when planning power outlets, circuits and air-conditioning load for the room.

Will colour and brightness match across the panels?

The manufacturer lists a multi-step factory calibration to keep brightness and colour uniform across multiple displays. It also lists Samsung’s Color Expert Pro software, described as free, for managing uniformity. Matching is also affected by viewing angle and room light, so the layout and placement should be reviewed during the site survey.

Would this panel work in a West Bay retail atrium with large windows?

It can work in an indoor atrium if the room is air-conditioned and within 0°C to 40°C. The listed glass haze of 25 percent helps limit reflections from daylight, and the 4000:1 contrast ratio supports clear images. Position the wall away from direct sun on the glass, and ask SmartRooms Qatar to review the layout during the free site survey.

We are a school in Al Wakrah fitting out a meeting hall. Can we order with an LPO?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. Send the panel count and room details so the quotation can cover delivery to Al Wakrah, professional installation and any mounting needs.
