VH55B-E

A 55-inch panel designed for tiled video walls

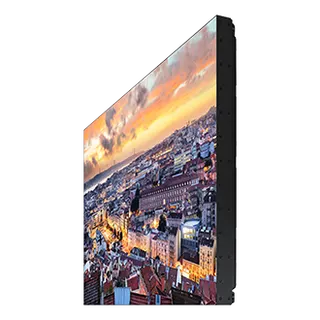

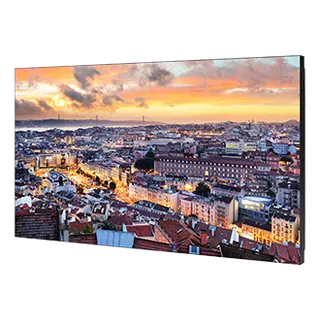

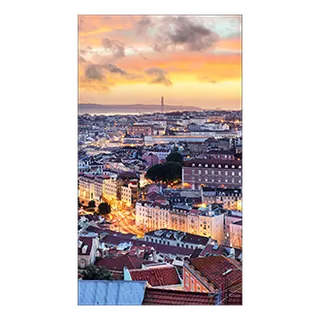

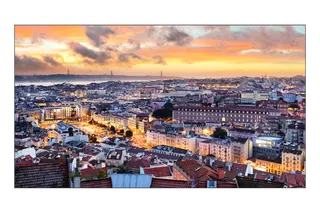

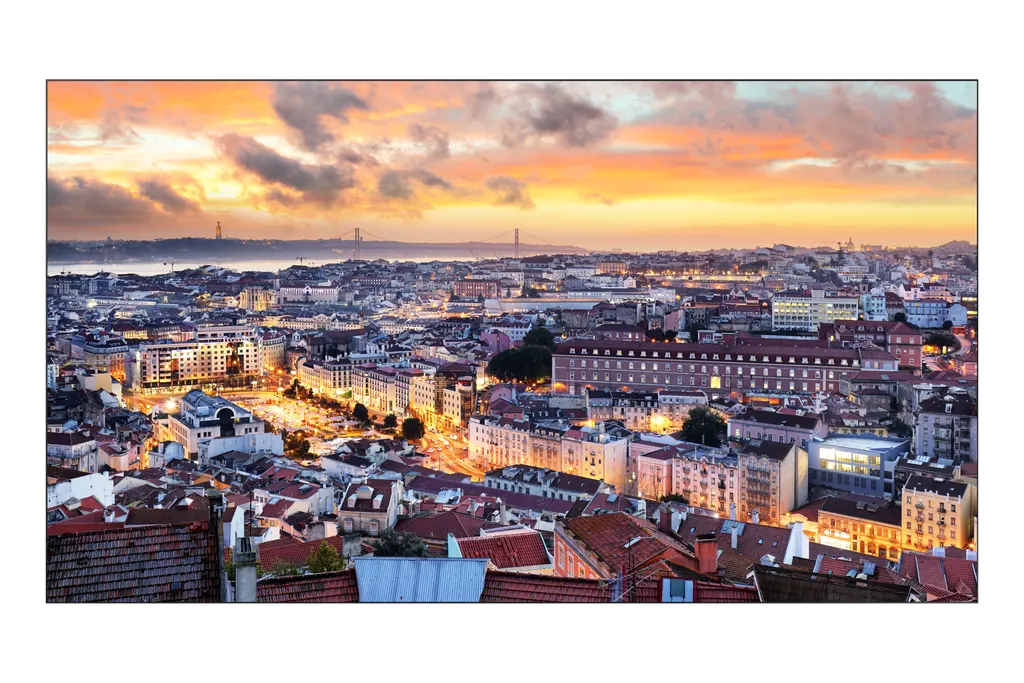

The quality of a video wall depends on the gaps between its screens. The Samsung VH55B-E keeps those gaps narrow: its panel-to-panel bezel measures 1.74 mm, while the active-area-to-active-area gap is 2.49 mm. Each unit measures 1212.2 x 683.0 x 70.4 mm, weighs 19.5 kg and has a 600 x 400 mm VESA mounting pattern. The model ships without a stand, so wall mounting is the intended installation route.

Picture performance: brightness, contrast and viewing angle

The IPS panel is specified at a typical maximum brightness of 700 nit, a 1,000:1 contrast ratio and a dynamic contrast ratio of 140,000:1. Viewing angles are rated at 178 degrees horizontally and 178 degrees vertically, so people seated off-centre in a boardroom or passing a lobby entrance can read the same content. The panel has 0.28 % glass haze, 72 % colour gamut and an 8 ms response time.

• Resolution: 1,920 x 1,080 per panel, 0.63 x 0.63 mm pixel pitch
• Operation: rated for 24/7 operation
• Power: 250 W in on mode, 0.5 W in sleep mode

Inputs and control for a multi-screen layout

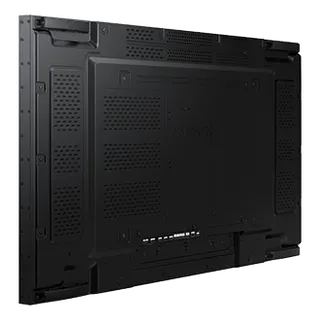

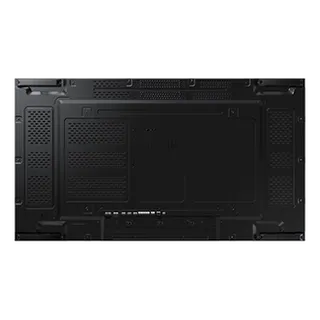

Each panel has two HDMI 2 inputs with HDCP 2.2 support, one DisplayPort 1.2 input, one DVI input and one USB port. Control and network connections include RJ45, RS232 in and out, and IR in. Audio input, a stereo mini-jack audio output and video output are also fitted. DisplayPort 1.2 and HDMI can be daisy-chained, so one source can drive several panels without extra graphics hardware on each screen.

Where it fits in Qatar

In a corporate lobby in Msheireb or West Bay, a group of these panels can show welcome messages and wayfinding for visitors throughout the Sunday-to-Thursday working week. In a Lusail shopping mall, a narrow-bezel wall behind a promotional zone benefits from 700 nit brightness under bright store lighting. A control room at an industrial site in Mesaieed can use the 24/7 rating to keep monitoring dashboards visible around the clock.

Planning the installation

Each panel weighs 19.5 kg before mounting hardware, so a 3 by 2 array of six units adds about 117 kg to the wall. Check the wall structure before ordering. The operating range is 0 to 40 degrees Celsius with 10 to 90 % humidity, which is well below the summer heat in Qatar, where temperatures exceed 45 degrees. Install the panels in air-conditioned indoor spaces and confirm room conditions with the SmartRooms Qatar team. The IP5x dust rating helps, but it does not replace a clean indoor environment. The power input accepts 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Free site surveys from SmartRooms Qatar check wall loading, ventilation and cable routes before the mounts are ordered.

To plan your wall, request a quote from SmartRooms Qatar with the wall dimensions, the number of panels and your source equipment. We will return a quotation, usually within one working day, and confirm any lead time with it.
