VM55B-U

What the VM55B-U is built for

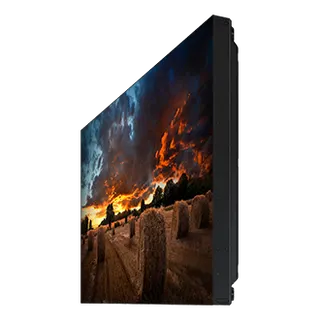

The Samsung VM55B-U is a 55-inch IPS panel designed to be tiled into a video wall. Each unit runs at 1,920 x 1,080 with a 0.63 x 0.63 mm pixel pitch. Its bezels measure 2.25 mm on the top and left and 1.25 mm on the right and bottom, so two neighbouring panels leave a joint of 3.5 mm, which keeps the grid looking like one picture rather than separate screens.

The panel is rated for 24/7 operation with typical brightness of up to 500 nit, a 1,200:1 contrast ratio and a 178/178 viewing angle. A non-glare surface spreads ambient light across the glass, which helps in rooms with bright overhead lighting or large windows where a glossy screen would reflect.

Specifications that shape the purchase

• Inputs: two HDMI inputs (HDMI version 2), one DisplayPort 1.2 input, a DVI input and one USB port, with HDCP 2.2 support.
• Daisy chain: DisplayPort 1.2 or HDMI links pass UHD content from one panel to the next, so a single source can feed several screens without an external graphics card.
• Control: RS232 in and out, an RJ45 input and an IR receiver for remote or building control.
• Power: AC 100 to 240 V at 50/60 Hz, drawing 220 W in operation and 0.5 W in sleep mode. The panel is rated energy efficiency class C.
• Size and weight: 1213.5 x 684.3 x 73.1 mm and 21.2 kg per panel. The VESA pattern is 600 x 400 mm. No stand option is listed, so plan a wall or frame mount.
• Calibration: multi-step factory tuning for uniform brightness and colour, with Color Expert Pro software for advanced adjustment and Color Expert Pro Mobile for quick white balance on walls up to 5x5.

Where it fits in Qatar

A government ministry in Msheireb could use a 3x3 array in an operations room, where staff monitor several feeds at once. Three panels side by side span about 3.6 m of width, and three stacked add about 2.05 m of height, a footprint that suits a boardroom or briefing room wall.

A hotel lobby in The Pearl or a mall atrium in West Bay can run looping content on a wall that stays on around the clock, and the brightness and non-glare surface help the image stay readable in a bright entrance hall. A training centre in Al Sadd or a university unit in Education City can use the panels in a collaborative room, showing presentations or shared data from several sources.

What to plan before you order

The operating range is 0 to 40 °C at 10 to 90% humidity. Summer temperatures in Qatar can pass 45 °C, so these panels belong in air-conditioned indoor rooms where the cooling keeps the space inside that range, not in unconditioned lobbies, outdoor canopies or rooftop areas. Confirm the room conditions with the SmartRooms Qatar team before you commit to a location.

Each panel weighs 21.2 kg, so the wall structure must carry the combined load. A free site survey before mounting checks the wall construction, sightlines, power points and cable routes. The IP5x rating supports dusty sites, but it does not change the operating temperature limit.

For a school or ministry buying several units, orders can be raised on an LPO or purchase order, and payment can be made by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty.

Send us your wall dimensions, panel count and mounting location, and request a quote. SmartRooms Qatar usually returns quotations within one working day, with delivery to all eight municipalities and professional installation available.
