Samsung WMN-46VD 46-inch Video Wall Mount

Name: Samsung WMN-46VD 46-inch Video Wall Mount
Brand: Samsung
SKU: samsung-wmn-46vd
Availability: InStock

Overview

The Samsung WMN-46VD is a wall mount for 46-inch video walls designed around Samsung UD/UE Series displays. Its frame is sized to match the panels, so installers can fit the video wall straight onto the mount. It offers a 39 mm slim depth, three-axis adjustment to reduce bezel gaps, and support for both landscape and portrait orientations. It suits boardrooms, control rooms and lobbies across Qatar where a clean, gap-free wall matters.

What the WMN-46VD mount is designed for

The Samsung WMN-46VD is a wall mount for 46-inch video walls, specified for Samsung's UD/UE Series video wall panels. Its frame is sized to the panels it is built for, so the mount and the video wall share one set of dimensions. Installers do not need to measure the mount, work out the gap and trim the frame before the panels go up. The WMN-46VD/UE variant sits within the same model family.

Dimensions, weight and fixing points

The set dimensions are 1213 x 539.8 x 39 mm in landscape and 684 x 539.8 x 39 mm in portrait, expressed as width by height by depth. The package weighs 10.4 kg. The mount supports VESA patterns of 400 x 400 mm, 600 x 400 mm and 400 x 600 mm, so the rear fixing pattern of your display must match one of these layouts before you order.

Three-axis alignment for a gap-free wall

Bezel gaps between panels are the first detail viewers notice, and correcting them after installation means taking panels down and fitting them again. The mount offers three directions of adjustment. Rotational screws give up and down fine tuning on the x-axis, left and right movement on the y-axis corrects horizontal alignment, and a push and pull pop-up action on the z-axis brings each panel forward during fitting.

Slim depth and orientation flexibility

At 39 mm deep, the mount keeps the video wall close to the wall surface, which gives a cleaner profile in glass-fronted meeting rooms and lobbies. Cables and mounting hardware are designed to sit behind the frame rather than in front of it. The mount supports both landscape and portrait orientations, so one wall can show wide presentations or vertical content such as wayfinding and schedules.

Where it fits in Qatar

A government authority in West Bay preparing a public information lobby with a multi-panel video wall, where a clean wall finish and a near-flush profile matter.
A school or university in Education City creating a collaborative learning space, with portrait panels for displaying student work and landscape panels for group presentations.
A hotel or corporate office in Lusail or The Pearl installing an operations wall whose panels must line up precisely.

What to plan before ordering

Confirm that your panels are from the Samsung UD/UE Series before ordering, because the mount is sized for those displays. Check the wall structure and fixing points against the VESA patterns listed above, and allow for the 10.4 kg package weight within the total load on the wall. A free site survey from SmartRooms Qatar helps confirm the wall structure, fixing method and cable route before the mount is delivered. If the installation area is exposed to heat or dust through large windows, confirm the environment with the SmartRooms Qatar team during the survey.

Request a quote from SmartRooms Qatar for the WMN-46VD. We usually issue quotations within one working day and will confirm the estimated lead time with the quotation. Orders can be placed by purchase order or LPO, with delivery across all eight municipalities of Qatar.

Highlights

46-inch wall mount for Samsung UD/UE Series video walls
39 mm slim depth keeps the wall close to the surface
Three-axis adjustment to reduce bezel gaps between panels
Supports both landscape and portrait orientation
VESA patterns: 400 x 400, 600 x 400 and 400 x 600 mm
Landscape 1213 x 539.8 mm; portrait 684 x 539.8 mm

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

3 specifications · Source: manufacturer · checked Oct 2026

Dimension1

Set Dimension (WxHxD, mm): 1213 x 539.8 x 39 (LAND), 684 x 539.8 x 39 (PORT)

Weight1

Package Weight: 10.4 kg

Mechanical Specification1

VESA Mount (mm): 400X400, 600X400, 400X600 mm

Downloads

1 file from the manufacturer

XLSX Datasheets WMN-46VD_Specifications_ae.xlsx 4 KB

Questions about WMN-46VD

What is the Samsung WMN-46VD used for?

The WMN-46VD is a wall mount for 46-inch video walls built from Samsung UD/UE Series displays. It holds the panels in a fixed, aligned frame in a boardroom, control room, lobby or classroom. Because the mount is sized to the video wall, it suits organisations in Doha and across Qatar that want a neat, permanent multi-panel display rather than freestanding stands. Request a quote to confirm it matches your panels.

Is the WMN-46VD compatible with any 46-inch display?

No. The source data positions this mount for Samsung's UD/UE Series video walls, and it is sized specifically to those panels. Do not assume a 46-inch display will fit just because the size matches. Confirm your exact panel model with SmartRooms Qatar before ordering, particularly if your project includes panels from another brand.

What are the dimensions of the mount?

The set dimensions are 1213 x 539.8 x 39 mm in landscape and 684 x 539.8 x 39 mm in portrait, given as width by height by depth. The 39 mm depth is the figure to check against your wall space, especially in corridors or where furniture stands close to the wall. The package weighs 10.4 kg, so plan for handling. A free site survey can verify these measurements on site before delivery.

How does the three-axis adjustment work?

The mount adjusts in three directions. Rotational screws give up and down fine tuning on the x-axis, left and right movement on the y-axis corrects horizontal alignment, and the z-axis push and pull pop-up action moves the panel out from the wall during fitting. Together these let installers close bezel gaps so the wall reads as one picture, which matters in control rooms and public lobbies where gaps distract from the content.

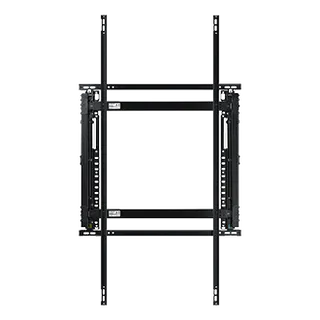

Can the mount be used in both landscape and portrait?

Yes. The mount supports both landscape and portrait orientations, with a portrait set size of 684 x 539.8 x 39 mm. A school in Education City might use portrait panels for student work and landscape panels for presentations, while a hospital reception in Al Sadd might use portrait screens for schedules. State the orientation you need in your quotation so the fixing layout and mount configuration match your content plan.

Which VESA patterns does it support?

The WMN-46VD lists VESA patterns of 400 x 400 mm, 600 x 400 mm and 400 x 600 mm. Check your display's rear mounting holes against this list before ordering. If your panel uses a different spacing, ask SmartRooms Qatar to advise as part of the quotation. Accurate measurement of the fixing points is also part of the site survey, which reduces the risk of a mismatch on installation day.

Does the mount hide cables?

The 39 mm slim depth is designed to keep cables and installation hardware behind the frame, which reduces clutter in the installation area. Cable routing still depends on the panel's connection points and the wall construction. In an office boardroom in West Bay, cables fed through the wall to a media cabinet give the cleanest result. The source data does not describe a separate cable management kit, so confirm routing during the site survey.

Is it suitable for a boardroom in Msheireb or West Bay?

It suits a boardroom where a permanent multi-panel display must sit close to the wall. The 39 mm depth keeps the screens near the finish, which suits contemporary interiors in Msheireb and the office towers of West Bay. Because the mount is sized to the panels, installation planning is more predictable than with generic brackets. Request a quote with your room dimensions and panel count for a clear recommendation.

What should we check about the wall before installation?

Check the wall structure, its load capacity, the fixing method and the route for cables before installation. The mount itself weighs 10.4 kg as a package, and the full video wall adds to that load, so the wall must carry the combined weight. A free site survey from SmartRooms Qatar covers these checks along with the wall finish, so the installation team arrives with a clear plan.

Can a school or university order several mounts on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), and payment can be made by bank transfer, cheque or purchase order. A school or university fitting out several video walls can list each mount by model, WMN-46VD, with the quantity needed for each wall in one order. Share the total number of walls and the installation locations so the lead time and installation can be confirmed together with the quotation.

Is the mount covered by a warranty?

Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. The source data does not state a warranty period, so the exact term and conditions for the WMN-46VD should be confirmed in your quotation. Keep the quotation and the invoice with your asset records so warranty claims can be handled efficiently if the mount needs attention later.
