WMN-55VD

What the WMN-55VD is built to do

The Samsung WMN-55VD is a wall mount sized for 55-inch panels in Samsung's SMART Signage UD and UE series video walls. Its dimensions are matched to those displays, so the installer fixes the mount to the wall first and then fits the panel into it, without measuring and calculating gaps on site.

Dimensions, orientation and fixing pattern

The set dimensions are 1022 x 539.8 x 39 mm in landscape and 576.6 x 539.8 x 39 mm in portrait. The listed VESA patterns are 400 x 400 mm, 600 x 400 mm and 400 x 600 mm. The package weighs 11.3 kg. Compare these figures with the rear mounting pattern of your panel and with your wall plan before ordering.

• Landscape: 1022 x 539.8 x 39 mm

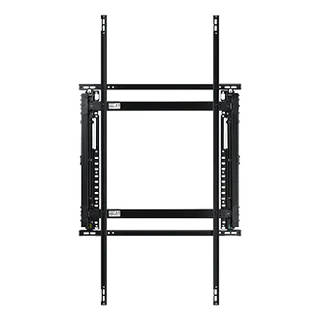

• Portrait: 576.6 x 539.8 x 39 mm
• VESA patterns: 400 x 400, 600 x 400, 400 x 600 mm

Three-axis adjustment for tighter bezel gaps

Gaps between panels pull the eye away from the content on screen. This mount adjusts on three axes. Vertical movement uses rotational screws for fine tuning, horizontal movement lets installers shift panels left and right for fine tuning, and the depth axis uses a push-and-pull pop-up action. These controls let installers line up neighbouring panels without taking the whole array apart.

Slim depth and cable planning

At 39 mm deep, the panel sits close to the wall, which gives cleaner lines in reception areas and boardrooms. Power and signal cables still need a route. Plan that path and the position of any wall box before the mount is fixed, so cables stay tidy and reachable for future service.

Where it fits in Qatar

Three scenarios show where this mount suits:

• Operations room in the Industrial Area: a multi-panel status wall where accurate alignment makes dashboards easier to read from a distance. Confirm the room's temperature and dust conditions with the SmartRooms Qatar team before choosing the wall position.
• Student hub in Education City: an information wall in a shared study area, where the slim profile keeps walkways clear.
• Boardroom in a government office in Doha: landscape presentations and portrait documents on one wall, using the same mount type because the mount supports both orientations.

What to plan before ordering

Confirm that the display is a 55-inch Samsung UD or UE series panel and check its rear VESA pattern. Request a free site survey to check that the wall is flat and able to carry the combined weight of the mount and display. Decide the number of panels and the orientation of each one so the wall grid is planned from the start. SmartRooms Qatar usually issues quotations within one working day. Schools and government bodies can order with a purchase order (LPO) or respond to government tenders, and can pay by bank transfer, cheque or purchase order.

Send us your panel model, wall dimensions and orientation plan, and request a quote from SmartRooms Qatar. We will confirm compatibility and supply the mount across Qatar.
