PN-UN553V

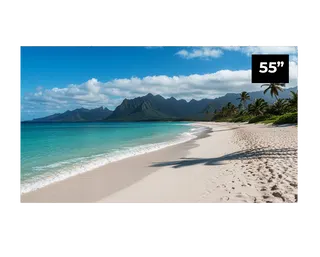

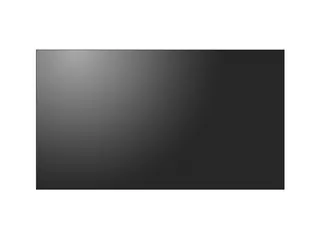

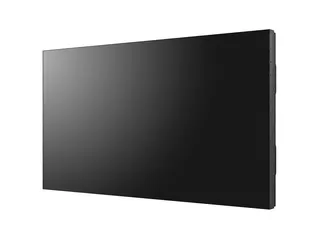

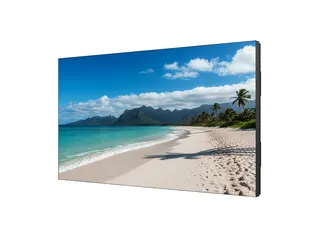

Sharp PN-UN553V 55-inch Narrow Bezel Video Wall Display
- Screen size
- 55 / 138.8
- Bezel
- 1.1 (bottom/right); 1.8…
- Resolution
- 1920 x 1080
- Brightness
- 500 nit
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Sharp PN-UN553V is a 55-inch video wall display with a 16:9 IPS panel, 1920 x 1080 resolution, 500 cd/m² brightness and bezels from 1.1 mm. It supports landscape and portrait mounting, has an OPS slot for a slot-in PC, and carries a 3-year warranty. It suits retail floors, visitor centres and lobbies in Doha and Lusail that need several screens to read as one.
A 55-inch tile built for multi-screen walls
The Sharp PN-UN553V is a 55-inch IPS display for building video walls and for single-screen signage in indoor public spaces. Its 1920 x 1080 native panel is rated at 500 cd/m², and the bezels measure 1.1 mm on the bottom and right, 1.8 mm on the top and left, or 2.9 mm when symmetrical. Tiled together, these narrow frames keep the gaps between screens small, so a group of units reads as one picture.
Image and connectivity details that matter on site
- Contrast: 3500:1 typical, with 178 degree horizontal and vertical viewing angles at typical levels.
- Motion: 8 ms grey-to-grey typical response and a 60 Hz panel refresh rate.
- Inputs: 2 HDMI and 2 DisplayPort inputs with HDCP, plus DVI-D, VGA and composite. HDMI inputs accept UHD at 60 Hz.
- Loop-through: one HDMI and one DisplayPort output for daisy-chaining units without an external processor.

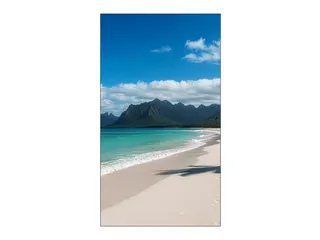

- Orientation: landscape or portrait, which suits pillars, lift lobbies and narrow corridors.
Setup, calibration and remote management
Auto TileMatrix and automatic tiling reduce manual setup when you connect several units, and each display leaves the factory calibrated for gamma, intensity, RGB, uniformity and white point. For on-site adjustment, PC-less calibration works with a USB sensor, and the Display Wall Calibrator software covers corner uniformity and white point across a wall. Fleet management runs through NaViSet Administrator 2, which can send automatic alarm emails and keep a user-readable log. A built-in media player reads files from microSD or USB, so a looping playlist can run without a PC.
Where it fits in Qatar
Three scenarios show how buyers use this model:
- Retail and malls: a promotional wall on a shopping floor in West Bay or Lusail, where bright content must stay visible in well-lit areas.
- Visitor and heritage venues: a museum or cultural centre in Doha running a multi-screen timeline with scheduled content and an integrated temperature sensor.
- Government and corporate lobbies: a reception wall in Msheireb or the Industrial Area showing announcements, visitor information and wayfinding.
What to plan before ordering

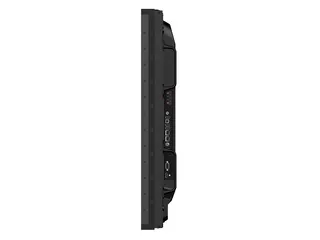

Each panel weighs 28.6 kg and measures 1,212.7 x 683.5 x 106.4 mm, so the wall structure and mounting need checking before delivery. The VESA pattern is 400 x 400 mm with M6 holes, and the wall mount options listed for this model are PD04VWM MFS 46-55 L/P, PD04VW QR 46-55 L/P and CK02XUN MFS 55 L/P. The rated operating range is 0 to +40°C with 20 to 80% humidity. Qatar summer temperatures exceed 45°C, so place the wall in an air-conditioned indoor space rather than an outdoor, glazed or unconditioned area, and confirm site conditions with the SmartRooms Qatar team. If you need a PC inside the panel, the OPS slot takes slot-in PCs rated up to 3.6 A and 58 W. Typical power draw is 140 W.
Request a quote
SmartRooms Qatar supplies the PN-UN553V with a free site survey before wall planning, professional installation and delivery across all eight municipalities of Qatar. Quotations are usually issued within one working day, and purchase orders and government tenders are welcome. The package includes the display, a DisplayPort cable, an HDMI cable, a LAN cable and a power cable. Request a quote for the number of panels and the wall layout you need, and we will confirm stock and timing with your quotation.
Highlights
- 1920 x 1080 IPS panel rated at 500 cd/m² brightness
- Bezels of 1.1 mm bottom/right, 1.8 mm top/left, 2.9 mm symmetrical
- Landscape and portrait orientation with 178 degree viewing angles
- 2 HDMI and 2 DisplayPort inputs with HDCP, loop-through outputs
- OPS slot for slot-in PCs with up to 3.6 A and 58 W
- 3-year warranty including backlight, optional 4th and 5th year
Plan your video wall
Rows
Columns
Wall size about 3.65 × 2.05 m · 9 panels
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
68 specifications · Source: manufacturer · checked Oct 2026
Display11
- Panel Technology
- IPS with Direct LED backlights
- Screen Size [inch/cm]
- 55 / 138.8
- Aspect Ratio
- 16:9
- Brightness [cd/m²]
- 500
- Contrast Ratio (typ.)
- 3500:1
- Viewing Angle [°]
- 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
- Colour Gamut
- 72% of NTSC
- Response Time (typ.) [ms]
- 8 (grey-to-grey)
- Panel Refresh Rate [Hz]
- 60
- Haze Level [%]
- Pro (25)
- Supported Orientation
- Landscape; Portrait
Resolution4
- Native Resolution
- 1920 x 1080
- Supported Resolutions
- 1024 x 768;; 1280 x 1024;; 1280 x 768;; 1360 x 768;; 1600 x 1200;; 1920 x 1080;; 3840 x 2160;; 640 x 480;; 800 x 600
- Supported on DisplayPort and HDMI
- 1080i;; 1080p;; 720p (50/60 Hz)
- Supported on HDMI only
- 1080i (50/60 Hz)
Synchronisation Rate2
- Horizontal Frequency [kHz]
- 26 - 134
- Vertical Frequency [Hz]
- 23 - 86

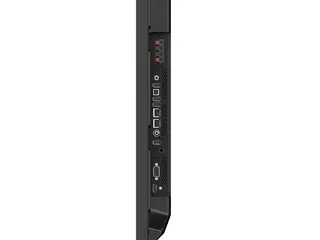

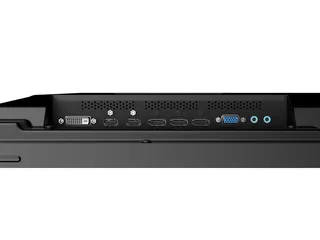

Connectivity17
- Input Video Analogue
- 1 x VGA; Composite (RCA)
- Input Video Digital
- 1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
- Input Audio Analogue
- 2 x 3,5 mm jack
- Input Audio Digital
- 2 x DisplayPort; 2 x HDMI
- Input Control
- 1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit
- Input Data
- 1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered)
- Output Video Digital
- 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)
- Output Audio Analogue
- 1 x 3,5 mm jack
- Output Control
- LAN 100Mbit
- HDMI IN 1
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- HDMI IN 2
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- HDMI OUT
- Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: 1
- DP IN 1
- Video Input; HDCP (2.2); Audio Input
- DP OUT
- Video Output; HDCP (2.2); Audio Output; Loop Through: 1
- USB-A 1
- USB (2.0); 10 W; Peripherals; USB Storage
- USB-A 2
- USB (2.0); Peripherals
- USB-A 3
- USB (2.0)
Calibration4
- Factory Calibration
- Gamma; Intensity; RGB; Uniformity; White Point
- Sensor Calibration (through USB)
- PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
- Calibration with Software
- Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point
- Calibration Software
- Display Wall Calibrator
Open Modular Intelligence2
- OPS Slot
- Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
- OPS Max. Current / Power Consumption [A / W]
- 3.6 / 58
Sensors2
- Human Sensor
- Optional, external, 4-5m range, triggered actions programmable
- Temperature Sensor
- Integrated, 3 sensors, triggered actions programmable
Electrical2
- Power Consumption [W]
- 140 (typ.); 140 Eco (shipment setting)
- Power Savings Mode [W]
- < 0.5; < 2 (Networked Standby)
Environmental Conditions4
- Operating Temperature [°C]
- +0 to +40
- Operating Humidity [%]
- 20 to 80
- Storage Humidity [%]
- 10 to 90
- Storage Temperature [°C]
- -20 to 60
Mechanical4
- Dimensions (W x H x D) [mm]
- 1,212.7 x 683.5 x 106.4; Without stand: 1,212.7 x 683.5 x 106.4
- Weight [kg]
- 28.6; Without stand: 28.6
- Bezel Width [mm]
- 1.1 (bottom/right); 1.8 (top/left); 2.9 (symmetrical)

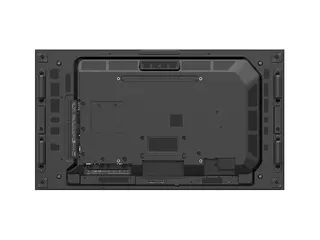

- VESA Mounting [mm]
- 4 holes; 400 x 400 (FDMI); M6
Mediaplayer3
- Supported Image Formats
- JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
- Supported Video Formats
- MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
- Supported Audio Formats
- MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Available Options2
- Accessories
- Calibration kit (KT-LFD-CC2); Feet (ST-5220); Remote control kit (KT-RC3); Speaker (SP-RM3); Wall mount (PD04VWM MFS 46-55 L/P; PD04VW QR 46-55 L/P; CK02XUN MFS 55 L/P)
- OPS Slot
- Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs
Regulatory2
- Safety and Ergonomics
- BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
- Pixel Failure Class
- ISO 9241-307, Class 2
Green Features1
- Energy Efficiency
- Carbon Savings Meter; Energy Consumption: 122 kWh/1000 h; Energy Efficiency Class: G; Human Sensor; LED Backlight
Additional Features8
- Special Characteristics
- Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function
- Colour Versions
- Black Front Bezel, Black Back Cabinet
- Audio
- Optional Speakers (15 W + 15 W)
- Plug and Play
- VESA DDC/CI
- Shipping Content
- Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable
- Warranty
- 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
- Operating Hours
- 24/7
- Remote Management
- NaViSet Administrator 2
Downloads
13 files from the manufacturer
PDF
Sharp PN-UN553V datasheets (PDF, 636 KB)
PDF
Sharp PN-UN553V manuals & guides (PDF, 12.5 MB)
PDF
Sharp PN-UN553V manuals & guides (PDF, 455 KB)
PDF
Sharp PN-UN553V manuals & guides (PDF, 15.7 MB)
PDF
Sharp PN-UN553V manuals & guides (PDF, 741 KB)
PDF
Sharp PN-UN553V brochures (PDF, 3.6 MB)
PDF
Sharp PN-UN553V brochures (PDF, 1.0 MB)
URL
Sharp PN-UN553V brochures (URL)
PDF
Sharp PN-UN553V drawings & cad (PDF, 378 KB)
DXF
Sharp PN-UN553V drawings & cad (DXF)
PDF
Sharp PN-UN553V certificates & compliance (PDF, 364 KB)
PDF
Sharp PN-UN553V certificates & compliance (PDF, 331 KB)
PDF
Sharp PN-UN553V certificates & compliance (PDF, 319 KB)
Questions about PN-UN553V
What is the Sharp PN-UN553V best used for?
It is a 55-inch display built for video walls and single-screen digital signage in indoor, public-facing spaces. Its 1920 x 1080 IPS panel, 500 cd/m² brightness and 24/7 operating use suit retail floors, visitor centres and lobbies in Doha, West Bay and Lusail where content must stay readable through the working day.
How thin are the bezels, and how do they affect a video wall?
Bezels measure 1.1 mm on the bottom and right, 1.8 mm on the top and left, and 2.9 mm when symmetrical. When several units are tiled, the gaps between screens stay small, so a wall in a mall atrium or hotel foyer reads as one continuous picture rather than a grid of framed screens.
Can the PN-UN553V be mounted in portrait orientation?
Yes. The panel supports both landscape and portrait orientation. Portrait mounting suits pillars, lift lobbies and narrow corridors in Qatari malls and hotels. Viewing angles are rated at 178 degrees horizontally and vertically at typical contrast, so people walking past from the side can still see the content clearly.
What is the operating temperature limit, and can it go in an outdoor or unconditioned area?
The rated operating temperature is 0 to +40°C with 20 to 80% humidity. Summer temperatures in Qatar often exceed 45°C, so the panel should sit inside an air-conditioned building, not in an outdoor, glazed or unconditioned space. Confirm your site conditions with the SmartRooms Qatar team before the quotation is issued.
Which video inputs and outputs does it have?
It has two HDMI inputs and two DisplayPort inputs, both with HDCP, plus one DVI-D, one VGA and one composite input. HDMI inputs accept UHD at 60 Hz. The HDMI and DisplayPort outputs allow loop-through to the next panel, so a set of units can be connected in a chain from one source.
Can I daisy-chain several panels without an external video processor?
Yes. The panel offers one HDMI output and one DisplayPort output with loop-through, and the Auto TileMatrix and automatic tiling features help configure a multi-panel wall. For a five-by-three layout in a shopping centre, this reduces the number of separate sources and cables needed to feed the wall.
Can a PC be installed inside the display?
Yes. The OPS slot accepts slot-in PCs, including Intel Atom, Celeron and Core i3, i5 and i7 models. The OPS slot is rated at a maximum of 3.6 A and 58 W. This suits a training centre in Education City or a corporate reception that needs its own computer behind the screen.
How is colour calibrated across a wall of these panels?
Each panel leaves the factory calibrated for gamma, intensity, RGB, uniformity and white point. On site, PC-less calibration works with the MDSVSensor3 USB sensor, and the Display Wall Calibrator software adjusts corner uniformity and white point across the wall. The calibration kit KT-LFD-CC2 is listed as an optional accessory.
Can facilities or IT teams manage many displays from one location?
Yes. NaViSet Administrator 2 manages connected Sharp and legacy devices from a central location. It supports automatic alarm emails and a user-readable log. A facilities team in Doha managing screens across several buildings can monitor status and respond to faults without visiting each site.
Does the display need a PC to play looping content?
No. The built-in media player reads files from microSD and USB storage. It supports JPG and PNG images, and video in MP4, MOV, WMV and MPG formats at up to 1080p at 30 Hz. A museum or retail site can run a looping playlist directly from the display.
What warranty does the PN-UN553V carry?
The display carries a 3-year warranty that includes the backlight. An optional 4th and 5th year warranty extension is available. SmartRooms Qatar supplies the product with professional installation, and the manufacturer's warranty applies to the panel, so ask for the extension options when you request a quote.
How should I plan the wall structure and mounting for several units?
Each panel weighs 28.6 kg and uses a 400 x 400 mm VESA pattern with M6 holes. SmartRooms Qatar provides a free site survey before wall planning, so the structure can be checked before delivery. Purchase orders and LPOs are accepted, and quotations are usually issued within one working day.
