Video Wall Mount PD04VW MFS 46 55

What the Sharp PD04VW MFS 46 55 mount does

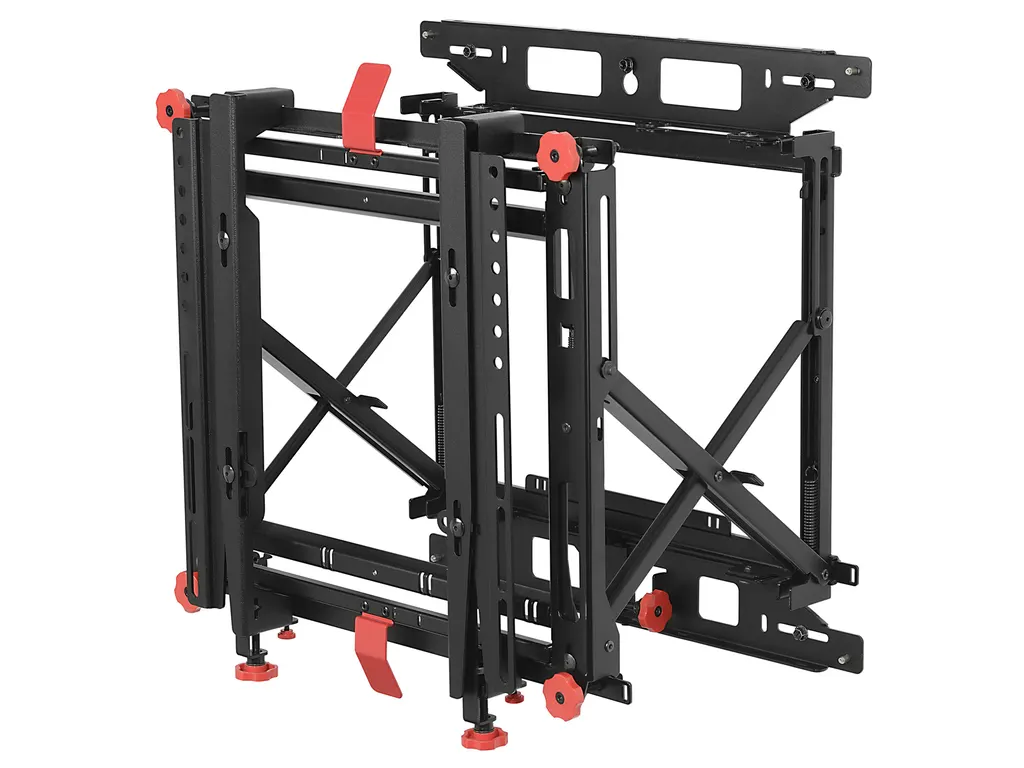

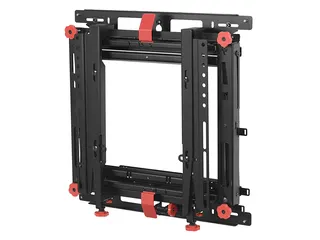

The Sharp PD04VW MFS 46 55 is a universal video wall mount for Sharp displays from 46 to 55 inches, set up for either a single screen or a full video wall. It can be installed in landscape or portrait orientation, uses a 400 x 400 mm VESA pattern and carries a maximum load of 56.8 kg per mount. The mount itself weighs 11.4 kg, so the wall should be checked before the panels arrive.

Front service and fine alignment

A gentle press on the screen engages the quick-release mechanism, giving access to any display in the video wall from the front. Once a panel is in place, tool-less micro-adjustment provides up to 1.5 inches of travel on the x, y and z axes, and the height adjustment range is 38 mm. This matters when a row of panels has to line up edge to edge, because small differences in alignment show quickly across a wide wall.

Key dimensions and ratings

• Recommended display size: 46 to 55 inches
• Frame dimensions (W x H x D): 540 x 540 x 80 to 356 mm
• Minimum depth 80 to 118 mm, maximum extension 356 mm
• Mount weight 11.4 kg; maximum load 56.8 kg
• Certifications: RoHS and UL listed; warranty 5 years

Cable routing and wall setup

Cables move in and out with the display, so cable runs stay neat as panels are adjusted. The Easy Hang Wall Plate works with the Peerless-AV video wall installation app, which helps installers plan the layout. Reusable custom wall spacers remove the need for on-site calculations and shorten installation. The mount places no limit on the number of displays in a configuration. Four connector kits are listed with separate order codes, including CK04UN49S, CK04UN552A, CK04UX552S and CK4UN462A, so confirm the right kit for your display before ordering.

Where it fits in Qatar

A training centre in Msheireb building a three-by-two wall of 55-inch panels for a briefing room can set the grid once with the spacers, then fit each unit with the front-service design. A bank branch in West Bay that wants a single 46-inch display in portrait orientation for queue information can use the same mount in a narrow column beside the teller area. A logistics office in the Industrial Area fitting a control wall needs the wall construction checked before anything is drilled.

The source data does not give an operating temperature range for this mount. For spaces near windows, loading bays or areas outside air conditioning, ask the SmartRooms Qatar team to confirm the environment before installation.

Planning the installation and order

Before ordering, record the display model, the wall construction and the number of units. SmartRooms Qatar offers a free site survey to confirm spacing, fixing points and whether the wall can take the load. The package ships with adapter brackets, the mount and mounting hardware. The package measures 749 x 629 x 127 mm with a shipping weight of 13.6 kg.

Ministries, authorities and schools can order with a purchase order (LPO), and government tenders can be handled through Monaqasat. Send the display model, wall dimensions and quantity, and request a quote from SmartRooms Qatar. Quotations usually follow within one working day.
