Video Wall Mount PD04VW QR 46 55

What the PD04VW QR 46 55 mount does

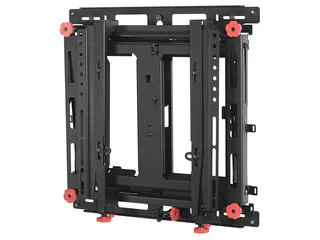

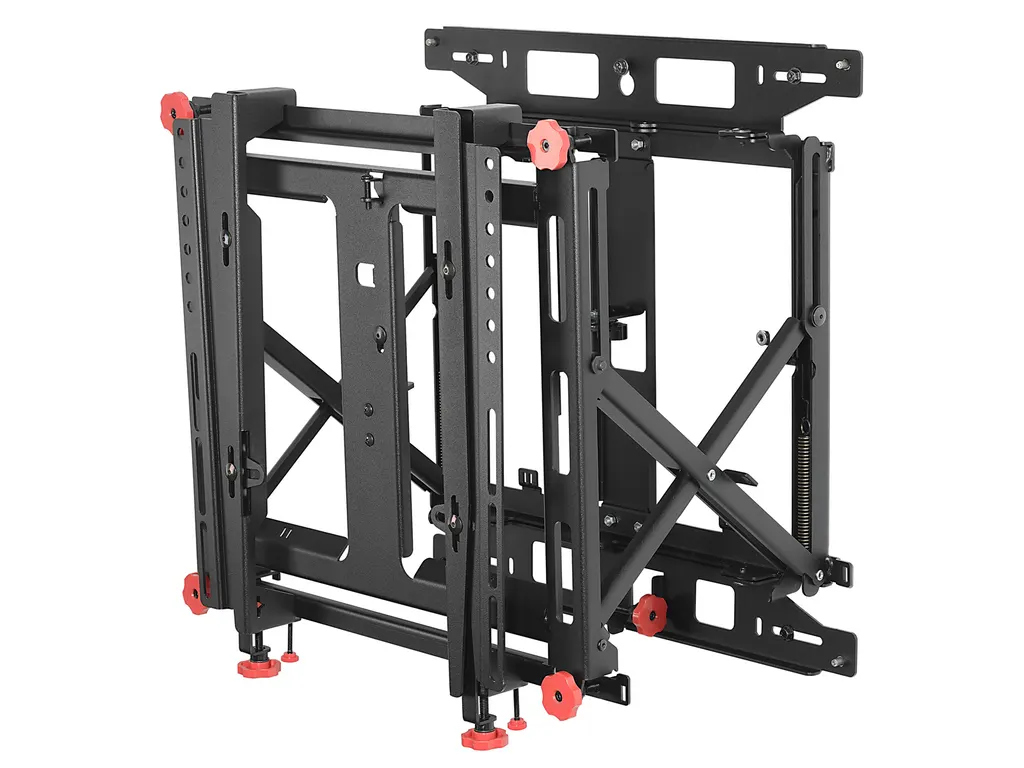

The Sharp PD04VW QR 46 55 is a universal video wall mount designed for 46 to 55-inch displays, and it can be installed in landscape or portrait orientation. Its quick release front service lets a technician press the screen gently to release the mechanism and access one panel in the array without disturbing the others. For organisations running busy walls in Qatar, that means faster fault repair and less disruption to the room.

Order code L5004VW-QR46-55 identifies this accessory. The specification lists it for both single display and video wall installations, so it fits a single screen in a meeting room as well as a larger array.

Facts that matter when you plan the wall

• Load: maximum load capacity of 56.8 kg, with the mount itself weighing 13.2 kg.
• Adjustment: up to 38 mm of tool-less micro-adjustment on the x, y and z axes.
• Depth: 80 to 118 mm minimum depth, extending to 351 mm.
• Footprint: 540 x 540 mm mount dimensions and a 400 x 400 mm VESA pattern.
• Package: 768 x 594 x 92 mm with a 14.5 kg shipping weight.
• Included: adapter brackets, mount and mounting hardware.
• Certifications and warranty: RoHS and UL listed, with a 5-year warranty.

Check these figures against your panel datasheet before ordering, because the recommended size is a guide rather than a guarantee. The mount is listed as compatible with Sharp PN-UN553S and PN-UN553V displays.

Installation features that save time on site

The Easy Hang Wall Plate is compatible with the Peerless-AV video wall installation app, which helps installers plan the layout. Reusable custom wall spacer accessories reduce the measuring needed on site, which shortens the install and lowers its cost. Cables are routed so they travel in and out with the display, keeping the rear of the wall tidy when a panel is serviced. The system supports an unlimited number of displays with no video wall configuration limitation.

Where it fits across Qatar

• A boardroom in West Bay with a single 55-inch panel, where portrait or landscape orientation suits the room layout.
• A control room in Msheireb or Lusail building a video wall, where front service keeps a single faulty screen quick to reach.
• A school hall in Education City or Al Wakrah fitting out a wall of displays, which starts with a site survey.

Planning checklist before you order

Confirm the display model, its weight and its VESA pattern against the mount's 56.8 kg load capacity and 400 x 400 mm pattern. Measure the wall depth, allowing for the 80 to 118 mm minimum and the 351 mm extension, and check that the wall structure can carry the combined weight. The data does not give an operating temperature range for this mount, so for lobbies with glass facing the sun, or areas where temperatures can exceed 45°C, ask the team to confirm the environment before ordering. SmartRooms Qatar offers free site surveys, and quotations are usually provided within one working day.
