Trend TD-46VDF1.8S 46-inch Full HD Video Wall Display

Name: Trend TD-46VDF1.8S 46-inch Full HD Video Wall Display
Brand: Trend
SKU: trend-td-46vdf1-8s
Availability: InStock

Overview

The Trend TD-46VDF1.8S is a 46-inch Full HD video wall panel with a 1.8mm bezel, built to be tiled with matching units into one large display. It is rated at 500 cd/m2 brightness with a 4000:1 contrast ratio and carries a 2-year manufacturer warranty. Inputs include HDMI, DVI, VGA, USB and BNC, and RS232 control passes through two loop-out ports. It suits control rooms, lobbies and retail floors in Doha and across Qatar. Request a quote.

What the TD-46VDF1.8S is built to do

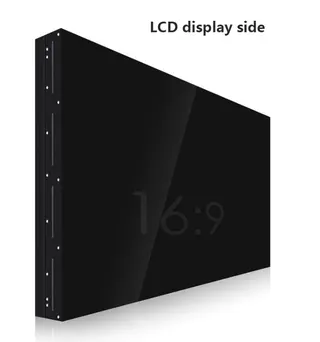

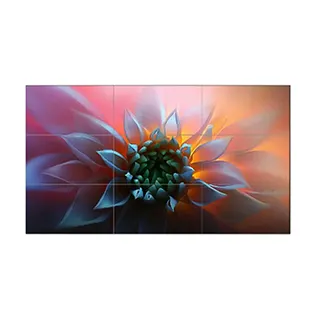

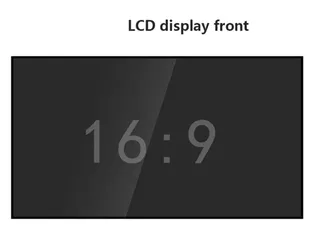

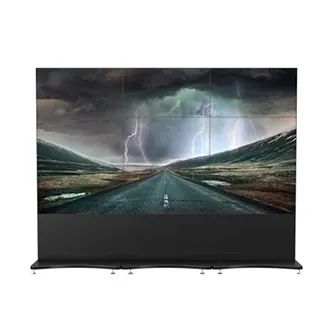

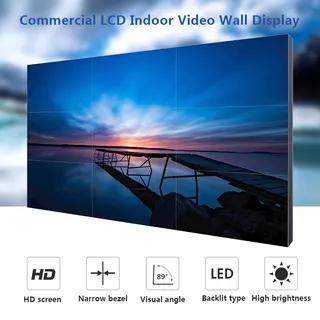

The TD-46VDF1.8S is a 46-inch LED-backlit panel with a 1920x1080 Full HD resolution, designed to be joined with matching units so that several screens act as one picture. Its 1.8mm bezel keeps the gap between neighbouring panels narrow, which matters when content such as floor plans, dashboards or live feeds runs across the whole wall. The splicing function is handled by dedicated hardware, so the display does not need a built-in CPU or operating system to perform it.

Specifications that matter on a video wall

Brightness and contrast: 500 cd/m2 with a 4000:1 contrast ratio.

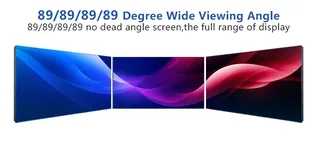

Viewing angle: 89 degrees in each direction (typical), so people seated to the side still see a clear image.
Refresh and response: 60Hz refresh rate and an 8ms response time.
Pixel pitch: 0.248 mm horizontal by 0.745 mm vertical.
Colour: 16.7 million colours.
Power: under 240W in operation and 3W on standby.
Operating range: 0 to 50°C in operation, -20 to 65°C in storage.
Warranty: 2 years from the manufacturer.

Inputs, control and mounting options

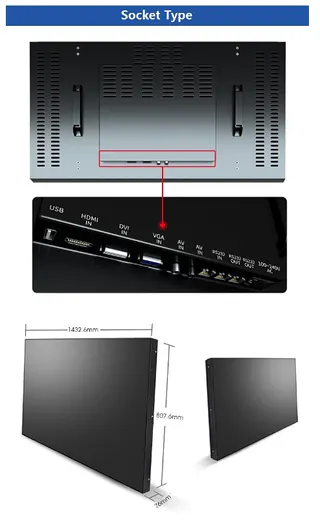

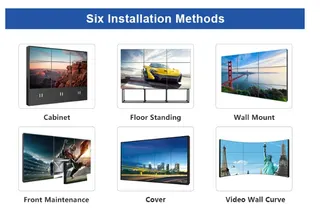

Each panel offers one USB input for upgradeable media playback, one HDMI, one VGA, one DVI and one BNC input that supports NTSC and PAL systems, plus a remote control receiver. HDMI, VGA and DVI accept 1920x1080 at 60Hz, while 4K over HDMI requires customisation according to the manufacturer data. For control, an RS232 input on an RJ45 port connects to two RS232 loop-out ports and a BNC video output, and an open communication protocol allows integration with third-party control systems. Mobile and computer control are supported. The panel can be wall mounted, embedded, floor standing or cabinet mounted, with front maintenance access.

Where it fits in Qatar

A government ministry in Doha could use a three-by-three grid in a briefing room where a team works in Arabic and English side by side, with the wall showing dashboards and maps. A mall or hotel lobby in West Bay or The Pearl could use one panel fed by a USB media player for wayfinding and promotional content, and the 89-degree viewing angle helps people approaching from the side. In a logistics control room near the Hamad International Airport area, panels linked through the loop-out ports let one controller manage the whole wall with fewer separate control cables.

What to plan before you order

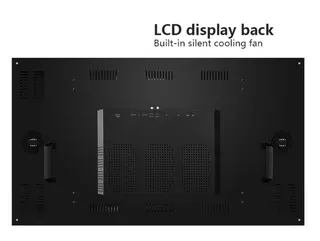

Start with the wall size, panel count and mounting type, because the mounting choice affects ventilation and access. Keep vents clear: the cooling fan switches automatically with temperature, but the room must stay within the 0 to 50°C operating range. Confirm power early. The source data rates the supply at AC 220V 50/60Hz, while Qatar mains run at 240V 50Hz, so the power arrangement should be checked before the purchase order is raised. SmartRooms Qatar offers a free site survey to measure the wall and confirm the layout before installation.

Send your panel count, wall dimensions and mounting preference to the SmartRooms Qatar team and request a quote. Quotations usually arrive within one working day.

Highlights

46-inch Full HD panel, 1920x1080 resolution
1.8mm bezel for narrow seams in multi-panel walls
500 cd/m2 brightness and 4000:1 contrast ratio
HDMI, DVI, VGA, USB and BNC video inputs
RS232 control with two loop-out ports
2-year manufacturer warranty

Plan your video wall

Rows3

Columns3

Wall size about 3.06 × 1.72 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

24 specifications · Source: manufacturer · checked Oct 2026

Quick Details10

Brand Name: Trend Displays
Model Number: TD-46VDF1.8S
Resolution: 1920x1080 FHD
Brightness: 500cd/m2
Contrast: 4000:1
Pixel Pitch: 0.248(H)x0.745(V)mm
Warranty: 2 years
Refresh frequency: 60hz
Mobile/computer control: Yes
Installation: Wall mounted, embedded, floor standing, front maintenance, cabinet

Technical14

Display color: 16.7M
I/O Ports: USB input: (USB x 1) upgradeable video picture media playback HDMI input: (HDMI x 1) support 1920 * 1080 @ 60Hz signal input, downward compatible 4K, customized VGA input: (VGA x 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility DVI input: (DVI x 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility, 4K needs customization BNC input (BNC x 1) support NTSC pal and other systems Remote control receiving input: (debug * 1) remote control signal transmission RJ45 input: (RJ45 x 1) RS232 signal input RJ45 output: (RJ45 x 2) RS232 signal output BNC output:
Power supply: AC220V 50/60Hz
Type: LED Backlight
Viewing Angle: 89/89/89/89(Typ)
Response Time: 8ms
Working Frequency: 60Hz
Power Consumption: Less than 240W
Menu Language: English and other multi-national languages
Size: 46 Inch
Standby Power Consumption: 3W
Bezel Width: 1.8mm
Working Temperature: 0~ 50 C
Storage Temperature: -20~ 65 C

Downloads

1 file from the manufacturer

PDF Datasheets TD-46VDF1.8S_Datasheet.pdf 472 KB

Questions about TD-46VDF1.8S

What is the TD-46VDF1.8S designed for?

The TD-46VDF1.8S is a 46-inch Full HD panel built to be tiled with identical panels into one large video wall. It suits control rooms, operations centres, lobbies and retail spaces where several screens need to show one picture or separate feeds. In Qatar, a facilities team in Doha could use a grid of these panels in a security or traffic control room. Confirm your layout with the SmartRooms Qatar team before ordering.

How narrow is the bezel and does it matter for a wall?

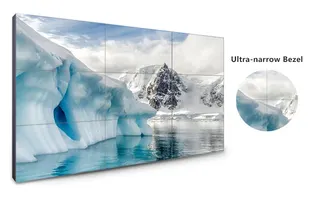

The bezel measures 1.8mm. On a video wall, each panel frame creates a visible line between screens, so a narrower bezel keeps the image looking continuous across the whole grid. The frame is full metal with a slim profile. For a 3 by 3 wall of 46-inch units, the gaps are small enough that maps, dashboards and live feeds read as one surface.

What brightness and viewing angle does the panel offer?

It is rated at 500 cd/m2 brightness with a 4000:1 contrast ratio, a 60Hz refresh rate and an 8ms response time. The viewing angle is 89 degrees in each direction (typical), so staff sitting at the side of a boardroom or a mall walkway still see a clear image. Ask SmartRooms Qatar to check the ambient light, especially near windows facing the Doha sun, before choosing the mounting position.

Which video inputs does it support?

The panel has one each of HDMI, VGA, DVI, USB and BNC inputs, plus a remote control receiver. HDMI, VGA and DVI accept 1920x1080 at 60Hz. The BNC input supports NTSC and PAL systems, and USB allows upgradeable media playback. The data lists 4K over HDMI as a customised option, so ask SmartRooms Qatar to confirm the exact configuration before your order.

How are multiple panels controlled from one system?

Each unit has an RS232 input on an RJ45 port and two RS232 loop-out ports, so control signals can pass from one panel to the next. It also supports an open communication protocol for integration with third-party control systems, and mobile or computer control is available. A control room in Lusail could connect a controller to the first panel in the chain and let the rest follow through the loop-out ports.

Does the wall need a separate computer to split the picture?

The splicing function runs on dedicated hardware with no CPU or operating system inside the display, so the panel does not need a built-in PC for that task. You still need a content source, such as a computer, media player or video feed connected to the inputs. A corporate lobby in Msheireb could run a single media player over USB for signage, while the panels display the content sent to them.

Can it be used in Qatar's summer heat or dusty areas?

The manufacturer rates operating temperature at 0 to 50°C and storage at -20 to 65°C. Qatar summers can push ambient temperatures well above the operating range, so keep the panels in an air-conditioned room or a ventilated enclosed cabinet, with vents kept clear. The cooling fan switches automatically with temperature. Do not place units in open areas or near exposed glazing in dust-prone locations without first confirming the setup with SmartRooms Qatar.

What power does it need, and does it work on Qatar mains?

The data lists AC 220V at 50/60Hz, power consumption below 240W and standby consumption of 3W. Qatar mains supply is 240V at 50Hz, so the power arrangement must be confirmed before ordering, and SmartRooms Qatar can check this with you as part of the quotation. Plan circuit capacity for the full wall: nine panels at up to 240W each draw less than 2.2kW in operation.

What warranty comes with the TD-46VDF1.8S?

The manufacturer provides a 2-year warranty on this model, and products supplied by SmartRooms Qatar are covered by that manufacturer warranty. When you request a quote, ask the team to confirm the warranty details for each unit in your order. For a government tender or a multi-unit project, keep the model number TD-46VDF1.8S on every purchase order so each panel is tracked correctly.

Which menu languages are available?

The menu is listed as English and other multi-national languages. Ask SmartRooms Qatar to confirm the exact language options before ordering, especially if your staff work in Arabic and English side by side. This matters in ministries, schools and hospitals where several teams operate the same display wall. Confirming the language early avoids surprises during commissioning.

How should a school or ministry order several units?

Send one request covering the total panel count, grid size and mounting type, and SmartRooms Qatar will usually provide a quotation within one working day. Schools and government bodies can issue a purchase order (LPO) or take part in tenders, including Monaqasat. Payment is accepted by bank transfer, cheque or purchase order. A free site survey can measure wall dimensions before installation is scheduled.

Can SmartRooms Qatar install the wall and survey the site?

Yes. SmartRooms Qatar supplies the panels, delivers to all eight municipalities of Qatar and arranges professional installation. A free site survey is offered before wall mounting, which helps with a multi-panel grid in spaces such as a hotel ballroom in West Bay, where cabinets, embedded frames and floor stands each need different preparation. Lead times are estimates based on stock and are confirmed with the quotation.
