Trend TD-46VDF3.5S 46-inch Full HD Video Wall Display

Name: Trend TD-46VDF3.5S 46-inch Full HD Video Wall Display
Brand: Trend
SKU: trend-td-46vdf3-5s
Availability: InStock

Overview

The Trend TD-46VDF3.5S is a 46-inch Full HD video wall panel with a 3.5mm bezel, built for tiled walls in control rooms, lobbies and retail spaces. It offers 500 cd/m2 brightness, 4000:1 contrast, 60Hz refresh and an HDMI, DVI, VGA and BNC input set, with RS232 control and output ports. Qatar organisations running continuous displays can request a quote from SmartRooms Qatar.

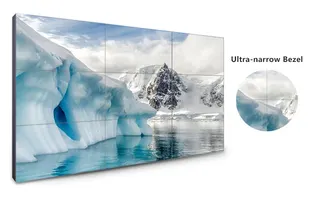

What the 3.5mm bezel means for a tiled wall

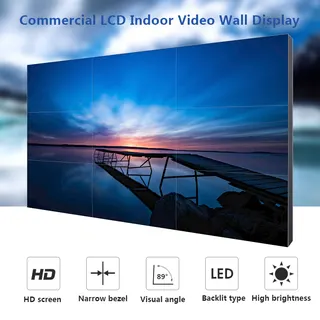

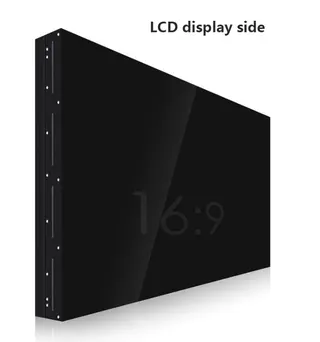

The TD-46VDF3.5S is a 46-inch panel with a 3.5mm bezel, so when several units sit edge to edge the join between screens stays narrow and a dashboard, map or promotional video reads as one picture. Each panel is a 1920x1080 Full HD unit with 16.7 million display colours and an 8ms response time, which suits tiled walls showing dashboards, signage and video.

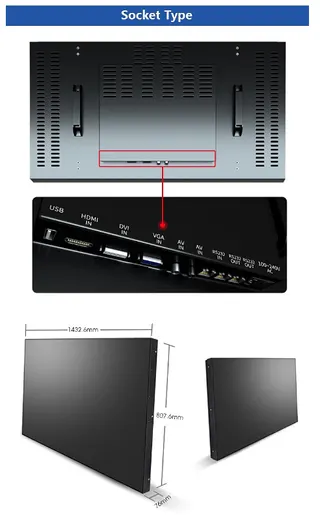

Inputs, control and connecting it to your system

Every panel offers one HDMI input that accepts 1920x1080 at 60Hz, one VGA input, one DVI input and one BNC input for NTSC or PAL video. A USB input supports media playback. For control, the RJ45 input receives RS232 signals, two RJ45 outputs send RS232 signals onward, and the display can be controlled from a mobile device or computer. The source lists 4K support on the HDMI and DVI inputs as a customised option, so confirm any 4K source before you specify it.

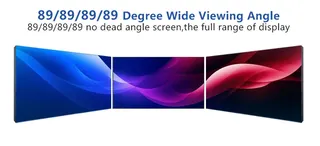

Brightness, viewing angle and continuous running

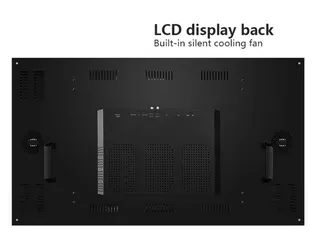

The panel is rated at 500 cd/m2 brightness and 4000:1 contrast, with a viewing angle of 89 degrees in each direction. Its LED backlight and 60Hz refresh frequency suit wall use. Designed for continuous operation, it has a fully silent industrial fan and an automatic temperature switch, which helps in lobbies and control rooms where noise and heat both matter. Power consumption is listed as less than 240W, with 3W in standby.

Where it fits in Qatar

Operations room in the Industrial Area or near Hamad International Airport: a wall of six panels in a climate-controlled room showing live status boards for staff working in shifts.
Shopping mall entrance in West Bay or Al Sadd: a tiled wall for promotions and wayfinding, where the narrow bezel keeps branded visuals uninterrupted.
Hotel lobby in The Pearl or Msheireb: a feature wall for welcome messages and event information, with content played from USB or controlled through RS232.

Planning the installation for Qatar's heat

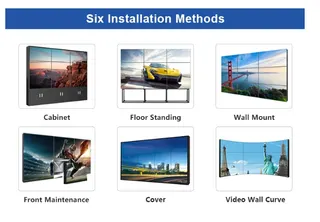

The listed operating range is 0 to 50°C, and the storage range is -20 to 65°C. Summer temperatures in Qatar regularly pass 45°C, so this panel belongs in an air-conditioned room or a cabinet with a planned airflow path, away from windows and direct sun. Mounting options listed are wall mounted, embedded, floor standing, cabinet and front maintenance, so decide early which suits your wall. A free site survey from SmartRooms Qatar can confirm wall load, servicing access and where the power supply should sit before any panel is fixed.

Power is listed as AC 220V 50/60Hz. Qatar mains is 240V at 50Hz, so ask the team to confirm the power arrangement for your site before ordering.

The TD-46VDF3.5S carries the manufacturer's 2-year warranty. To plan a tiled wall of these panels for your building, request a quote from SmartRooms Qatar. Quotations are usually issued within one working day, and we accept purchase orders (LPOs), bank transfer, cheque and government tenders, including Monaqasat.

Highlights

46-inch Full HD (1920x1080) LED-backlit panel
3.5mm bezel for narrow-seam multi-panel video walls
500 cd/m2 brightness and 4000:1 contrast
60Hz refresh, 8ms response, 89-degree viewing angle
HDMI, DVI, VGA, BNC and USB media inputs
RS232 control with RJ45 input and two outputs
Operating range 0 to 50°C; 2-year warranty

Plan your video wall

Rows3

Columns3

Wall size about 3.06 × 1.72 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

24 specifications · Source: manufacturer · checked Oct 2026

Quick Details10

Brand Name: Trend Displays
Model Number: TD-46VDF3.5S
Resolution: 1920x1080 FHD
Brightness: 500cd/m2
Contrast: 4000:1
Pixel Pitch: 0.248(H)x0.745(V)mm
Warranty: 2 years
Refresh frequency: 60hz
Mobile/computer control: Yes
Installation: Wall mounted, embedded, floor standing, front maintenance, cabinet

Technical14

Display color: 16.7M
I/O Ports: USB input: (USB x 1) upgradeable video picture media playback HDMI input: (HDMI x 1) support 1920 * 1080 @ 60Hz signal input, downward compatible 4K, customized VGA input: (VGA x 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility DVI input: (DVI x 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility, 4K needs customization BNC input (BNC x 1) support NTSC pal and other systems Remote control receiving input: (debug * 1) remote control signal transmission RJ45 input: (RJ45 x 1) RS232 signal input RJ45 output: (RJ45 x 2) RS232 signal output BNC output:
Power supply: AC220V 50/60Hz
Type: LED Backlight
Viewing Angle: 89/89/89/89(Typ)
Response Time: 8ms
Working Frequency: 60Hz
Power Consumption: Less than 240W
Menu Language: English and other multi-national languages
Size: 46 Inch
Standby Power Consumption: 3W
Bezel Width: 3.5mm
Working Temperature: 0~ 50 C
Storage Temperature: -20~ 65 C

Downloads

1 file from the manufacturer

PDF Datasheets TD-46VDF3.5S_Datasheet.pdf 494 KB

Questions about TD-46VDF3.5S

What is the TD-46VDF3.5S built for?

It is a 46-inch Full HD video wall panel designed to be tiled with other units. The 3.5mm bezel keeps seams narrow, so a dashboard, map or promotional video runs across several screens without a wide frame breaking the image. The source lists 24/7 operation and wall mounted, embedded, floor standing and cabinet installation, which suits control rooms, shopping malls, hotels and restaurants that run displays all day.

How many panels would a control room wall in Doha need?

The count depends on your wall width, height and the layout you want, so it is worked out during a free site survey rather than guessed. A three-by-two grid of six panels is a practical layout to test for a briefing or operations room in Doha. The 3.5mm bezel keeps gaps small, but the final layout, mounting type and cabling are confirmed with SmartRooms Qatar before you request a quote.

What resolution does each panel give and is it 4K?

Each panel is 1920x1080 Full HD with 16.7 million display colours and a 500 cd/m2 brightness rating. The HDMI input accepts 1920x1080 at 60Hz. The source lists 4K signal support on HDMI and DVI as a customised option rather than standard, so this is not a 4K panel by default. Confirm any 4K content source with SmartRooms Qatar before you specify it.

How do I control the wall from a computer or a control system?

The source lists mobile and computer control along with RS232 control. An RJ45 input receives RS232 signals, two RJ45 outputs send RS232 signals onward, and a remote control receiving input is also fitted. For a multi-panel wall, confirm with your integrator how the RS232 outputs will connect the panels to your control system before ordering.

What inputs and outputs does it have?

Inputs are one USB port for media playback, one HDMI, one VGA, one DVI, one BNC for NTSC or PAL video, one RJ45 for RS232, and a remote receiving input. Outputs are one BNC for NTSC or PAL video and two RJ45 RS232 outputs. The HDMI, VGA and DVI inputs accept 1920x1080 at 60Hz, and the BNC input is listed for NTSC and PAL systems.

Can it run on Qatar's 240V mains power?

The source lists the power supply as AC 220V 50/60Hz, with power consumption under 240W and 3W standby. Qatar mains is 240V at 50Hz with BS 1363 (Type G) sockets. The data does not state operation on 240V, so do not assume compatibility. Ask SmartRooms Qatar to confirm the power input and any adapter arrangement for your site before ordering a multi-panel wall.

Can I put it near a window or in a sun-facing lobby in summer?

Not without planning. The operating temperature range is 0 to 50°C, and summer temperatures in Qatar regularly pass 45°C, which leaves little margin in direct sun. Position it in an air-conditioned room away from windows, or in a cabinet with a planned airflow path. The source gives no outdoor or dust rating, so confirm any open-air or dusty use with SmartRooms Qatar before installation.

Do I need a site survey before mounting a wall of these panels?

A site survey is strongly advisable for any multi-panel wall. SmartRooms Qatar offers free site surveys, and the team can check the wall structure, choose between wall mounted, embedded, floor standing and cabinet installation, and confirm whether front maintenance access is needed. Surveying first avoids fixing a wall in the wrong place or without room for cabling and ventilation.

Is it suitable for a shopping mall in West Bay or Al Sadd?

Yes, for promotional and wayfinding walls at mall entrances and atriums. The 500 cd/m2 brightness and 89-degree viewing angle in each direction help shoppers approaching from several sides, and the 3.5mm bezel keeps branded visuals continuous across panels. Malls run long trading hours and the source lists 24/7 operation, but check ambient light and the mounting environment during your site survey.

Would it suit a hotel lobby in The Pearl or Msheireb?

A lobby suits a feature wall for welcome messages, event information and destination content. Panels can be installed embedded in a wall or in a cabinet, and content can be played from the USB input while RS232 control handles the display. The fully silent industrial fan helps in quiet guest areas. Place the wall away from direct sun in air-conditioned space to stay within the 0 to 50°C operating range.

Can a school or university in Education City or Al Rayyan order it on an LPO?

Yes. SmartRooms Qatar supplies schools, universities and training centres, and accepts purchase orders (LPOs) as well as bank transfer and cheque payment. When a school orders several panels for a corridor or atrium wall, the quotation can list the panels and related items in one document to support your LPO. Lead times are estimates confirmed in the quotation, based on stock.

What warranty and quotation turnaround should I expect?

The source data lists a 2-year warranty for this model, and the product is covered by the manufacturer's warranty. SmartRooms Qatar usually issues quotations within one working day. Lead times are estimates confirmed with your quotation, based on stock, so check timing before setting an installation date with your contractor.
