Name: Trend TD-55VDF1.8L 55-inch Full HD Video Wall Display, 1.8mm Bezel
Brand: Trend
SKU: trend-td-55vdf1-8l
Availability: InStock

Overview

The Trend TD-55VDF1.8L is a 55-inch Full HD video wall panel with a 1.8mm bezel, built for tiled displays in lobbies, control rooms and retail spaces. It offers 500 cd/m² brightness, 4,000:1 contrast, a 60Hz refresh rate and RS232 loop-through for chaining several panels. It suits Qatari malls, hotels and corporate operations centres. Request a quote from SmartRooms Qatar.

What the TD-55VDF1.8L is designed to do

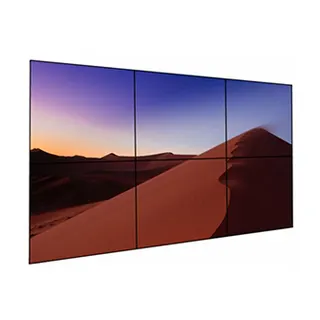

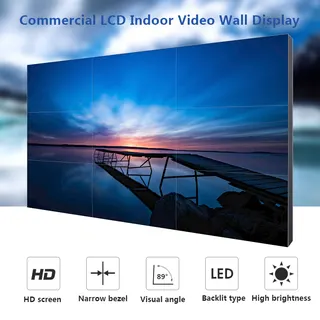

The TD-55VDF1.8L is a 55-inch LED video wall panel from Trend Displays, intended to be tiled with identical panels to form one larger picture. Each panel runs at Full HD resolution of 1920x1080 and has a 1.8mm bezel, so the gap between adjacent screens stays small and a tiled wall reads as a single surface rather than a grid of separate monitors.

Because this is a video wall unit rather than a standalone display, its value depends on configuration: how many panels you use, which source feeds them, and how the panels are linked for control. The facts below are the ones that matter when planning that configuration.

Image and physical specifications that matter

Brightness: 500 cd/m² with 4,000:1 contrast.
Refresh: 60Hz with an 8ms response time.

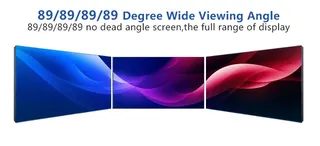

Viewing angle: 89 degrees in each direction (typical).
Pixel pitch: 0.248 mm horizontal by 0.745 mm vertical.
Colour: 16.7 million colours on an LED backlit panel.

Brightness of 500 cd/m² suits indoor spaces with controlled lighting, such as lobbies, control rooms and meeting areas. The 89-degree viewing angle on each side means people walking along a corridor or seated at the edge of a room still see a usable picture.

Connectivity and control for multi-panel walls

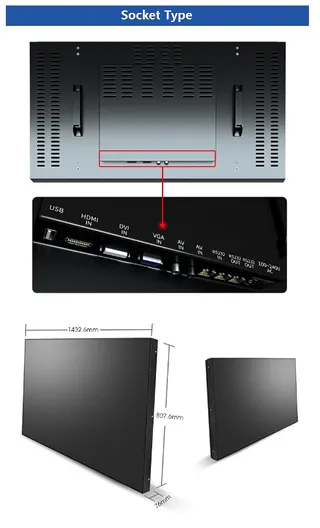

The panel provides one HDMI input, one DVI input, one VGA input, one BNC input supporting NTSC and PAL, and one USB input for media playback. The HDMI input is listed at 1920x1080 at 60Hz, and 4K input is available only as a customised option. For control, it has an RJ45 RS232 input, two RJ45 RS232 outputs for passing control commands along a chain of panels, and a BNC video output for passing the signal onward. It can also be controlled from a mobile device or computer, and the manufacturer describes an open communication protocol for third-party control systems.

Where it fits in Qatar

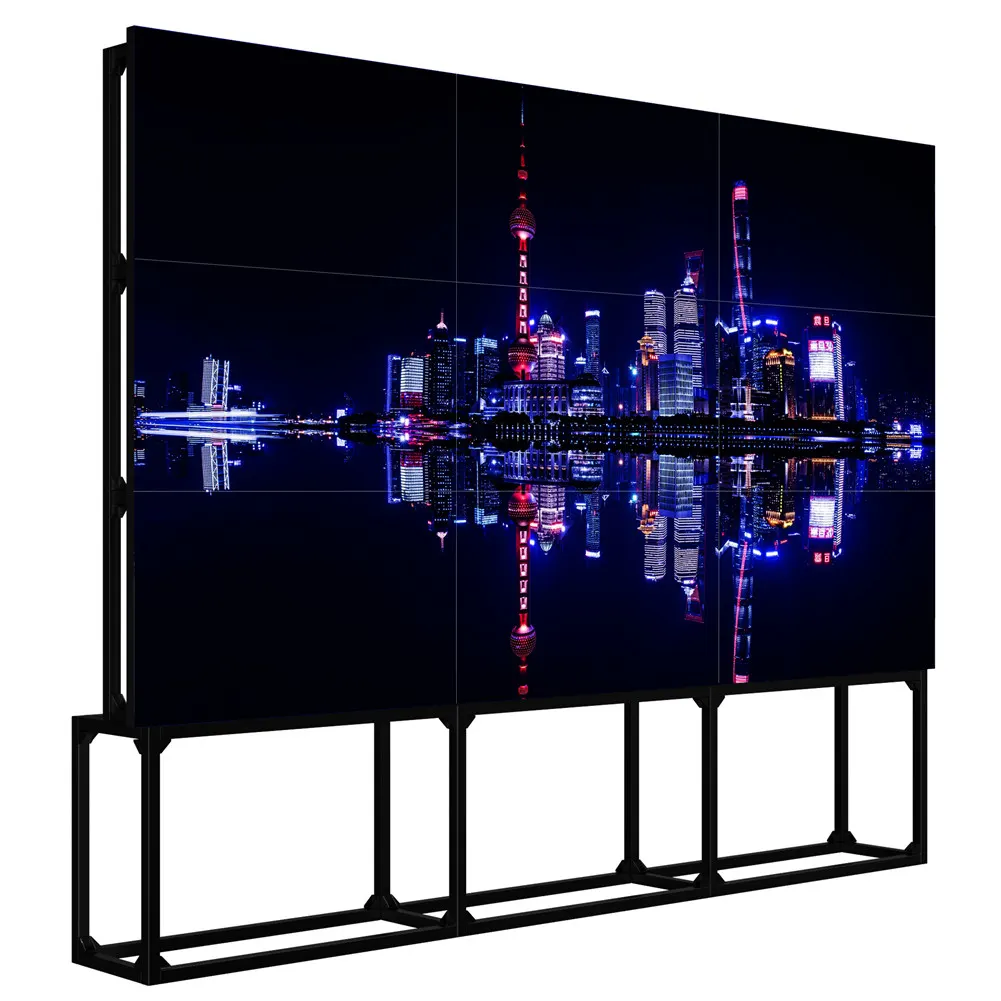

A mall atrium in Doha or West Bay, where a 3 by 3 grid of panels shows promotional content with small joins between screens.
An operations or command room in the Industrial Area or Ras Laffan, where the wall is driven from a central controller over RS232 and runs continuously.
A hotel lobby or event venue in Lusail, where a wall of 55-inch panels forms a feature display for guests and visitors.

What to plan before ordering

Confirm the wall dimensions, panel count and mounting method before ordering. The listed options are wall mounted, embedded, floor standing, cabinet and front maintenance. Front maintenance allows service from the front of the wall, which helps where the rear is not accessible. Qatar summer temperatures can exceed 45°C, so the room should be air-conditioned to keep the panel within its 0 to 50°C operating range; storage range is -20 to 65°C. The source lists AC 220V at 50/60Hz, with power consumption below 240W and standby consumption of 3W. Qatar mains is 240V at 50Hz, so confirm the power arrangement with the SmartRooms Qatar team before installation. The manufacturer's warranty for this model is listed as 2 years.

Send your wall size, panel count and source devices to SmartRooms Qatar and request a quote. We usually return quotations within one working day, deliver to all eight municipalities of Qatar, and can arrange professional installation and a free site survey. Purchase orders and government tenders are accepted.

Highlights

55-inch Full HD panel at 1920x1080 resolution
1.8mm bezel for tiled video wall installations
500 cd/m² brightness and 4,000:1 contrast
RS232 input with two RS232 loop-outs for chained control
Operating range 0 to 50°C; storage range -20 to 65°C
Wall, embedded, floor standing, cabinet and front maintenance installation

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

24 specifications · Source: manufacturer · checked Oct 2026

Quick Details10

Brand Name: Trend Displays
Model Number: TD-55VDF1.8L
Resolution: 1920x1080 FHD
Brightness: 500cd/m2
Contrast: 4000:1
Pixel Pitch: 0.248(H)x0.745(V)mm
Warranty: 2 years
Refresh frequency: 60hz
Mobile/computer control: Yes
Installation: Wall mounted, embedded, floor standing, front maintenance, cabinet

Technical14

Display color: 16.7M
I/O Ports: USB input: (USB x 1) upgradeable video picture media playback HDMI input: (HDMI x 1) support 1920 * 1080 @ 60Hz signal input, downward compatible 4K, customized VGA input: (VGA x 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility DVI input: (DVI x 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility, 4K needs customization BNC input (BNC x 1) support NTSC pal and other systems Remote control receiving input: (debug * 1) remote control signal transmission RJ45 input: (RJ45 x 1) RS232 signal input RJ45 output: (RJ45 x 2) RS232 signal output BNC output:
Power supply: AC220V 50/60Hz
Type: LED Backlight
Viewing Angle: 89/89/89/89(Typ)
Response Time: 8ms
Working Frequency: 60Hz
Power Consumption: Less than 240W
Menu Language: English and other multi-national languages
Size: 55 Inch
Standby Power Consumption: 3W
Bezel Width: 1.8mm
Working Temperature: 0~ 50 C
Storage Temperature: -20~ 65 C

Downloads

1 file from the manufacturer

PDF Datasheets TD-55VDF1.8L_Datasheet.pdf 456 KB

Questions about TD-55VDF1.8L

What is the TD-55VDF1.8L and who is it for?

The TD-55VDF1.8L is a 55-inch Full HD video wall display from Trend Displays, built to be tiled with identical panels into one large picture. It suits organisations that need a uniform image across several screens, such as shopping malls, hotels, corporate operations rooms and control centres. Its design is aimed at multi-panel walls rather than single-screen use.

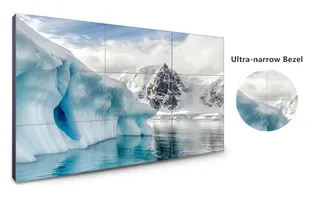

How narrow is the bezel and why does it matter?

The panel has a 1.8mm bezel. On a tiled wall, the bezel is the dark gap between adjacent screens, so a narrower bezel makes the grid less visible when showing photos, maps or moving video. For a 3 by 3 layout in a Doha mall atrium, this keeps the joins between panels small. Confirm the final layout with your installer before ordering.

What resolution does each panel run at, and is 4K supported?

Each panel runs at Full HD 1920x1080. The HDMI input is listed at 1920x1080 at 60Hz. 4K input is available only as a customised option, so ask the SmartRooms Qatar team to confirm before ordering if your content is 4K. Plan your media players and content around the 1920x1080 resolution unless customisation is agreed.

Is 500 cd/m² bright enough for a lobby with daylight in Doha?

The panel is rated at 500 cd/m² brightness with 4,000:1 contrast, which suits indoor spaces with controlled lighting. For a lobby with strong daylight through large glazing, position the wall away from direct sun and consider blinds or shading. The data does not list an outdoor rating, so do not plan this model for open-air or sunlit exterior locations.

How do I control several panels from one controller?

The panel has an RJ45 RS232 input and two RJ45 RS232 outputs, so control commands can pass from one panel to the next along a chain. It can also be controlled from a mobile device or computer. The manufacturer describes an open communication protocol for third-party systems, so confirm the command set with your integrator before ordering.

Which video sources can I connect to the panel?

The panel offers HDMI, DVI and VGA inputs, a BNC input supporting NTSC and PAL, and a USB input for media playback. A BNC video output lets the signal pass to the next display. For a boardroom or event room where a laptop connects over VGA or HDMI, check your cable and adapter needs with the SmartRooms Qatar team during the quotation stage.

Can the panel run continuously in a control room in Qatar?

The panel is described as suitable for 24/7 operation, with power consumption below 240W and standby consumption of 3W. Continuous running in a Qatar operations room also depends on room temperature, so keep the space air-conditioned and within the panel's 0 to 50°C operating range. Ventilation and airflow around the panels should be planned during installation.

What operating temperature does it need during Qatar summers?

The operating range is 0 to 50°C and the storage range is -20 to 65°C. Summer temperatures in Qatar can exceed 45°C, so the panel must be installed in an air-conditioned room to stay within its operating range. The data does not list an outdoor rating, so this model is not planned for open-air installation.

Which mounting options are available for a video wall?

The panel can be wall mounted, embedded, floor standing, installed in a cabinet, or serviced from the front. Front maintenance lets technicians access the panel from the front of the wall, which helps where the rear is not reachable. A site survey is recommended before mounting several panels, especially on walls that must carry the weight of a full grid.

Does the power supply match Qatar's 240V mains?

The source data lists AC 220V at 50/60Hz as the power input. Qatar mains is 240V at 50Hz with BS 1363 (Type G) sockets. Do not assume compatibility from the listed rating; ask the SmartRooms Qatar team to confirm the power arrangement for your site before installation, so the wall is powered correctly from the start.

What warranty comes with the TD-55VDF1.8L?

The manufacturer lists a 2-year warranty for this model. Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. When requesting a quote, state how many panels you need and whether you want installation included, so the warranty coverage and the installation scope can be confirmed together in one quotation.

How should a public school in Qatar order several panels for a media wall?

A school ordering several panels for a hall or media wall can issue a purchase order (LPO) or submit the purchase through a government tender, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Send the panel count, wall size and source devices to SmartRooms Qatar, and a site survey can confirm the mounting and power arrangements before the order is placed.
