Trend TD-55VDF3.5L · Price in Qatar

Name: Trend TD-55VDF3.5L 55-inch Full HD Video Wall Display with 3.5mm Bezel
Brand: Trend
SKU: trend-td-55vdf3-5l
Availability: InStock

Overview

The Trend TD-55VDF3.5L is a 55-inch Full HD video wall panel with a 3.5mm bezel, 500 cd/m2 brightness and 4000:1 contrast, built for tiling into multi-screen walls. It offers HDMI, DVI, VGA, USB and BNC inputs, RS232 control through RJ45 ports, and can be wall mounted, floor standing or installed in a cabinet. It suits control rooms, malls, hotels and corporate lobbies in Qatar that need a clean, narrow-seam display wall.

What the TD-55VDF3.5L is built for

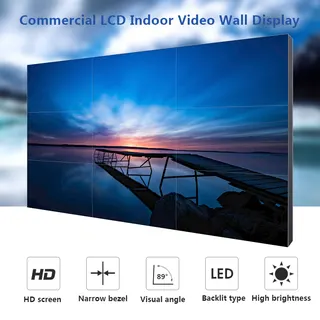

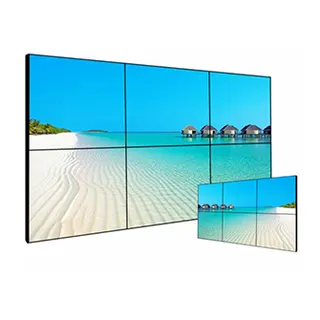

The TD-55VDF3.5L is a 55-inch LED-backlit display with a Full HD resolution of 1920x1080, made for video walls rather than single-screen use. Several panels sit side by side to form one large image, so each unit is judged on brightness, uniformity and how much frame is visible. With 500cd/m2 brightness, 4000:1 contrast and 16.7M display colours, it suits product showcases, wayfinding, live feeds and data dashboards.

Why the 3.5mm bezel matters on a wall

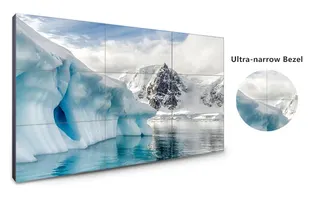

On a tiled wall, the frame between panels is the main visual break. The 3.5mm bezel keeps that gap narrow, so text and footage cross the joins with less interruption. The data also lists a splicing chip design, 3D noise reduction, filtering and deinterlacing, which the manufacturer links to uniform brightness and steady images without flicker. Pixel pitch is listed as 0.248mm horizontal by 0.745mm vertical, so plan the viewing distance around those figures.

Inputs, control and integration

HDMI, DVI and VGA inputs, each listed at 1920x1080 at 60Hz
USB input for media playback, plus one BNC input supporting NTSC and PAL
RJ45 RS232 input, two RJ45 RS232 outputs and a BNC output
Remote control receiving input and mobile or computer control

The panel has no built-in CPU or operating system, so content comes from an external player or computer. The manufacturer lists a 2-year warranty. Our team will confirm the connection layout for your source devices before the order is placed.

Where it fits in Qatar

A hotel lobby in West Bay might tile four panels behind reception to show welcome messages, event schedules and wayfinding, fed from a media player in a back-office room. A shopping mall in Lusail could use a larger array in a central atrium for promotions, with panels kept away from direct sunlight through glazing. A monitoring room in Doha, or a site control room in Mesaieed, benefits from the RS232 control path and 60Hz refresh when operators follow several feeds at once.

Planning power, heat and mounting

Each unit is rated at less than 240W, with 3W standby consumption, and the listed supply is AC 220V 50/60Hz. Qatar mains is 240V 50Hz, so SmartRooms Qatar must confirm power arrangements before ordering. Multiply the per-unit rating by the number of panels when sizing circuits. The working range is 0 to 50 C and the storage range is -20 to 65 C, so keep the wall in an air-conditioned indoor space and confirm ventilation for any cabinet build. Listed installation options are wall mounted, embedded, floor standing, front maintenance and cabinet. For a heavy array, book a free site survey so wall loading and access are checked first.

Request a quote from SmartRooms Qatar for the TD-55VDF3.5L. Send your panel count, room type and layout, and we will return a quotation usually within one working day.

Highlights

55-inch Full HD (1920x1080) LED-backlit video wall panel
3.5mm bezel for narrow joins across tiled walls
500cd/m2 brightness and 4000:1 contrast
HDMI, DVI, VGA, USB and BNC inputs with RS232 control
Wall mounted, embedded, floor standing or cabinet installation
2-year warranty listed by the manufacturer

Plan your video wall

Rows3

Columns3

Wall size about 3.65 × 2.05 m · 9 panels

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

24 specifications · Source: manufacturer · checked Oct 2026

Quick Details10

Brand Name: Trend Displays
Model Number: TD-55VDF3.5L
Resolution: 1920x1080 FHD
Brightness: 500cd/m2
Contrast: 4000:1
Pixel Pitch: 0.248(H)x0.745(V)mm
Warranty: 2 years
Refresh frequency: 60hz
Mobile/computer control: Yes

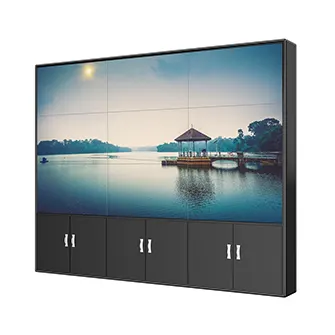

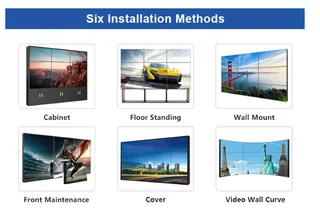

Installation: Wall mounted, embedded, floor standing, front maintenance, cabinet

Technical14

Display color: 16.7M

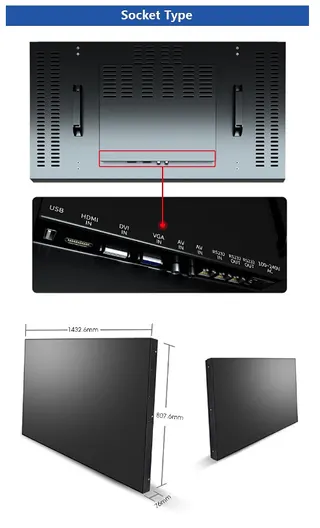

I/O Ports: USB input: (USB x 1) upgradeable video picture media playback HDMI input: (HDMI x 1) support 1920 * 1080 @ 60Hz signal input, downward compatible 4K, customized VGA input: (VGA x 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility DVI input: (DVI x 1) support 1920 * 1080 @ 60Hz signal input and downward compatibility, 4K needs customization BNC input (BNC x 1) support NTSC pal and other systems Remote control receiving input: (debug * 1) remote control signal transmission RJ45 input: (RJ45 x 1) RS232 signal input RJ45 output: (RJ45 x 2) RS232 signal output BNC output:
Power supply: AC220V 50/60Hz
Type: LED Backlight
Viewing Angle: 89/89/89/89(Typ)
Response Time: 8ms
Working Frequency: 60Hz
Power Consumption: Less than 240W
Menu Language: English and other multi-national languages
Size: 55 Inch
Standby Power Consumption: 3W
Bezel Width: 3.5mm
Working Temperature: 0~ 50 C
Storage Temperature: -20~ 65 C

Downloads

1 file from the manufacturer

PDF Datasheets TD-55VDF3.5L_Datasheet.pdf 451 KB

Questions about TD-55VDF3.5L

What is the Trend TD-55VDF3.5L designed for?

It is a 55-inch Full HD panel built for video walls, digital signage and multi-screen presentations. Its 3.5mm bezel lets several units sit side by side with narrow joins, so one image can run across the whole array. It suits control rooms, retail floors, hotel lobbies and corporate reception areas where content must cover a large area without visible gaps.

Can I build a video wall in a Lusail shopping mall atrium with this panel?

Yes. The data lists suitability for commercial settings including shopping malls, specialty stores, hotels and restaurants, and the 3.5mm bezel suits tiled layouts. Plan the array around sightlines from walkways, and keep panels away from direct sunlight through glazing. A free site survey before quotation lets the team check layout, content plan and mounting points.

What brightness, contrast and refresh rate does it offer?

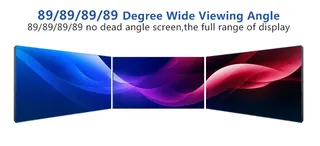

The panel is rated at 500cd/m2 brightness and 4000:1 contrast, with a 60Hz refresh frequency and 8ms response time. Viewing angles are listed at 89 degrees in each direction, and display colour is 16.7M. These figures suit lobbies, meeting spaces and monitoring rooms under normal indoor lighting. For areas with strong daylight, discuss placement with SmartRooms Qatar before ordering.

Is it suitable for a window-facing lobby in Doha during summer?

The listed working temperature is 0 to 50 C, and the data gives no outdoor or weather rating. Qatar summer heat can climb well above that range near glazing, so place the panel in an air-conditioned indoor space away from direct sun and heat sources. Ask SmartRooms Qatar to confirm your site environment before ordering, especially at entrances exposed to dust.

Which video inputs and outputs are included?

The panel has one HDMI input, one DVI input and one VGA input, each listed at 1920x1080 at 60Hz. It also has one USB input for media playback, one BNC input supporting NTSC and PAL, and an RJ45 RS232 input. Outputs are one BNC output and two RJ45 RS232 outputs. The data lists 4K over HDMI as a customised option, so confirm any 4K requirement with our team.

How is the display controlled, and can several panels be linked?

The data lists mobile or computer control, remote control receiving and RS232 control through RJ45 ports. One RS232 input and two RS232 outputs allow control signals to pass from panel to panel within a wall. Confirm your control system and cabling plan with SmartRooms Qatar before installation so the wall can be commissioned without rework.

Does the panel have a built-in media player or operating system?

No. The listed design has no CPU or operating system, so content must come from an external player, PC or signal source. The USB input is listed for media playback, which suits simple looping content. For interactive or networked content, plan a separate media player and check that its signal formats match what the panel accepts.

Can the TD-55VDF3.5L be recessed into a school corridor wall?

The listed installation options include embedded and cabinet mounting, alongside wall mounted and floor standing. Front maintenance is also listed, which helps when rear access is limited in a recessed or cabinet build. For a school corridor fit-out, measure the recess, allow for ventilation, and book a free site survey so the installer checks the opening before panels arrive.

What power does it need, and does it work with Qatar's 240V supply?

The data lists an AC 220V 50/60Hz input, power consumption below 240W and standby consumption of 3W. Qatar mains is 240V 50Hz, which differs from the listed input voltage, so SmartRooms Qatar must confirm power arrangements before ordering. For circuit planning, multiply the per-unit rating by the number of panels in your wall.

How would a hotel lobby in West Bay use this panel?

A hotel lobby might tile four panels behind reception to show welcome messages, event schedules and wayfinding, fed from a media player in a back-office room. The narrow 3.5mm bezel keeps the wall readable across joins, and 16.7M colour display suits branded visuals. Schedule a site survey first to check wall load, cable routes and sightlines from the entrance.

Can it serve as a monitoring wall in a control room in Doha?

Yes, a monitoring wall is a typical use, with several panels showing different feeds from one control room. The 60Hz refresh rate, the RS232 control path and the BNC input supporting NTSC and PAL give operators flexibility. Request a quotation with a layout drawing, and send your purchase order or tender reference if the purchase runs through a government procurement process.

What warranty applies and how do we order?

The manufacturer lists a 2-year warranty for the TD-55VDF3.5L. SmartRooms Qatar supplies it by quotation: send your panel count, layout and room type, and the team usually returns a quotation within one working day. We accept purchase orders, bank transfer and cheque, and we handle government tenders, including those on Monaqasat.
