10-inch I-Series 5 with Android
Elo 10-inch I-Series 5 Touchcomputer with Android 14 for Digital Signage and Self-Service
- Screen size
- 10.1'' diagonal
- Resolution
- 1920 x 1200 @ 60Hz
- Brightness
- LCD Panel: 450 nits
- System
- Android 14 with Google Play…
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Elo 10-inch I-Series 5 is a fixed touch computer that combines a 10.1-inch, 1920 x 1200 touchscreen with Android 14, a Qualcomm QCS6490 processor, 8GB RAM and 64GB storage in one compact housing. Four Edge Connect ports, optional Power-over-Ethernet and a built-in VESA mount suit reception desks, visitor check-in, menu boards and order points across Doha and beyond.
A touch computer built around one purpose
The Elo 10-inch I-Series 5 combines a 10.1-inch active matrix LCD and its computing hardware in a single fixed unit, so there is no separate PC to hide behind a counter. The 16:10 panel renders 1920 x 1200 pixels and accepts touch input through its projected capacitive layer. Because the unit runs Android 14, the same hardware can be set up as a menu board, a visitor check-in point, an order terminal or a room booking panel, with the software tailored to that job.
Specifications that matter when you compare models
- Processing: Qualcomm QCS6490 with 8GB RAM and 64GB storage.
- Display: 450 nits typical panel brightness, 900:1 contrast ratio and 160 degree total viewing angles.
- Touch: 10-point projected capacitive touch that still responds through up to 6 mm glass or 3 mm plastic, with up to two touches in that case.
- Connectivity: 802.11a/b/g/n/ac/ax wireless, Bluetooth 5.2, Gigabit Ethernet, a USB 3.0 port and a USB-C output.
- Sensing and audio: 8MP autofocus camera, two digital microphones and two 2W speakers.
- Size and weight: 252.9 mm x 169.0 mm x 22.1 mm, 0.7 kg without packaging.
Edge Connect expands the unit without rebuilding it
Four micro-USB 2.0 Edge Connect ports run along the edge of the housing. One port supplies up to 1.2A and the other three up to 500mA, so check each accessory's power draw against the port it will use. The manufacturer lists 2D barcode scanners, a magnetic stripe reader, a fingerprint scanner, a webcam, a speaker bar, a status light, an RFID reader, EMV payment cradles and a 7-inch Elo Pay unit as options.
Where it fits in Qatar
- A clinic in Al Sadd runs a patient check-in point at reception, with a barcode scanner on an Edge Connect port to speed up appointment lookups.
- A private school in Al Wakrah mounts units beside classroom doors for room booking and visitor sign-in, with content managed centrally rather than updated by hand at each door.
- A serviced apartment building in The Pearl places a counter-top unit in an air-conditioned lobby to show building services, local directions and event notices.
Planning the installation
The unit has a built-in VESA 75mm mounting pattern, and the accessory range includes a wall mount kit, tabletop stands, a floor stand and pole mounts, so the choice depends on where people will stand. Its operating range is 0 to 40 degrees Celsius with 20 to 80 percent humidity. That makes it a poor fit for entrances or outdoor positions that face summer heat above 45 degrees, and it should sit in air-conditioned space. Power-over-Ethernet needs the optional Elo PoE device and a PoE-capable network. The power brick accepts 100-240 VAC at 50-60 Hz, but the box includes North American and European cables, so confirm the plug arrangement for BS 1363 sockets before ordering. Free site surveys are available to check wall positions and cable routes.
Tell us the number of units, the mounting style and whether you need PoE, and request a quote. Quotations usually follow within one working day.
Highlights
- 10.1-inch 1920 x 1200 touchscreen with 10-point projected capacitive touch
- Android 14 with Qualcomm QCS6490, 8GB RAM and 64GB storage
- Four micro-USB 2.0 Edge Connect ports for scanners, webcams and payment peripherals
- Gigabit Ethernet, 802.11ax Wi-Fi and Bluetooth 5.2 connectivity
- Optional Power-over-Ethernet module and built-in VESA 75mm mount
- Operating range 0 to 40 degrees Celsius, 20 to 80 percent humidity
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
45 specifications · Source: manufacturer · checked Oct 2026
Technical45
- Part Number(s)
- Black - E539154 White - E539346
- Enclosure Color
- White or Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Touch Thru
- Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
- Processor
- Qualcomm Snapdragon QCS6490
- Memory (RAM)
- 8GB
- Storage
- 64GB
- OS
- Android 14 with Google Play Services and EloView content deployment and management Planned upgrade to Android 16 and Android 18 available with OS 360 subscription
- Diagonal Size
- 10.1'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:10
- Active Area
- 8.54" x 5.34" / 217 mm x 136 mm
- Resolution
- 1920 x 1200 @ 60Hz
- Number of Colors
- 8-bit (16.7 million)
- Brightness (typical)
- LCD Panel: 450 nits TouchPro PCAP: 387 nits
- Response Time-total (typical)
- 30 msec
- Contrast Ratio
- 900:1
- Viewing Angle
- Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
- Peripheral Mounting
- 4x micro-USB 2.0 Elo Edge Connect ports Support for 1.2A on one port and 500mA for the remaining three ports
- I/O Ports
- 1x USB 3.0 support (900mA) Type C USB output* Micro SD slot GPIO Ethernet 1x LAN (Gigabit) DC in *When using the standard 65W power brick, USB-C can support up to 15W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details
- Webcam
- 8MP, Max Resolution: 3264x2448 30fps, Auto Focus
- Wireless
- 802.11a/b/g/n/ac/ax + Bluetooth 5.2
- Audio Ports
- 2x built-in Digital Microphones
- Speakers
- 2x 2W
- Power Supply
- AC input voltage: 100-240 VAC Input frequency: 50-60 Hz
- Power Consumption (Typical)
- On: 6.0W Off: 0.2W Sleep: 2.0W
- Power Over Ethernet (PoE)
- Supported via Elo PoE Device PN: E669163 Reference the I-Series 5 user guide for details.
- Dimensions
- 10.0" x 6.7" x 0.9" / 252.9 mm x 169.0 mm x 22.1 mm
- Shipping Box Dimensions
- 12.6" x 6.0" x 9.8" / 320 mm x 150 mm x 235 mm
- Weight (Unpackaged)
- 1.54 lbs / 0.7 kg
- Weight (Packaged)
- 3.96 lbs / 1.8 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 50°C / -4°F to 122°F
- Humidity
- Operating: 20% to 80% Storage: 10% to 90%
- Regulatory approvals and declarations
- UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) BSMI/NCC (Taiwan) KCC (Korea) CCC/SRRC (China) NOM (Mexcio) United Kingdom UKCA
- Supported Countries
- Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil
- Real-Time Clock
- lithium coin cell battery
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- VESA 75mm
- Warranty
- 2-year
- Extended Service Options
- 3 year OS 360 - Elo P/N: E897877 4 year OS 360 - Elo P/N: E898079 5 year OS 360 - Elo P/N: E898282 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Cov
- OS Support
- Bi-monthly Android security updates available with Elo OS 360 package.
- Sealability
- Touchscreen sealed to LCD
- What's in the Box
- I-Series 5 North American Power Cable European Power Cable 1x Power Brick Quick Install Guide Screws for cable cover door (located in the power/Ethernet bay)
- Optional Peripherals
- Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047 POE Module Kit - Elo P/N: E669163 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 Webcam - Elo P/N: E201494 Expansion Module – Elo P/N: E80950
- Stands, Mounts & Kits
- Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104 Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077 Z20 Stand for 10'' I-Series - Elo P/N: E554932 Z20 Stand for 15'' I-Series - Elo P/N: E767356 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm V
Downloads
0 files from the manufacturerNo downloadable files are listed for this model yet. Ask us and we will send the datasheet.
Questions about 10-inch I-Series 5 with Android
What is the Elo 10-inch I-Series 5 used for?
It is a fixed touch computer for signage, point-of-sale, self-service and automation controls. In Doha it suits a reception desk, a visitor check-in point or a wall-mounted room booking panel, where a single compact unit needs to show content and accept touch input without a separate PC.
Which part number should I order for black or white?
The black enclosure is part number E539154 and the white enclosure is part number E539346. Both share the same 10.1-inch display, Qualcomm QCS6490 processor, 8GB RAM and 64GB storage, so choose the colour that matches the counter, wall or furniture where the unit will sit.
What processor, memory and storage does it have?
It uses a Qualcomm Snapdragon QCS6490 processor with 8GB RAM and 64GB storage, running Android 14 with Google Play Services and EloView content management. The manufacturer also describes a planned upgrade path to Android 16 and Android 18 through its OS 360 subscription.
Can it run outdoors or at a sun-facing entrance in Doha?
No. The operating range is 0 to 40 degrees Celsius, and Qatar summers regularly exceed 45 degrees. Install it indoors in air-conditioned space, away from direct sunlight and glass that heats up, and confirm the exact position with the SmartRooms Qatar team before you request a quote.
How many peripherals can connect to the Edge Connect ports?
There are four micro-USB 2.0 Edge Connect ports. One supplies up to 1.2A and the other three up to 500mA. Options include barcode scanners, a magnetic stripe reader, a fingerprint scanner, a webcam, a speaker bar, an RFID reader and EMV cradles for payment at a counter.
Can it be powered over Ethernet?
Yes, through the optional Elo PoE device, part number E669163, on a PoE-capable network. This removes the need for a separate power drop at a wall or counter. Check the I-Series 5 user guide for installation details, and confirm your switch supports PoE before ordering the module.
Is it suitable for a clinic check-in queue in Al Sadd?
It can work well for a check-in or appointment-lookup point at reception. The 10.1-inch touchscreen supports 10 touch points, and a barcode scanner or card reader can connect through an Edge Connect port. Position it in the air-conditioned waiting area, away from the entrance, to stay within its operating range.
Will it work for visitor sign-in at a private school in Al Wakrah?
A unit beside each classroom or admin office can handle room booking and visitor sign-in. The built-in camera, microphones and two 2W speakers support basic video or audio tasks, and Wi-Fi 6 (802.11ax) and Gigabit Ethernet give reliable connectivity. Plan cable routes and mounting heights during a free site survey.
How is it mounted on a wall or counter?

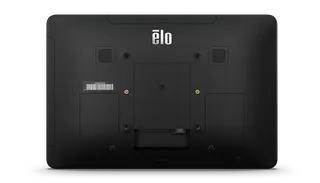

The rear has a built-in VESA 75mm pattern. Accessories include a wall mount kit for 75mm or 100mm VESA, a shelf mount bracket, a floor stand, pole mounts in 6, 12 and 18 inch lengths, and short or flip tabletop stands. Choose the mount based on viewing height and whether the unit must be easy to reach.
What power supply and plug does it need in Qatar?
The power brick accepts 100-240 VAC at 50-60 Hz, which covers Qatar's 240 V, 50 Hz mains. The box includes North American and European power cables, so confirm the plug type for BS 1363 (Type G) sockets with the SmartRooms Qatar team when you request a quote, to avoid delays at installation.
How is a group of units managed remotely?
EloView lets you deploy and manage a network of Android-powered Elo devices remotely, and Google Mobile Services support lets you adjust settings and push apps. The manufacturer states these devices are built to meet Google CTS verification, which helps when a school, clinic or hotel runs several units from one administrator.
What warranty applies and what can be extended?
The standard warranty is two years. Extended options are listed for three, four and five years, with and without advance unit replacement, and OS 360 packages extend Android updates and bi-monthly security updates. Ask for the exact option codes in your quotation so the cover matches your deployment.
